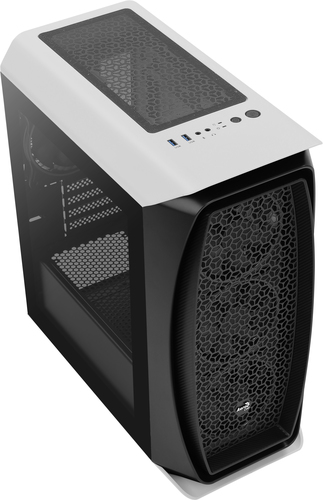

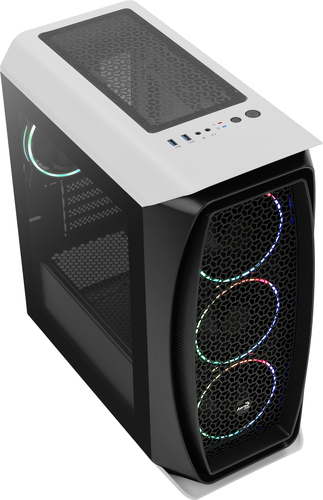

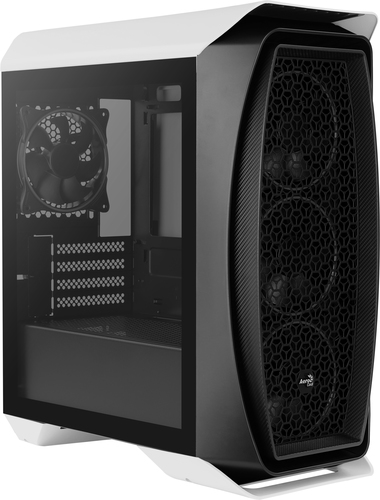

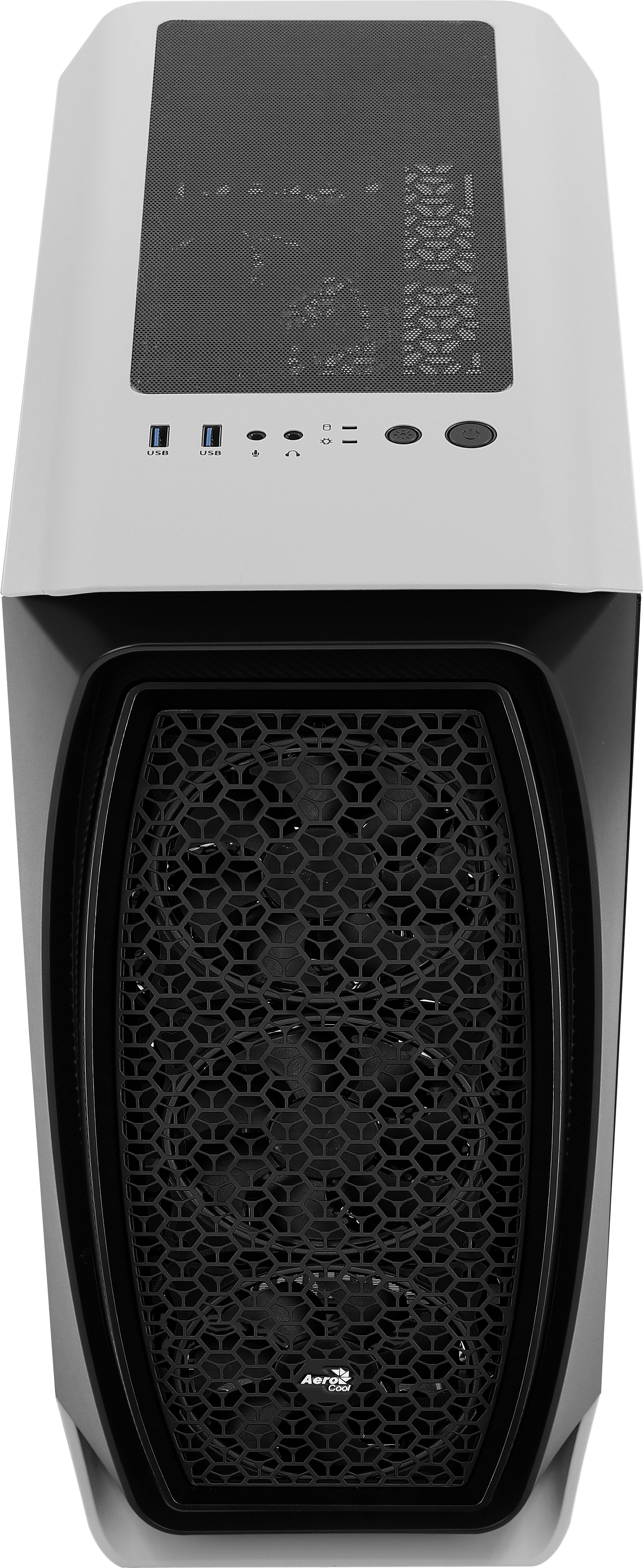

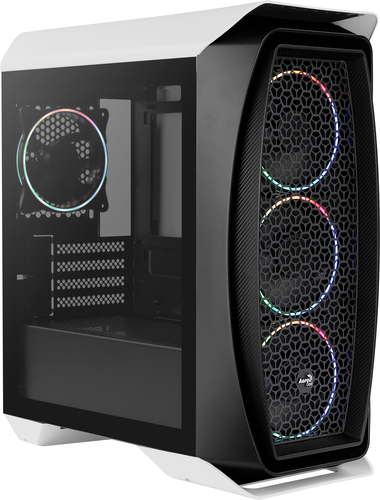

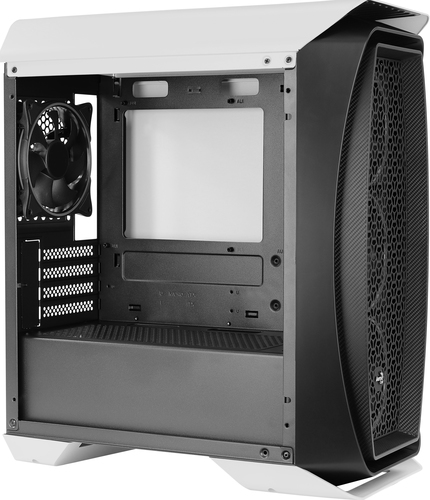

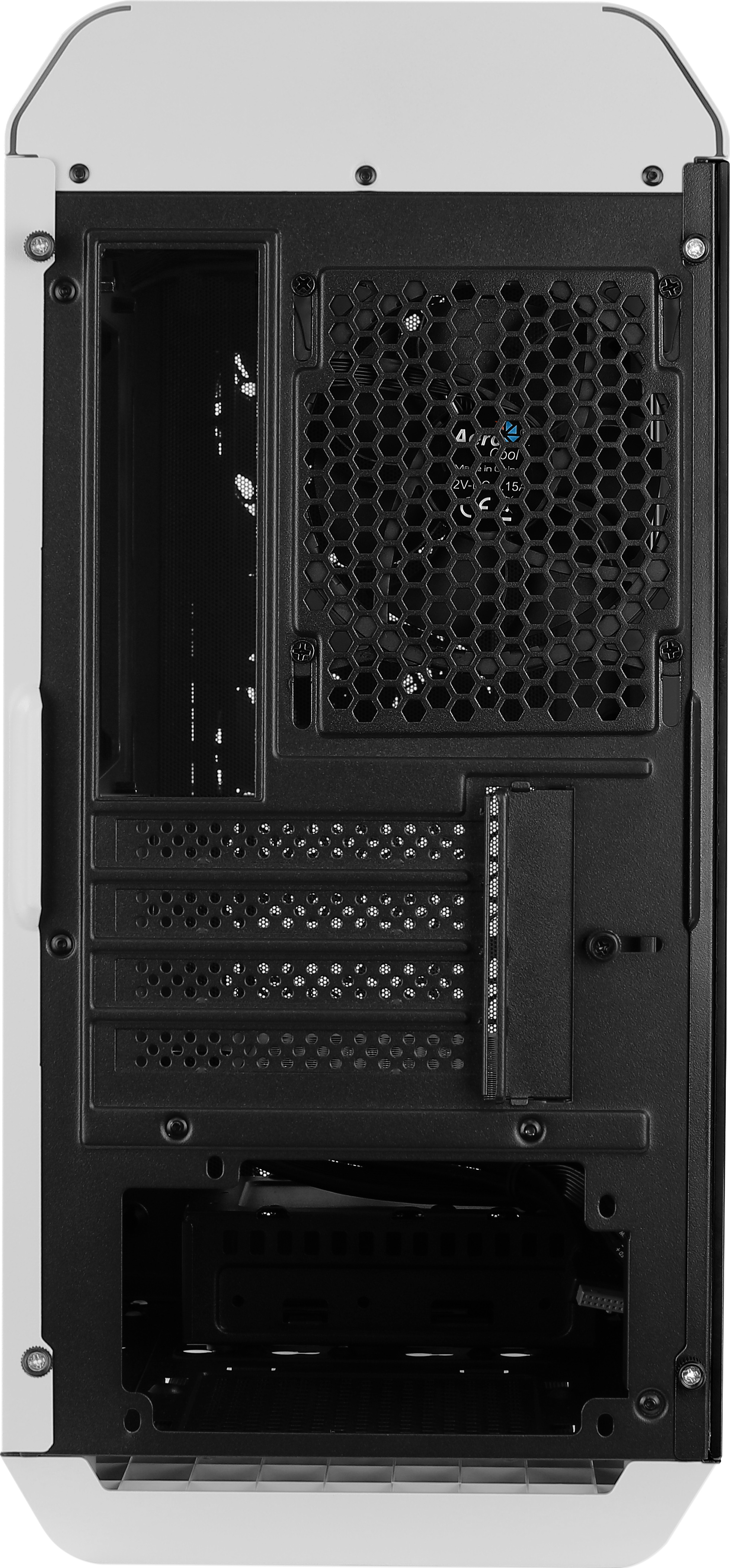

Aero One Mini Eclipse
Model Aero One Mini EclipsePart no. AEROONEMINIECLIPWHEAN 4710562752410
43 specifications
- TypeMini Tower
- Weight5.65 kg
- ColourWhite
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 5.65 kg
- Colour
- White
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Brand
- Aerocool
- Category
- Computer Case
- Model
- Aero One Mini Eclipse
- Part numbers
- AEROONEMINIECLIPWH, AEROONEMINIECLIPBK
- EAN / UPC
- 4710562752410, 4710562752403
- Also known as
- Aerocool Aero One Mini Eclipse Mini Tower White
Specifications
43 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC |
| Product colour | White |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Front |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum graphics card length | 32.7 cm |
| Maximum PSU length | 16.6 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|

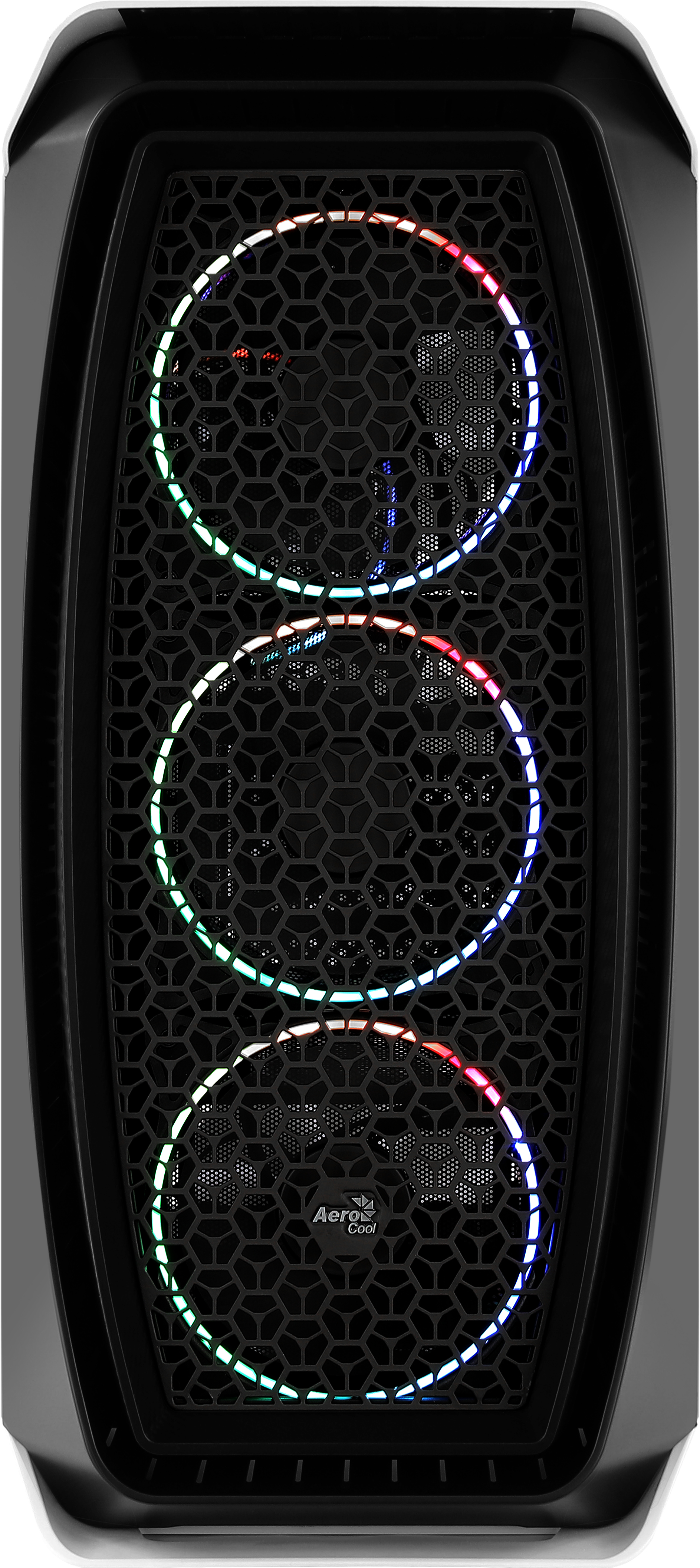

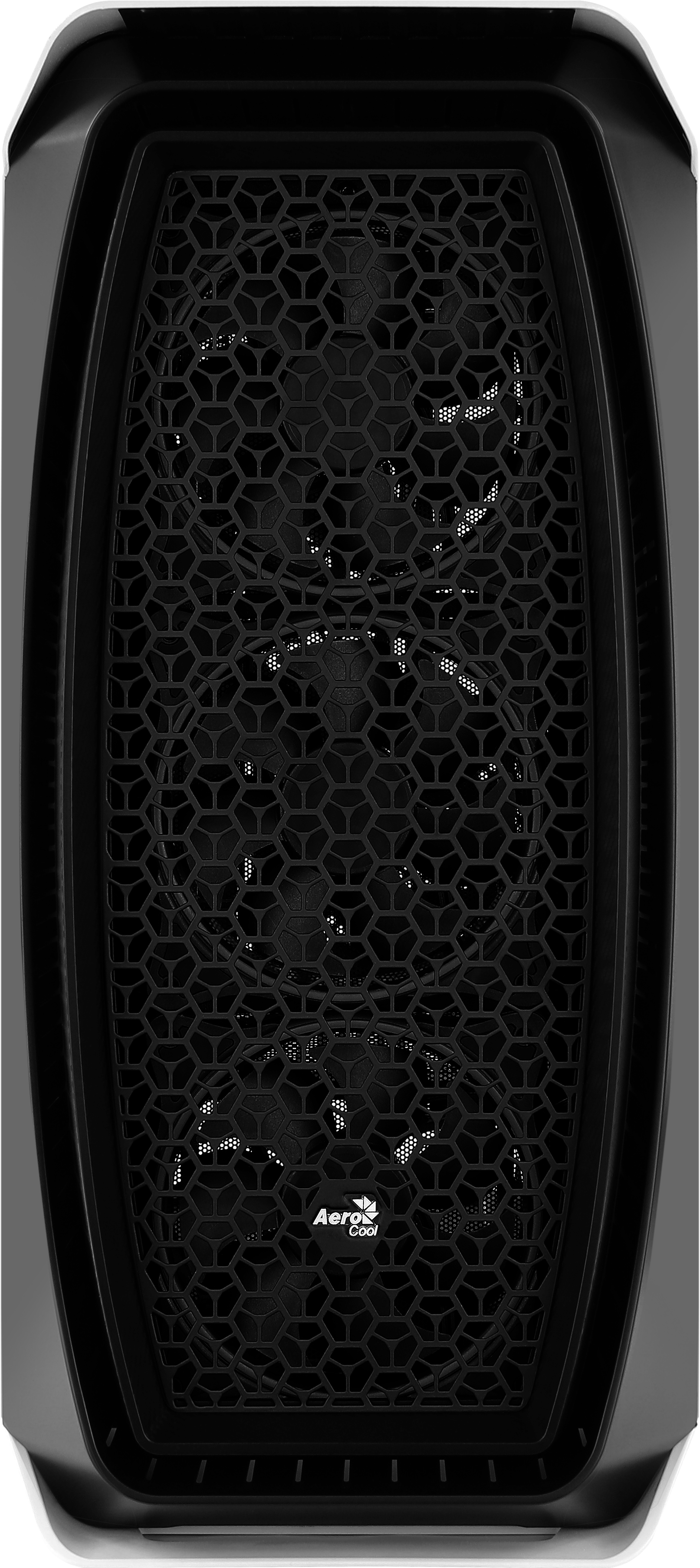

| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 403 mm |
| Height | 459 mm |
| Weight | 5.65 kg |
| Material thickness | 0.7 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 12 cm |
