AI Pro 100 Workstation
Model AI Pro 100 WorkstationPart no. AB125801EAN 8436617920639
58 specifications
- Noise24.3 dB
- TypeTower
- Weight9.8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
Overview
- Noise
- 24.3 dB
- Type
- Tower
- Weight
- 9.8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Brand
- ABYSM
- Category
- Computer Case
- Model
- AI Pro 100 Workstation
- Part number
- AB125801
- EAN / UPC
- 8436617920639
- Also known as
- ABYSM AI Pro 100 Workstation
Specifications
58 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 3 |
| Number of storage drives supported | 8 |
| Number of expansion slots | 9 |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 43 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |

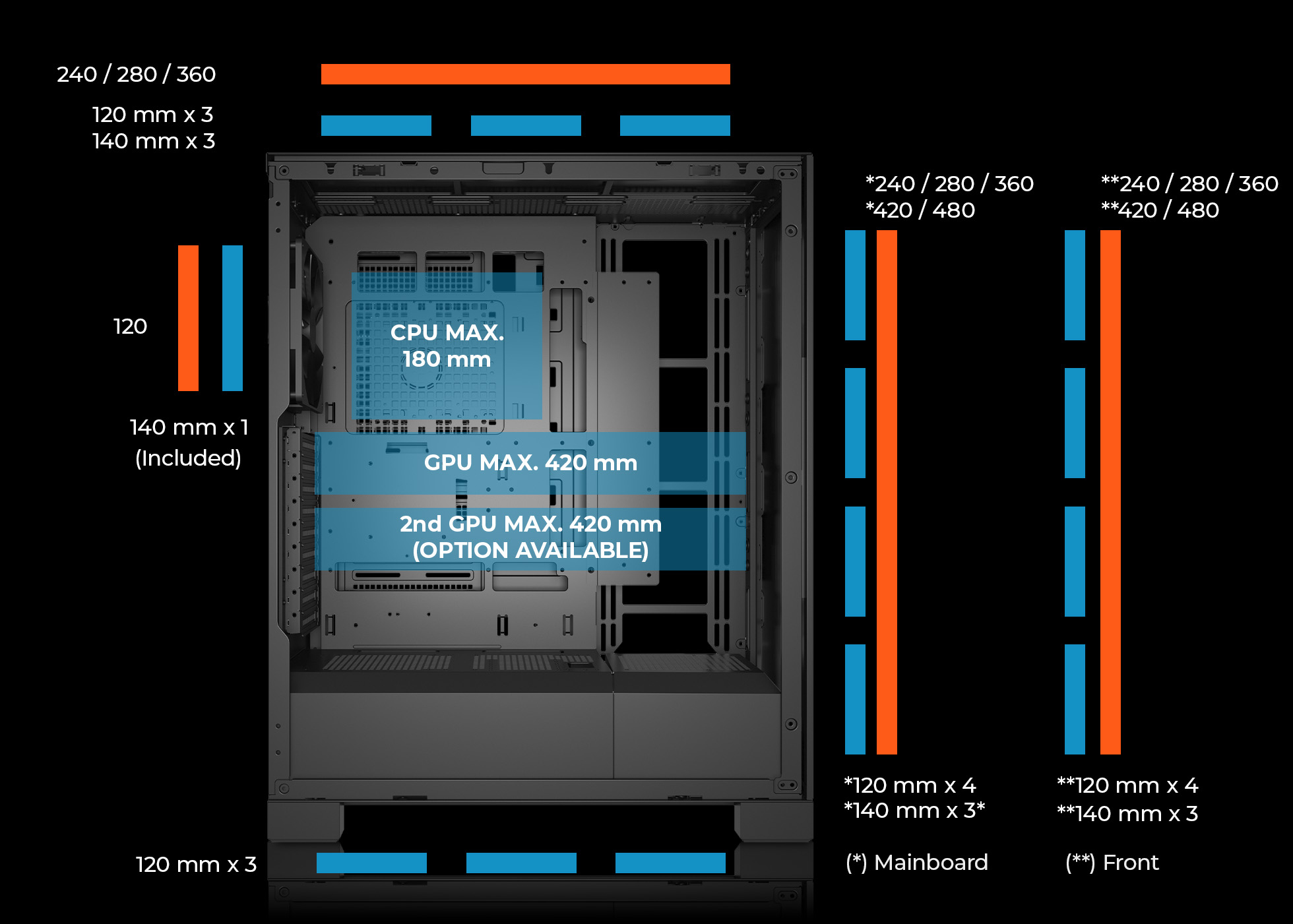

Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 4 |
| Side fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Fan speed | 800 - 1200 RPM |
| Maximum air pressure | 0.49 mmH2O |
| Maximum airflow | 67.2 cfm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 240,280,360,420,480 mm |
| Side radiator sizes supported | 240,280,360,420,480 mm |
| Top radiator sizes supported | 240,280,360 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 258 mm |
| Depth | 465 mm |
| Height | 567 mm |
| Weight | 9.8 kg |
| Material thickness | 0.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 345 mm |
| Package depth | 622 mm |
| Package height | 557 mm |
| Package weight | 11.9 kg |
Other features
| Specification | Value |
|---|---|
| Bearing type | Hydraulic |
| Noise level | 24.3 dB |
| Mean time between failures (MTBF) | 40000 h |
