Product comparison · 2 power supply units

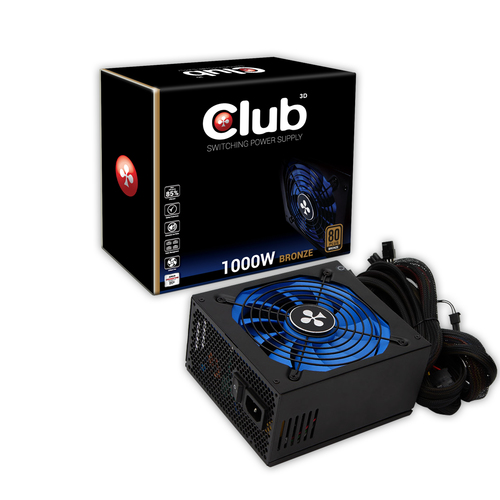

CLUB3D CSP-D700CB power supply unit vs CLUB3D CSP-X1000CB power supply unit

46specifications compared
12differ
34identical
8known for one product only

Key differences

Total power
- CSP-D700CB power supply unit:700 W
- CSP-X1000CB power supply unit:1000 W
Combined power (+12V)
- CSP-D700CB power supply unit:679 W
- CSP-X1000CB power supply unit:979 W
Max output current (+12V1)
- CSP-D700CB power supply unit:32 A
- CSP-X1000CB power supply unit:38 A
Max output current (+12V2)
- CSP-D700CB power supply unit:32 A
- CSP-X1000CB power supply unit:38 A
Max output current (+12V3)
- CSP-D700CB power supply unit:32 A
- CSP-X1000CB power supply unit:38 A
Max output current (+12V4)
- CSP-D700CB power supply unit:32 A
- CSP-X1000CB power supply unit:38 A
Efficiency
- CSP-D700CB power supply unit:89%
- CSP-X1000CB power supply unit:85%
Number of SATA power connectors
- CSP-D700CB power supply unit:6
- CSP-X1000CB power supply unit:9

Side by side

Differences highlightedShow differences only

Comparison of CSP-D700CB, CSP-X1000CB
54 specifications	A CLUB3D CSP-D700CB power supply unit Model CSP-D700CB View product	B CLUB3D CSP-X1000CB power supply unit Model CSP-X1000CB View product
Power7 differ
Total powerDiffers	700 W	1000 W
AC input voltage	115 - 230 V	115 - 230 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Input current	15 A	15 A
Maximum input current (@110V)Known for one	Unknown — not stated by the source	+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeKnown for one	Unknown — not stated by the source	Active
Combined power (+3.3V)	170 W	170 W
Combined power (+12V)Differs	679 W	979 W
Combined power (+5V)	170 W	170 W
Combined power (-12V)	6 W	6 W
Combined power (+5Vsb)	15 W	15 W
Max output current (+3.3V)	24 A	24 A
Max output current (+12V1)Differs	32 A	38 A
Max output current (+12V2)Differs	32 A	38 A
Max output current (+12V3)Differs	32 A	38 A
Max output current (+12V4)Differs	32 A	38 A
Max output current (+5V)	30 A	30 A
Max output current (-12V)	0.5 A	0.5 A
Max output current (+5Vsb)	3 A	3 A
EfficiencyDiffers	89%	85%
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage	Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces2 differ
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Number of PATA power connectorsKnown for one	Unknown — not stated by the source	2
Number of SATA power connectorsDiffers	6	9
Peripheral (Molex) power connectors (4-pin)	5	5
PCI Express power connectors (6+2 pin)Known for one	Unknown — not stated by the source	6
CPU power connector (4+4 pin)	Yes	Yes
ATX power connector (20+4 pin)	Yes	Yes
Floppy drive power connectorDiffers	1	2
PCI Express connector	Yes	Yes
Cabling type	Semi-Modular	Semi-Modular
PCI Express power connectors (6-pin)Known for one	2	Unknown — not stated by the source
PCI Express power connectors (8-pin)Known for one	2	Unknown — not stated by the source
Floppy disk drive connectorKnown for one	Yes	Unknown — not stated by the source
Performance1 differ
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
ATX versionDiffers	2.4	2.3
EPS versionKnown for one	Unknown — not stated by the source	2.92
Noise level	10 dB	10 dB
Design1 differ
Product colourDiffers	Black, Green	Black, Blue
Cooling type	Active	Active
Fan diameter	13.5 cm	13.5 cm
Number of fans	1 fan(s)	1 fan(s)
On/off switch	Yes	Yes
Certificates1 differ
Compliance certificates	RoHS	RoHS
CertificationDiffers	CE, 80Plus	CE, 80Plus Bronze
Weight & dimensionsidentical
Width	150 mm	150 mm
Depth	165 mm	165 mm
Height	86 mm	86 mm
Packaging dataidentical
Manual	Yes	Yes
Technical detailsidentical
Sustainability certificates	ENERGY STAR	ENERGY STAR
Other featuresidentical
Dimensions (WxDxH)	150 x 165 x 86 mm	150 x 165 x 86 mm
Power supply type	AC/DC	AC/DC

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
