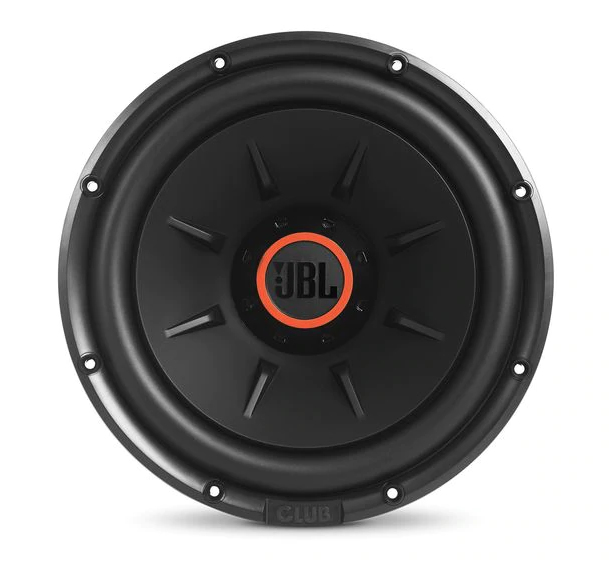

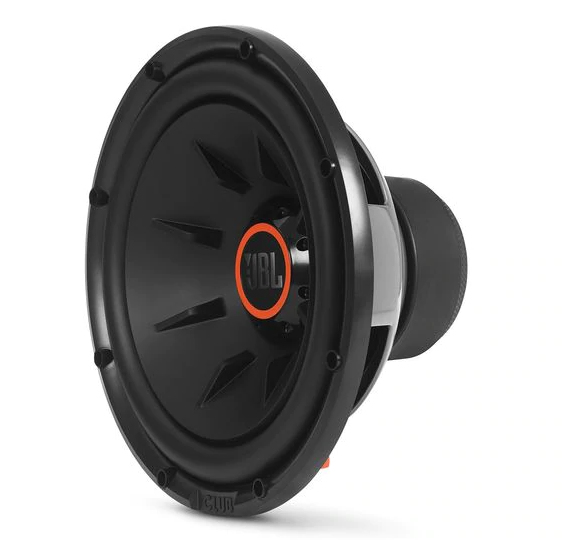

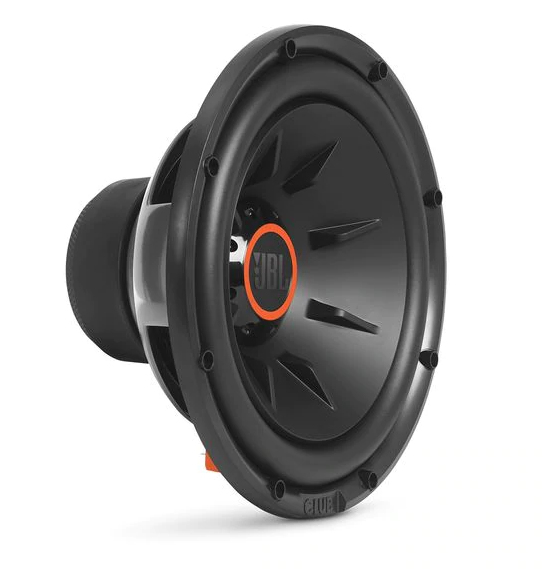

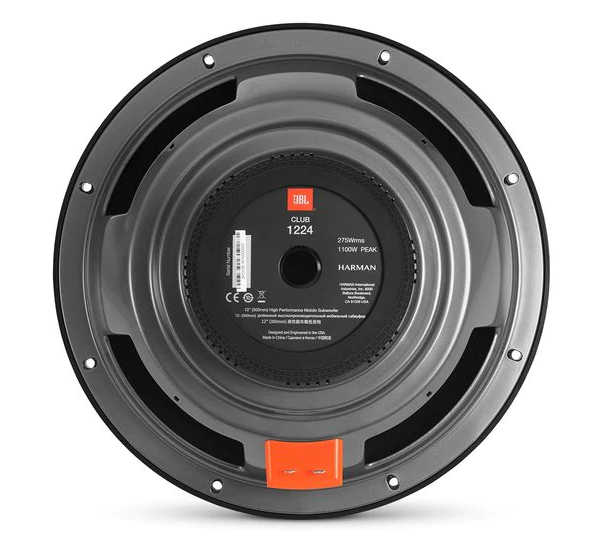

Club 1224
Model Club 1224Part no. JBLCLUB1224EAN 6925281934551
16 specifications
- TypeSubwoofer driver
- Voice coil diameter5 cm
- Width328 mm
Overview
- Type
- Subwoofer driver
- Voice coil diameter
- 5 cm
- Width
- 328 mm
- Brand
- JBL
- Category
- Car Subwoofer
- Model
- Club 1224
- Part number
- JBLCLUB1224
- EAN / UPC
- 6925281934551
- Also known as
- JBL Club 1224 Subwoofer driver 275 W
Specifications
16 specifications in 3 groups
Subwoofer
| Specification | Value |
|---|---|
| Product type | Subwoofer driver |
| Subwoofer RMS power | 275 W |
| Subwoofer frequency range | 25 - 175 Hz |
| Subwoofer peak power | 1100 W |
| Subwoofer sensitivity | 92 dB |
| Subwoofer impedance (min) | 2 Ω |
| Subwoofer impedance (max) | 4 Ω |
| Subwoofer driver diameter (imperial) | 25.4 cm (10") |
| Subwoofer driver diameter | 25 cm |
Technical details
| Specification | Value |
|---|---|
| Voice coil diameter | 5 cm |
| Size (imperial) | 30.5 cm (12") |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 328 mm |
| Depth | 165 mm |
| Height | 328 mm |
| Cutout diameter | 28.5 cm |
| Mounting depth | 16.5 cm |
