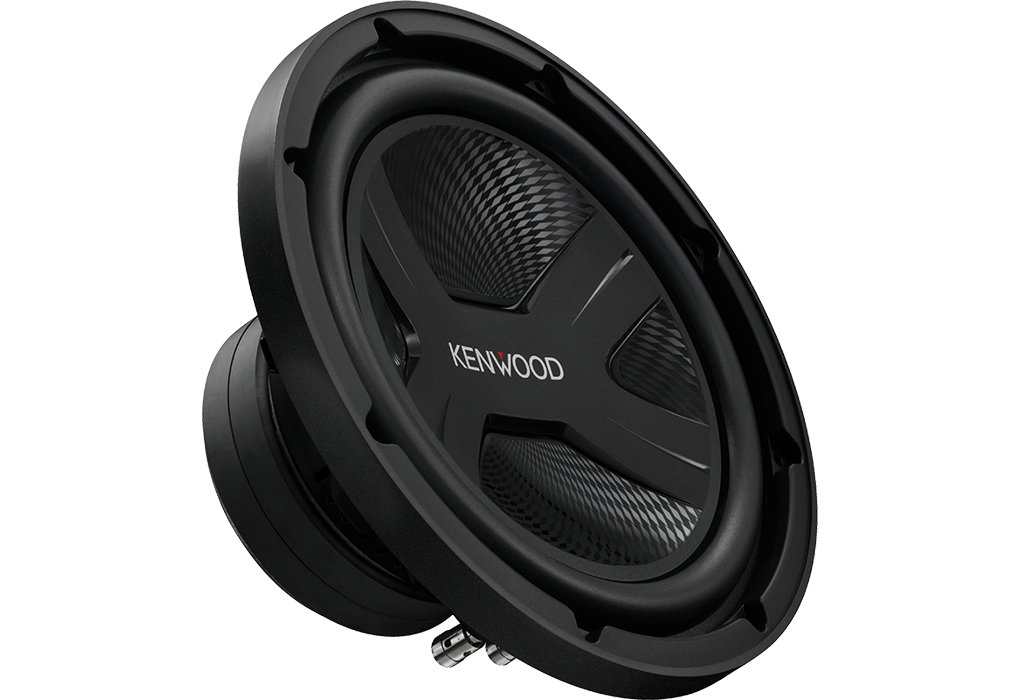

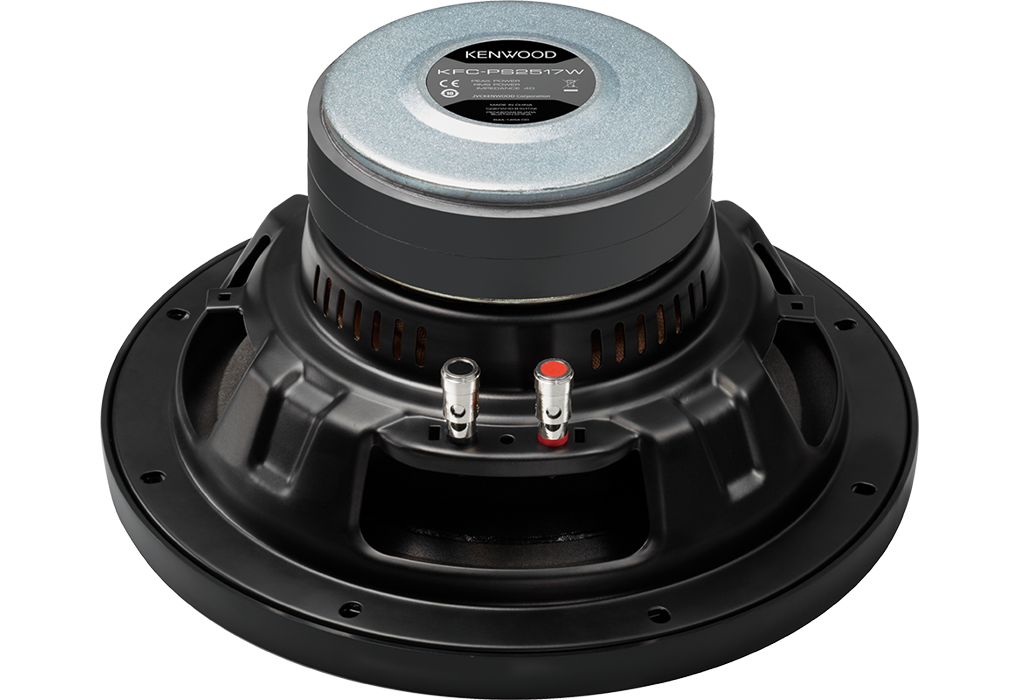

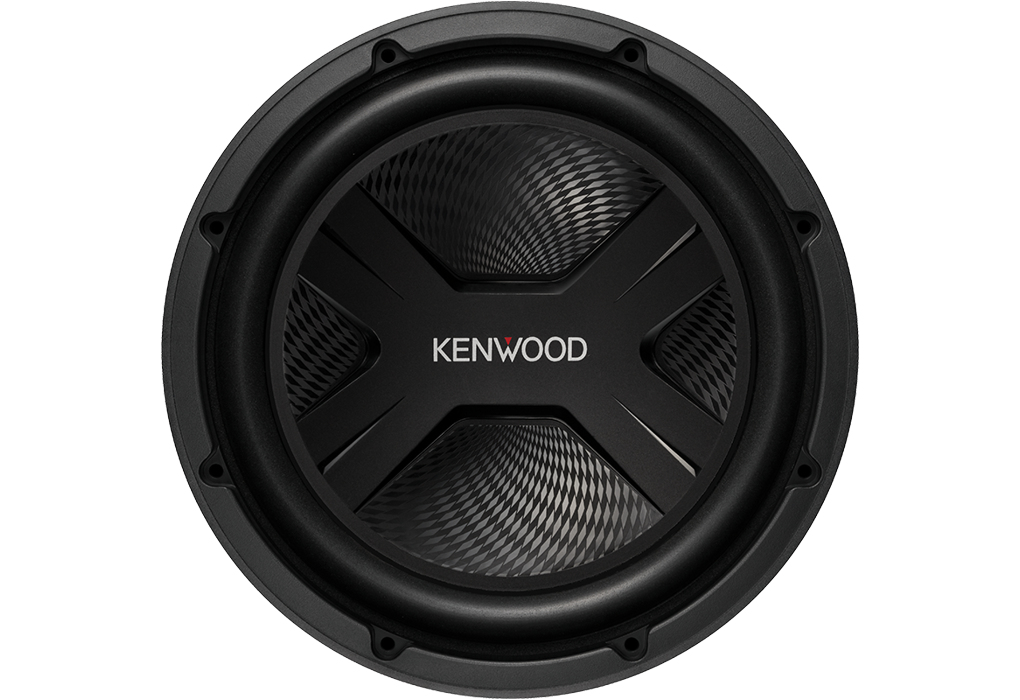

KFC-PS2517W Subwoofer driver
400 W
Model KFC-PS2517WPart no. KFCPS2517WEAN 019048230270
26 specifications
- TypeSubwoofer driver
- Weight4 kg
- ColourBlack
- Voice coil diameter5 cm
- Width275 mm
Overview
- Type
- Subwoofer driver
- Weight
- 4 kg
- Colour
- Black
- Voice coil diameter
- 5 cm
- Width
- 275 mm
- Brand
- Kenwood
- Category
- Car Subwoofer
- Model
- KFC-PS2517W
- Part number
- KFCPS2517W
- EAN / UPC
- 019048230270
- Also known as
- Kenwood KFC-PS2517W Subwoofer driver 400 W
Specifications
26 specifications in 3 groups
Subwoofer
| Specification | Value |
|---|---|
| Product type | Subwoofer driver |
| Subwoofer type | Active subwoofer |
| Subwoofer RMS power | 400 W |
| Subwoofer frequency range | 33 - 300 Hz |
| Subwoofer peak power | 1300 W |
| Subwoofer sensitivity | 85 dB |
| Subwoofer impedance | 4 Ω |
Technical details
| Specification | Value |
|---|---|
| Voice coil diameter | 5 cm |
| Product colour | Black |
| Displacement volume | 0.9 cm³ |
| Driver unit | 25 cm |
| Effective piston area (Sd) | 0.0512 cm² |
| Electrical Q-factor (Qes) | 0.554 |
| Force factor (Bl) | 13.2 |
| Magnet type | Ferrite |
| Mechanical Q-factor (Qms) | 6.95 |
| Moving mass (Mms) | 124 g |
| Peak excursion (Xmax) | 5.9 mm |
| Total Q-factor (Qts) | 0.513 |
| Volume Acoustic Compliance (VAS) | 31.9 L |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 275 mm |
| Depth | 142.2 mm |
| Height | 275 mm |
| Weight | 4 kg |
| Cutout diameter | 23 cm |
| Mounting depth | 12.4 cm |
