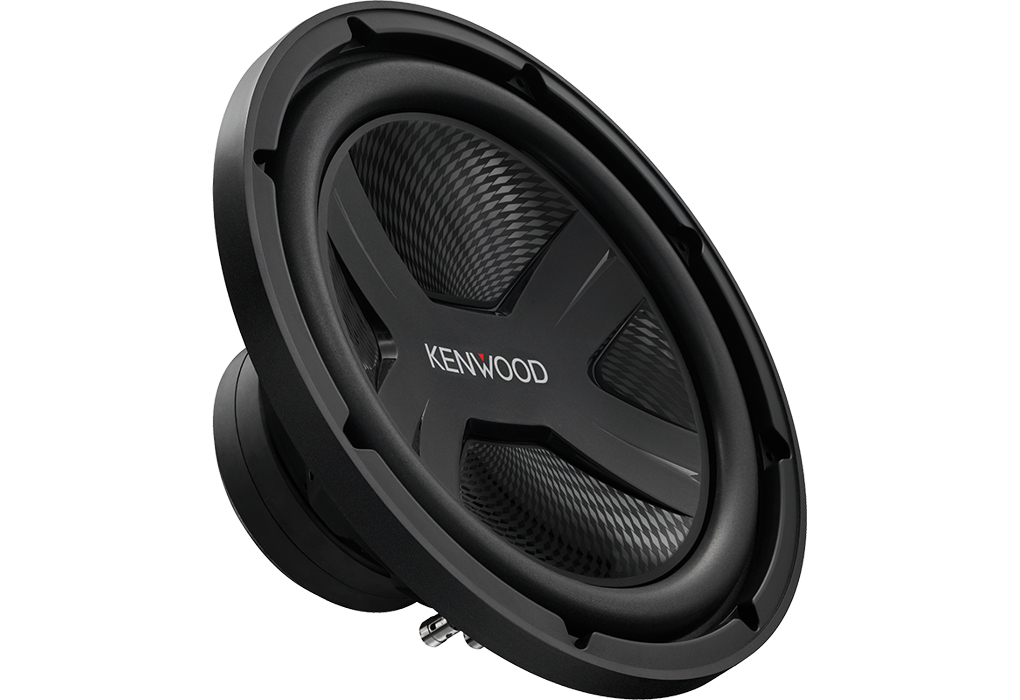

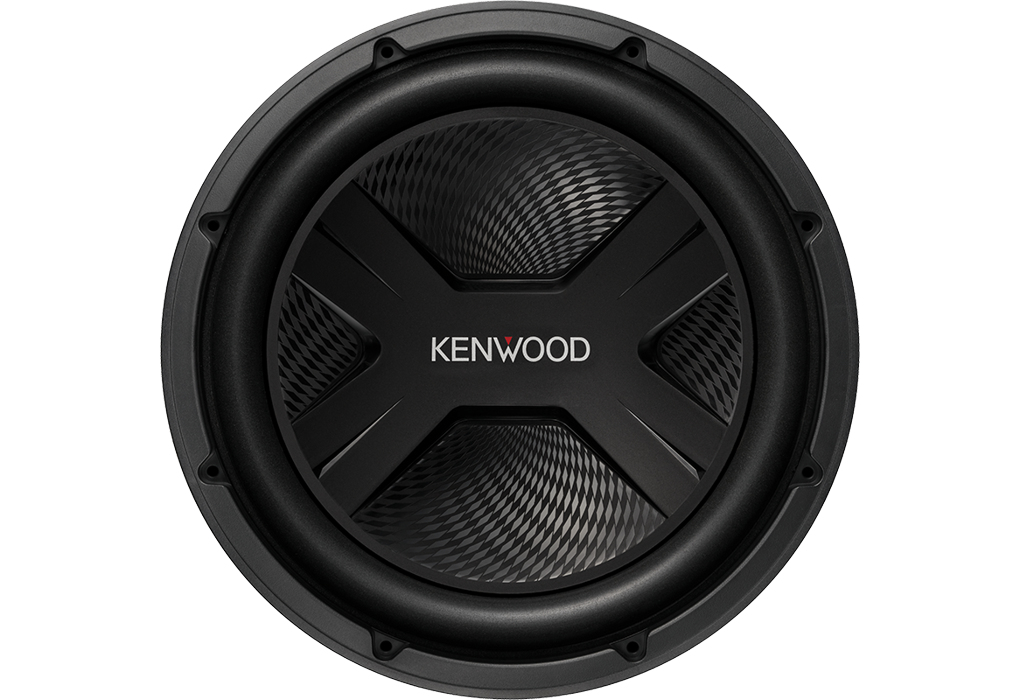

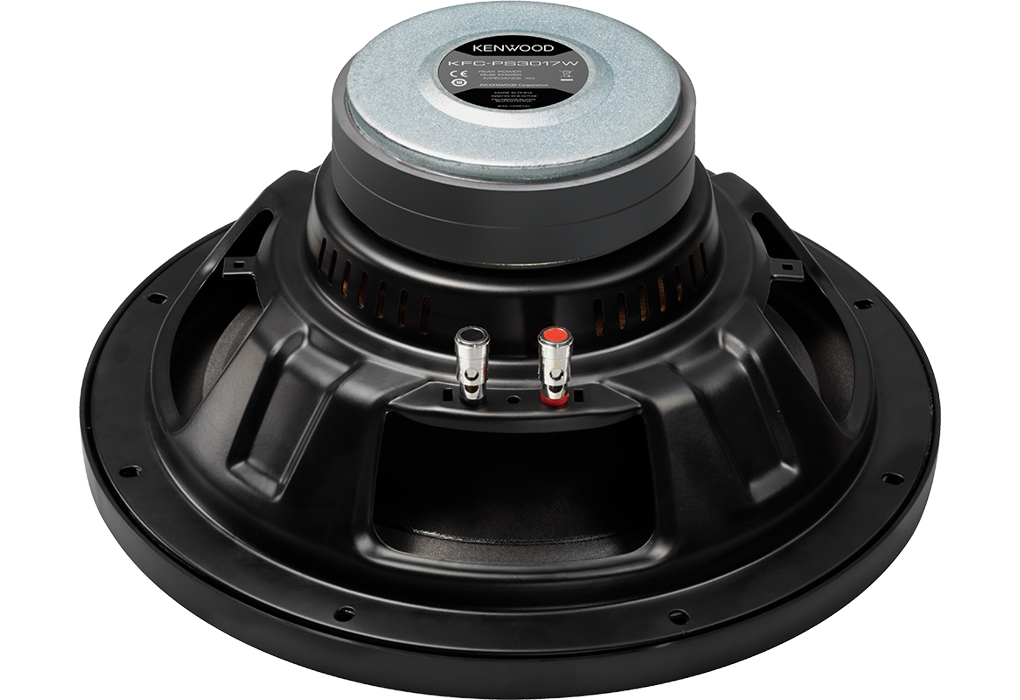

KFC-PS3017W 400 W
Model KFC-PS3017WPart no. KFCPS3017WEAN 019048230263
24 specifications
- Weight4.2 kg
- ColourBlack
- Subwoofer typeActive subwoofer
- Voice coil inductance (Le)2.04 mH
- Subwoofer driver diaphragm materialPolypropylene
- Width326 mm
Overview
- Weight
- 4.2 kg
- Colour
- Black
- Subwoofer type
- Active subwoofer
- Voice coil inductance (Le)
- 2.04 mH
- Subwoofer driver diaphragm material
- Polypropylene
- Width
- 326 mm
- Brand
- Kenwood
- Category
- Car Subwoofer
- Model
- KFC-PS3017W
- Part number
- KFCPS3017W
- EAN / UPC
- 019048230263
- Also known as
- Kenwood KFC-PS3017W 400 W
Specifications
24 specifications in 4 groups
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer type | Active subwoofer |
| Subwoofer RMS power | 400 W |
| Subwoofer frequency range | 29 - 300 Hz |
| Subwoofer peak power | 2000 W |
| Subwoofer sensitivity | 85 dB |
| Subwoofer impedance | 4 Ω |
| DC resistance (Re) | 3.7 Ω |
Technical details
| Specification | Value |
|---|---|
| Voice coil inductance (Le) | 2.04 mH |
| Product colour | Black |
| Displacement volume | 1.2 cm³ |
| Effective piston area (Sd) | 512 cm² |
| Electrical Q-factor (Qes) | 0.52 |
| Force factor (Bl) | 12.9 |
| Mechanical Q-factor (Qms) | 6.79 |
| Moving mass (Mms) | 152 g |
| Peak excursion (Xmax) | 5.9 mm |
| Total Q-factor (Qts) | 0.483 |
| Volume Acoustic Compliance (VAS) | 104 L |
Material
| Specification | Value |
|---|---|
| Subwoofer driver diaphragm material | Polypropylene |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 326 mm |
| Depth | 155.4 mm |
| Height | 326 mm |
| Weight | 4.2 kg |
| Mounting depth | 13.7 cm |
