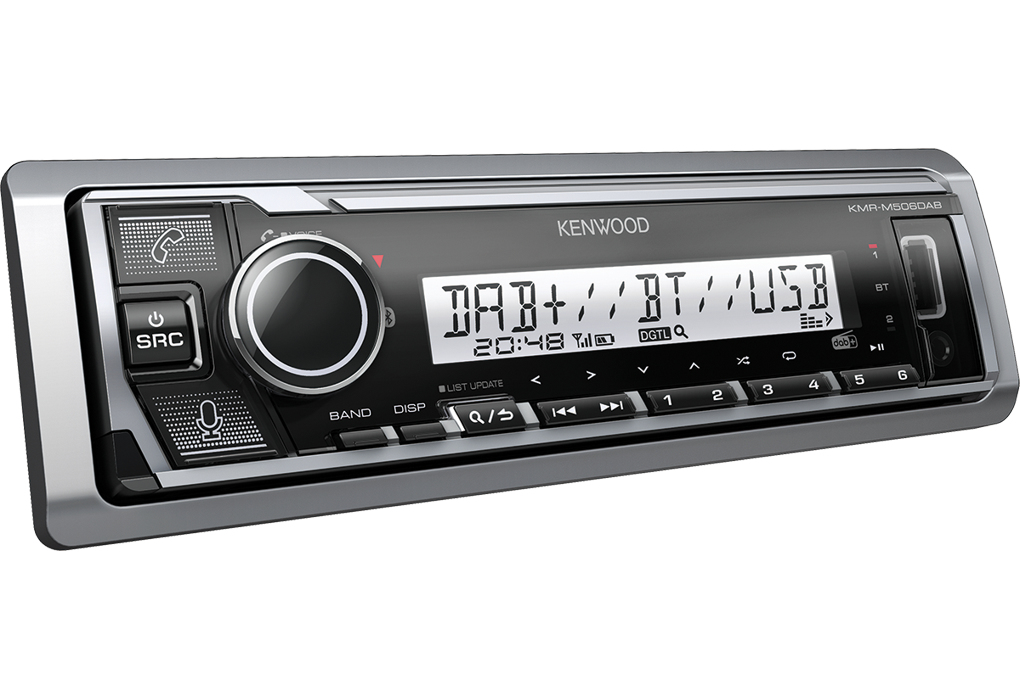

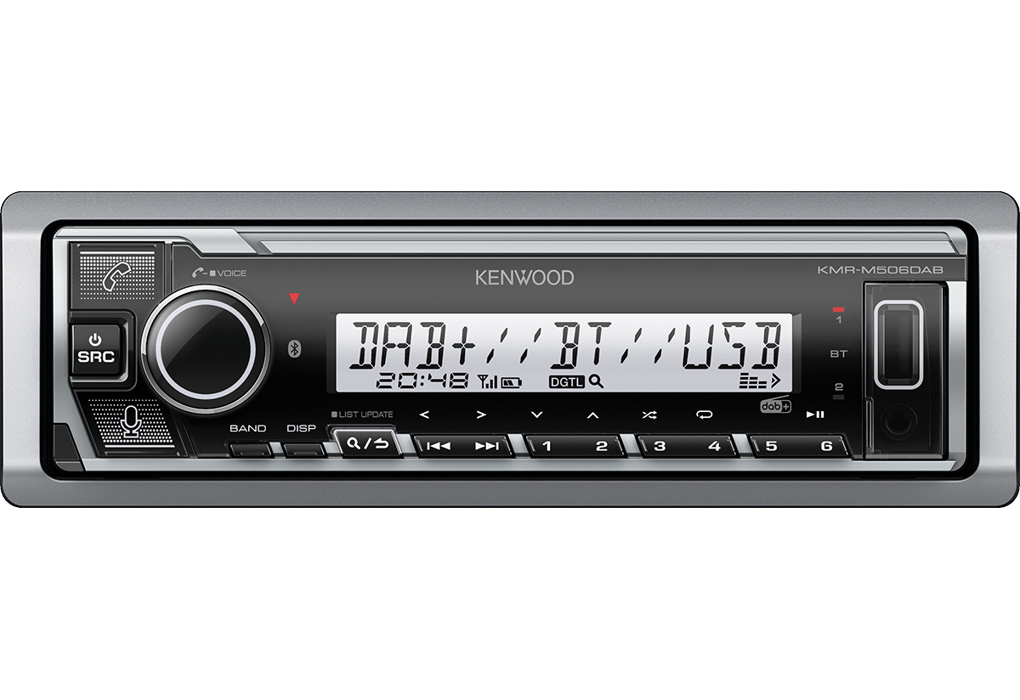

KMR-M506DAB car media receiver Black, Silver
200 W Bluetooth
Model KMR-M506DABEAN 019048230010
39 specifications
- Weight700 g
- ColourBlack, Silver
- MP3 playbackYes
- Preset stations quantity24
- Width182 mm
- Operating temperature (T-T)-10 - 60 °C
Overview
- Weight
- 700 g
- Colour
- Black, Silver
- MP3 playback
- Yes
- Preset stations quantity
- 24
- Width
- 182 mm
- Operating temperature (T-T)
- -10 - 60 °C
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- KMR-M506DAB
- Part number
- KMR-M506DAB
- EAN / UPC
- 019048230010
- Also known as
- Kenwood KMR-M506DAB car media receiver Black, Silver 200 W Bluetooth
Specifications
39 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| DIN size | 1 DIN |
| Output power | 200 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 50 W |
| Signal-to-Noise Ratio (SNR) | 68 dB |
| Impedance | 600 Ω |
| Ready for iPod | Yes |
| Equalizer | Yes |
| Removable front panel | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| Audio D/A Converter (DAC) | 24 Bit |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Display number of lines | 2 lines |
| Illumination colour | White |
| CD Text | Yes |
| LED backlight | Yes |

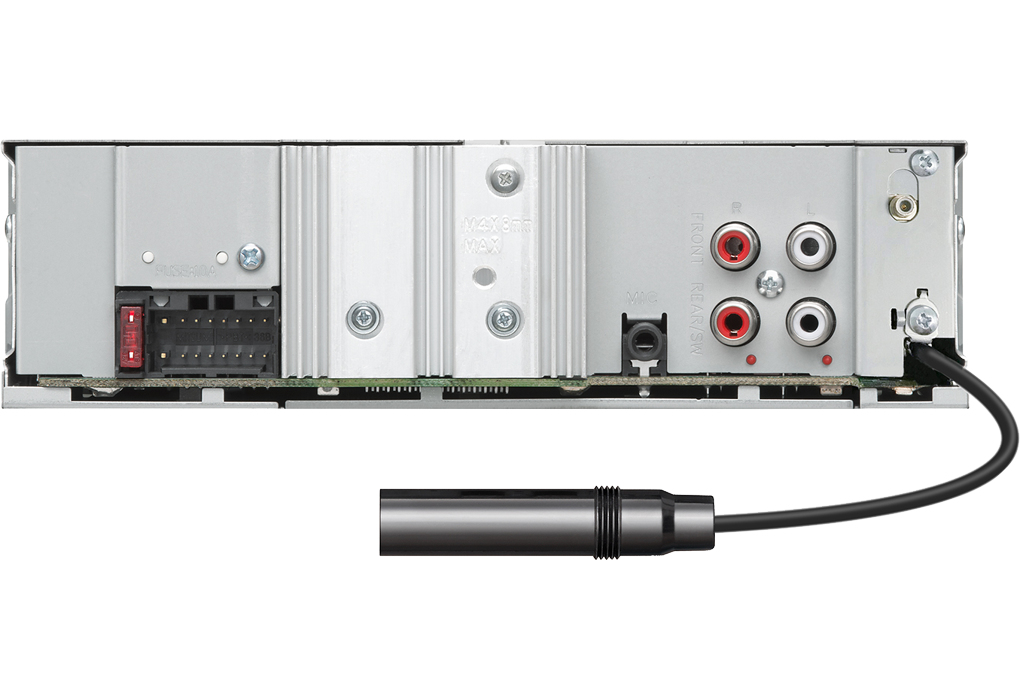

Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth profiles | AAC, SBC |
| USB port | Yes |
| USB version | 2.0 |
| Android Auto support | Yes |
| AUX in | Yes |
| Pre out port | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 24 |
| Supported radio bands | AM, DAB+, FM |
| FM band range | 174.928 - 239.2 MHz |
| Auto digital tuning | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 100 mm |
| Height | 53 mm |
| Weight | 700 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick start guide | Yes |
