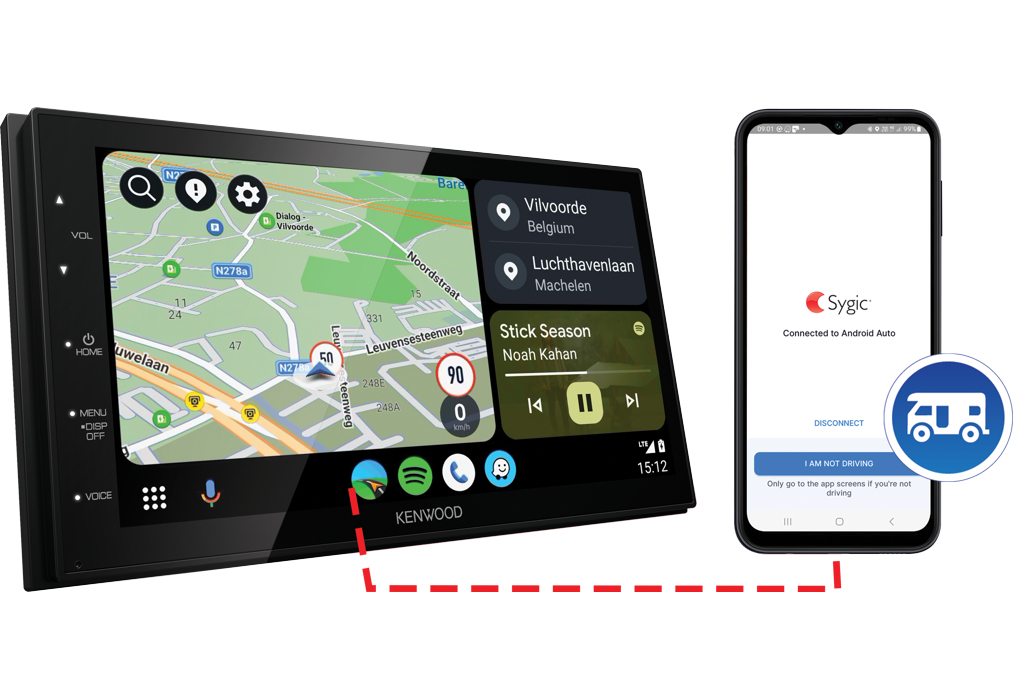

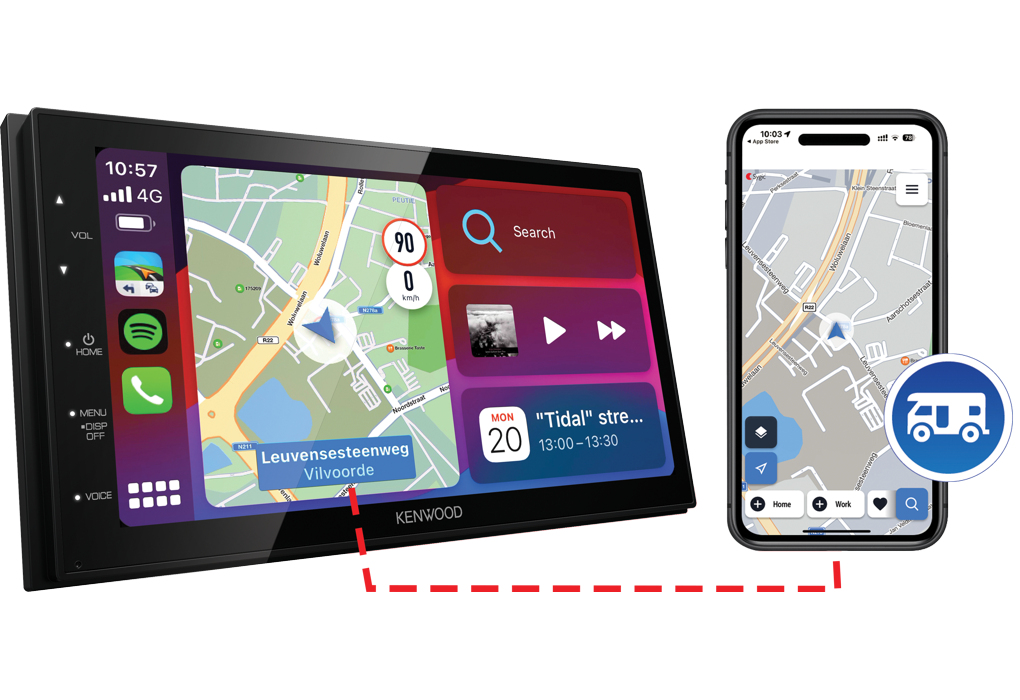

DMX-5020DABCAMPER car media receiver Black
84 W Bluetooth
Model DMX-5020DABCAMPEREAN 4029623088949
65 specifications
- Display17.3 cm (6.8")
- Resolution800 x 480 pixels
- Weight1.1 kg
- ColourBlack
- MP3 playbackYes
- Wi-FiNo
Overview
- Display
- 17.3 cm (6.8")
- Resolution
- 800 x 480 pixels
- Weight
- 1.1 kg
- Colour
- Black
- MP3 playback
- Yes
- Wi-Fi
- No
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- DMX-5020DABCAMPER
- Part number
- DMX-5020DABCAMPER
- EAN / UPC
- 4029623088949
- Also known as
- Kenwood DMX-5020DABCAMPER car media receiver Black 84 W Bluetooth
Specifications
65 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 84 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 45 W |
| Frequency range | 20 - 20000 Hz |
| Signal-to-Noise Ratio (SNR) | 82 dB |
| Impedance | 1400 Ω |
| Disc types supported | No |
| Ready for iPod | Yes |
| Volume control | Touch |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Clock mode | 24h |
| Integrated clock | Yes |
| Built-in microphone | Yes |
| Loudness control | Yes |
| Dimmer | Yes |
| Bass boost technology | Yes |
| OEM steering remote control | Yes |
| Firmware upgradeable | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display diagonal | 17.3 cm (6.8") |
| Display resolution | 800 x 480 pixels |
| Brightness adjustment | Yes |
| Number of OSD languages | 14 |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Greek, Hebrew, Hungarian, Italian, Polish, Portuguese, Russian |
| LED backlight | Yes |
| Rear-view camera ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Bluetooth profiles | A2DP, AVRCP, GAP, HFP, HPF, PBAP, SDP, SPP, SSP |
| Bluetooth range | 10 m |
| ISO connector | Yes |
| USB port | Yes |
| USB version | 2.0 |
| USB port position | Rear |
| Apple CarPlay support | Yes |
| Android Auto support | Yes |
| AV input | Yes |
| Headphone connectivity | 3.5mm |
| Line outputs (RCA) | 2 |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 20 |
| Supported radio bands | AM, DAB+, FM |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
| FM usable sensitivity | 30 dBf |
| AM sensitivity (LW) | 99 μV |
| Radio Data System (RDS) | Yes |
| Auto digital tuning | Yes |
| DAB tuner | DAB+ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 75 mm |
| Height | 100 mm |
| Weight | 1.1 kg |
Memory
| Specification | Value |
|---|---|
| Card reader integrated | No |
Similar products
All car media receivers
Kenwood
DMX7525DABS car media receiver Black Wi-Fi
Model DMX7525DABS
- Display
- 17.6 cm (6.92")
- Resolution
- 1280 x 720 pixels
- Weight
- 1.14 kg
JVC
KW-M795DBW car media receiver Black Wi-Fi
Model KW-M795DBW
- Display
- 17.6 cm (6.92")
- Resolution
- 1280 x 720 pixels
- Weight
- 1.14 kg
JVC

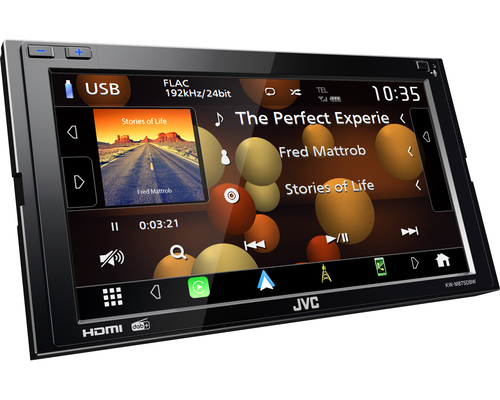

KW-M875DBW car media receiver Black Wi-Fi
Model KW-M875DBW
- Display
- 17.3 cm (6.8")
- Resolution
- 800 x 480 pixels
- OS
- Android
Kenwood
DMX8021DABCAMPER car media receiver Black Wi-Fi
Model DMX8021DABCAMPER
- Display
- 17.8 cm (7")
- Resolution
- 800 x 480 pixels
- Weight
- 1.5 kg
Kenwood

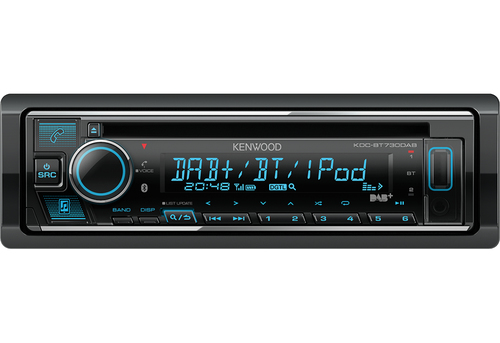

KDC-BT730DAB car media receiver Black
Model KDC-BT730DAB
- Weight
- 1.2 kg
- Colour
- Black
- MP3 playback
- Yes
Kenwood
DMX9720XDSCAMPER car media receiver Black Wi-Fi
Model DMX9720XDSCAMPER
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 720 pixels
- Weight
- 3.25 kg
Kenwood

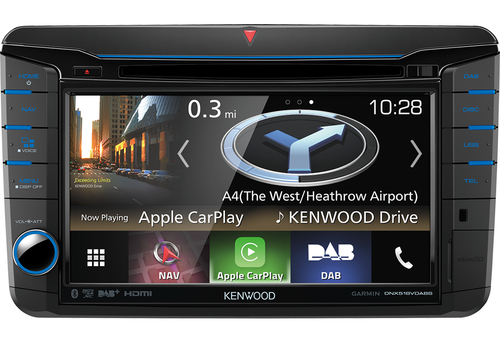

DNX518VDABS car media receiver Black
Model DNX518VDABS
- Display
- 17.6 cm (6.95")
- Resolution
- 800 x 480 pixels
- Weight
- 2.4 kg
Kenwood

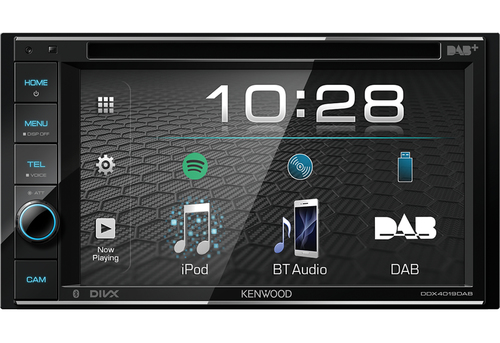

DDX4019D-E3 car media receiver Black
