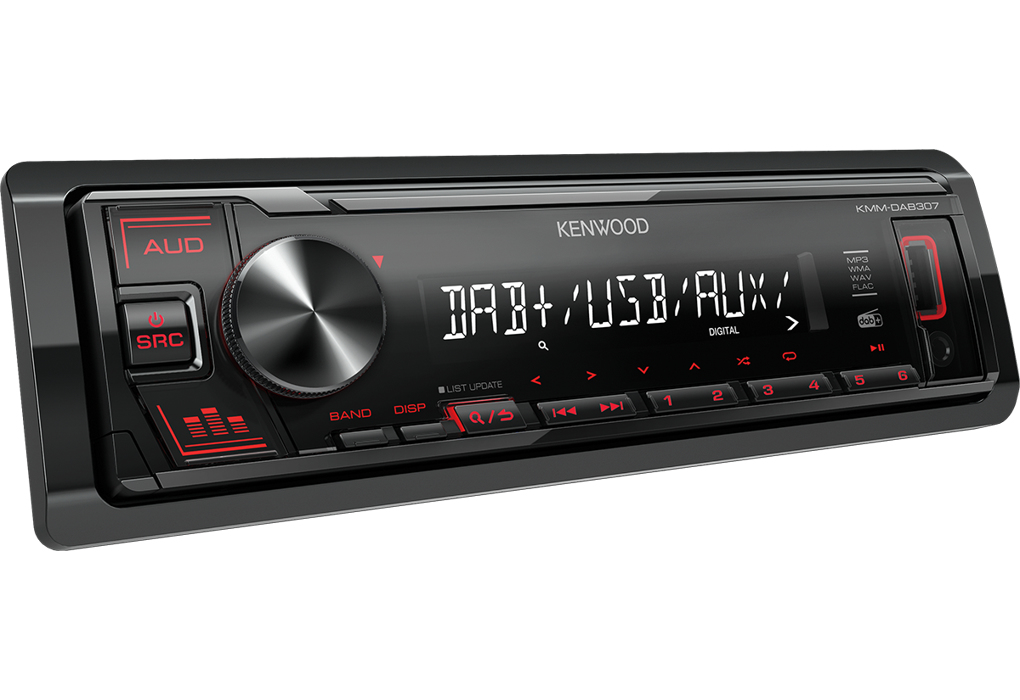

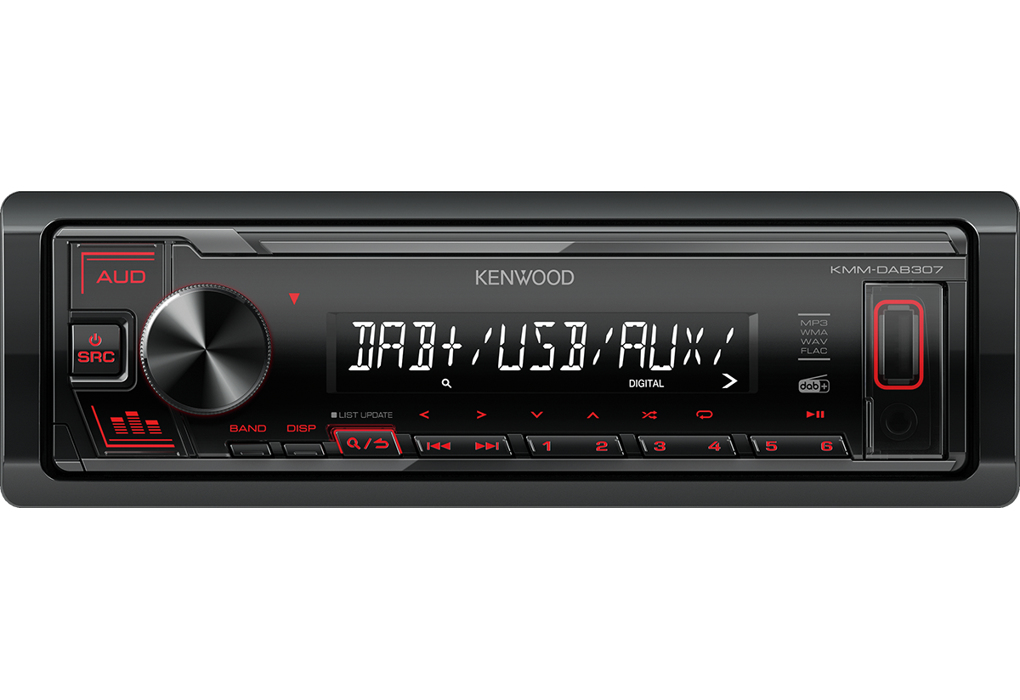

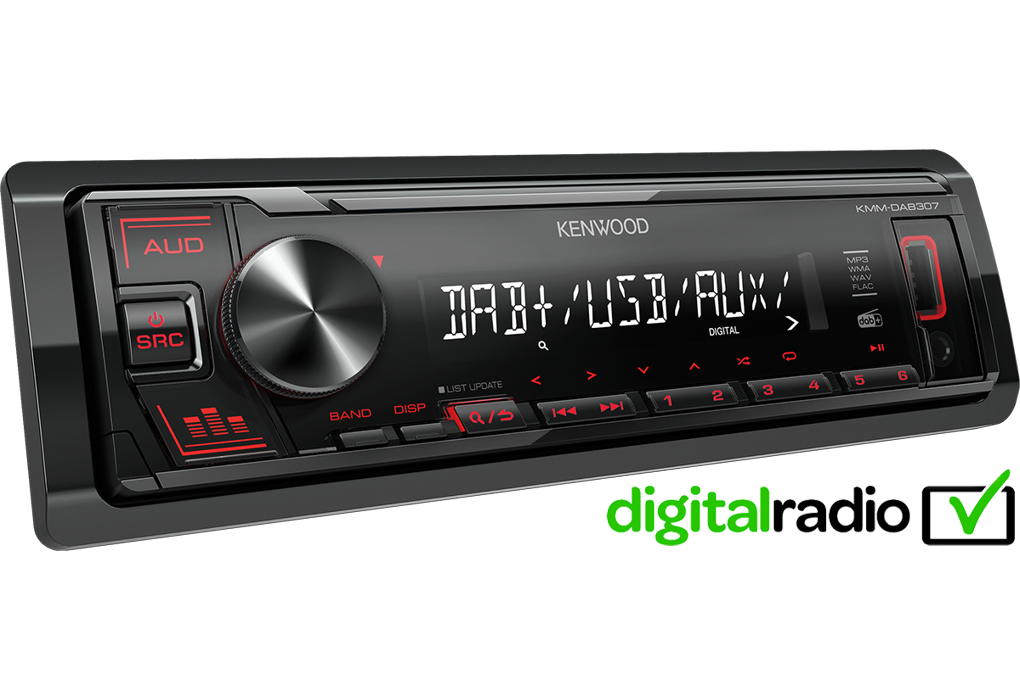

KMM-DAB307AO car media receiver Black
200 W
Model KMM-DAB307AOEAN 019048232885
52 specifications
- Weight700 g
- ColourBlack
- MP3 playbackYes
- Preset stations quantity24
- Width182 mm
Overview
- Weight
- 700 g
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 24
- Width
- 182 mm
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- KMM-DAB307AO
- Part number
- KMM-DAB307AO
- EAN / UPC
- 019048232885
- Also known as
- Kenwood KMM-DAB307AO car media receiver Black 200 W
Specifications
52 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 1 DIN |
| Output power | 200 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 20000 Hz |
| Signal-to-Noise Ratio (SNR) | 99 dB |
| Impedance | 8 Ω |
| Disc types supported | No |
| Ready for iPod | No |
| Bass adjustment | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Volume control | Rotary |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Clock mode | 24h |
| Integrated clock | Yes |
| Firmware upgradeable | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio formats supported | FLAC, MP3, WAV, WMA |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Display illumination | Yes |
| Detachable display | Yes |

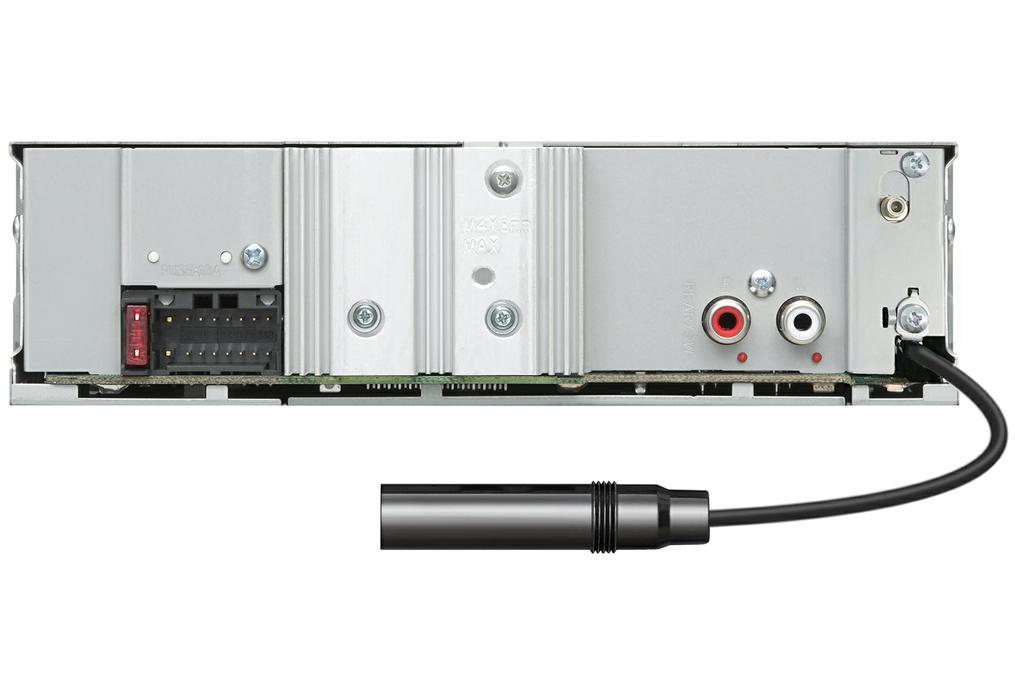

Ports & interfaces
| Specification | Value |
|---|---|
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| USB port position | Front |
| AUX in | Yes |
| Line outputs (RCA) | 1 |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 24 |
| Supported radio bands | DAB+, FM |
| FM band range | 87 - 108 MHz |
| LW band range | 153 - 279 kHz |
| FM quieting sensitivity | 46 dBf |
| FM usable sensitivity | 30 dBf |
| AM sensitivity (LW) | 45 μV |
| AM sensitivity (MW) | 28.5 μV |
| Radio Data System (RDS) | Yes |
| DAB tuner | DAB+ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 100 mm |
| Height | 53 mm |
| Weight | 700 g |
Technical details
| Specification | Value |
|---|---|
| Antenna | Yes |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
