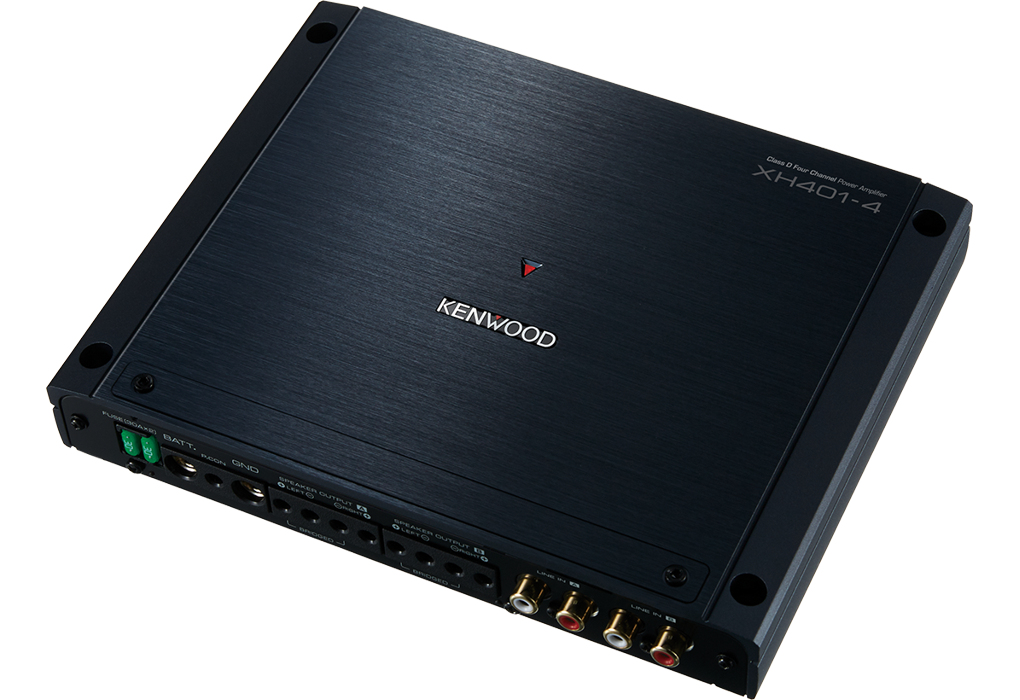

XH401-4 car audio amplifier 4 channels
300 W D
Model XH401-4EAN 019048223302
19 specifications
- Weight1.5 kg
- Amplifier classD
- Audio RCA inputs4
- DC input voltage14.4 V
- Width220 mm
Overview
- Weight
- 1.5 kg
- Amplifier class
- D
- Audio RCA inputs
- 4
- DC input voltage
- 14.4 V
- Width
- 220 mm
- Brand
- Kenwood
- Category
- Car Audio Amplifier
- Model
- XH401-4
- Part number
- XH401-4
- EAN / UPC
- 019048223302
- Also known as
- Kenwood XH401-4 car audio amplifier 4 channels 300 W D
Specifications
19 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Amplifier class | D |
| Number of amplifier channels | 4 channels |
| RMS output power (max) | 300 W |
| Peak power per channel | 75 W |
| High pass filter | Yes |
| Low pass filter | Yes |
| Input impedance | 10 Ω |
| Bridged output power (max) | 200 W |
| High pass filter range | 50 - 200 Hz |
| Low pass filter range | 50 - 200 Hz |
| Frequency range | 20 - 50000 Hz |
| Signal-to-Noise Ratio (SNR) | 100 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio RCA inputs | 4 |
Power
| Specification | Value |
|---|---|
| DC input voltage | 14.4 V |
| Maximum current | 37 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 169 mm |
| Height | 35 mm |
| Weight | 1.5 kg |
