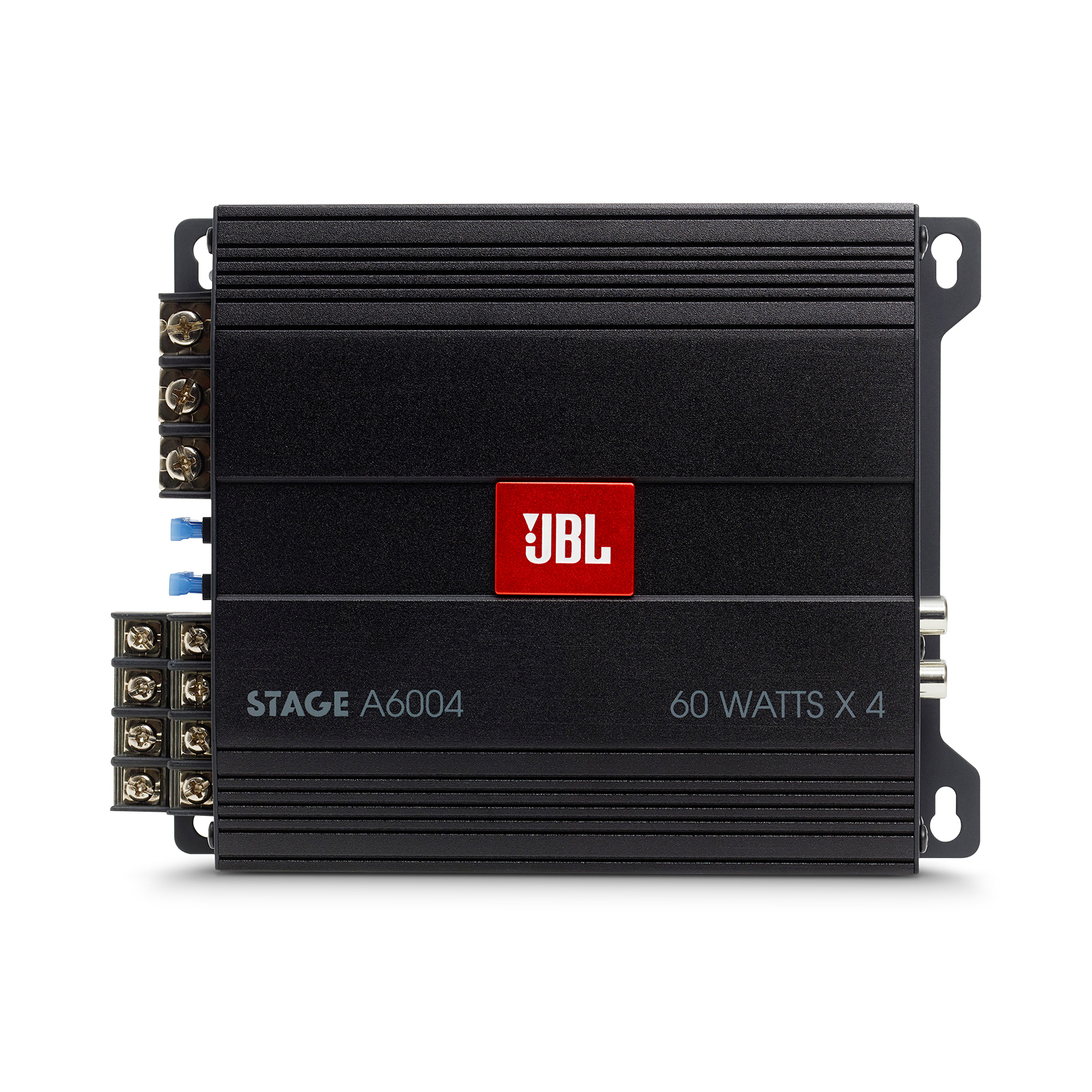

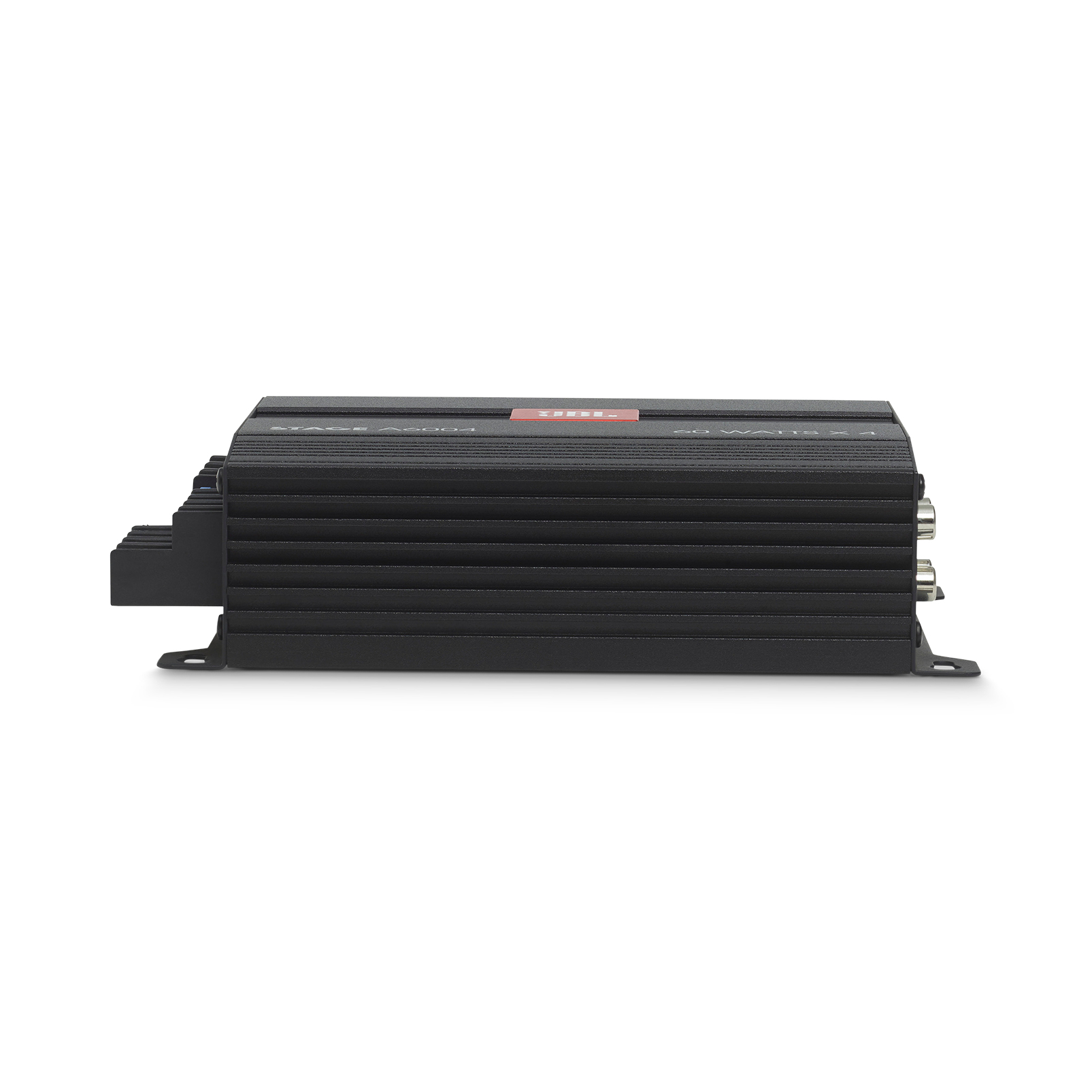

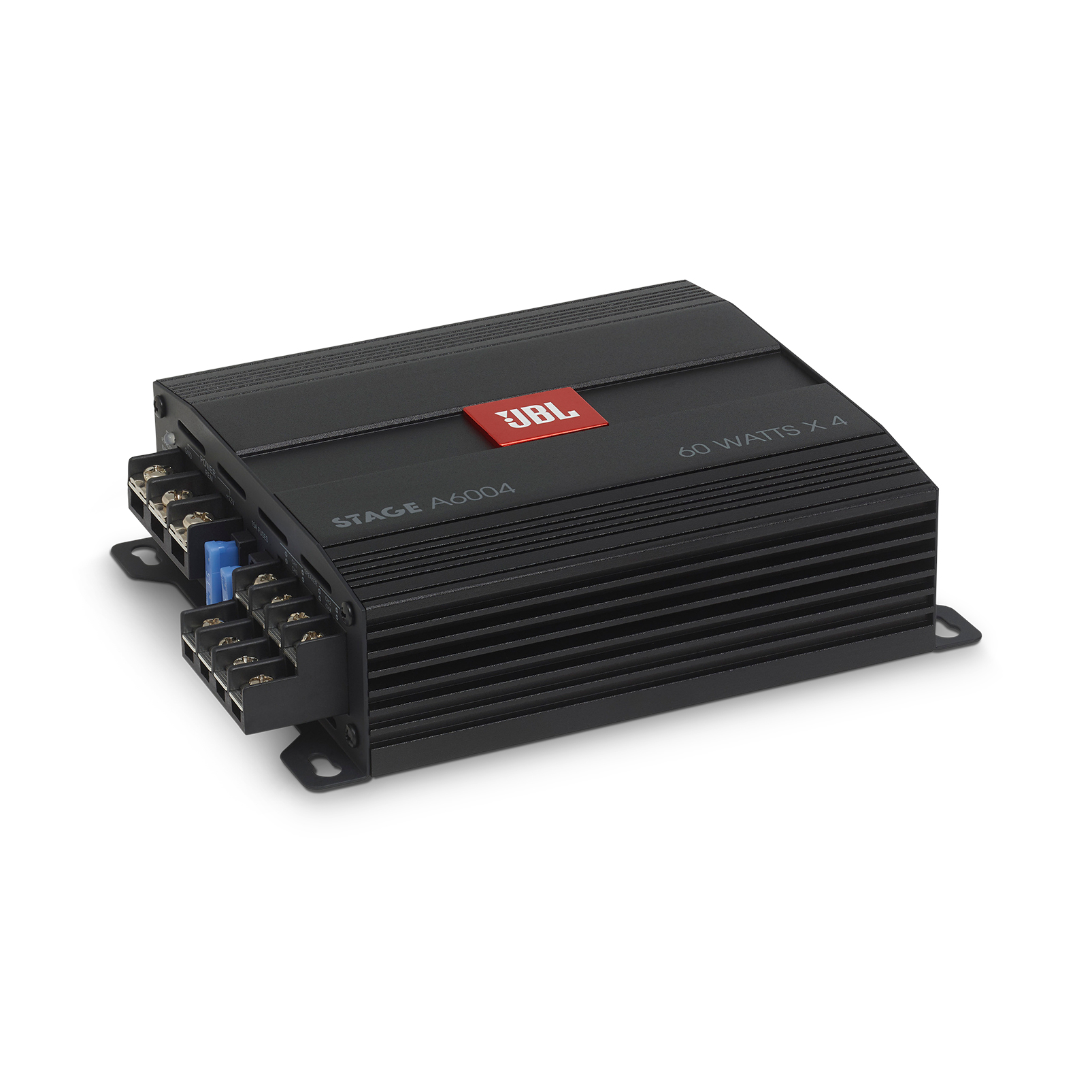

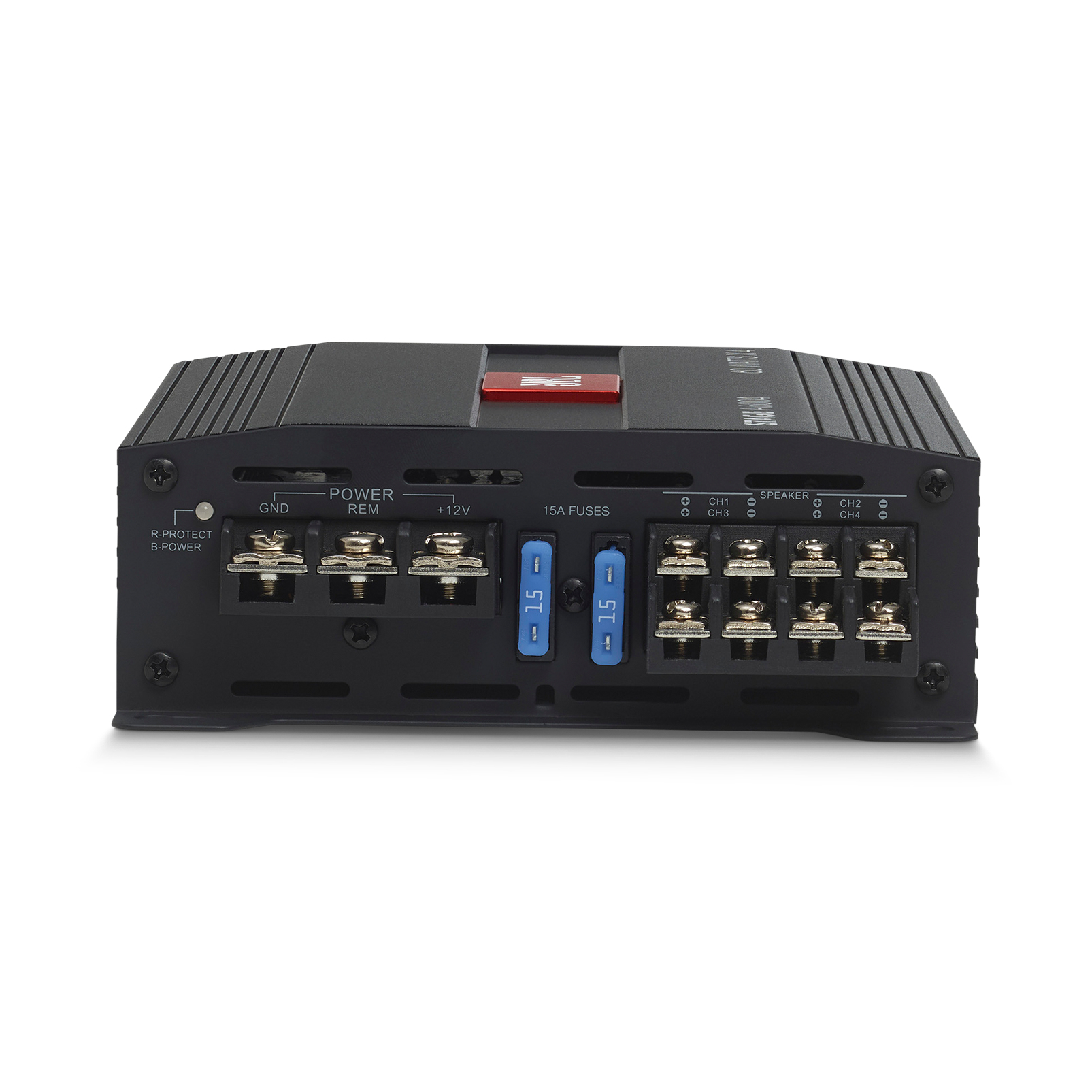

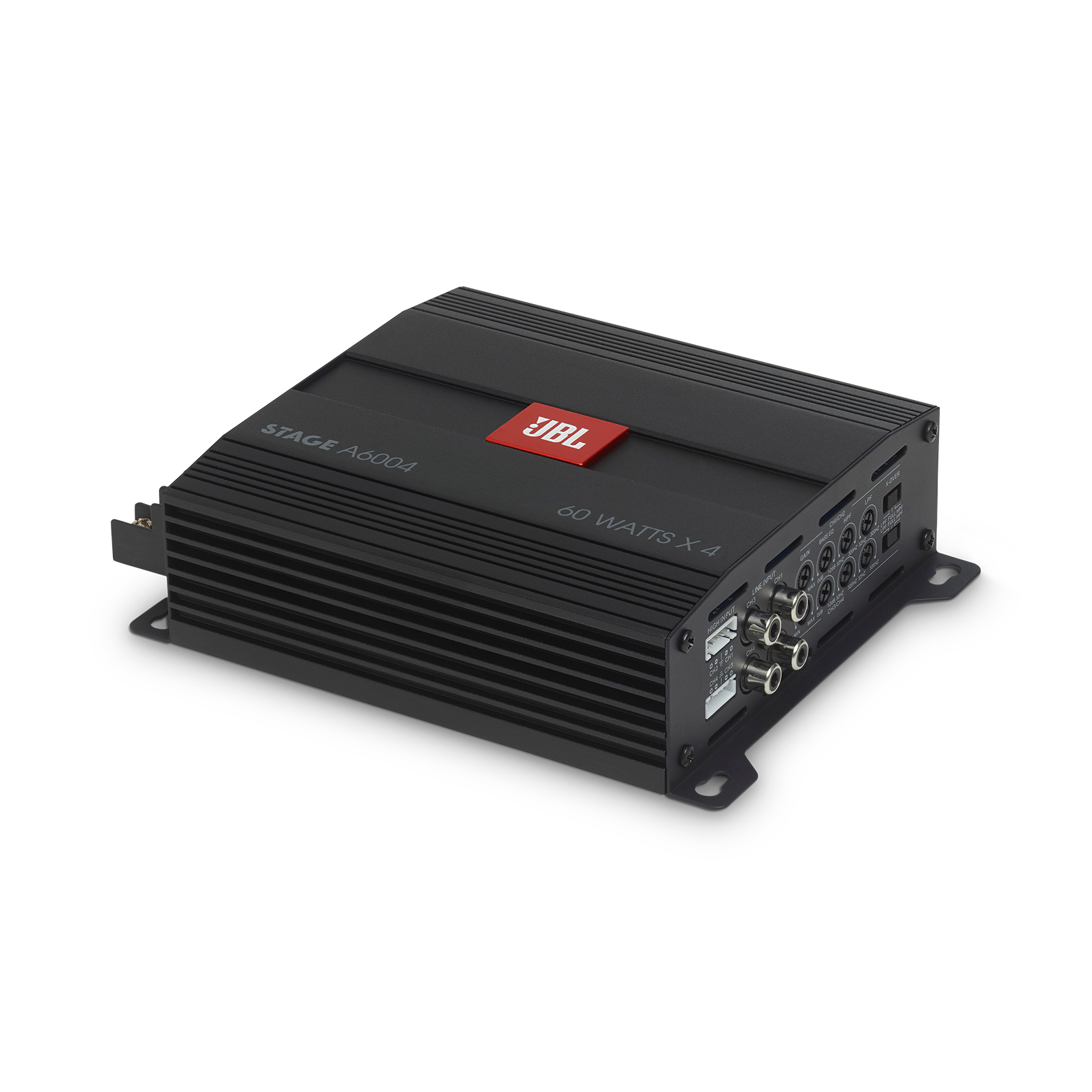

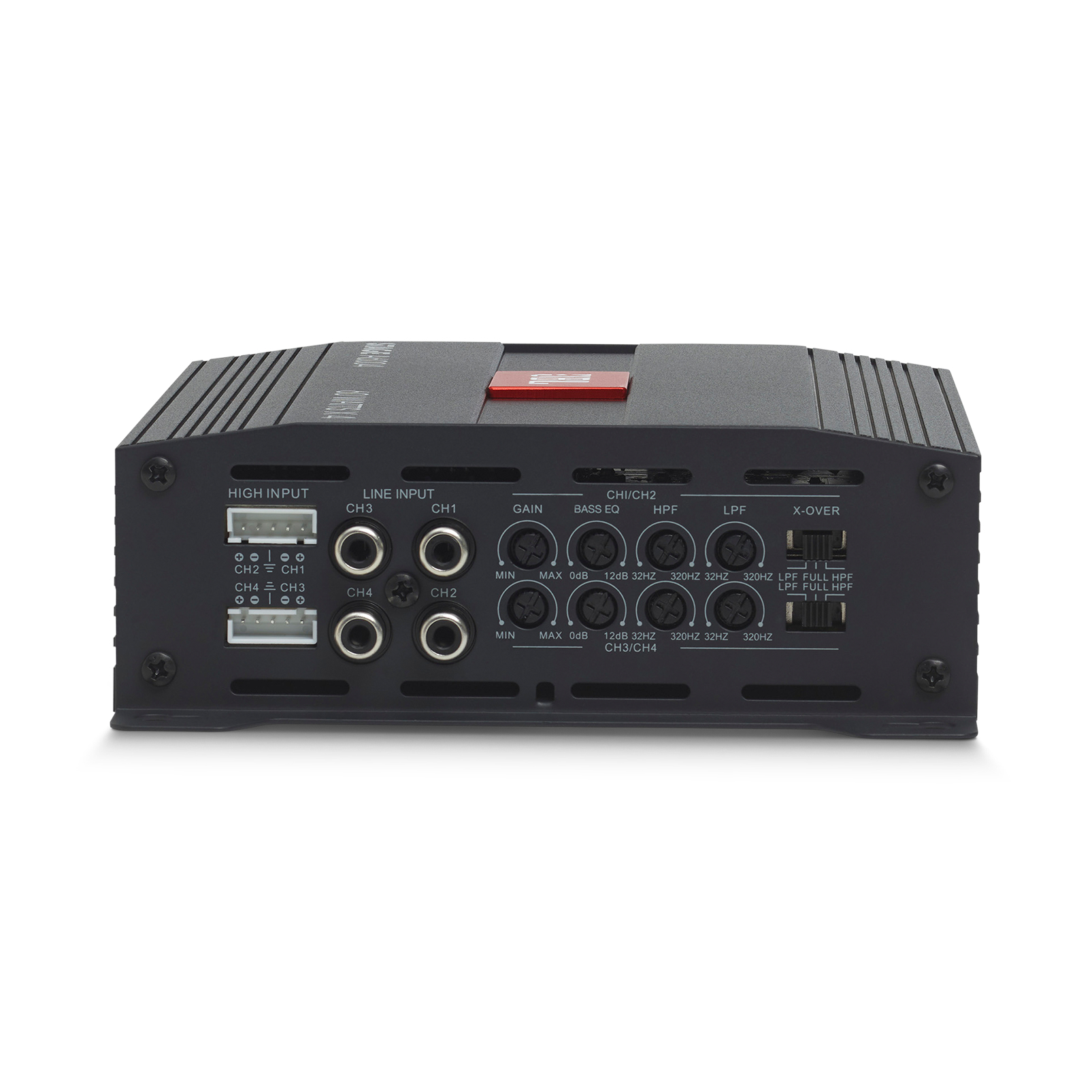

STAGEA6004 car audio amplifier 4 channels
600 W D
Model STAGEA6004EAN 6925281938092
28 specifications
- ConnectivityWired
- Weight1.38 kg
- ColourBlack
- Amplifier classD
- Width145 mm
Overview
- Connectivity
- Wired
- Weight
- 1.38 kg
- Colour
- Black
- Amplifier class
- D
- Width
- 145 mm
- Brand
- JBL
- Category
- Car Audio Amplifier
- Model
- STAGEA6004
- Part number
- STAGEA6004
- EAN / UPC
- 6925281938092
- Also known as
- JBL STAGEA6004 car audio amplifier 4 channels 600 W D
Specifications
28 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Amplifier class | D |
| Number of amplifier channels | 4 channels |
| RMS output power (max) | 600 W |
| High pass filter | Yes |
| Low pass filter | Yes |
| Output impedance | 4 Ω |
| Total Harmonic Distortion (THD) | 1% |
| RMS power output per channel (2 Ohm) | 70 W |
| RMS power output per channel (4 Ohm) | 60 W |
| Input sensitivity | 500 mV |
| Bridged output power (max) | 140 W |
| High pass filter range | 32 - 320 Hz |
| Low pass filter range | 32 - 320 Hz |
| High level inputs | Yes |
| Fuse | 15 A |
| LED indicators | Yes |
| Signal-to-Noise Ratio (SNR) | 75 dB |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Equalizer | Yes |
| Bass adjustment | Yes |
| Gain adjustment | Rotary |
Power
| Specification | Value |
|---|---|
| Power protection features | DC offset, Over current, Over voltage, Overheating, Under voltage |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 193.6 mm |
| Height | 50 mm |
| Weight | 1.38 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
