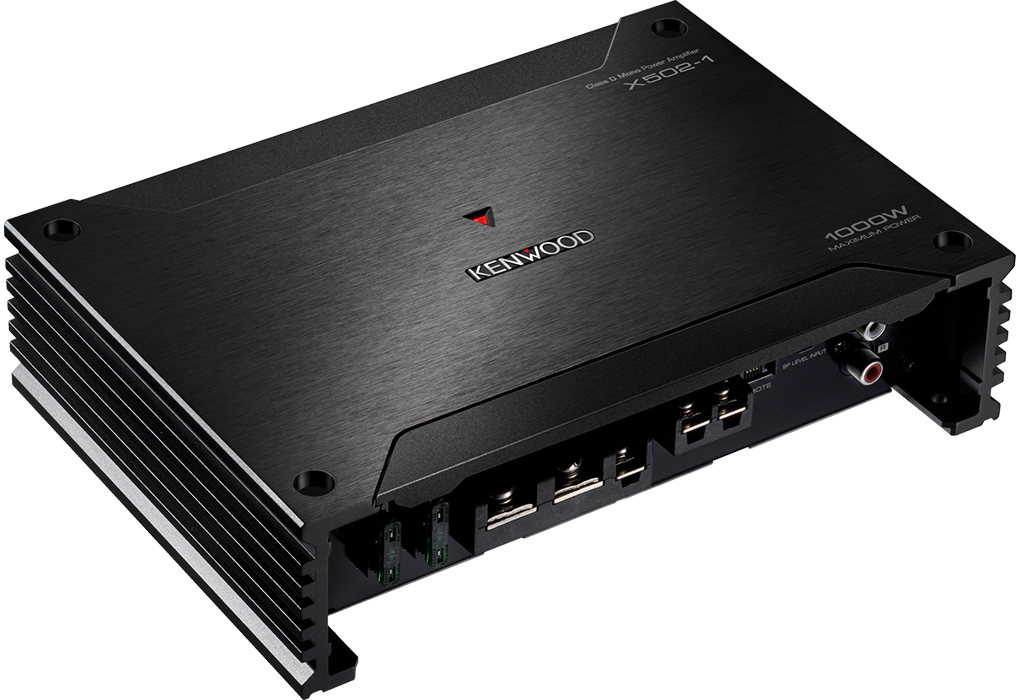

X502-1 car audio amplifier 1 channels
300 W D
Model X502-1
17 specifications
- Weight1.5 kg
- ColourBlack
- Amplifier classD
- Line inputs (RCA)5
- Width213 mm
Overview
- Weight
- 1.5 kg
- Colour
- Black
- Amplifier class
- D
- Line inputs (RCA)
- 5
- Width
- 213 mm
- Brand
- Kenwood
- Category
- Car Audio Amplifier
- Model
- X502-1
- Part number
- X502-1
- Also known as
- Kenwood X502-1 car audio amplifier 1 channels 300 W D
Specifications
17 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Amplifier class | D |
| Number of amplifier channels | 1 channels |
| RMS output power (max) | 300 W |
| High pass filter | Yes |
| Low pass filter | Yes |
| Input impedance | 10 Ω |
| Low pass filter range | 50 - 200 Hz |
| Bass boost | 0 - 18 dB |
| Current | 25 A |
| Frequency range | 20 - 200 Hz |
| Signal-to-Noise Ratio (SNR) | 100 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| Line inputs (RCA) | 5 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 149 mm |
| Height | 53 mm |
| Weight | 1.5 kg |
