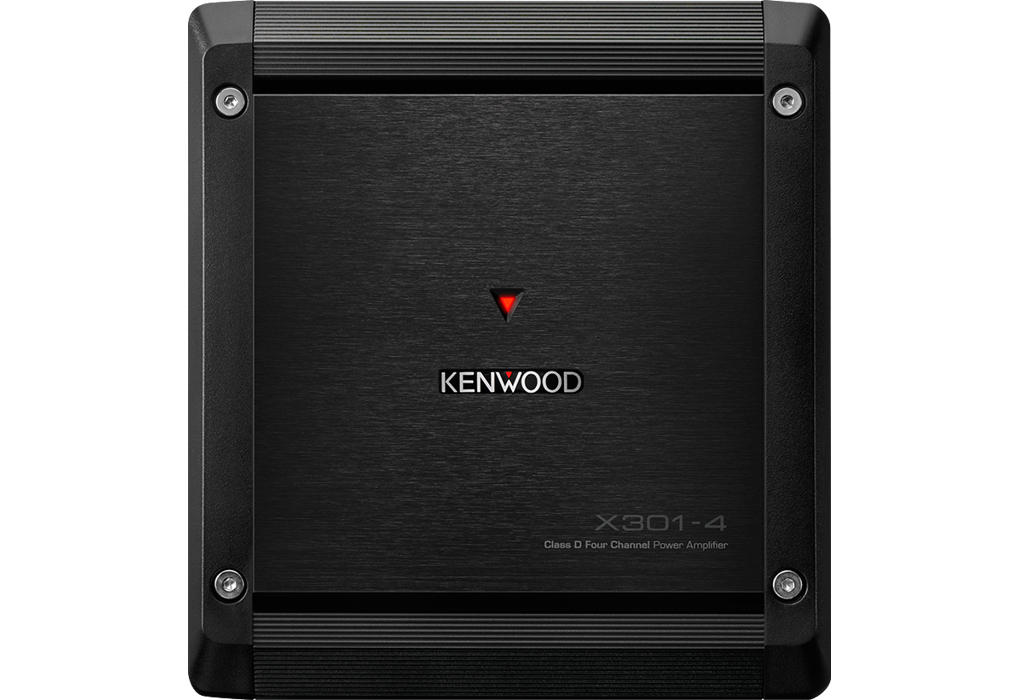

X301-4 car audio amplifier D
Model X301-4Part no. 19048215031EAN 019048215031
19 specifications
- ConnectivityWired
- ColourBlack
- Amplifier classD
- DC input voltage14.4 V
- Width170 mm
Overview
- Connectivity
- Wired
- Colour
- Black
- Amplifier class
- D
- DC input voltage
- 14.4 V
- Width
- 170 mm
- Brand
- Kenwood
- Category
- Car Audio Amplifier
- Model
- X301-4
- Part number
- 19048215031
- EAN / UPC
- 019048215031
- Also known as
- Kenwood X301-4 car audio amplifier D
Specifications
19 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Amplifier class | D |
| Audio output channels | 4.0 channels |
| High pass filter | Yes |
| Low pass filter | Yes |
| Built-in display | No |
| Input impedance | 10000 Ω |
| Total Harmonic Distortion (THD) | 1% |
| RMS power output per channel (2 Ohm) | 75 W |
| RMS power output per channel (4 Ohm) | 50 W |
| High pass filter range | 50 - 200 Hz |
| Low pass filter range | 50 - 200 Hz |
| Signal-to-Noise Ratio (SNR) | 100 dB |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| DC input voltage | 14.4 V |
| Maximum current | 25 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 187 mm |
| Height | 55 mm |
