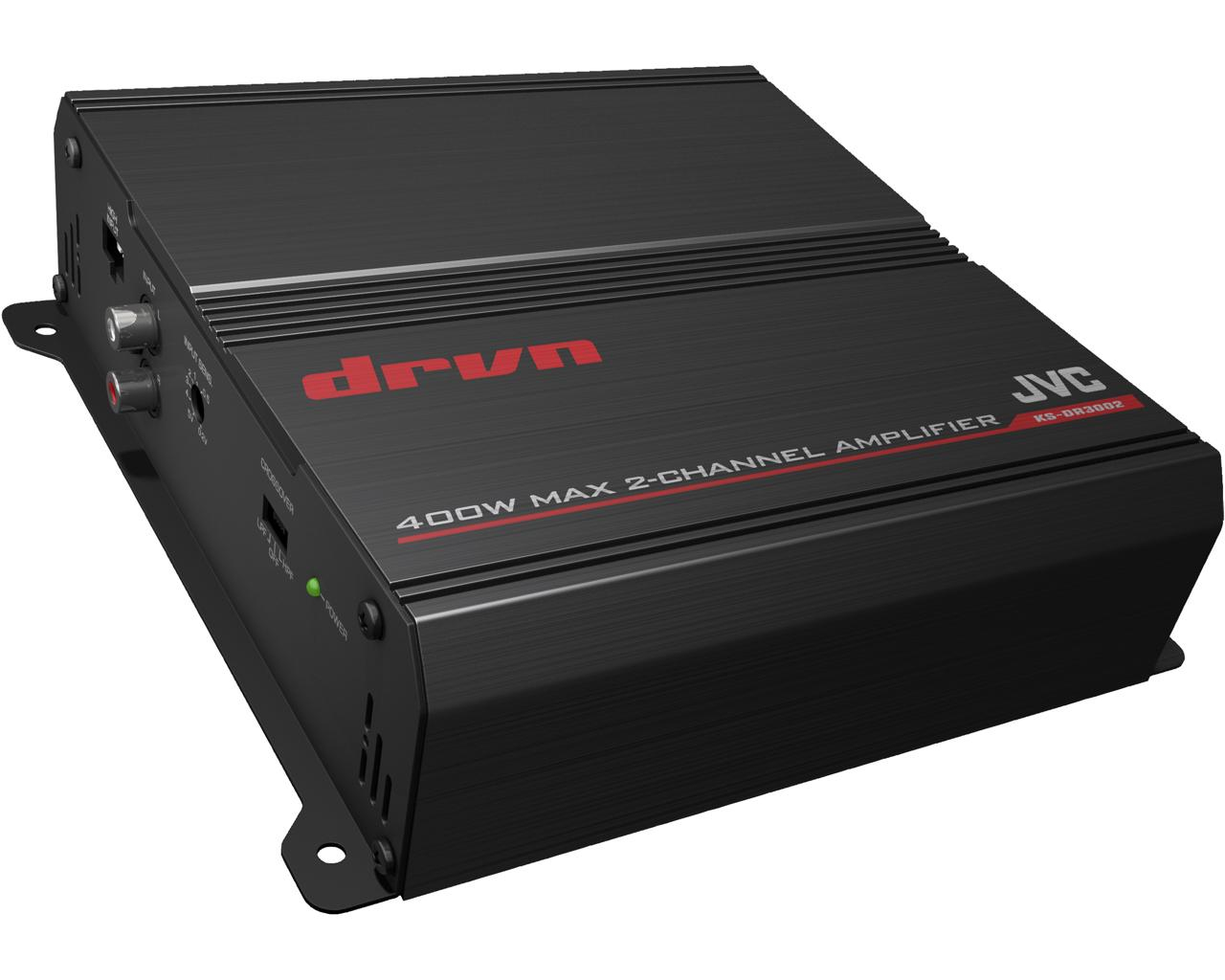

KS-DR3002 Amplifier
Model KS-DR3002Part no. KSDR3002EAN 4975769435447
18 specifications
- ColourBlack
- Amplifier classA/B
- Audio RCA inputs1
- Width194 mm
Overview
- Colour
- Black
- Amplifier class
- A/B
- Audio RCA inputs
- 1
- Width
- 194 mm
- Brand
- JVC
- Category
- Car Audio Amplifier
- Model
- KS-DR3002
- Part numbers
- KSDR3002, KS-DR3002
- EAN / UPC
- 4975769435447
- Also known as
- JVC KS-DR3002 Amplifier
Specifications
18 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Amplifier class | A/B |
| Number of amplifier channels | 2 channels |
| RMS output power (max) | 400 W |
| High pass filter | Yes |
| Low pass filter | Yes |
| RMS power output per channel (2 Ohm) | 180 W |
| RMS power output per channel (4 Ohm) | 130 W |
| Maximum power output per channel (4 Ohm) | 180 W |
| Input sensitivity | 15 mV |
| Bridged output power (max) | 180 W |
| Frequency range | 5 - 50000 Hz |
| LED indicators | Yes |
| Signal-to-Noise Ratio (SNR) | 80 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio RCA inputs | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194 mm |
| Depth | 185 mm |
| Height | 52 mm |
