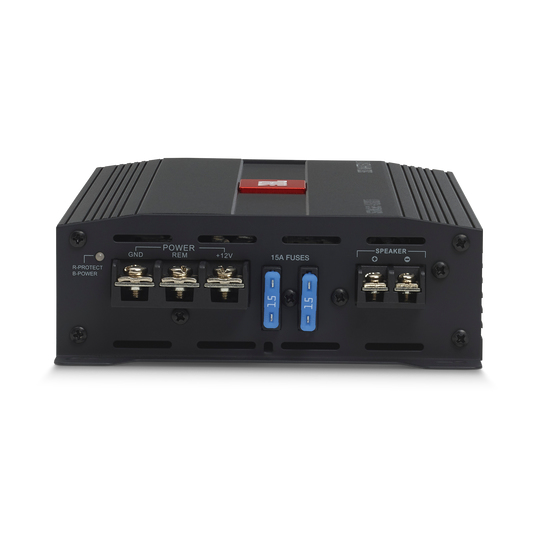

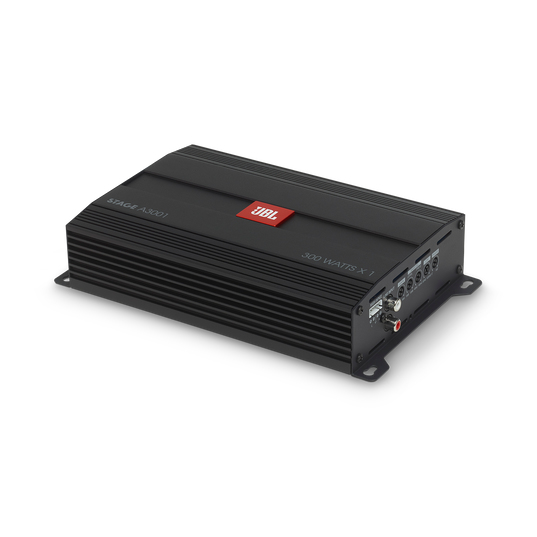

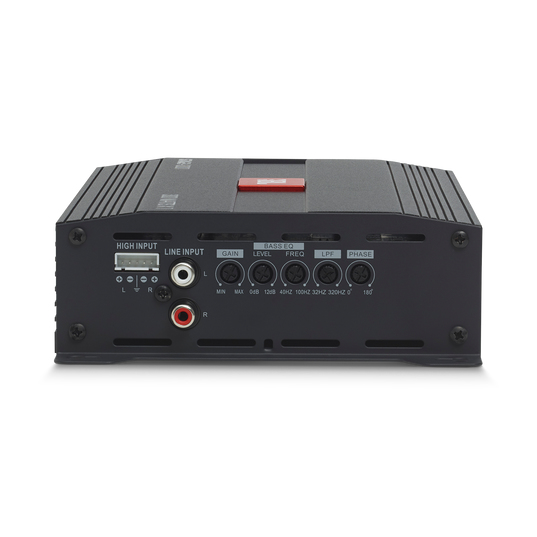

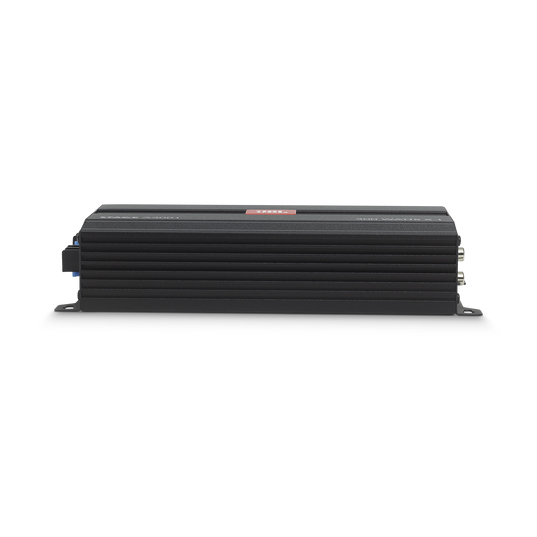

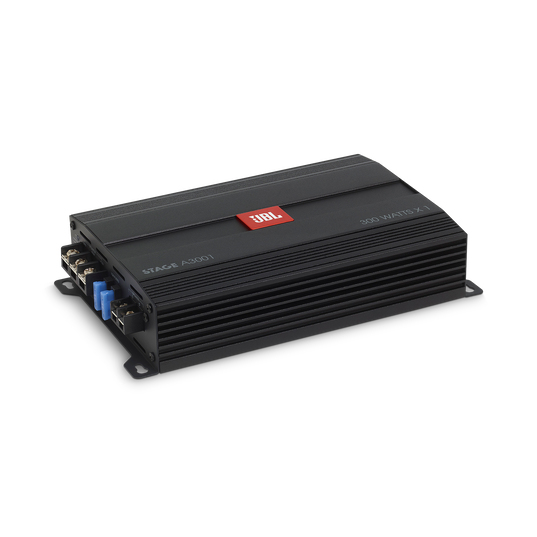

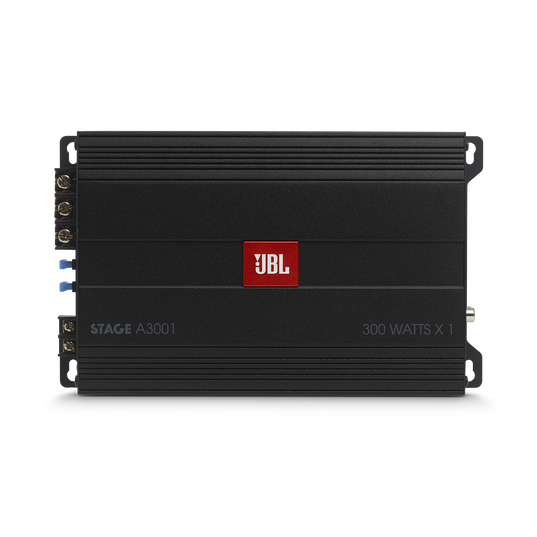

Stage A3001
Model Stage A3001Part no. STAGEA3001
15 specifications
- Weight1.61 kg
- ColourBlack
- Amplifier classD
- DC input voltage9 - 16 V
- Width145 mm
Overview
- Weight
- 1.61 kg
- Colour
- Black
- Amplifier class
- D
- DC input voltage
- 9 - 16 V
- Width
- 145 mm
- Brand
- JBL
- Category
- Car Audio Amplifier
- Model
- Stage A3001
- Part number
- STAGEA3001
- Also known as
- JBL Stage A3001 car audio amplifier D
Specifications
15 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Amplifier class | D |
| Low pass filter | Yes |
| Total Harmonic Distortion (THD) | 1% |
| RMS power output per channel (2 Ohm) | 300 W |
| Bass boost | 0 - 12 dB |
| Frequency range | 10 - 320000 Hz |
| Fuse | 15 A |
| Signal-to-Noise Ratio (SNR) | 75 dB |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| DC input voltage | 9 - 16 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 241.6 mm |
| Height | 50 mm |
| Weight | 1.61 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
