WB WB690 1/2.33" Compact camera
12 MP CCD 4320 x 3240 pixels Black
Model WB690Part no. EC-WB690ZBPBE1
112 specifications Checked today
- Display7.62 cm (3")
- Resolution320 x 240 pixels
- Battery1050 mAh
- Weight203 g
- ColourBlack
- Camera typeCompact camera
Overview
- Display
- 7.62 cm (3")
- Resolution
- 320 x 240 pixels
- Battery
- 1050 mAh
- Weight
- 203 g
- Colour
- Black
- Camera type
- Compact camera
- Brand
- Samsung
- Category
- Camera
- Model
- WB690
- Part number
- EC-WB690ZBPBE1
- Also known as
- Samsung WB WB690 1/2.33" Compact camera 12 MP CCD 4320 x 3240 pixels Black
Specifications
112 specifications in 21 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | Compact camera |
| Megapixel (approx.) | 12 MP |
| Image sensor size | 1/2.33" |
| Sensor type | CCD |
| Maximum image resolution | 4320 x 3240 pixels |
| Still image resolution(s) | 1024 x 768,1920 x 1080,1984 x 1488,2592 x 1944,3648 x 2736,4320 x 2432,4320 x 2880 |
| Image stabilizer | Yes |
| Supported aspect ratios | 16:9 |
| Total megapixels | 16.4 MP |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 18x |
| Digital zoom | 4x |
| Focal length range | 4.06 - 73.08 mm |
| Minimum focal length (35mm film equiv) | 24 mm |
| Maximum focal length (35mm film equiv) | 432 mm |
| Minimum aperture number | 5.8 |
| Maximum aperture number | 3.2 |
| Extra/Smart zoom | 1.33x |
| Combined zoom | 72x |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Auto focusing (AF) modes | Centre weighted Auto Focus, Multi Point Auto Focus, Selective Auto Focus |
| Face tracking | Yes |
| Normal focusing range (tele) | 3.5 - ∞ |
| Normal focusing range (wide) | 0.8 - ∞ |
| Auto Mode focusing range (tele) | 1.5 - ∞ |
| Auto Mode focusing range (wide) | 0.03 - ∞ |
| Macro focusing range (tele) | 1.5 - 2 m |
| Macro focusing range (wide) | 0.03 - 0.5 m |
| Manual focusing range (tele) | 1.5 - ∞ |
| Manual focusing range (wide) | 0.03 - ∞ |
| Normal focusing range | 0.5 - ∞ |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 80 |
| ISO sensitivity (max) | 3200 |
| ISO sensitivity | 80, 100, 200, 400, 800, 1600, 3200, Auto |
| Light exposure modes | Aperture priority AE, Manual, Shutter priority AE |
| Light exposure control | Program AE |
| Light exposure correction | ± 2EV (1/3EV step) |
| Light metering | Centre-weighted, Spot |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/2000 s |
| Slowest camera shutter speed | 16 s |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Fill-in, Flash off, Red-eye reduction, Slow synchronization |
| Flash range (tele) | 0.5 - 3 m |
| Flash range (wide) | 0.3 - 5 m |
| Flash recharging time | 4 s |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1280 x 720 pixels |
| HD type | HD |
| Video resolutions | 320 x 240,640 x 480,1280 x 720 |
| Analog signal format system | NTSC, PAL |
| Motion JPEG frame rate | 30 fps |
| Video formats supported | H.264, MP4 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Voice recording | Yes |
| Audio formats supported | AAC, WAV |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC |
| Memory slots | 1 |
| Maximum memory card size | 8 GB |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Touchscreen | No |
| Display diagonal | 7.62 cm (3") |
| Display resolution | 320 x 240 pixels |
| Second display | No |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Not available |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| HDMI | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Fluorescent, Tungsten |
| Scene modes | Backlight, Beach, Close-up (macro), Dawn, Documents, Night, Night portrait, Portrait, Snow, Sunset, Landscape |
| Shooting modes | Aperture priority, Auto, Manual, Program, Scene, Shutter priority |
| Photo effects | Black&White, Negative film |
| Self-timer delay | 2,10 s |
| Contrast adjustment | Yes |
| Saturation adjustment | Yes |
| Camera playback | Movie, Single image, Slide show, Thumbnails |
| Camera file system | DCF 2.0, DPOF 1.1, Exif 2.21 |
| Image editing | Resizing, Rotating, Trimming |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Playback zoom (max) | 12.5x |
| Album organization | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 3.7 V |
| Battery capacity | 1050 mAh |
| Battery life (max) | 1.8 h |
| Battery type | SLB-10A |
| Number of batteries supported | 1 |
| Power requirements | 4.4 V |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 85% |

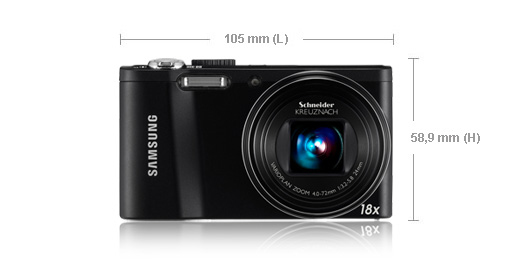

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 24.9 mm |
| Height | 58.9 mm |
| Weight | 203 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Cables included | AV, USB |
Other features
| Specification | Value |
|---|---|
| Minimum storage drive space | 250 MB |
| Minimum RAM | 250 MB |
| Minimum processor | Intel Pentium III 500 MHz, Power Mac G3 |
| Video capability | Yes |
| Aperture range (F-F) | 3.2 - 5.8 |
| Built-in flash | Yes |
| Compatible operating systems | Windows 2000 Windows XP Windows Vista Mac OS 10.3+ |
| Focal length (35mm film equivalent) | 24 - 432 mm |
| HDMI ports quantity | 1 |
| Minimum system requirements | USB CD-ROM VGA 1024x768 DirectX 9.0 |
| Power source type | AC, Battery |
