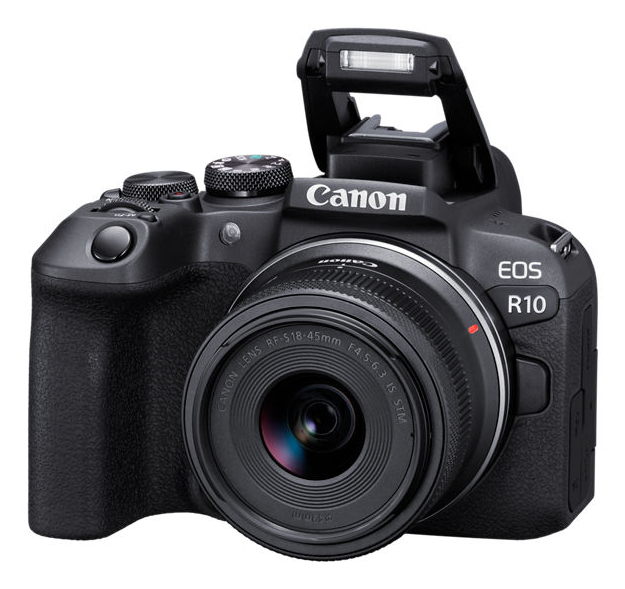

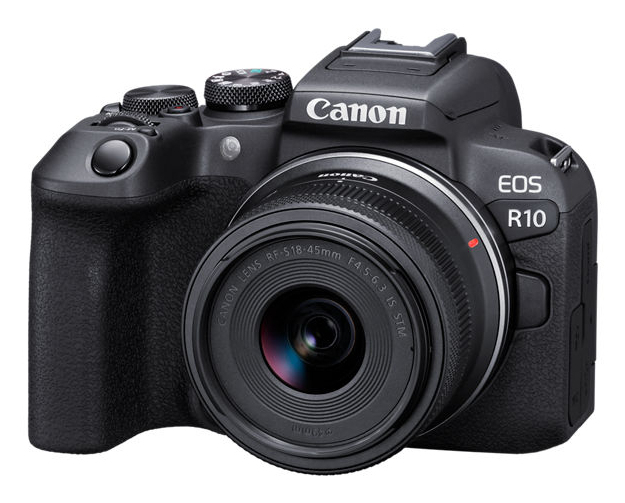

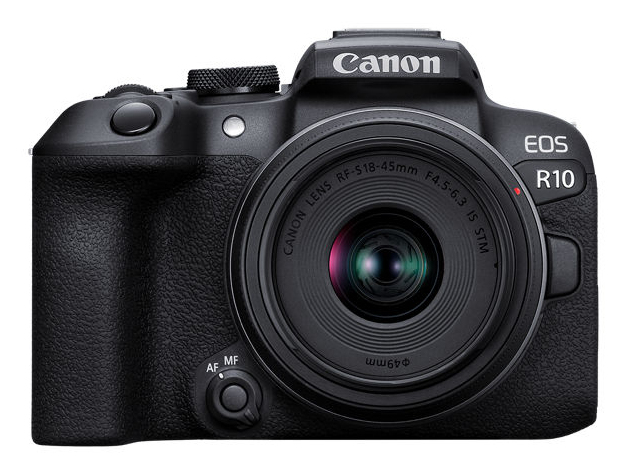

R10 RF-S18-45mm F4.5-6.3 IS STM
Model R10 RF-S18-45mm F4.5-6.3 IS STMPart no. 5331C009EAN 013803343502
165 specifications Checked today
- Display7.49 cm (2.95")
- Weight382 g
- ColourBlack
- Camera typeMILC Body
- Lens mount interfaceCanon RF
- FocusTTL
Overview
- Display
- 7.49 cm (2.95")
- Weight
- 382 g
- Colour
- Black
- Camera type
- MILC Body
- Lens mount interface
- Canon RF
- Focus
- TTL
- Brand
- Canon
- Category
- Camera
- Model
- R10 RF-S18-45mm F4.5-6.3 IS STM
- Part number
- 5331C009
- EAN / UPC
- 013803343502, 603765654213
- Also known as
- Canon EOS R10 RF-S18-45mm F4.5-6.3 IS STM Kit
Specifications
165 specifications in 21 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | MILC Body |
| Megapixel (approx.) | 24.2 MP |
| Image sensor aspect ratio | 3:2 |
| Sensor type | CMOS |
| Maximum image resolution | 6000 x 4000 pixels |
| Sensor cleaning system name | EOS Integrated Cleaning System |
| Still image resolution(s) | 6000 x 4000, 3984 x 2656, 2976 x 1984, 2400 x 1600 5328 x 4000, 3552 x 2664, 2656 x 1992, 2112 x 1600 6000 x 3368, 3984 x 2240, 2976 x 1680, 2400 x 1344 4000 x 4000, 2656 x 2656, 1984 x 1984, 1600 x 1600 |
| Image stabilizer | Yes |
| Image stabilizer location | Lens |
| Supported aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Total megapixels | 25.5 MP |
| Image sensor size (W x H) | 22.3 x 14.9 mm |
| Built-in low-pass filter | Yes |
| Colour filter type | Primary colour filter |
| Number of compressed options (HEIF) | 2 |
| Number of compressed options (JPEG) | 2 |
| Sensor format | Advanced Photo System type-C (APS-C) |
| Simultaneous recording modes | RAW + JPEG RAW + HEIF |
| Image formats supported | C-RAW, EXIF, HEIF, JPEG, Raw |
Lens system
| Specification | Value |
|---|---|
| Lens mount interface | Canon RF |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Focus adjustment | Auto/Manual |
| Focusing system | Dual Pixel CMOS AF II |
| Auto focusing (AF) modes | One Shot Focus, Spot Auto Focus, Servo Auto Focus |
| Auto Focus (AF) object detection | Animal, Eye, People, Bird, Face |
| Face tracking | Yes |
| Auto Focus (AF) area (auto selection) (horizonlal/vertical) | 100/100% |
| Auto Focus (AF) area (manual selection) (horizonlal/vertical) | 90/100% |
| Auto Focus (AF) points | 651 |
| Auto Focus (AF) points manual selection | AF point expansion 4 points, AF point expansion surrounding, Flexible zone AF 1-3 |
| Auto Focus (AF) points selection | Auto, Manual |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 32000 |
| Light exposure modes | Auto |
| Light exposure value | EV -4 - 20 (23 °C, ISO 100) |
| Light exposure correction | ± 3EV (1/2EV; 1/3EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Partial, Spot |
| Auto Exposure (AE) lock | Yes |
| Auto Exposure (AE) locking (auto) | Focus achievement |
| Auto Exposure (AE) locking (manual) | AE lock button (P, Av, Fv, Tv, M modes) |
| Anti-flicker shooting | Yes |
| Exposure bracketing (AEB) | ± 3EV (1/2EV; 1/3EV stop) |
| Flicker detection frequency | 100 - 120 Hz |
| Number of measurement zones | 384 |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/16000 s |
| Slowest camera shutter speed | 30 s |
| Camera shutter type | Electronic, Mechanical |
| Camera shutter speed (bulb electronic) | 1/16000 s |
| Shutter release type | Electromagnetic |
Flash
| Specification | Value |
|---|---|
| Flash modes | Second curtain synchro |
| Brand specific flash systems | E-TTL II (Canon) |
| Flash exposure bracketing | Yes |
| Flash exposure compensation | Yes |
| Flash exposure correction | ±3EV (1/2; 1/3 EV step) |
| Flash exposure lock | Yes |
| Flash guide number | 6 m |
| Flash recharging time | 5 s |
| Shoe mounting point | Yes |
| Shoe mounting point type | Hot shoe |
| Wireless multi-flash support | Yes |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Video resolutions | 3840 x 2160,1920 x 1080 pixels |
| Dual card video recording | No |
| Video formats supported | H.264, H.265, MPEG4, HEVC |
| Supported recording bit rates | MOV: MP4 HDR PQ: Off: 4K UHD (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps 4K UHD (29.97p/25.00p/23.98p): IPB Light Approx. 60 Mbps 4K UHD (crop) (59.94p/50.00p): IPB Approx. 230 Mbps 4K UHD (crop) (59.94p/50.00p): IPB Light Approx. 120 Mbps 4K UHD Time-lapse (29.97p/25.00p): ALL-I Approx. 470 Mbps F |
| Colour sampling | YCbCr4:2:0 8-bit, YCbCr4:2:2 10-bit |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Audio formats supported | AAC, PCM |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SDXC, SD, SDHC |
| Memory slots | 1 |
| Memory card read mechanism | UHS-II |
Display
| Specification | Value |
|---|---|
| Display | TFT |
| Touchscreen | Yes |
| Display diagonal | 7.49 cm (2.95") |
| Display diagonal (metric) | 7.5 cm |
| Display resolution (numeric) | 1040000 pixels |
| Flip-out screen | Yes |
| Anti-smudge coating | Yes |
| Display brightness adjustment | Yes |
| Field of view | 100% |
| Number of colour tone adjustment settings | 4 |
| Number of manual brightness adjustment levels | 7 |
| Viewing angle, horizontal | 150° |
| Viewing angle, vertical | 150° |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Electronic |
| Magnification | 0.95x |
| Viewfinder information | AE lock, AEB, AF method, AF operation, AF point information, Anti-flicker shooting, Aperture, Aspect ratio, Battery level, Bluetooth function, Digital Lens Optimizer, Electronic level, Exposure compensation, Exposure level indicator, Exposure simulation, FE lock, FEB, Flash off, Flash-ready, Focus d |
| Viewfinder screen size | 0.39" |
| Viewfinder technology | OLED |
| Viewfinder resolution (approx.) | 2360000 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| USB connector | USB Type-C |
| HDMI | Yes |
| HDMI connector type | Micro |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Flash, Fluorescent, Shade, Tungsten |
| White balance compensation (Blue/Amber) | ±9 |
| White balance compensation (Magenta/Green) | ±9 |
| Custom white balance | Yes |
| Number of custom white balance settings | 5 |
| Scene modes | Fine detail, Landscape, Monochrome, Panorama, Portrait, Standard |
| Shooting modes | Aperture priority, Auto, Manual, Program, Scene, Shutter priority |
| Self-timer delay | 2,10 s |
| Brightness adjustment | Yes |
| Camera playback | Movie, Single image, Slide show, Thumbnails |
| Built-in interval timer | Yes |
| Camera drive modes | Continuous high, Continuous high+, Continuous low, Self-timer, Single |
| Camera file system | DCF 2.0, DPOF 1.1, Exif 2.31, Raw |
| Colour space supported | RGB |
| Erase options | Folder, Memory card, Select range, Selected images, Single image |
| Erase protection options | Folder, Memory card, Single image |
| File numbering options | Auto-reset, Consecutive numbering, Manual reset |
| Firmware upgradeable | Yes |
| HEIF to JPEG conversion | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) video processing | Yes |
| Histogram | Yes |
| Histogram options | Brightness, RGB |
| Image crop aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Image editing | Crop, Resizing |
| Languages support | Multi |
| Menu categories | AF Menu, Custom functions menu, My Menu, Network, Playback menu, Setup menu, Shooting menu |
| Metadata supported | Yes |
| Multiple exposure | Yes |
| Orientation sensor | Yes |
| RAW image processing | Yes |
| Tripod mounting supported | Yes |
| Slideshow | Yes |
| Slideshow setting | All, Date, Folder, Images, Protected images, Rating, Videos |
| Slideshow playback time | 1, 2, 3, 5, 10, 20 s |
| Built-in processor | Yes |
| Image processor | DIGIC X |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x6 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | LP-E17 |
| Battery level indicator | Yes |
| Charging indicator | Yes |
| Battery level indicator number of levels | 4 |
| Compatible power supply / battery chargers | LC-E17E AC-E6N DR-E18 PD-E1 |
Power
| Specification | Value |
|---|---|
| USB Type-C charging port | Yes |
| USB Type-C required charging power (max) | 7.5 W |
| USB Type-C required charging power (min) | 7.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122.5 mm |
| Depth | 83.4 mm |
| Height | 87.8 mm |
| Weight | 382 g |
| Weight (including battery) | 429 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Battery charger included | Yes |
| Carrying case | Yes |
Technical details
| Specification | Value |
|---|---|
| Video recording time | 2 h |
| Effective megapixels | 24.2 MP |
