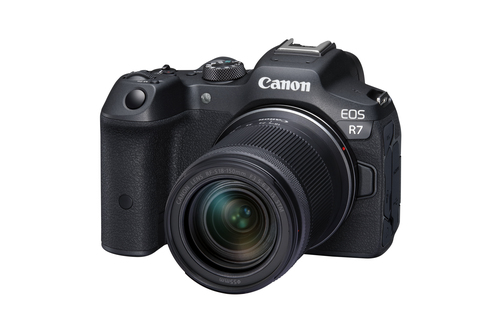

R7 + RF-S 18-150mm F3.5-6.3 IS STM + EF-EOS R
Model R7 + RF-S 18-150mm F3.5-6.3 IS STM + EF-EOS RPart no. 5137C019EAN 8714574671635
171 specifications Checked today
- Display7.49 cm (2.95")
- Resolution1620000 dot
- Weight530 g
- ColourBlack
- Camera typeMILC
- Focal length range18 - 150 mm
Overview
- Display
- 7.49 cm (2.95")
- Resolution
- 1620000 dot
- Weight
- 530 g
- Colour
- Black
- Camera type
- MILC
- Focal length range
- 18 - 150 mm
- Brand
- Canon
- Category
- Camera
- Model
- R7 + RF-S 18-150mm F3.5-6.3 IS STM + EF-EOS R
- Part number
- 5137C019
- EAN / UPC
- 8714574671635
- Also known as
- Canon EOS R7 + RF-S 18-150mm F3.5-6.3 IS STM + EF- R MILC 32.5 MP CMOS 6960 x 4640 pixels Black
Specifications
171 specifications in 21 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | MILC |
| Megapixel (approx.) | 32.5 MP |
| Image sensor aspect ratio | 3:2 |
| Sensor type | CMOS |
| Maximum image resolution | 6960 x 4640 pixels |
| Sensor cleaning system name | EOS Integrated Cleaning System |
| Still image resolution(s) | 6960 x 4640, 4800 x 3200, 3472 x 2320, 2400 x 1600 6160 x 4640, 4256 x 3200, 3072 x 2320, 2112 x 1600 6960 x 3904, 4800 x 2688, 3472x 1952, 2400 x 1344 4640 x 4640, 3200 x 3200, 2320 x 2320, 1600 x 1600 |
| Supported aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Total megapixels | 34.4 MP |
| Image sensor size (W x H) | 22.3 x 14.8 mm |
| Built-in low-pass filter | Yes |
| Colour filter type | Primary colour filter |
| Number of compressed options (HEIF) | 2 |
| Number of compressed options (JPEG) | 2 |
| Sensor format | Advanced Photo System type-C (APS-C) |
| Sensor shift IS | Yes |
| Sensor shift IS number of stops (max) | 8 |
| Simultaneous recording | Yes |
| Simultaneous recording modes | RAW + JPEG RAW + HEIF |
| Image formats supported | C-RAW, EXIF, HEIF, JPEG, Raw |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 18 - 150 mm |
| Minimum focal length (35mm film equiv) | 29 mm |
| Maximum focal length (35mm film equiv) | 240 mm |
| Lens structure (elements/groups) | 17/13 |
| Lens mount interface | Canon RF |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Focus adjustment | Auto/Manual |
| Focusing system | Dual Pixel CMOS AF II |
| Auto focusing (AF) modes | One Shot Focus, Servo Auto Focus, Spot Auto Focus, Tracking Auto Focus |
| Auto Focus (AF) object detection | Animal, Bird, Eye, Face, People |
| Face tracking | Yes |
| Auto Focus (AF) area (auto selection) (horizonlal/vertical) | 100/100% |
| Auto Focus (AF) area (manual selection) (horizonlal/vertical) | 90/100% |
| Auto Focus (AF) points manual selection | AF point expansion 4 points, AF point expansion surrounding, Flexible zone AF 1-3 |
| Auto Focus (AF) points selection | Auto, Manual |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
| Auto Focus (AF) working range | -5 - 20 |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 32000 |
| Light exposure modes | Auto |
| Light exposure value | EV -5 - 20 (23 °C, ISO 100) |
| Light exposure correction | ± 3EV (1/2EV; 1/3EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Partial, Spot |
| Auto Exposure (AE) lock | Yes |
| Auto Exposure (AE) locking (auto) | Focus achievement |
| Auto Exposure (AE) locking (manual) | AE lock button (P, Av, Fv, Tv, M modes) |
| Anti-flicker shooting | Yes |
| Exposure bracketing (AEB) | ± 3EV (1/2EV; 1/3EV stop) |
| Flicker detection frequency | 100 - 120 Hz |
| Number of measurement zones | 384 |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/8000 s |
| Slowest camera shutter speed | 30 s |
| Camera shutter type | Electronic, Mechanical |
| Shutter release type | Electromagnetic |
Flash
| Specification | Value |
|---|---|
| Flash modes | Second curtain synchro |
| Brand specific flash systems | E-TTL II (Canon) |
| Flash exposure bracketing | Yes |
| Flash exposure compensation | Yes |
| Flash exposure correction | ±3EV (1/3 EV step) |
| Flash exposure lock | Yes |
| Shoe mounting point | Yes |
| Shoe mounting point type | Hot shoe |
| Wireless multi-flash support | Yes |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Video resolutions | 1920 x 1080,3840 x 2160 pixels |
| Dual card video recording | Yes |
| Video formats supported | H.264, H.265, HEVC, MPEG4 |
| Supported recording bit rates | MOV: MP4 Canon Log: Off, HDR PQ: Off: 4K UHD / 4K UHD(Fine) (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps 4K UHD / 4K UHD(Fine) (29.97p/25.00p/23.98p): IPB Light Approx. 60 Mbps 4K UHD / 4K UHD(crop) (59.94p/50.00p): IPB Approx. 230 Mbps 4K UHD / 4K UHD(crop) (59.94p/50.00p): IPB Light Approx. 120 Mb |
| Colour sampling | YCbCr4:2:0 8-bit, YCbCr4:2:2 10-bit |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Audio formats supported | AAC, PCM |

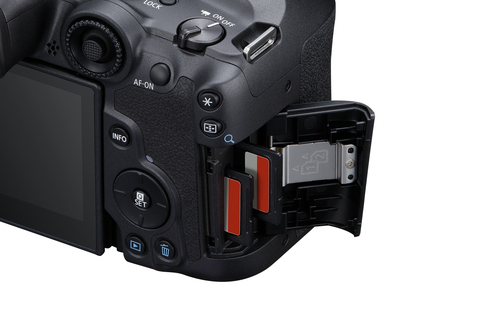

Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
| Memory slots | 2 |
| Memory card read mechanism | UHS-II |
Display
| Specification | Value |
|---|---|
| Display | TFT |
| Touchscreen | Yes |
| Display diagonal | 7.49 cm (2.95") |
| Display diagonal (metric) | 7.5 cm |
| Display resolution | 1620000 dot |

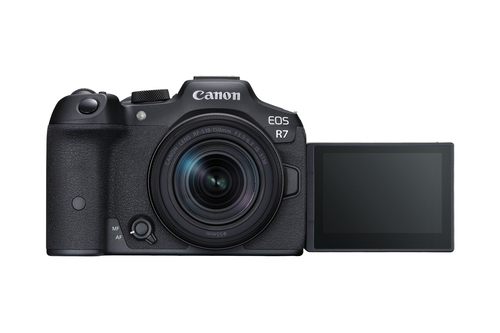

| Flip-out screen | Yes |
| Anti-smudge coating | Yes |
| Display brightness adjustment | Yes |
| Field of view | 100% |
| Number of colour tone adjustment settings | 4 |
| Number of manual brightness adjustment levels | 7 |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Electronic |
| Magnification | 1.15x |
| Viewfinder information | AE lock, AEB, AF method, AF operation, AF point information, Anti-flicker shooting, Aperture, Aspect ratio, Battery level, Bluetooth function, Digital Lens Optimizer, Electronic level, Exposure compensation, Exposure level indicator, Exposure simulation, FE lock, FEB, Flash off, Flash-ready, Focus d |
| Viewfinder screen size | 0.39" |
| Viewfinder technology | OLED |
| Viewfinder resolution (approx.) | 2360000 pixels |

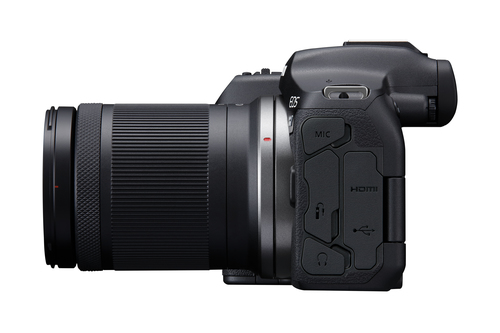

Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB connector | USB Type-C |
| HDMI | Yes |
| HDMI connector type | Micro |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Flash, Fluorescent, Shade, Tungsten |
| White balance compensation (Blue/Amber) | ±9 |
| White balance compensation (Magenta/Green) | ±9 |
| Custom white balance | Yes |
| Number of custom white balance settings | 5 |
| Scene modes | Auto, Fine detail, Landscape, Monochrome, Panorama, Portrait, Standard |
| Shooting modes | Aperture priority, Auto, Flexible priority, Manual, Movie, Program, Scene, Shutter priority |
| Self-timer delay | 2,10 s |
| Brightness adjustment | Yes |
| Camera playback | Single image, Thumbnails |
| Subject recognition | Yes |
| Diopter adjustment (D-D) | -4 - 2 |
| Built-in interval timer | Yes |
| Camera drive modes | Continuous high, Continuous high+, Continuous low, Self-timer, Single |
| Camera file system | DCF 2.0, DPOF 1.1, Exif 2.31, Raw |
| Colour space supported | RGB |
| Direct printing | Yes |
| Erase options | Folder, Memory card, Select range, Selected images, Single image |
| Erase protection options | Folder, Memory card, Single image |
| File numbering options | Auto-reset, Consecutive numbering, Manual reset |
| Firmware upgradeable | Yes |
| GPS (satellite) | Yes |
| HEIF to JPEG conversion | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) video processing | Yes |
| Histogram | Yes |
| Histogram options | RGB |
| Image crop aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Image editing | Crop, Resizing |
| Languages support | Multi |
| Menu categories | AF Menu, Custom functions menu, My Menu, Network, Playback menu, Setup menu, Shooting menu |
| Metadata features | User copyright information |
| Metadata supported | Yes |
| Multi-shot | Yes |
| Multiple exposure | Yes |
| Number of file naming user presets | 2 |
| Orientation sensor | Yes |
| Playback modes | Folder, Repeat, Slideshow |
| RAW image processing | Yes |
| Tripod mounting supported | Yes |
| Slideshow | Yes |
| Slideshow setting | All, Date, Folder, Images, Protected images, Rating, Videos |
| Slideshow playback time | 1, 2, 3, 5, 10, 20 s |
| Built-in processor | Yes |
| Image processor | DIGIC X |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Dustproof | Yes |
| Splash proof | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | LP-E6NH |
| Battery level indicator | Yes |
Power
| Specification | Value |
|---|---|
| USB Type-C charging port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132 mm |
| Depth | 91.7 mm |
| Height | 90.4 mm |
| Weight | 530 g |
| Weight (including battery) | 612 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Battery charger included | Yes |
| Carrying case | Yes |
Technical details
| Specification | Value |
|---|---|
| Video recording time | 6 h |
| Effective megapixels | 32.5 MP |
