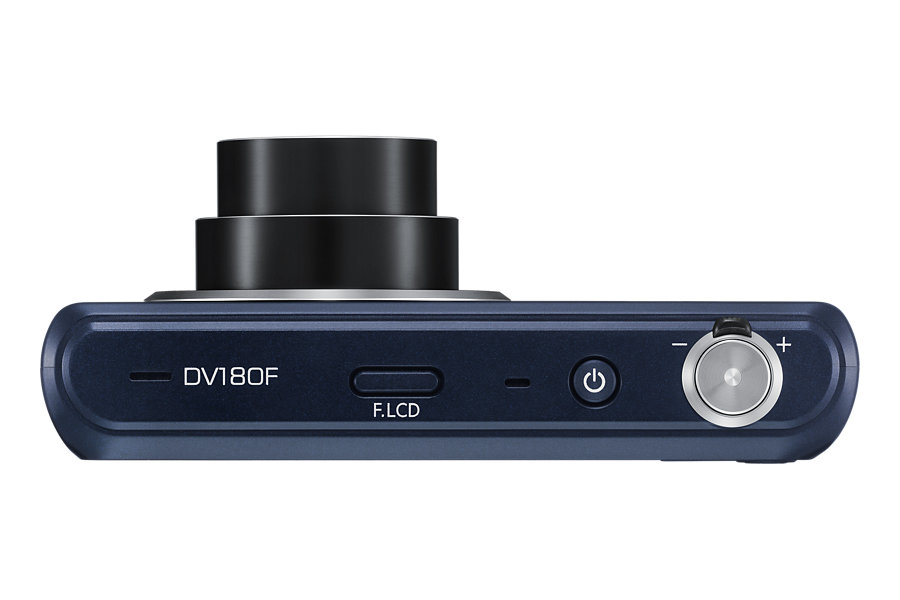

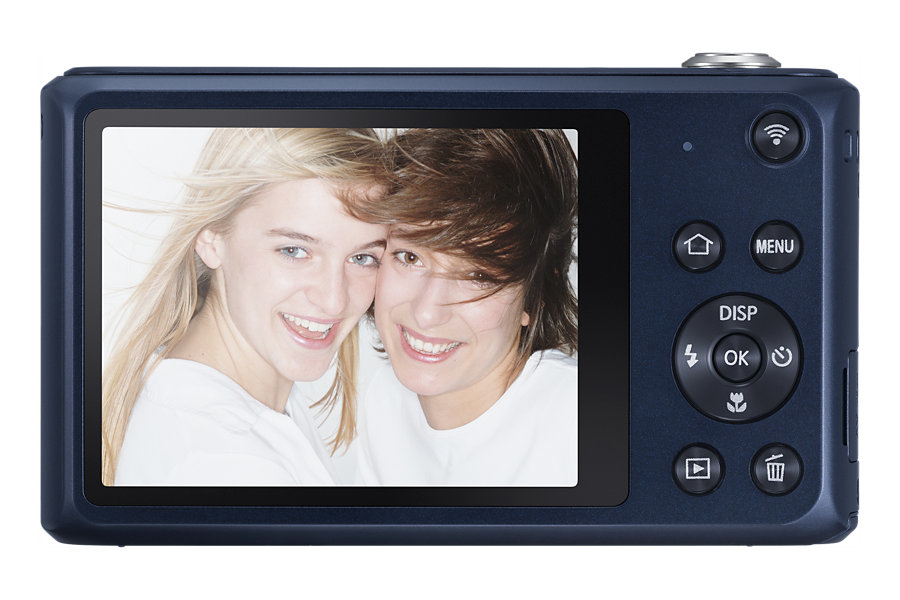

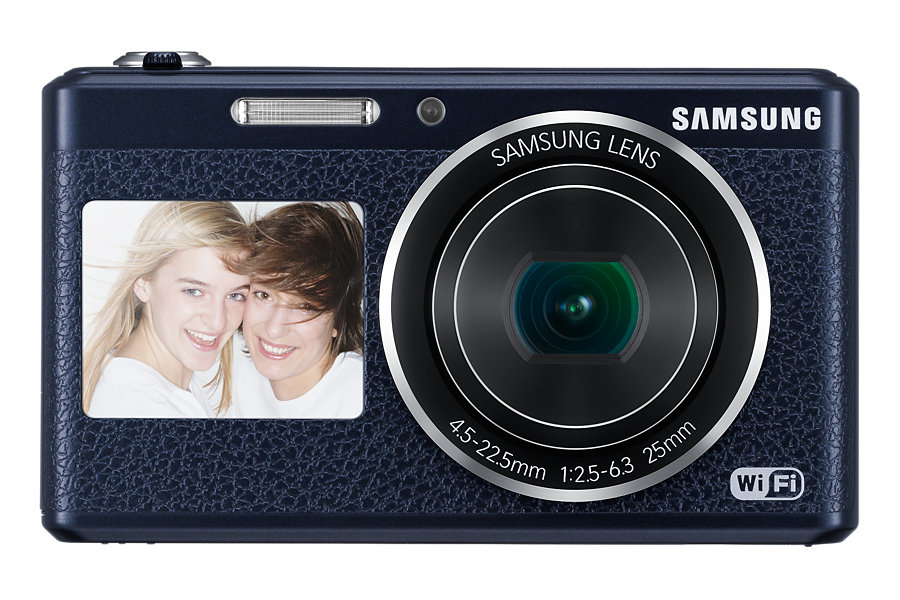

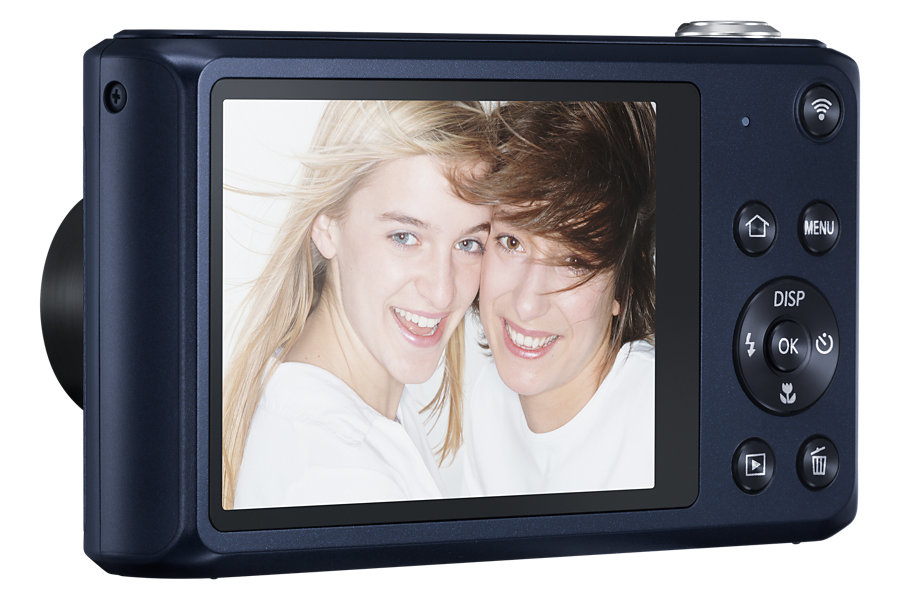

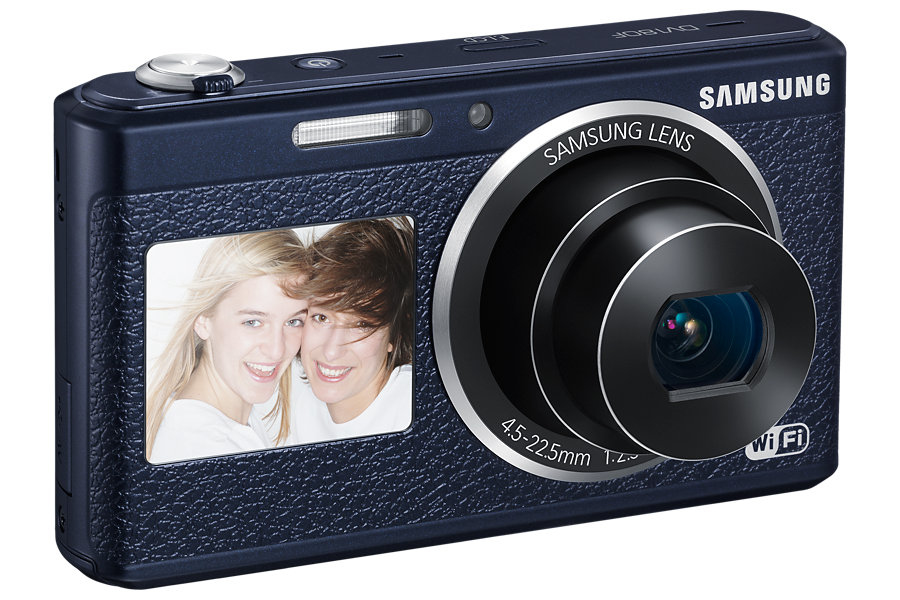

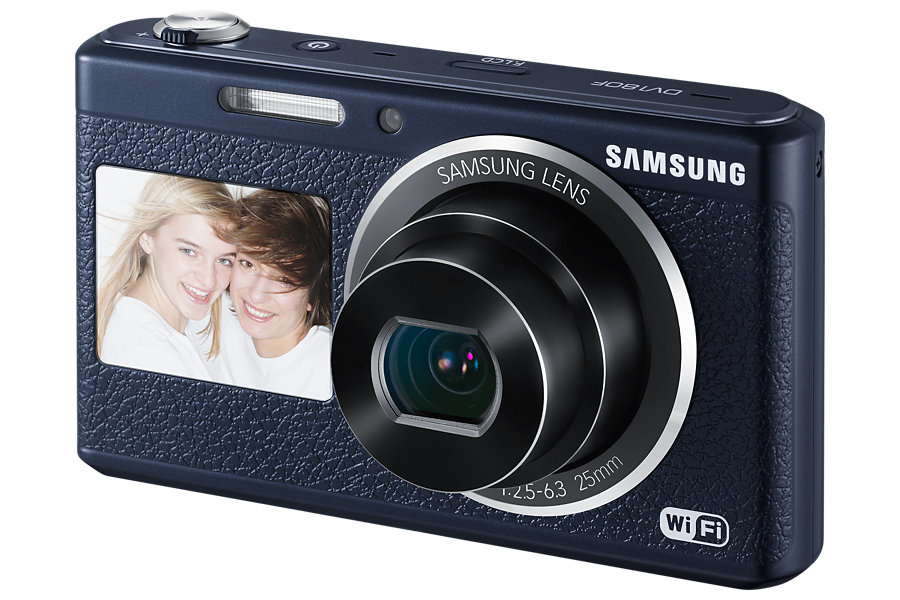

DV DV180F 1/2.3" Compact camera
16.2 MP CCD 4608 x 3456 pixels Black
Model DV180FPart no. EC-DV180FBPBE1EAN 8806086837804
86 specifications Checked today
- Display6.86 cm (2.7")
- Memory10 MB
- Battery740 mAh
- Weight113 g
- ColourBlack
- Camera typeCompact camera
Overview
- Display
- 6.86 cm (2.7")
- Memory
- 10 MB
- Battery
- 740 mAh
- Weight
- 113 g
- Colour
- Black
- Camera type
- Compact camera
- Brand
- Samsung
- Category
- Camera
- Model
- DV180F
- Part numbers
- EC-DV180FBPBE1, EC-DV180FBPWE1
- EAN / UPC
- 8806086837804, 8806086823920
- Also known as
- Samsung DV DV180F 1/2.3" Compact camera 16.2 MP CCD 4608 x 3456 pixels Black
Specifications
86 specifications in 20 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | Compact camera |
| Megapixel (approx.) | 16.2 MP |
| Image sensor size | 1/2.3" |
| Sensor type | CCD |
| Maximum image resolution | 4608 x 3456 pixels |
| Still image resolution(s) | 4608 x 3456, 4608 x 3072, 4608 x 2592, 3648 x 2736, 2592 x 1944, 1984 x 1488, 1920 x 1080, 1024 x 768 |
| Image stabilizer | Yes |
| Total megapixels | 16.6 MP |
| Image formats supported | EXIF, JPG |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 5x |
| Digital zoom | 5x |
| Focal length range | 4.5 - 22.5 mm |
| Minimum focal length (35mm film equiv) | 25 mm |
| Maximum focal length (35mm film equiv) | 125 mm |
| Minimum aperture number | 2.5 |
| Maximum aperture number | 6.3 |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Focus adjustment | Auto |
| Auto Mode focusing range (tele) | 1 - ∞ |
| Auto Mode focusing range (wide) | 0.05 - ∞ |
| Macro focusing range (tele) | 1 - 2.5 m |
| Macro focusing range (wide) | 0.05 - 0.8 m |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 80 |
| ISO sensitivity (max) | 3200 |
| ISO sensitivity | 80, 100, 200, 400, 1600, 3200, Auto |
| Light exposure control | Program AE |
| Light exposure correction | ± 2EV (1/3EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Spot |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/2000 s |
| Slowest camera shutter speed | 0.125 s |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Fill-in, Flash off, Red-eye reduction, Slow synchronization |
| Flash range (tele) | 0.5 - 1.4 m |
| Flash range (wide) | 0.2 - 4.1 m |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1280 x 720 pixels |
| HD type | HD |
| Video resolutions | 320 x 240,640 x 480,1280 x 720 |
| Analog signal format system | NTSC, PAL |
| Motion JPEG frame rate | 30 fps |
| Video formats supported | MP4 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Voice recording | Yes |
| Audio formats supported | AAC |
| Audio system | Mono |
Memory
| Specification | Value |
|---|---|
| Internal memory | 10 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Memory slots | 1 |
| Maximum memory card size | 64 GB |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Touchscreen | No |
| Display diagonal | 6.86 cm (2.7") |
| Display resolution (numeric) | 230000 pixels |
| Second display | Yes |
| Second display diagonal | 3.76 cm (1.48") |
| Vari-angle LCD display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | No |
| USB version | 2.0 |
| USB connector | Micro-USB |
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Fluorescent H, Fluorescent L, Tungsten |
| Scene modes | Backlight, Beach, Dawn, Documents, Snow, Sunset, Landscape |
| Self-timer delay | 2,10 s |
| Camera playback | Movie, Single image, Slide show, Thumbnails |
| GPS (satellite) | No |
| Histogram | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 740 mAh |
| Battery type | BP70A |
| Number of batteries supported | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95.5 mm |
| Depth | 18.7 mm |
| Height | 55.2 mm |
| Weight | 113 g |
Packaging content
| Specification | Value |
|---|---|
| Wrist strap included | Yes |
| AC adapter included | Yes |
| Batteries included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
| Software CD | Yes |
| Bundled software | Intelli-studio, Adobe Reader |
Other features
| Specification | Value |
|---|---|
| Power source type | Battery |
Technical details
| Specification | Value |
|---|---|
| Self-timer | Yes |
