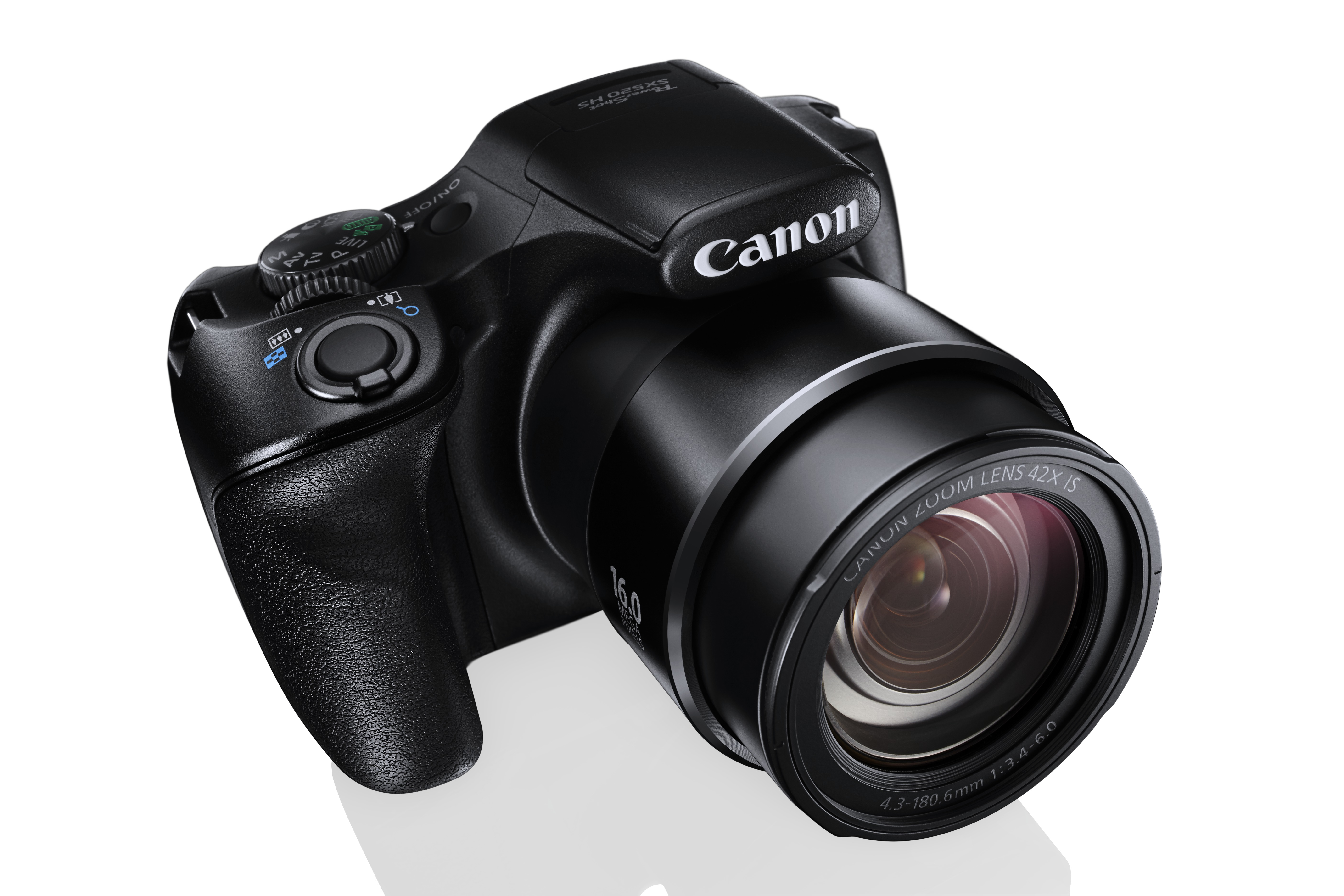

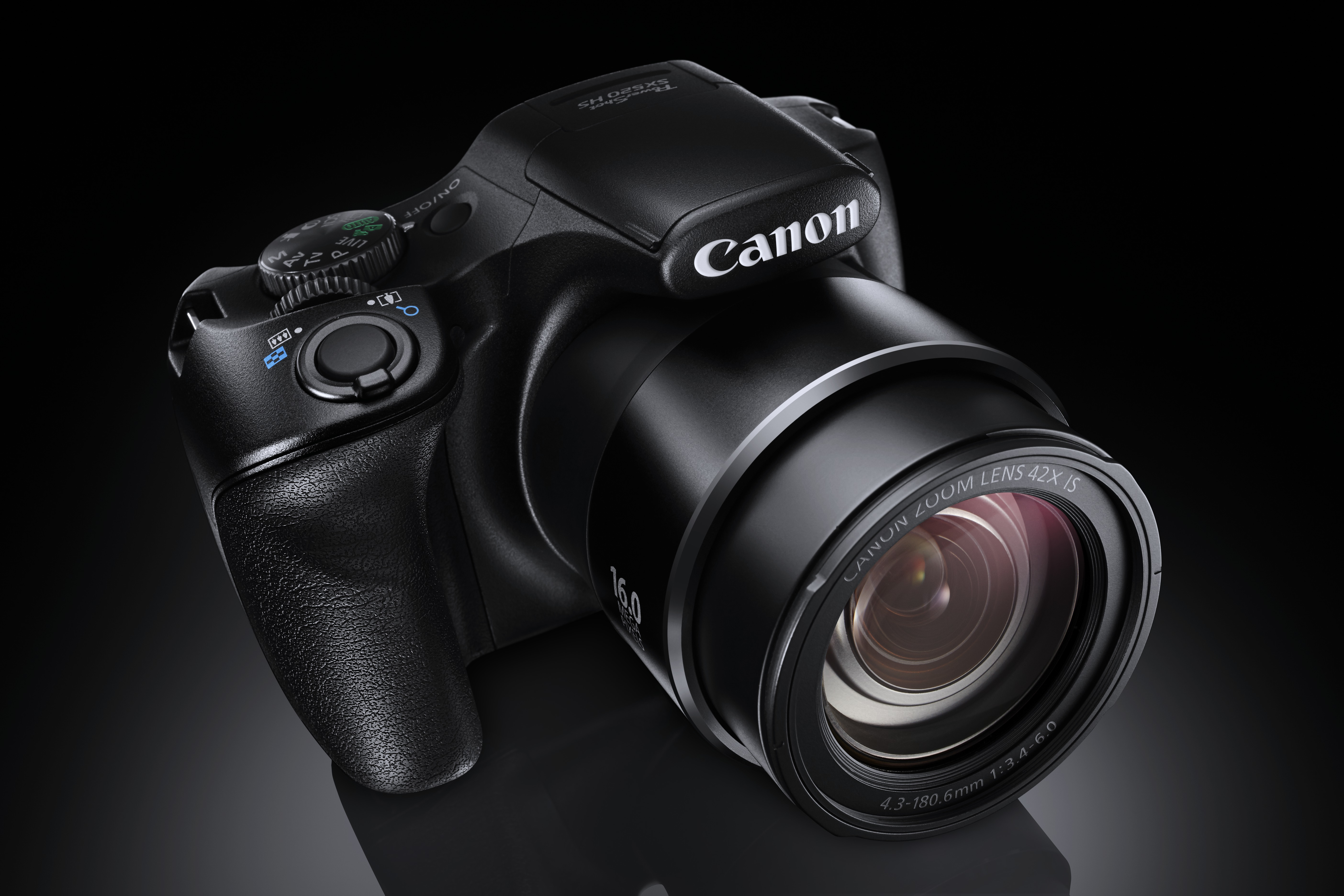

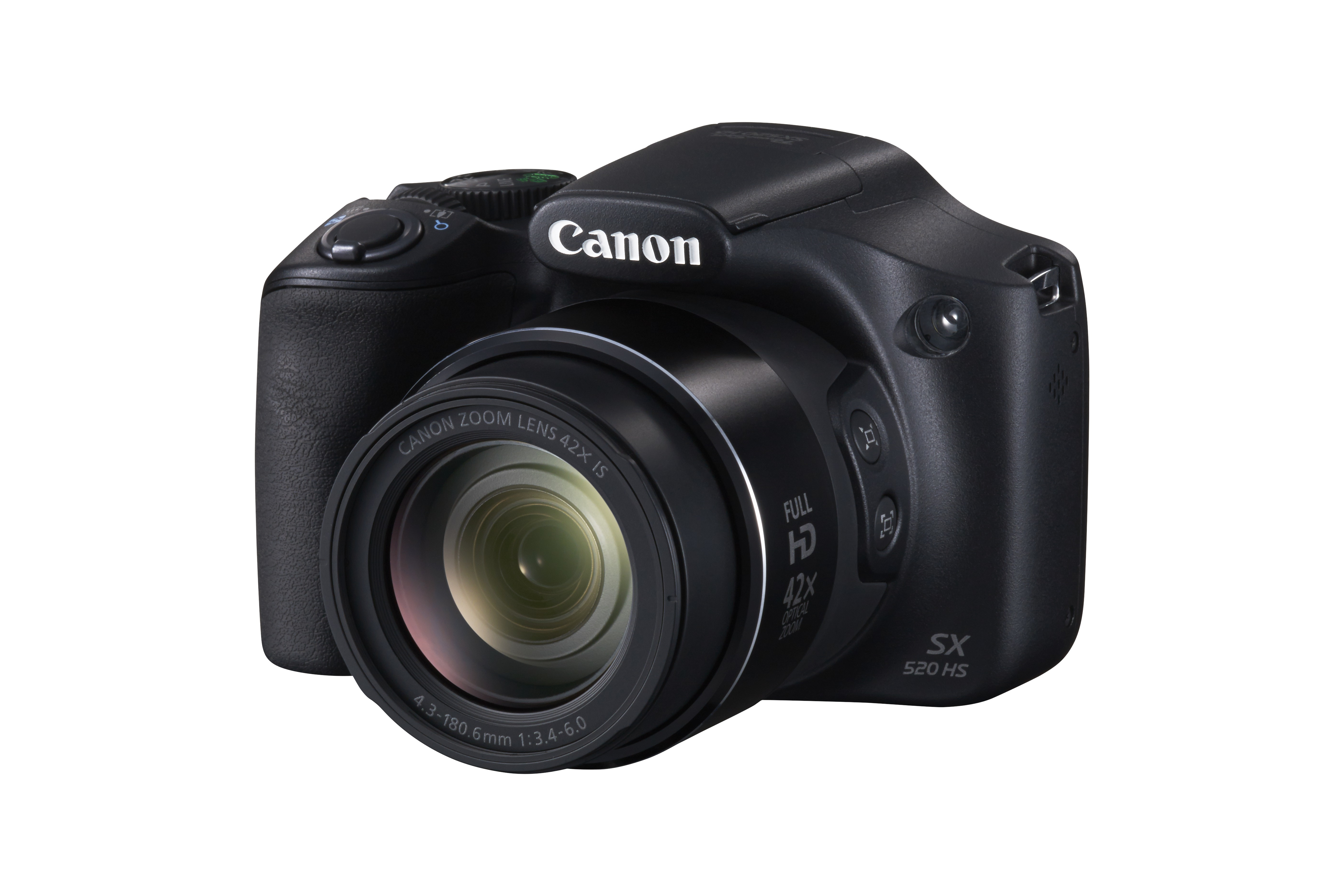

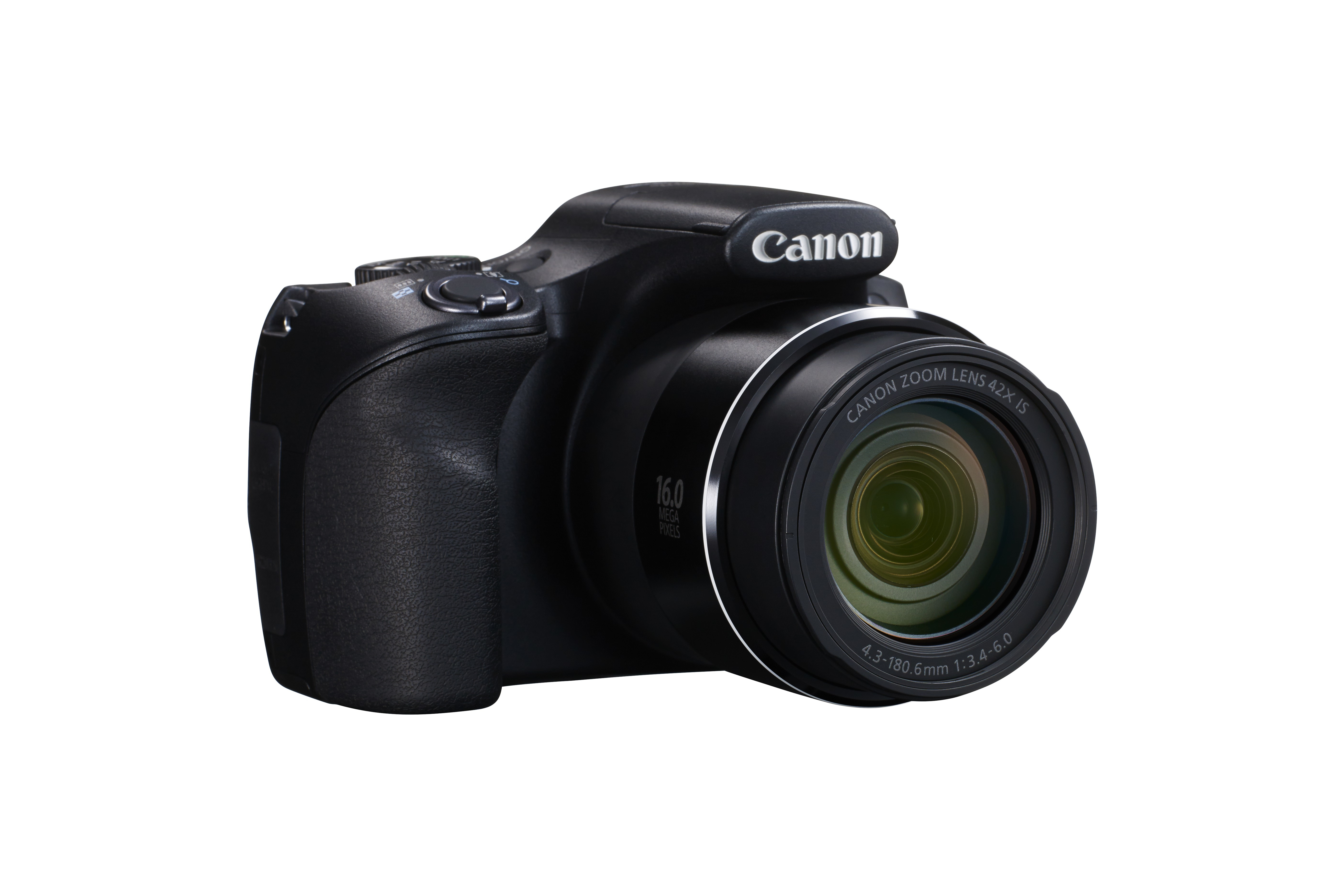

SX520 HS
Model SX520 HSPart no. E4CNPSSX520HSKEAN 8714574625577
83 specifications Checked today
- Display7.62 cm (3")
- ColourBlack
- Camera typeBridge camera
- Optical zoom42x
- FocusTTL
- ISO sensitivity (min)100
Overview
- Display
- 7.62 cm (3")
- Colour
- Black
- Camera type
- Bridge camera
- Optical zoom
- 42x
- Focus
- TTL
- ISO sensitivity (min)
- 100
- Brand
- Canon
- Category
- Camera
- Model
- SX520 HS
- Part numbers
- E4CNPSSX520HSK, 9544B001, 9544B002, 9544B011, 9544B015
- EAN / UPC
- 8714574625577, 013803244281, 138032442816, 700686603679 +2 more
- Also known as
- Canon PowerShot SX520 HS 1/2.3" Bridge camera 16 MP CMOS 4608 x 3456 pixels Black
Specifications
83 specifications in 18 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | Bridge camera |
| Megapixel (approx.) | 16 MP |
| Image sensor size | 1/2.3" |
| Sensor type | CMOS |
| Maximum image resolution | 4608 x 3456 pixels |
| Still image resolution(s) | 3264 x 2448, 2048 x 1536, 640 x 480, 4608 x 2592, 3264 x 1832, 1920 x 1080, 640 x 360, 4608 x 3072, 3264 x 2176, 2048 x 1368, 640 x 424, 3456 x 3456, 2448 x 2448, 1536 x 1536, 480 x 480 |
| Image stabilizer | Yes |
| Total megapixels | 16.8 MP |
| Image formats supported | JPG |

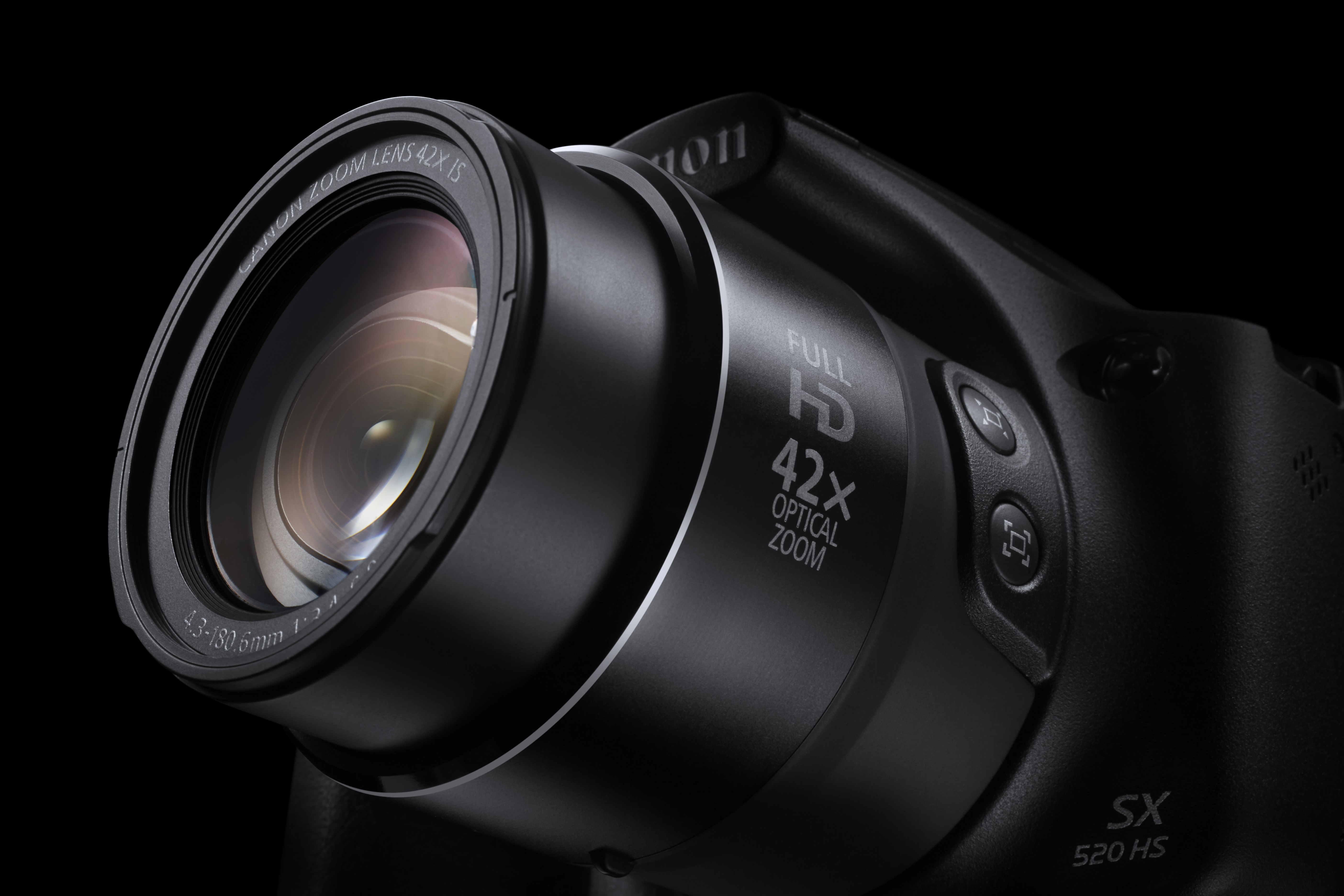

Lens system
| Specification | Value |
|---|---|
| Optical zoom | 42x |
| Digital zoom | 4x |
| Focal length range | 4.3 - 180.6 mm |
| Minimum focal length (35mm film equiv) | 24 mm |
| Maximum focal length (35mm film equiv) | 1008 mm |
| Minimum aperture number | 3.4 |
| Maximum aperture number | 6 |
| Lens structure (elements/groups) | 13/10 |
| Combined zoom | 168x |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Auto focusing (AF) modes | Servo Auto Focus, Single Auto Focus, Tracking Auto Focus |
| Auto Focus (AF) object detection | Face |
| Auto Focus (AF) points selection | Auto, Manual |
| Closest focusing distance | 0 m |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 3200 |
| ISO sensitivity | 100, 200, 400, 800, 1600, 3200, Auto |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Light exposure correction | ± 2EV (1/3EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Spot |
| Auto Exposure (AE) lock | Yes |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/2000 s |
| Slowest camera shutter speed | 15 s |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Flash off, Flash on, Manual, Red-eye reduction, Slow synchronization |
| Flash exposure correction | ±2EV (1/3 EV step) |
| Flash exposure lock | Yes |
| Flash range (tele) | 1.3 - 3 m |
| Flash range (wide) | 0.5 - 5.5 m |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Video resolutions | 640 x 480,1280 x 720 pixels |
| Analog signal format system | NTSC, PAL |
| Motion JPEG frame rate | 30 fps |
| Resolution at capture speed | 640x480@30fps |
| Video formats supported | AVC, H.264, MOV, MPEG4 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Audio formats supported | PCM |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |

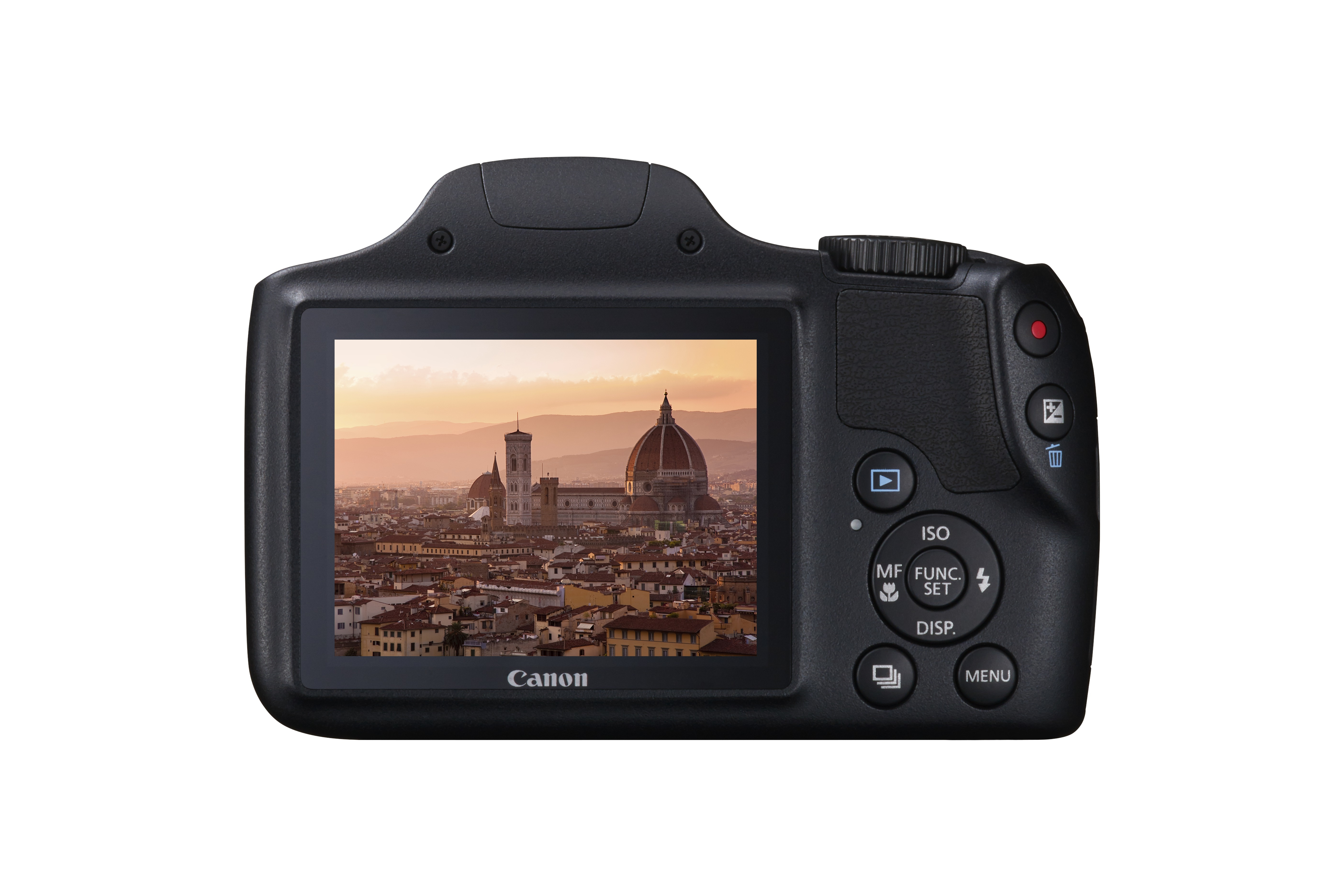

Display
| Specification | Value |
|---|---|
| Display | TFT |
| Display diagonal | 7.62 cm (3") |
| Display resolution (numeric) | 461000 pixels |
| Field of view | 100% |

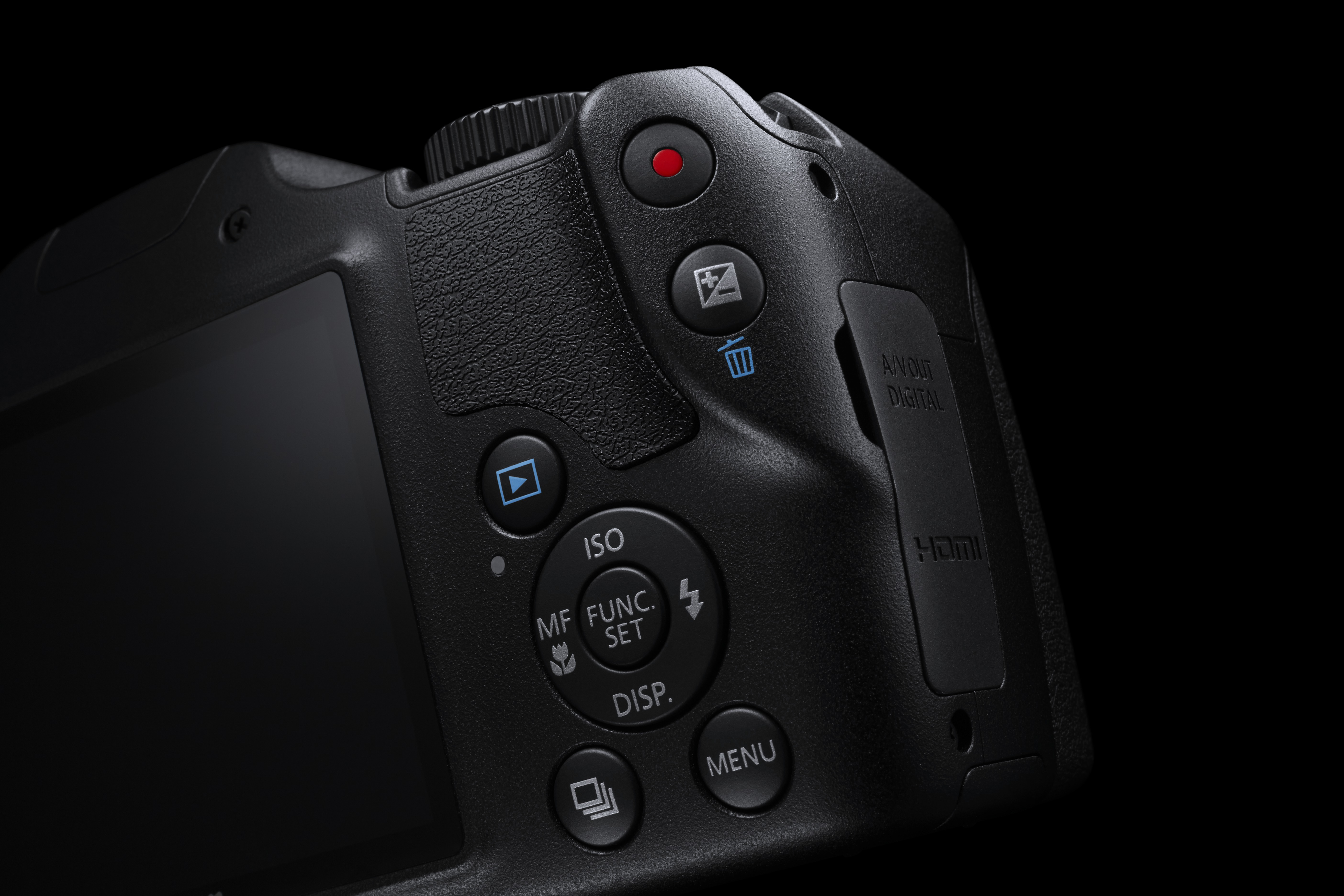

Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| HDMI | Yes |
| HDMI connector type | Mini |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Fluorescent, Fluorescent H, Tungsten |
| Self-timer delay | 2,10 s |
| Camera file system | DPOF 1.1, Exif 2.3 |
| Histogram | Yes |
| Languages support | Multi |
| Orientation sensor | Yes |
| Playback zoom (max) | 10x |
| Image processor | DIGIC 4+ |
| Mac operating systems supported | Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pr |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (CIPA standard) | 210 shots |
| Battery type | NB-6LH |
| Number of batteries supported | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 91.9 mm |
| Height | 81.7 mm |
| Weight (including battery) | 441 g |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Quick start guide | Yes |
| Bundled software | ImageBrowser EX, CameraWindow, PhotoStitch |
Other features
| Specification | Value |
|---|---|
| Built-in flash | Yes |
| Power source type | Battery, USB |
