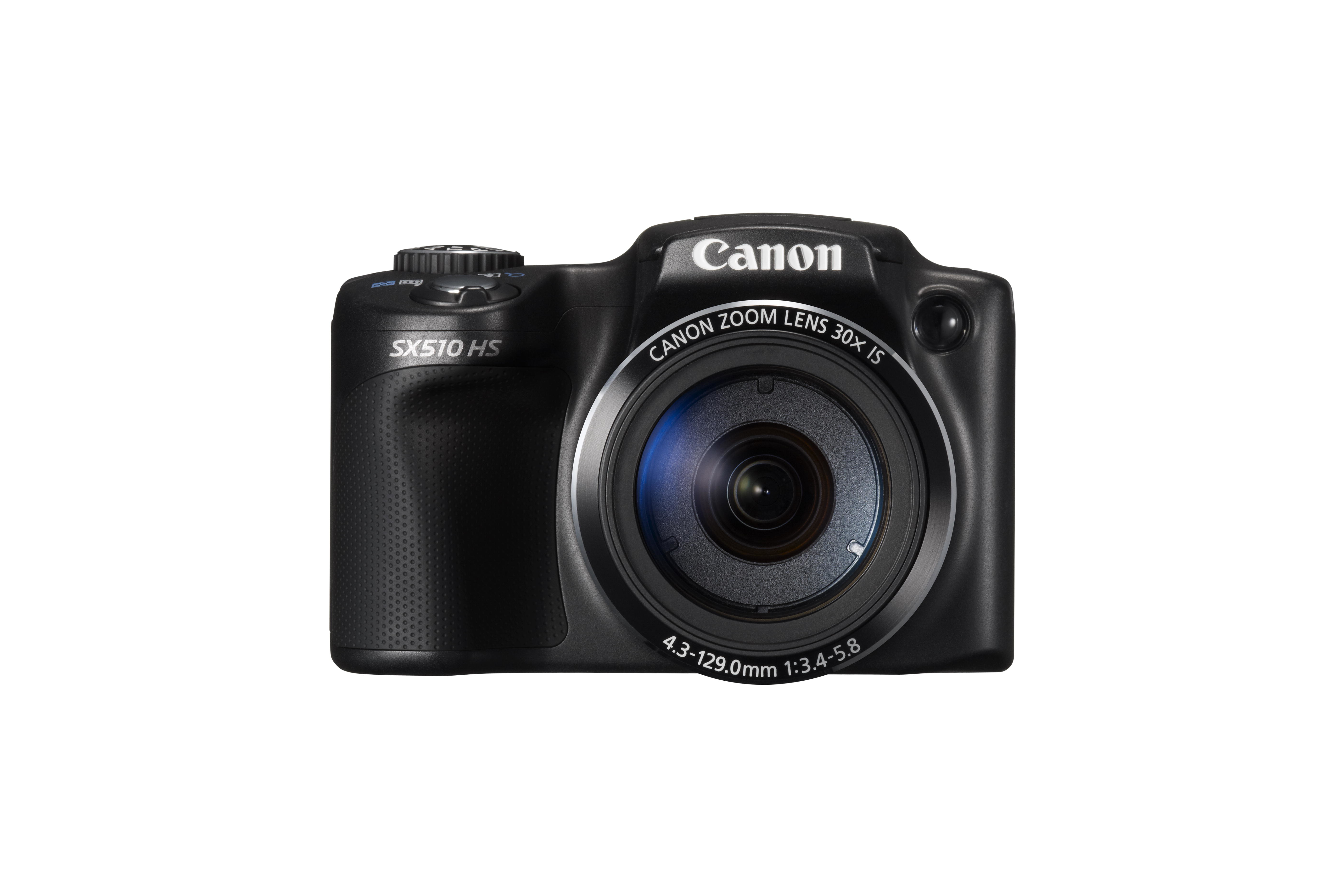

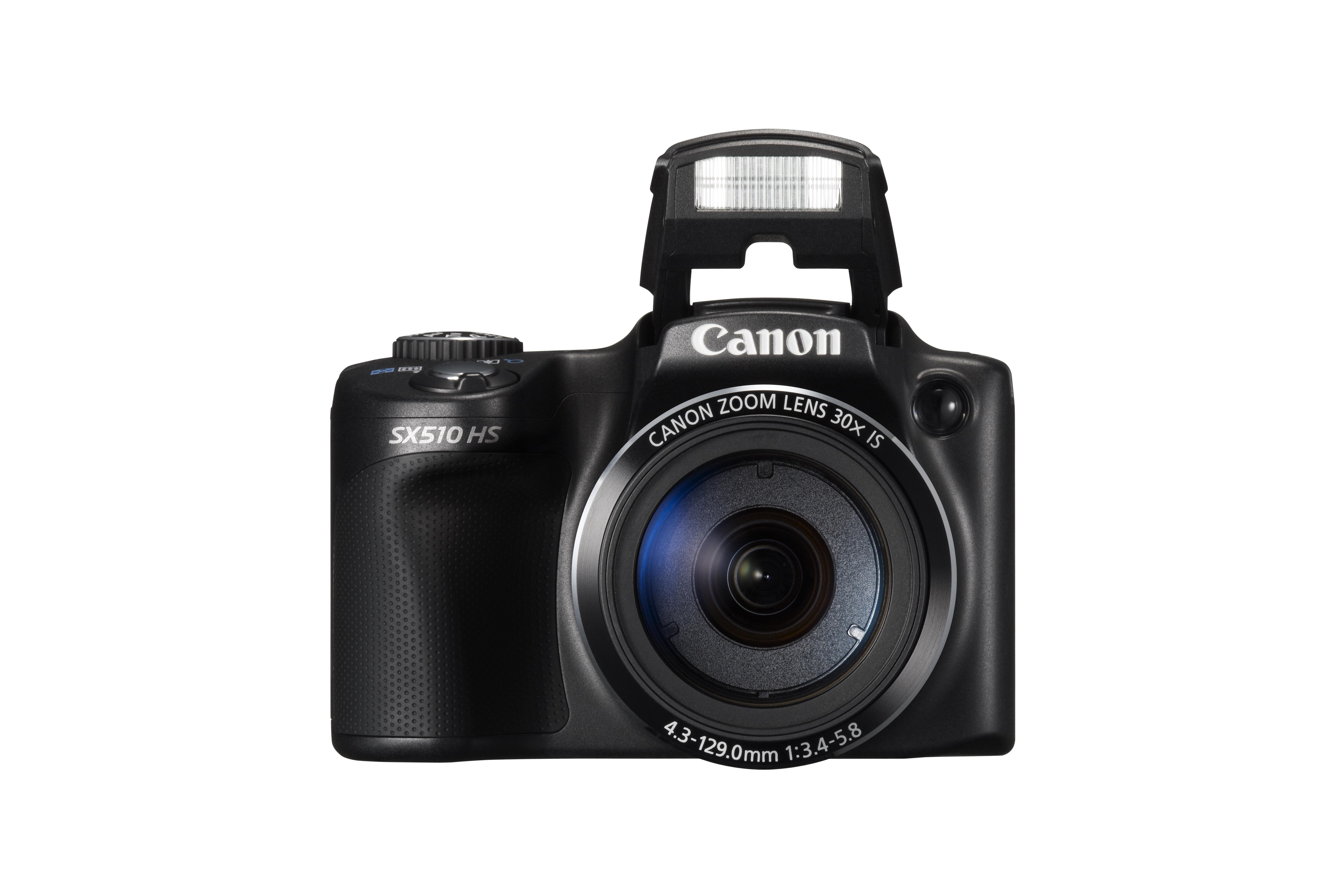

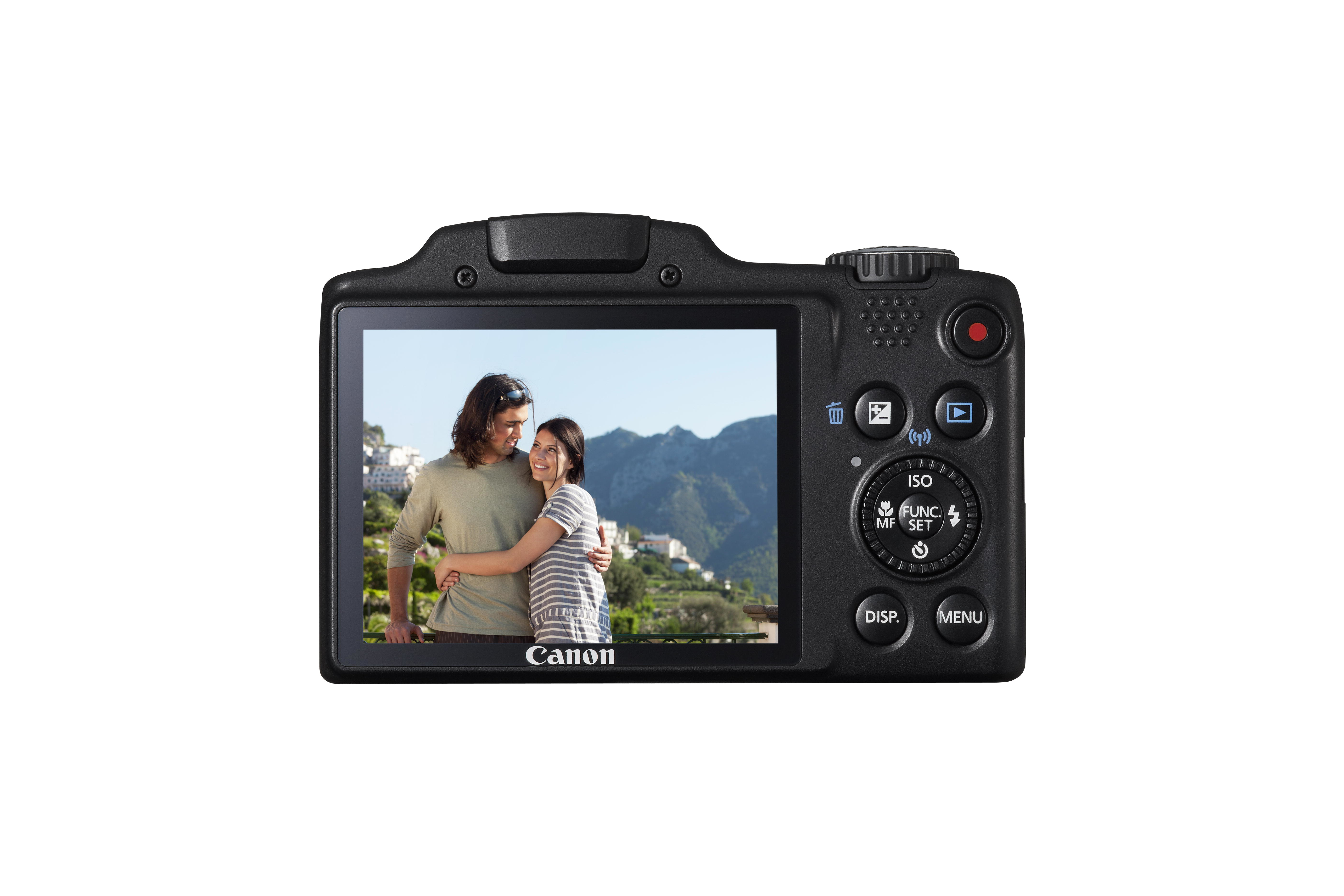

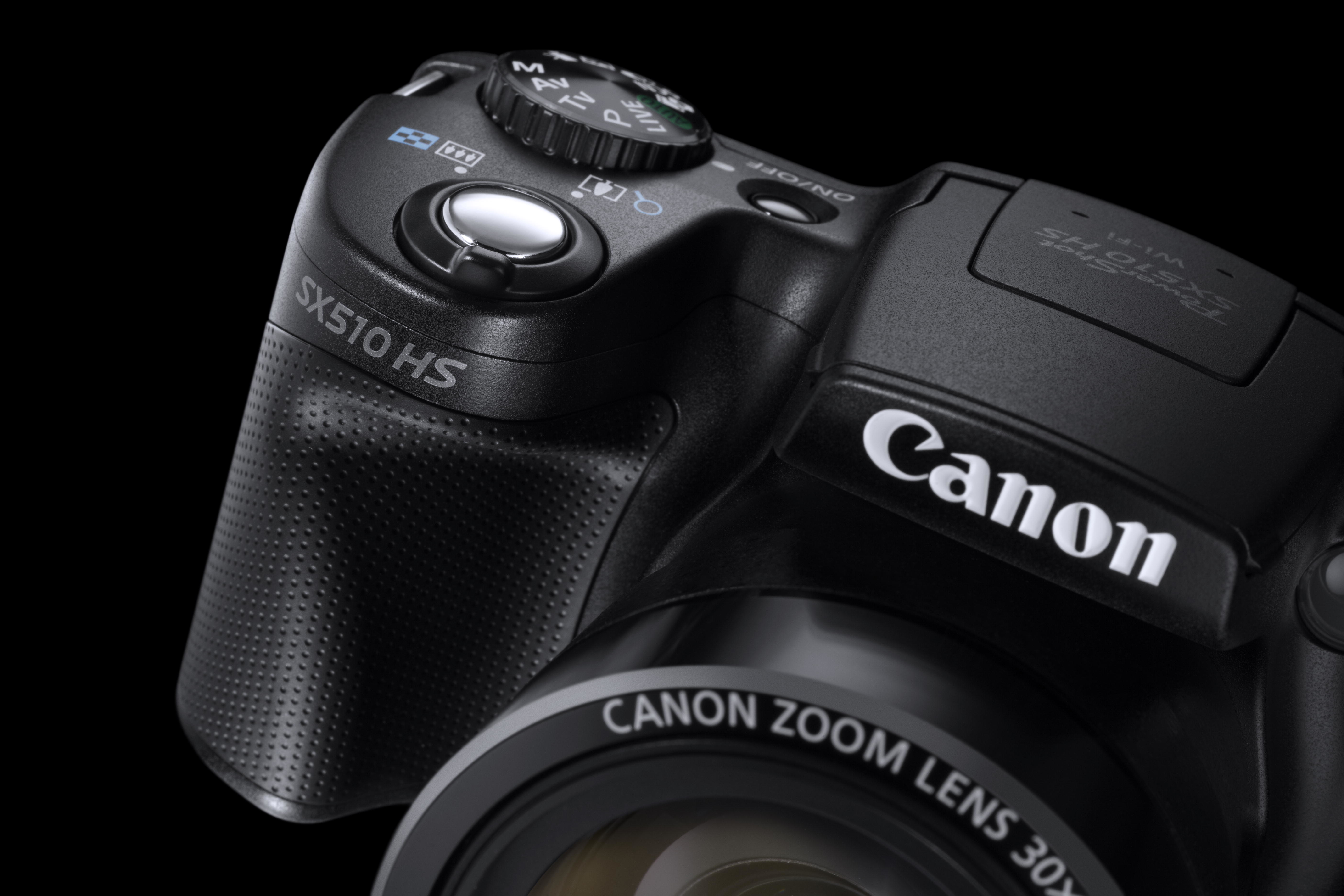

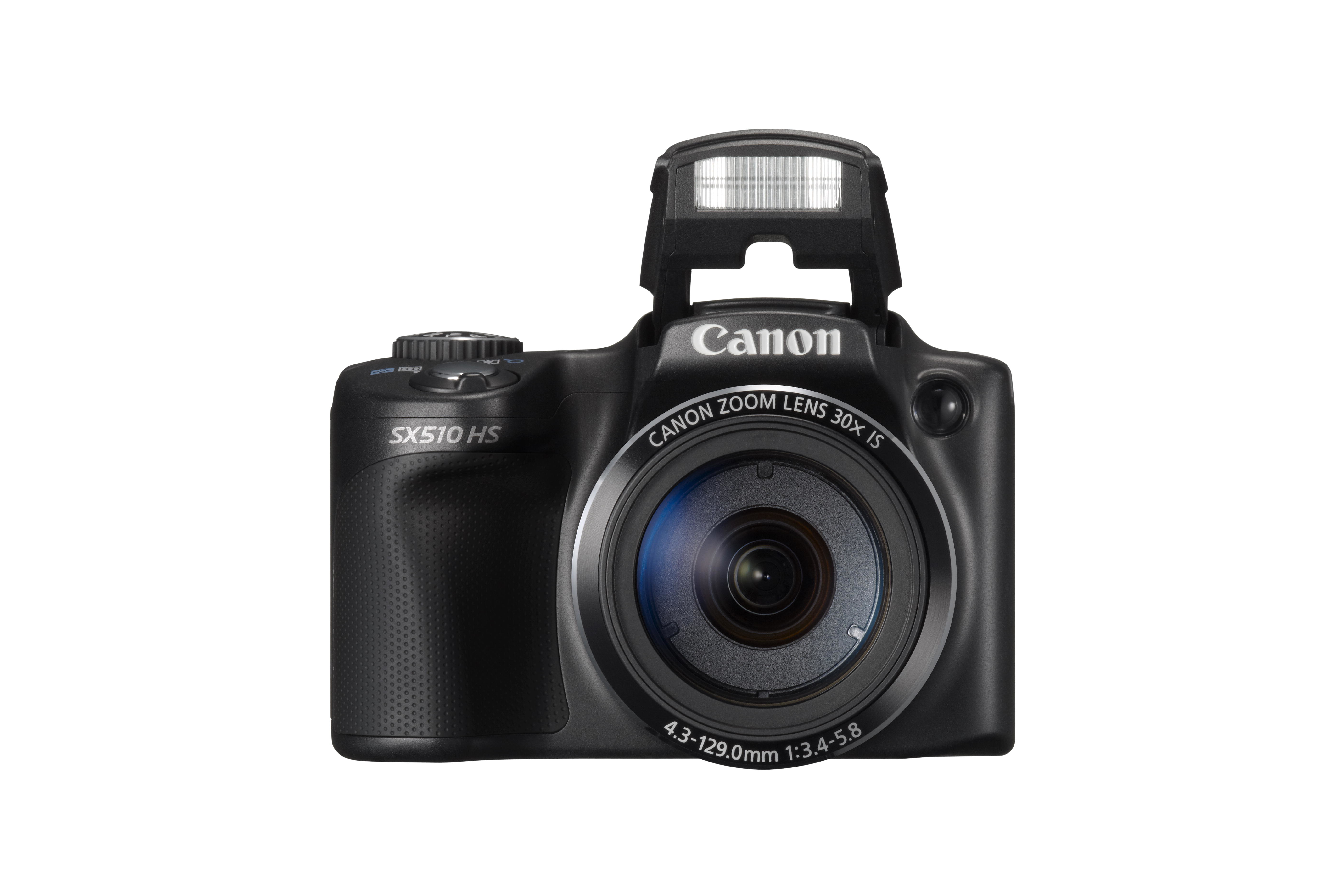

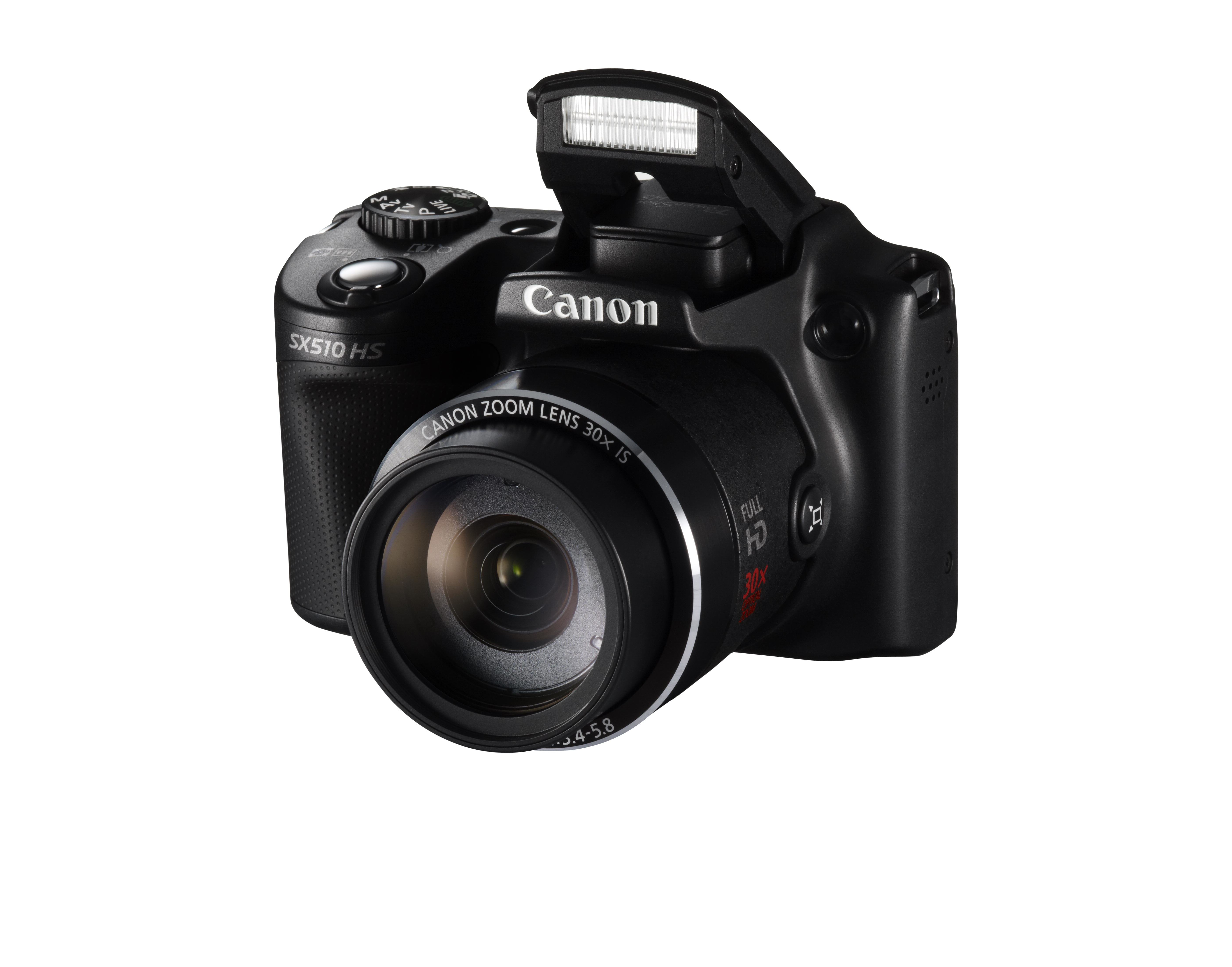

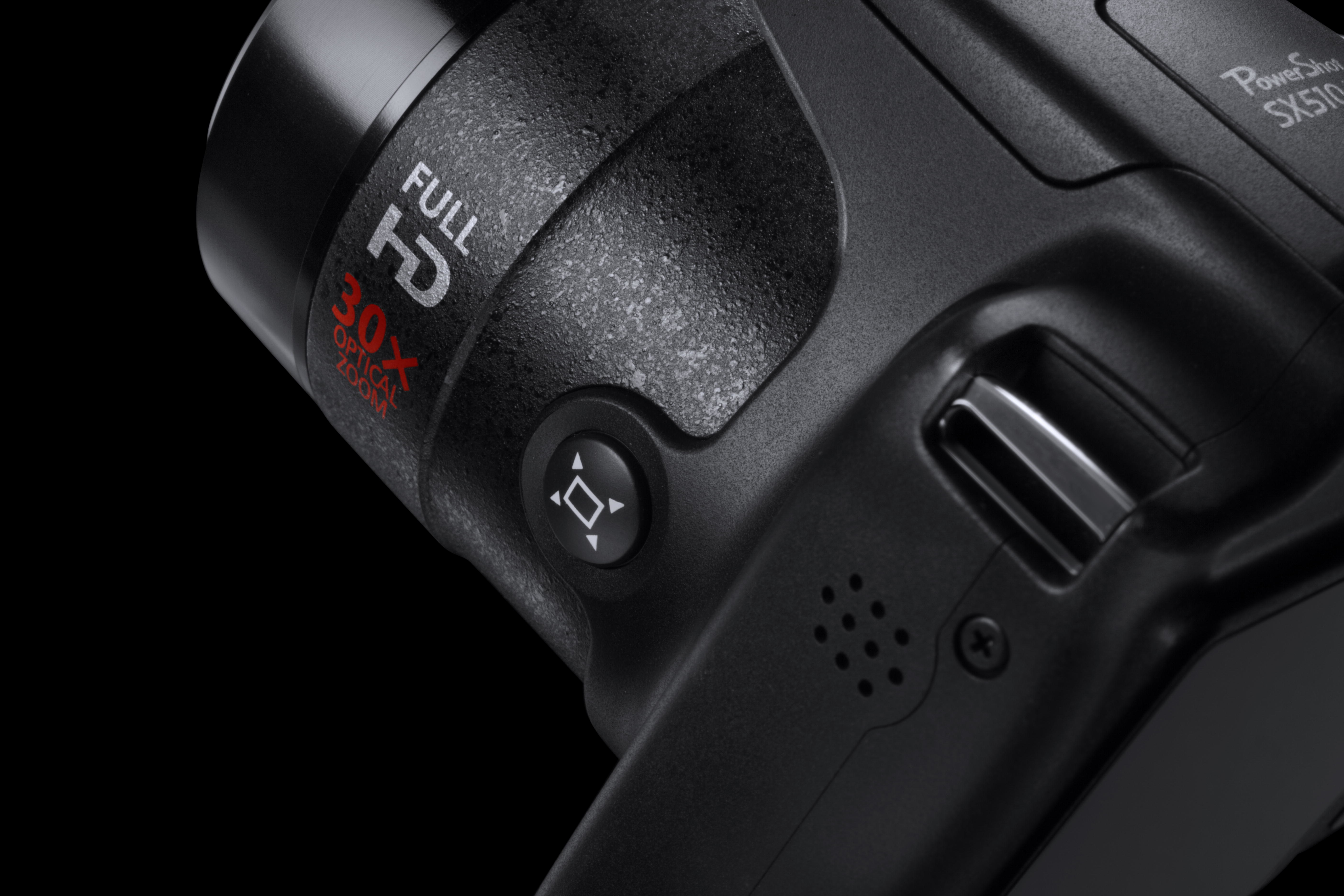

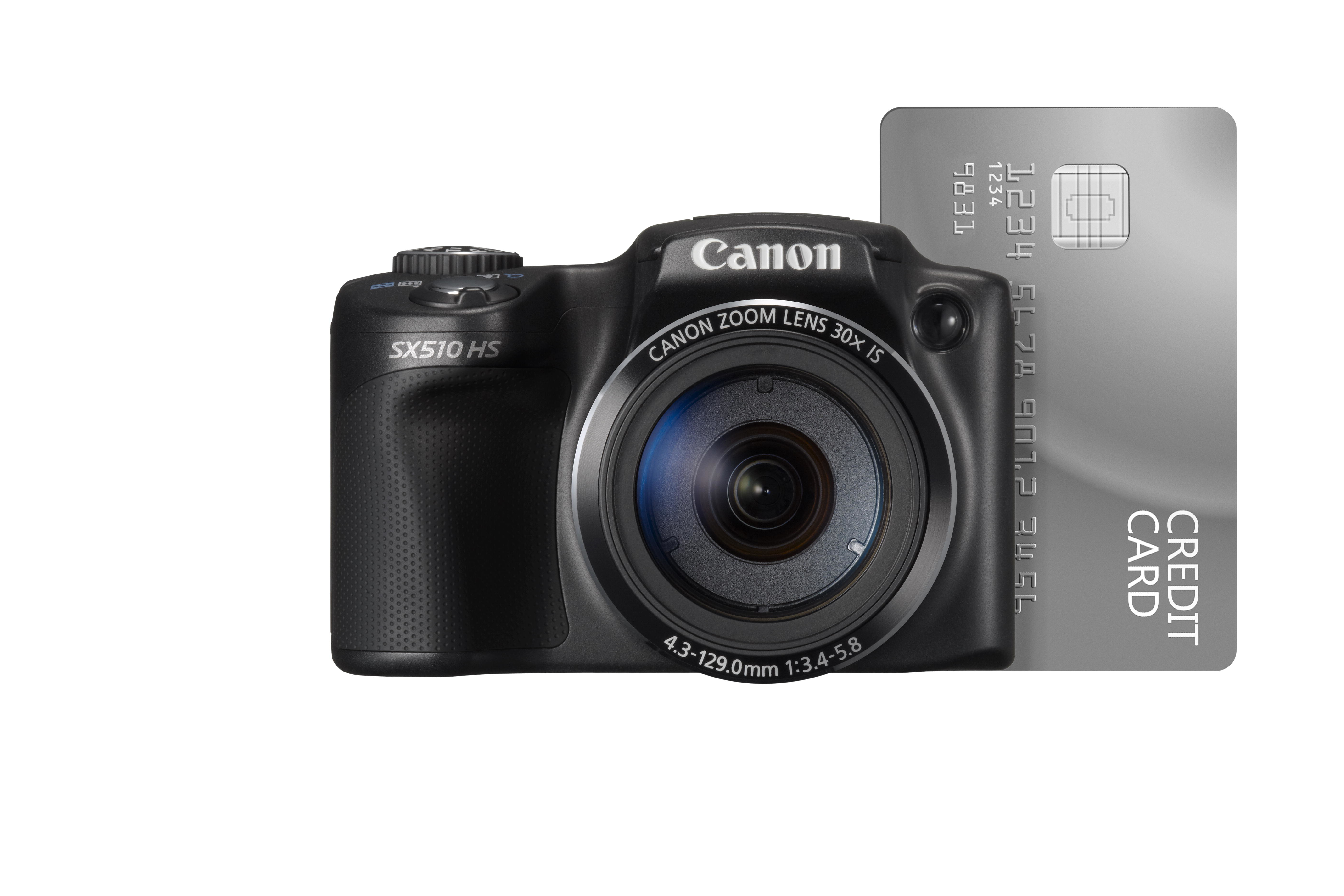

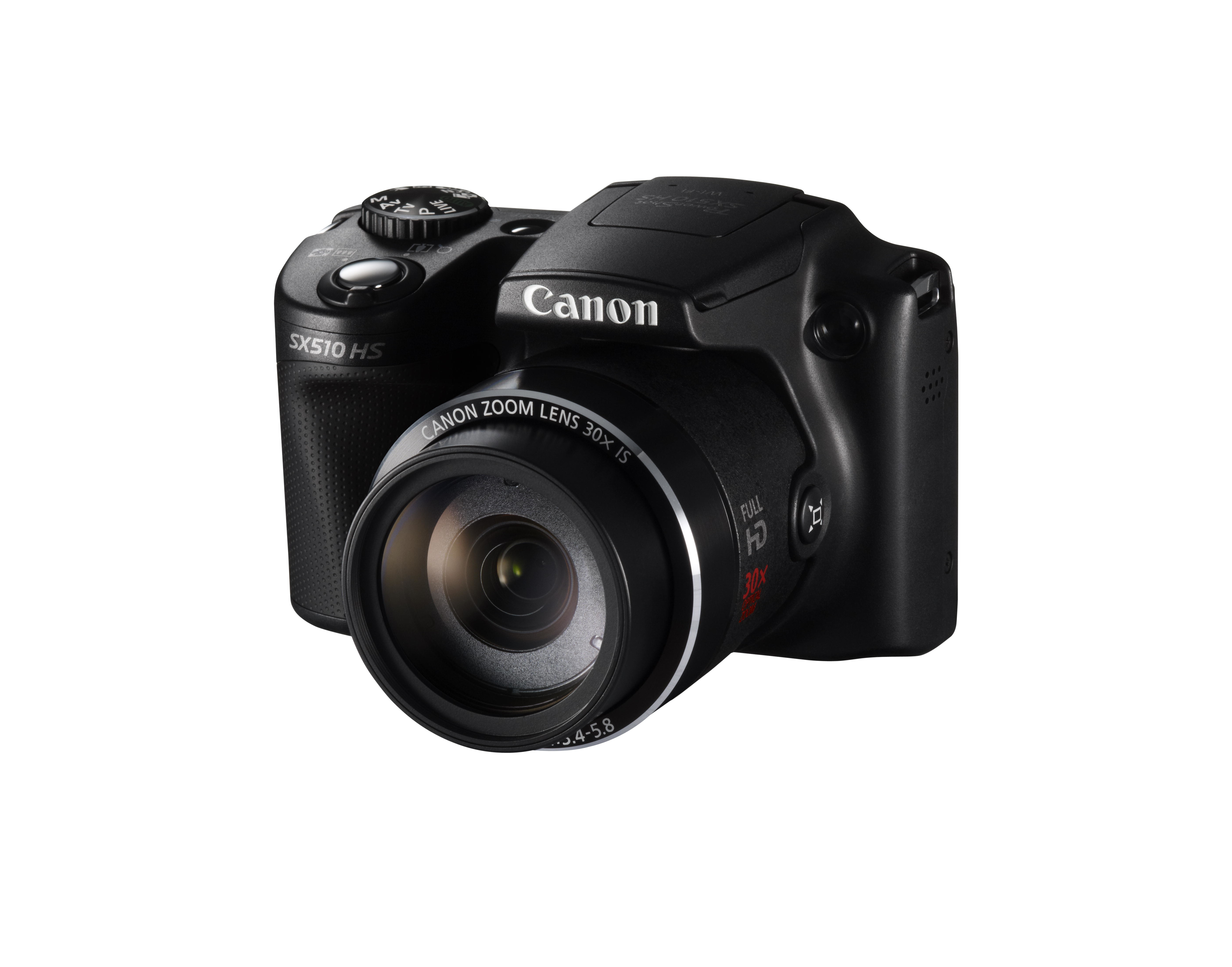

SX510 HS
Model SX510 HSPart no. 8409B014EAN 8714574610207
83 specifications Checked today
- Display7.62 cm (3")
- Weight349 g
- ColourBlack
- Camera typeBridge camera
- Optical zoom30x
- FocusTTL
Overview
- Display
- 7.62 cm (3")
- Weight
- 349 g
- Colour
- Black
- Camera type
- Bridge camera
- Optical zoom
- 30x
- Focus
- TTL
- Brand
- Canon
- Category
- Camera
- Model
- SX510 HS
- Part numbers
- 8409B014, 8409B001, 8409B012, 8409B011
- EAN / UPC
- 8714574610207, 013803229059, 138032290592, 840014112029 +3 more
- Also known as
- Canon PowerShot SX510 HS 1/2.3" Bridge camera 12.1 MP CMOS 4000 x 3000 pixels Black
Specifications
83 specifications in 18 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | Bridge camera |
| Megapixel (approx.) | 12.1 MP |
| Image sensor size | 1/2.3" |
| Sensor type | CMOS |
| Maximum image resolution | 4000 x 3000 pixels |
| Still image resolution(s) | 4000 x 3000, 2816 x 2112, 1600 x 1200, 640 x 480, 4000 x 2248, 2816 x 1584, 1920 x 1080, 640 x 360, 4000 x 2664, 2816 x 1880, 1600 x 1064, 640 x 424, 2992 x 2992, 2112 x 2112, 1200 x 1200, 480 x 480 |
| Image stabilizer | Yes |
| Supported aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Image formats supported | JPG |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 30x |
| Digital zoom | 4x |
| Focal length range | 4.3 - 129 mm |
| Minimum focal length (35mm film equiv) | 24 mm |
| Maximum focal length (35mm film equiv) | 720 mm |
| Minimum aperture number | 3.4 |
| Maximum aperture number | 5.8 |
| Lens structure (elements/groups) | 13/10 |
| Combined zoom | 120x |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Auto focusing (AF) modes | Continuous Auto Focus, Servo Auto Focus, Single Auto Focus, Tracking Auto Focus |
| Closest focusing distance | 0 m |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 3200 |
| ISO sensitivity | 100, 200, 400, 800, 1600, 3200, Auto |
| Light exposure modes | Aperture priority AE, Auto, Shutter priority AE |
| Light exposure control | Program AE |
| Light exposure correction | ± 2EV (1/2EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Spot |
| Auto Exposure (AE) lock | Yes |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/1600 s |
| Slowest camera shutter speed | 15 s |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Flash off, Flash on, Manual, Red-eye reduction, Slow synchronization |
| Flash exposure lock | Yes |
| Flash range (tele) | 0.5 - 3 m |
| Flash range (wide) | 0.5 - 5 m |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Video resolutions | 320 x 240,640 x 480,1280 x 720,1920 x 1080 |
| Analog signal format system | NTSC, PAL |
| Motion JPEG frame rate | 30 fps |
| Video formats supported | MOV |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
| Memory slots | 1 |
Display
| Specification | Value |
|---|---|
| Display | TFT |
| Display diagonal | 7.62 cm (3") |
| Display resolution (numeric) | 461000 pixels |
| Field of view | 100% |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| USB connector | Mini-USB B |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Fluorescent, Fluorescent H, Tungsten |
| Scene modes | Fireworks, Portrait, Snow |
| Shooting modes | Aperture priority, Auto, Manual, Movie, Shutter priority |
| Photo effects | Black&White, Vivid |
| Self-timer delay | 2,10 s |
| Camera file system | DPOF 1.1, Exif 2.3 |
| Live view | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Ukrainian |
| Playback zoom (max) | 10x |
| Image processor | DIGIC 4 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (CIPA standard) | 250 shots |
| Battery type | NB-6LH |
| Number of batteries supported | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 69.5 mm |
| Height | 80.2 mm |
| Weight | 349 g |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Bundled software | ImageBrowser EX, PhotoStitch, Map Utility |
Other features
| Specification | Value |
|---|---|
| Built-in flash | Yes |
| HDMI ports quantity | 1 |
| Power source type | Battery |
