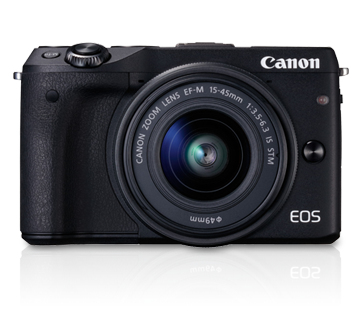

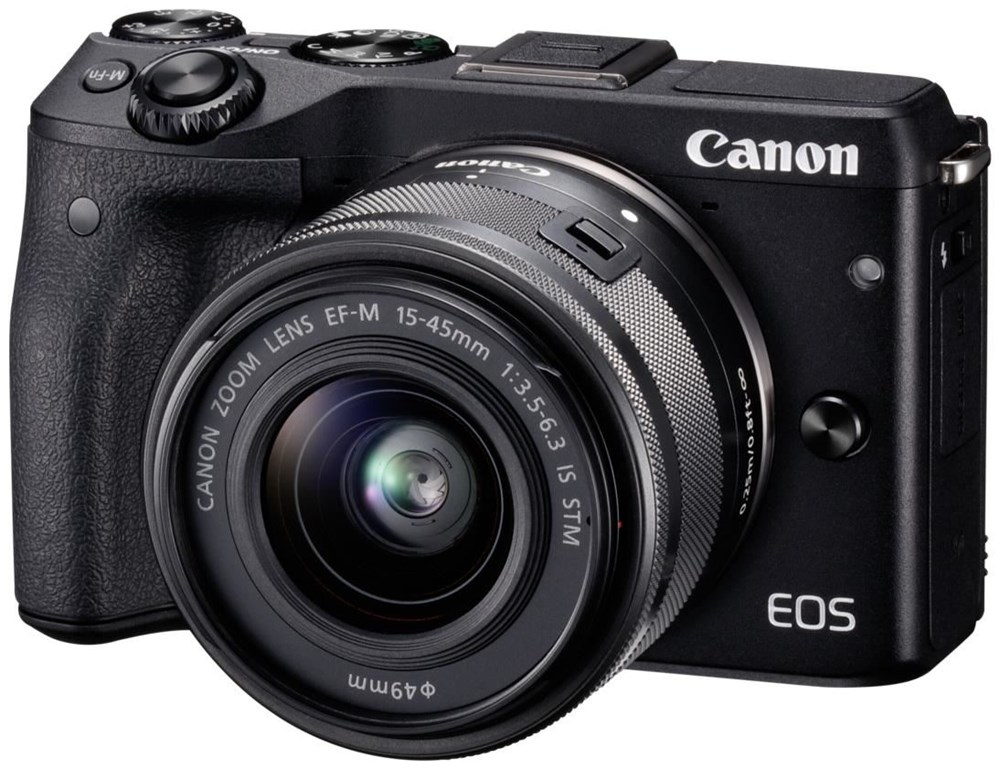

M3 + EF-M 15-45mm
Model M3 + EF-M 15-45mmPart no. 9694B234
124 specifications Checked today
- Display7.62 cm (3")
- ColourBlack
- Camera typeMILC
- Focal length range15 - 45 mm
- Focus adjustmentAuto/Manual
- ISO sensitivity (min)100
Overview
- Display
- 7.62 cm (3")
- Colour
- Black
- Camera type
- MILC
- Focal length range
- 15 - 45 mm
- Focus adjustment
- Auto/Manual
- ISO sensitivity (min)
- 100
- Brand
- Canon
- Category
- Camera
- Model
- M3 + EF-M 15-45mm
- Part numbers
- 9694B234, 9694B142
- Also known as
- Canon EOS M3 + EF-M 15-45mm MILC 24.2 MP CMOS 6000 x 4000 pixels Black
Specifications
124 specifications in 20 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | MILC |
| Megapixel (approx.) | 24.2 MP |
| Sensor type | CMOS |
| Maximum image resolution | 6000 x 4000 pixels |
| Still image resolution(s) | RAW: (3:2) 6000 x 4000, (4:3) 5328 x 4000, (16:9) 6000 x 3376, (1:1) 4000 x 4000 JPEG 3:2: (L) 6000 x 4000, (M) 4320 x 2880, (S1) 2880 x 1920, (S2) 2304 x 1536, (S3) 720x480 JPEG 4:3: (L) 5328 x 4000, (M) 3840 x 2880, (S1) 2560 x 1920, (S2) 2048 x 1536, (S3) 640x480 JPEG 16:9: (L) 6000 x 3376, (M) 4 |
| Image stabilizer | Yes |
| Image stabilizer location | Lens |
| Supported aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Total megapixels | 24.7 MP |
| Image sensor size (W x H) | 22.3 x 14.9 mm |
| Sensor format | Advanced Photo System type-C (APS-C) |
| Image formats supported | JPG, Raw |

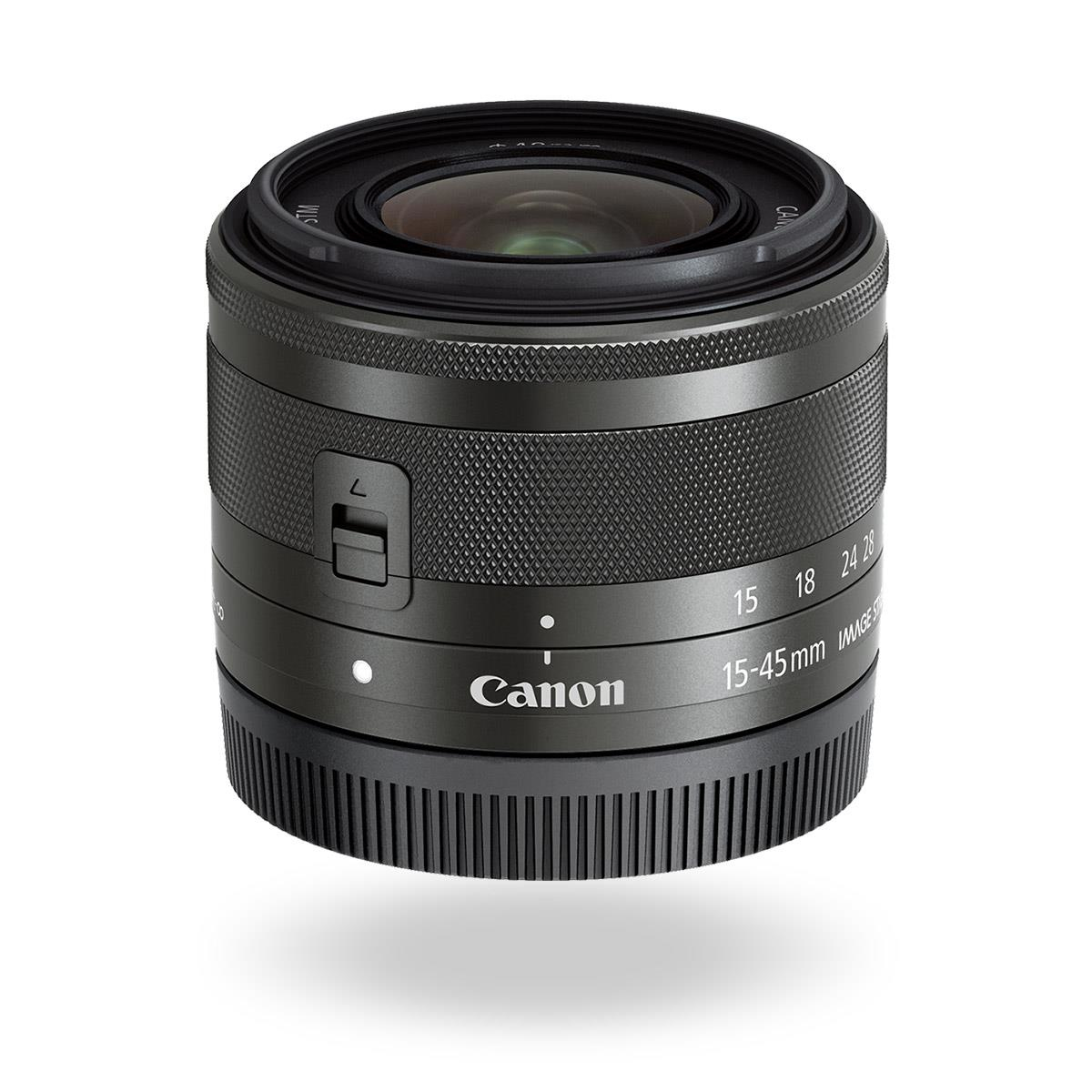

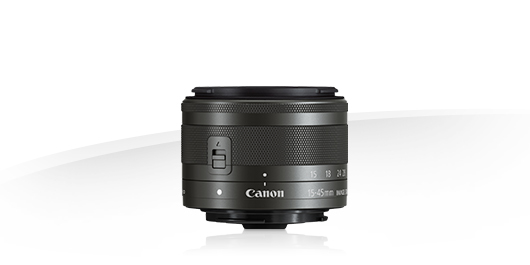

Lens system
| Specification | Value |
|---|---|
| Focal length range | 15 - 45 mm |
| Minimum focal length (35mm film equiv) | 24 mm |
| Maximum focal length (35mm film equiv) | 72 mm |
| Minimum aperture number | 22 |
| Maximum aperture number | 40 |
| Lens structure (elements/groups) | 10/9 |
| Filter size | 49 mm |
| Number of aspheric elements | 3 |
| Number of diaphragm blades | 7 |
| Lens mount interface | Canon EF-M |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | One Shot Focus, Servo Auto Focus, Tracking Auto Focus |
| Auto Focus (AF) object detection | Face |
| Face tracking | Yes |
| Auto Focus (AF) points | 49 |
| Closest focusing distance | 0.25 m |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 25600 |
| ISO sensitivity | 100, 6400, 12800, 25600 |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Light exposure control | Program AE |
| Light exposure correction | ± 3EV (1/3EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Partial, Spot |
| Auto Exposure (AE) lock | Yes |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/4000 s |
| Slowest camera shutter speed | 30 s |
| Camera shutter type | Electronic, Mechanical |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Flash off, Flash on, Manual, Red-eye reduction, Second curtain synchro, Slow synchronization |
| External flash connector | Yes |
| Flash exposure compensation | Yes |
| Flash exposure correction | ±2EV (1/3 EV step) |
| Flash exposure lock | Yes |
| Flash guide number | 5 m |
| Flash recharging time | 3 s |
| Flash sync-speed | 1/200 s |
| Shoe mounting point | Yes |
| Shoe mounting point type | Hot shoe |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Video resolutions | 640 x 480,1280 x 720,1920 x 1080 |
| Resolution at capture speed | 640x480@25fps, 640x480@30fps, 1280x720@50fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@30fps |
| Video formats supported | AVC, H.264, MPEG4 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Voice recording | Yes |
| Audio formats supported | LC-AAC |
| Audio system | stereo |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Touchscreen | Yes |
| Display diagonal | 7.62 cm (3") |
| Display diagonal (metric) | 7.5 cm |
| Display resolution (numeric) | 1040000 pixels |
| Display aspect ratio | 3:2 |
| Field of view | 100% |
| Vari-angle LCD display | Yes |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Electronic, Optical |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| USB connector | Mini-USB B |
| HDMI | Yes |
| HDMI connector type | Mini |
| Microphone in | Yes |
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Near Field Communication (NFC) | Yes |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Flash, Fluorescent, Tungsten |
| Scene modes | Close-up (macro), Portrait, Landscape |
| Shooting modes | Aperture priority, Manual, Movie, Program, Scene, Shutter priority |
| Photo effects | Black&White, Neutral |
| Self-timer delay | 2,10 s |
| Contrast adjustment | Yes |
| Brightness adjustment | Yes |
| Saturation adjustment | Yes |
| Camera playback | Movie, Single image, Slide show |
| Camera file system | DPOF, Exif 2.3, Raw |
| Direct printing | Yes |
| Histogram | Yes |
| Languages support | Multi |
| Live view | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Ukrainian |
| Orientation sensor | Yes |
| Playback zoom (max) | 10x |
| Image processor | DIGIC 6 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Magnesium, Polycarbonate, Resin, Stainless steel |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (CIPA standard) | 250 shots |
| Battery type | LP-E17 |
| Number of batteries supported | 1 |
| Battery level indicator | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110.9 mm |
| Depth | 44.4 mm |
| Height | 68 mm |
| Weight (including battery) | 366 g |
| Lens diameter | 6.09 cm |
| Lens length | 4.45 cm |
| Lens weight | 130 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Battery charger included | Yes |
| Quick start guide | Yes |
| Bundled software | Digital Photo Professional, Picture Style Editor, EOS Utility, Image Transfer Utility |
Other features
| Specification | Value |
|---|---|
| Power source type | Battery |
