80D + 18-135mm IS USM Lens
Model 80D + 18-135mm IS USM LensPart no. 1263C042 SET
119 specifications Checked today
- Display7.62 cm (3")
- Weight730 g
- ColourBlack
- Camera typeSLR Camera Kit
- Focal length range18 - 135 mm
- FocusTTL-CT-SIR
Overview
- Display
- 7.62 cm (3")
- Weight
- 730 g
- Colour
- Black
- Camera type
- SLR Camera Kit
- Focal length range
- 18 - 135 mm
- Focus
- TTL-CT-SIR
- Brand
- Canon
- Category
- Camera
- Model
- 80D + 18-135mm IS USM Lens
- Part number
- 1263C042 SET
- Also known as
- Canon EOS 80D + 18-135mm IS USM Lens SLR Camera Kit 24.2 MP CMOS 6000 x 4000 pixels Black
Specifications
119 specifications in 20 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | SLR Camera Kit |
| Megapixel (approx.) | 24.2 MP |
| Sensor type | CMOS |
| Maximum image resolution | 6000 x 4000 pixels |
| Still image resolution(s) | 6000 x 4000, 3984 x 2656, 2976 x 1984, 1920 x 1280, 720 x 480, 5328 x 4000, 3552 x 2664, 2656 x 1992, 1969 x 1280, 640 x 480, 6000 x 3368, 3984 x 2240, 2976 x 1680, 1920 x 1080, 720 x 408, 4000 x 4000, 2656 x 2656, 1984 x 1984, 1280 x 1280, 480 x 480, 6000 x 4000, 4500 x 3000, 3000 x 2000 |
| Image stabilizer | Yes |
| Image stabilizer location | Lens |
| Supported aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Total megapixels | 25.8 MP |
| Image sensor size (W x H) | 22.3 x 14.9 mm |
| Image formats supported | JPG, Raw |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 18 - 135 mm |
| Minimum aperture number | 3.5 |
| Maximum aperture number | 5.6 |
| Lens structure (elements/groups) | 16/12 |
| Filter size | 67 mm |
| Lens mount interface | Canon EF, Canon EF-S |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL-CT-SIR |
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | Flexible Spot Auto Focus, Tracking Auto Focus |
| Auto Focus (AF) object detection | Face |
| Auto Focus (AF) points | 45 |
| Auto Focus (AF) points selection | Auto, Manual |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 25600 |
| ISO sensitivity | 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12500, 12800, 25600 |
| Light exposure modes | Auto, Manual |
| Light exposure control | Program AE |
| Light exposure correction | ± 5EV (1/2EV; 1/3EV step) |
| Light metering | Centre-weighted, Evaluative (Multi-pattern), Partial, Spot |
| Auto Exposure (AE) lock | Yes |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/8000 s |
| Slowest camera shutter speed | 30 s |
| Camera shutter type | Electronic |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Flash off, Manual |
| External flash connector | Yes |
| Flash exposure compensation | Yes |
| Flash exposure correction | ±3EV (1/2; 1/3 EV step) |
| Flash exposure lock | Yes |
| Flash guide number | 12 m |
| Flash recharging time | 3 s |
| Flash sync-speed | 1/250 s |
| Shoe mounting point | Yes |
| Shoe mounting point type | Hot shoe |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Video resolutions | 1280 x 720,1920 x 1080 pixels |
| Analog signal format system | NTSC, PAL |
| Resolution at capture speed | 1280x720@30fps, 1280x720@50fps, 1280x720@60fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps |
| Video formats supported | H.264, MOV, MP4 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Audio formats supported | LPCM |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Touchscreen | Yes |
| Display diagonal | 7.62 cm (3") |
| Display resolution (numeric) | 1040000 pixels |
| Display aspect ratio | 3:2 |
| Field of view | 100% |
| Second display | No |

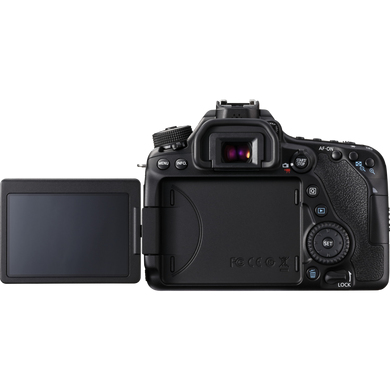

| Vari-angle LCD display | Yes |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Electronic |
| Magnification | 0.95x |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| HDMI | Yes |
| HDMI connector type | Mini |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB port | Yes |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | Yes |
| Near Field Communication (NFC) | Yes |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Daylight, Flash, Fluorescent, Shade, Tungsten |
| Scene modes | Children, Close-up (macro), Food, Night, Night portrait, Portrait, Sports, Landscape |
| Shooting modes | Aperture priority, Auto, Lens priority, Manual, Movie |
| Self-timer delay | 2,10 s |
| Brightness adjustment | Yes |
| Camera playback | Movie, Single image |
| Dioptre correction | Yes |
| Camera file system | DCF 2.0, DPOF 1.1, Exif 2.3, Raw |
| Custom colour | Yes |
| Eye relief | 2.2 cm |
| Histogram | Yes |
| Languages support | Arabic, Simplified Chinese, Czech, Danish, German, Dutch, English, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Ukrainian |
| Live view | Yes |
| Multi-shot | Yes |
| Orientation sensor | Yes |
| Playback zoom (max) | 10x |
| Built-in processor | Yes |
| Image processor | DIGIC 6 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Dustproof | Yes |
| Waterproof | Yes |
| Material | Fiberglass, Polycarbonate |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (CIPA standard) | 960 shots |
| Battery type | LP-E6N |
| Battery level indicator | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139 mm |
| Depth | 78.5 mm |
| Height | 105.2 mm |
| Weight | 730 g |
| Lens length | 9.6 cm |
| Lens weight | 515 g |

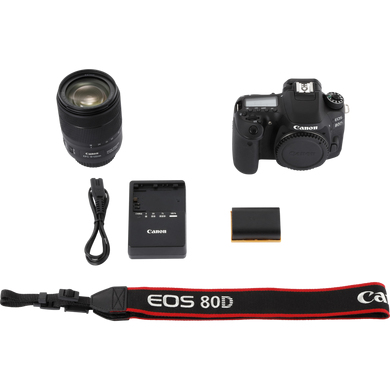

Packaging content
| Specification | Value |
|---|---|
| Hand strap | Yes |
| Batteries included | Yes |
| Battery charger included | Yes |
| Cables included | USB |
Other features
| Specification | Value |
|---|---|
| Built-in flash | Yes |
| Power source type | Battery |
