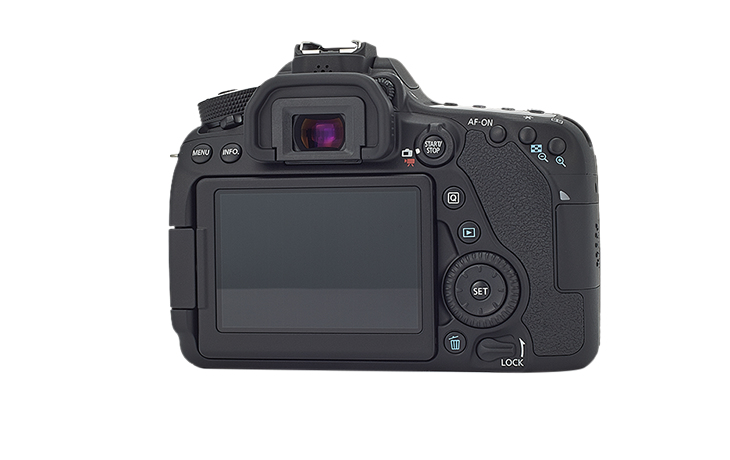

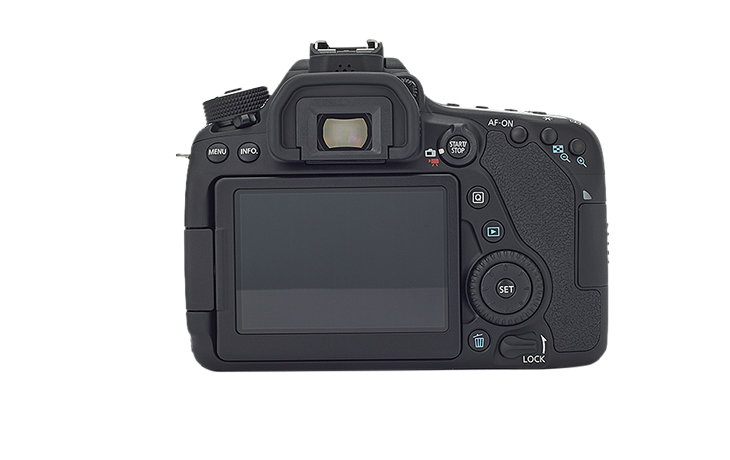

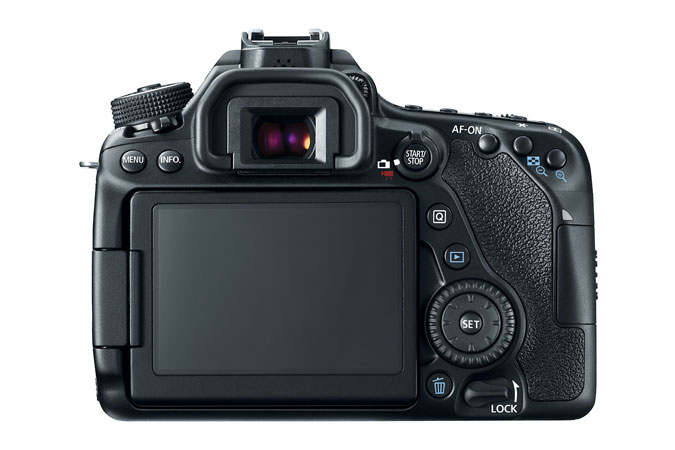

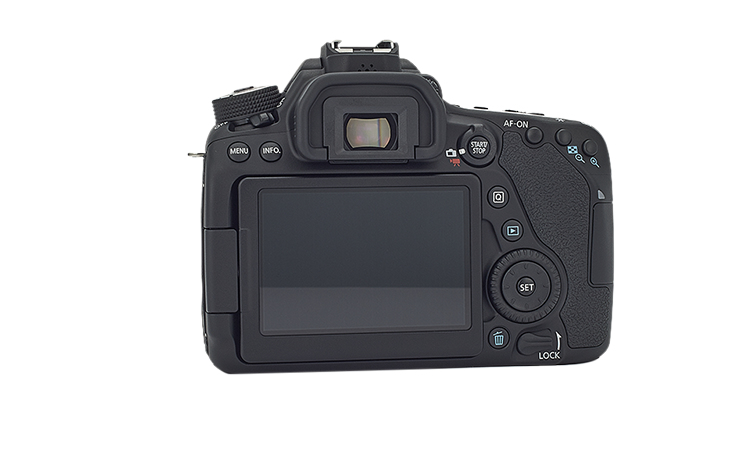

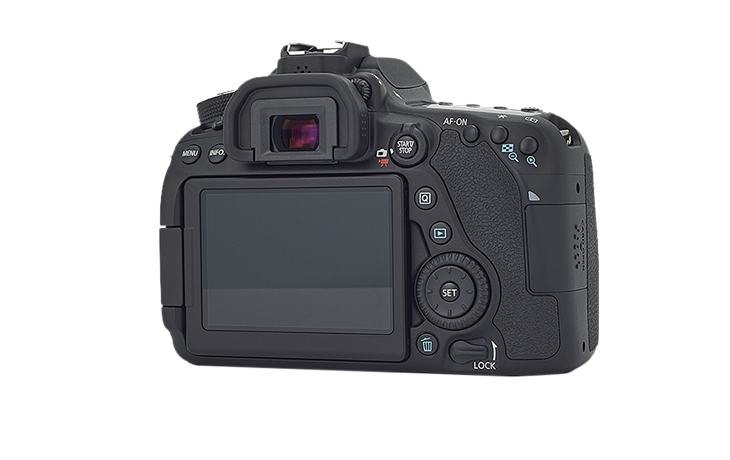

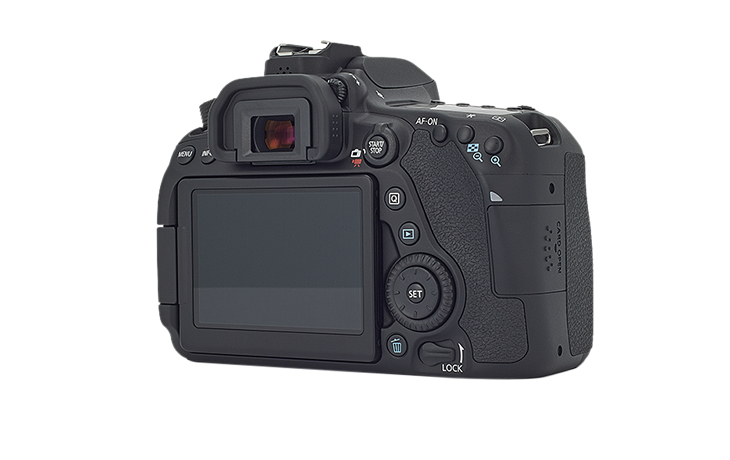

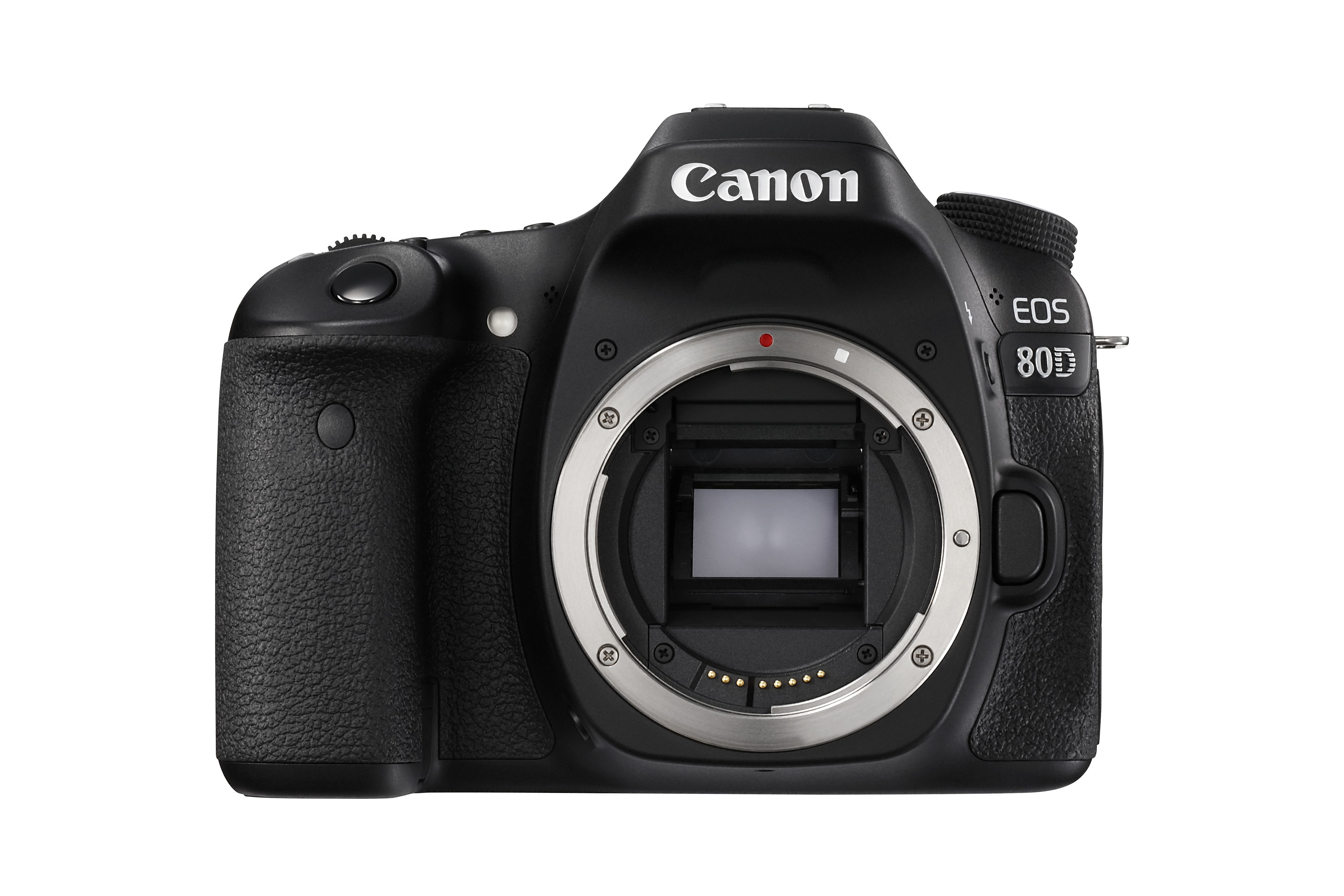

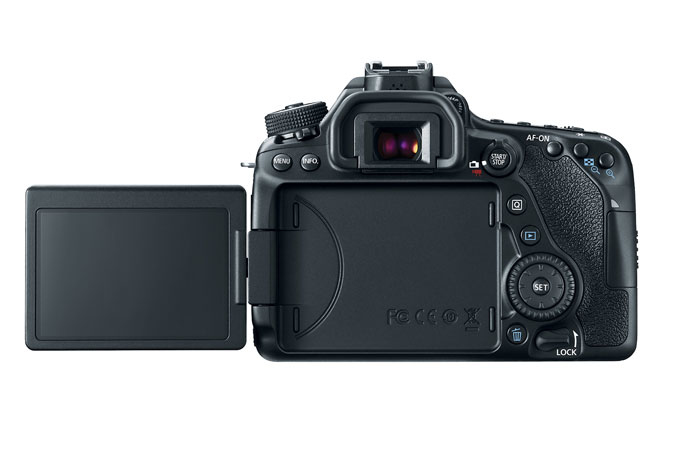

EOS 80D SLR Camera Body
24.2 MP CMOS 6000 x 4000 pixels Black
Model 80DPart no. 1263C010EAN 4549292060997
86 specifications Checked today
- Display7.62 cm (3")
- Battery1900 mAh
- Weight650 g
- ColourBlack
- Camera typeSLR Camera Body
- Lens mount interfaceCanon EF, Canon EF-S
Overview
- Display
- 7.62 cm (3")
- Battery
- 1900 mAh
- Weight
- 650 g
- Colour
- Black
- Camera type
- SLR Camera Body
- Lens mount interface
- Canon EF, Canon EF-S
- Brand
- Canon
- Category
- Camera
- Model
- 80D
- Part numbers
- 1263C010, 4549292060935, 1263C027, 1263C028, 1263C007, 1263C004 +2 more
- EAN / UPC
- 4549292060997, 8714574636351, 8714574636443, 2000000878676 +3 more
- Also known as
- Canon EOS 80D SLR Camera Body 24.2 MP CMOS 6000 x 4000 pixels Black
Specifications
86 specifications in 18 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | SLR Camera Body |
| Megapixel (approx.) | 24.2 MP |
| Sensor type | CMOS |
| Maximum image resolution | 6000 x 4000 pixels |
| Still image resolution(s) | 6000 x 3368, 5328 x 4000, 4500 x 3000, 4000 x 4000, 3984 x 2240, 3552 x 2664, 3000 x 2000, 3984 x 2656, 2976 x 1984, 2976 x 1680, 2656 x 1992, 2656 x 2656, 1920 x 1280, 1920 x 1080, 1984 x 1984, 1696 x 1280, 1280 x 1280, 720 x 480, 720 x 408, 480 x 480, 640 x 480 |
| Supported aspect ratios | 1:1, 3:2, 4:3, 16:9 |
| Total megapixels | 25.8 MP |
| Image sensor size (W x H) | 22.5 x 15 mm |
| Sensor format | Advanced Photo System type-C (APS-C) |
| Image formats supported | JPG, Raw |
Lens system
| Specification | Value |
|---|---|
| Lens mount interface | Canon EF, Canon EF-S |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | AI Focus, Servo Auto Focus |
| Auto Focus (AF) points | 45 |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 16000 |
| ISO sensitivity | 100, 16000 |
| Light exposure modes | Auto, Manual |
| Light exposure correction | ±5EV (1/2; 1/3 EV step) |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/8000 s |
| Slowest camera shutter speed | 30 s |
| Camera shutter type | Electronic |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto |
| Flash exposure compensation | Yes |
| Flash exposure correction | ±3EV (1/2; 1/3 EV step) |
| Flash exposure lock | Yes |
| Flash guide number | 12 m |
| Flash recharging time | 3 s |
| Flash sync-speed | 1/250 s |
| Shoe mounting point | Yes |
| Shoe mounting point type | Hot shoe |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Video resolutions | 1280 x 720,1920 x 1080 pixels |
| Analog signal format system | NTSC, PAL |
| Motion JPEG frame rate | 60 fps |
| Video formats supported | MOV, MP4 |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | LPCM |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
Display
| Specification | Value |
|---|---|
| Display | TFT |
| Display diagonal | 7.62 cm (3") |
| Display resolution (numeric) | 1040000 pixels |
| Display aspect ratio | 3:2 |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| HDMI | Yes |
| HDMI connector type | Mini |
| Headphone outputs | 1 |
| Microphone in | Yes |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Flash, Fluorescent, Shade, Tungsten |
| Self-timer delay | 2,10 s |
| Camera playback | Movie, Single image |
| Dioptre correction | Yes |
| Camera file system | DCF 2.0, DPOF 1.1, Exif 2.3, Raw |
| Languages support | Multi |
| Live view | Yes |
| Orientation sensor | Yes |
| Playback zoom (max) | 10x |
| Built-in processor | Yes |
| Image processor | DIGIC 6 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Dustproof | Yes |
| Waterproof | Yes |
| Material | Fiberglass, Polycarbonate, Resin |
Battery
| Specification | Value |
|---|---|
| Battery technology | Nickel-Metal Hydride (NiMH) |
| Battery life (CIPA standard) | 960 shots |
| Battery capacity | 1900 mAh |
| Battery type | LP-E6N, LP-E6 |
| Battery level indicator | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 32 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139 mm |
| Depth | 78.5 mm |
| Height | 105.2 mm |
| Weight | 650 g |
| Weight (including battery) | 730 g |

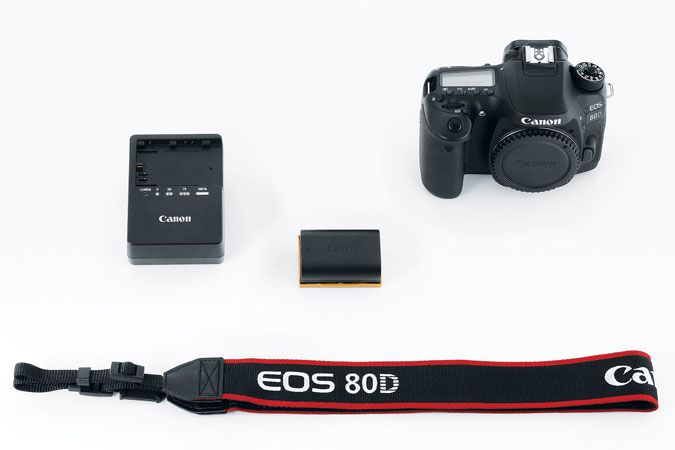

Packaging content
| Specification | Value |
|---|---|
| Hand strap | Yes |
| Batteries included | Yes |
| Battery charger included | Yes |
Other features
| Specification | Value |
|---|---|
| Power source type | Battery |
