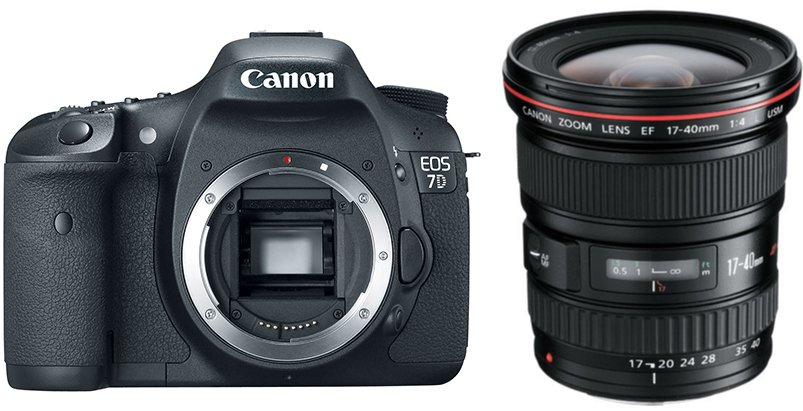

7D + EF 17-40mm
Model 7D + EF 17-40mmPart no. 3814B143
88 specifications Checked today
- Display7.62 cm (3")
- Weight820 g
- ColourBlack
- Camera typeSLR Camera Kit
- Focal length range17 - 40 mm
- FocusTTL
Overview
- Display
- 7.62 cm (3")
- Weight
- 820 g
- Colour
- Black
- Camera type
- SLR Camera Kit
- Focal length range
- 17 - 40 mm
- Focus
- TTL
- Brand
- Canon
- Category
- Camera
- Model
- 7D + EF 17-40mm
- Part number
- 3814B143
- Also known as
- Canon EOS 7D + EF 17-40mm SLR Camera Kit 18 MP CMOS 5184 x 3456 pixels Black
Specifications
88 specifications in 19 groups
Picture quality
| Specification | Value |
|---|---|
| Camera type | SLR Camera Kit |
| Megapixel (approx.) | 18 MP |
| Sensor type | CMOS |
| Maximum image resolution | 5184 x 3456 pixels |
| Still image resolution(s) | 2592 x 1728,3456 x 2304,3888 x 2592 |
| Image stabilizer | No |
| Supported aspect ratios | 3:2 |
| Total megapixels | 19 MP |
| Image sensor size (W x H) | 22.3 x 14.9 mm |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 17 - 40 mm |
| Lens structure (elements/groups) | 12/9 |
| Filter size | 77 mm |
Focusing
| Specification | Value |
|---|---|
| Focus | TTL |
| Auto focusing (AF) modes | Multi Point Auto Focus, Single Auto Focus, Spot Auto Focus |
| Auto Focus (AF) assist beam | Yes |
| Auto Focus (AF) lock | Yes |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity (min) | 100 |
| ISO sensitivity (max) | 12800 |
| ISO sensitivity | 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2250, 3200, 6400, 12800, Auto |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Light exposure control | Program AE |
| Light exposure correction | ± 5EV (1/3EV step) |
| Light metering | Centre-weighted, Spot |
| Auto Exposure (AE) lock | Yes |
Shutter
| Specification | Value |
|---|---|
| Fastest camera shutter speed | 1/8000 s |
| Slowest camera shutter speed | 30 s |
| Camera shutter type | Electronic |
Flash
| Specification | Value |
|---|---|
| Flash modes | Auto, Manual, Red-eye reduction |
| Flash exposure lock | Yes |
| Flash recharging time | 3 s |
Video
| Specification | Value |
|---|---|
| Video recording | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Video resolutions | 640 x 480,1280 x 720 pixels |
| Analog signal format system | NTSC, PAL |
| Motion JPEG frame rate | 30 fps |
| Video formats supported | H.264, MOV |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Memory
| Specification | Value |
|---|---|
| Compatible memory cards | CF |
Display
| Specification | Value |
|---|---|
| Display | LCD |
| Touchscreen | No |
| Display diagonal | 7.62 cm (3") |
| Display resolution (numeric) | 920000 pixels |
| Field of view | 100% |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Optical |
| Magnification | 1x |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | Yes |
| USB version | 2.0 |
| HDMI | Yes |
| HDMI connector type | Mini |
Camera
| Specification | Value |
|---|---|
| White balance | Auto, Cloudy, Custom modes, Daylight, Fluorescent, Shade, Tungsten |
| Scene modes | Portrait, Landscape |
| Shooting modes | Aperture priority, Auto, Manual, Movie, Shutter priority |
| Photo effects | Neutral |
| Self-timer delay | 2,10 s |
| Camera playback | Movie, Single image, Slide show |
| Multi burst mode | Yes |
| Camera file system | DPOF 1.1, Exif 2.21, Raw |
| Custom colour | Yes |
| Histogram | Yes |
| Image quality adjustment | Brightness |
| Live view | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Ukrainian |
| Orientation sensor | Yes |
| Playback zoom (max) | 10x |
| Image processor | DIGIC 4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (CIPA standard) | 800 shots |
| Battery type | LP-E6 |
| Number of batteries supported | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 148.2 mm |
| Depth | 73.5 mm |
| Height | 110.7 mm |
| Weight | 820 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Battery charger included | Yes |
Other features
| Specification | Value |
|---|---|
| Video capability | Yes |
| Built-in flash | Yes |
| Camera shutter speed | 30 - 1/8000 s |
| Compatible operating systems | Windows XP/Vista Mac OS X v10.4-10.5 |
| Digital SLR | Yes |
| HDMI ports quantity | 1 |
| Power source type | Battery |
| Video memory capacity | 4GB |
