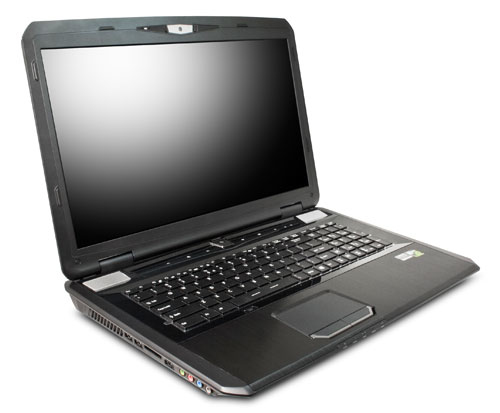

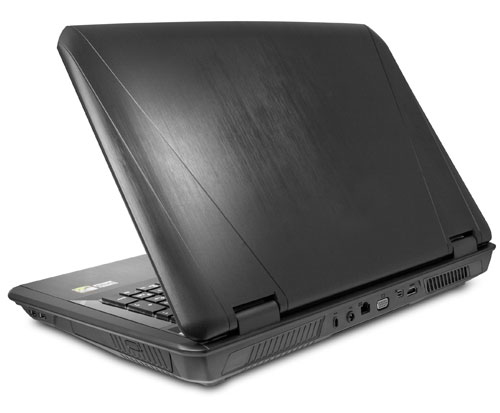

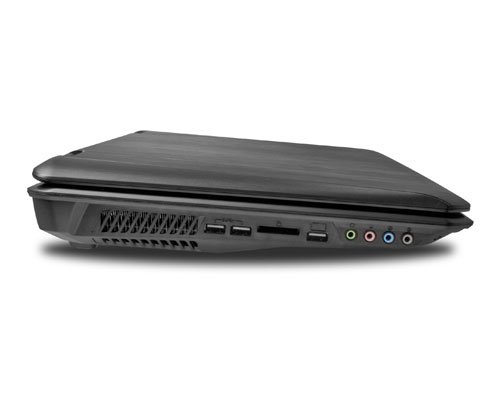

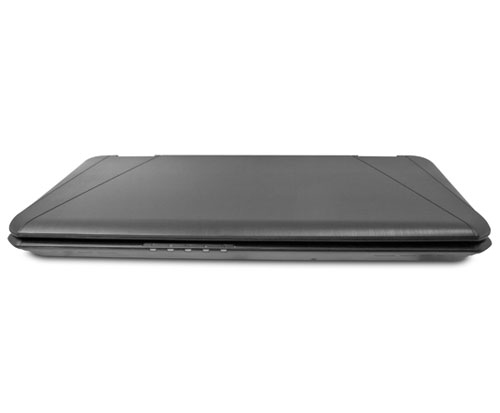

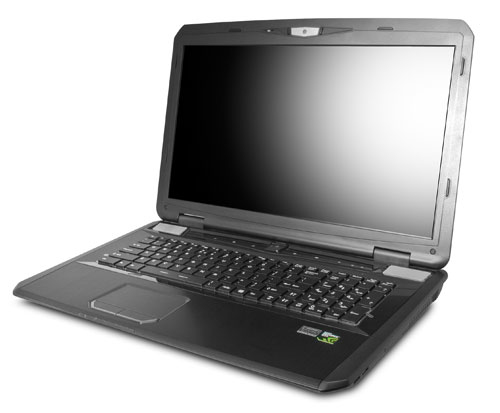

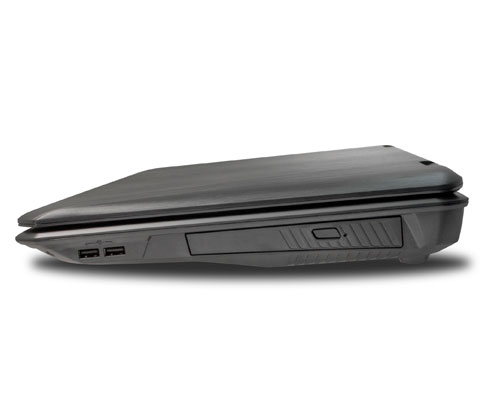

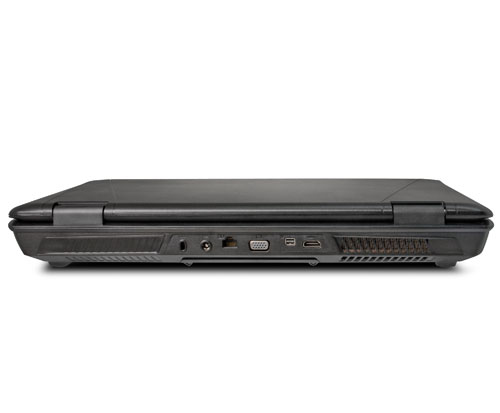

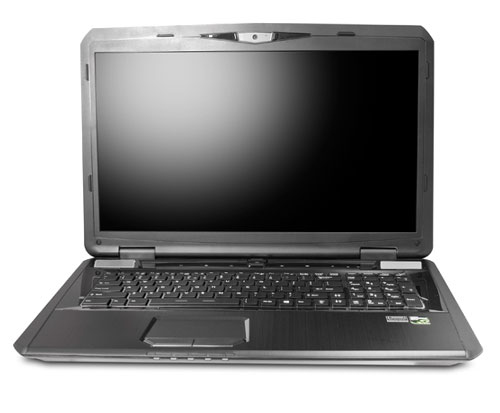

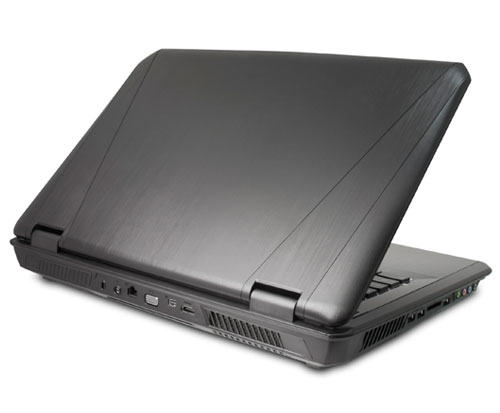

MS-1763 barebook Intel® HM87
43.9 cm (17.3") 1920 x 1080 pixels
Model MS-1763Part no. 937-176322-002EAN 816909107128
54 specifications
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- Weight3.58 kg
- Motherboard chipsetIntel® HM87
- Maximum internal memory32 GB
- Card reader integratedYes
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Weight
- 3.58 kg
- Motherboard chipset
- Intel® HM87
- Maximum internal memory
- 32 GB
- Card reader integrated
- Yes
- Brand
- MSI
- Category
- Barebook
- Model
- MS-1763
- Part numbers
- 937-176322-002, 937-176322-001
- EAN / UPC
- 816909107128, 816909107111
- Also known as
- MSI MS-1763 barebook Intel® HM87 43.9 cm (17.3") 1920 x 1080 pixels
Specifications
54 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® HM87 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 32 GB |
| Memory slots | 4x SO-DIMM |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
| RAID support | Yes |
| RAID levels | 0 |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| Supported HDD interfaces | Serial ATA |
| Supported HDD sizes | 2.5" |
Optical drive
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
Video
| Specification | Value |
|---|---|
| Graphics card | GeForce GTX 770MX |
| Graphics card family | NVIDIA |
| Maximum graphics card memory | 3072 MB |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 3 MP |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Aspect ratio | 16:9 |
| LED backlight | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | HD Audio |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Built-in subwoofer | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Modem (RJ-11) ports | 0 |
| TV-out | No |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 1 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 8 |
Keyboard
| Specification | Value |
|---|---|
| Full-size keyboard | Yes |
| Keyboard number of keys | 102 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 301 mm |
| Height | 55.1 mm |
| Weight | 3.58 kg |
| Width | 428 mm |
Power
| Specification | Value |
|---|---|
| AC adapter power | 180 W |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
