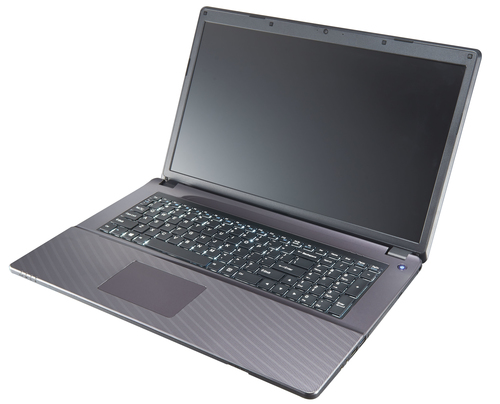

ITW670SFQ barebook Intel® HM86
43.9 cm (17.3") 1920 x 1080 pixels
Model ITW670SFQEAN 8032539912525
58 specifications
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- Battery62.16 Wh
- Weight3.1 kg
- Motherboard chipsetIntel® HM86
- Maximum internal memory16 GB
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Battery
- 62.16 Wh
- Weight
- 3.1 kg
- Motherboard chipset
- Intel® HM86
- Maximum internal memory
- 16 GB
- Brand
- itek
- Category
- Barebook
- Model
- ITW670SFQ
- Part number
- ITW670SFQ
- EAN / UPC
- 8032539912525
- Also known as
- itek ITW670SFQ barebook Intel® HM86 43.9 cm (17.3") 1920 x 1080 pixels
Specifications
58 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® HM86 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MiniSD, MMC, MS Duo, MS PRO, RS-MMC, SD, SDHC, SDXC |
Hard drive
| Specification | Value |
|---|---|
| Internal drive bays | 1 |
| Number of HDDs supported | 1 |
| Supported HDD interfaces | Serial ATA |
| Supported HDD sizes | 2.5" |
Optical drive
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
Video
| Specification | Value |
|---|---|
| Graphics card | GeForce 840M |
| Graphics card family | NVIDIA |
| Maximum graphics card memory | 2048 MB |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 1 MP |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Aspect ratio | 16:9 |
Audio
| Specification | Value |
|---|---|
| Audio system | SOUND BLASTER |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 8.1 (64-bit) |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 272.8 mm |
| Height | 36.4 mm |
| Weight | 3.1 kg |
| Width | 413 mm |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 62.16 Wh |
| Battery life (max) | 6.33 h |
| AC adapter power | 90 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Input device
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
