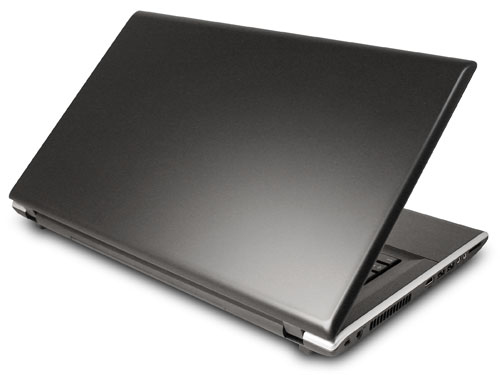

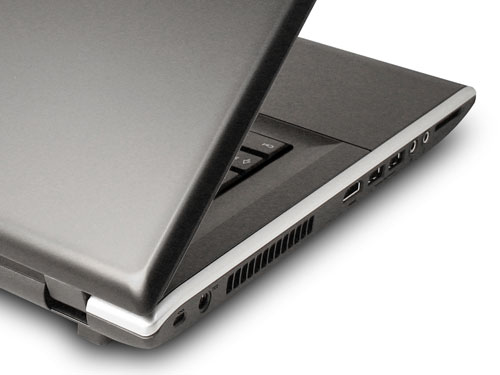

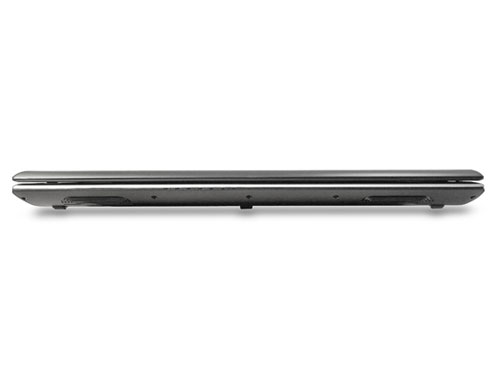

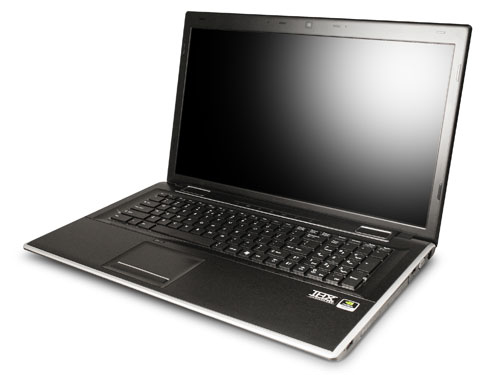

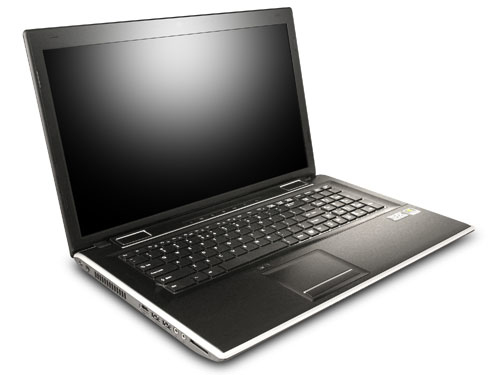

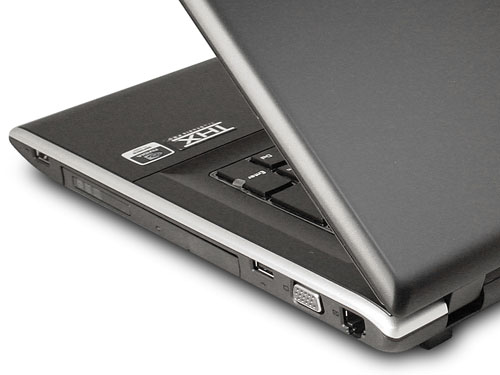

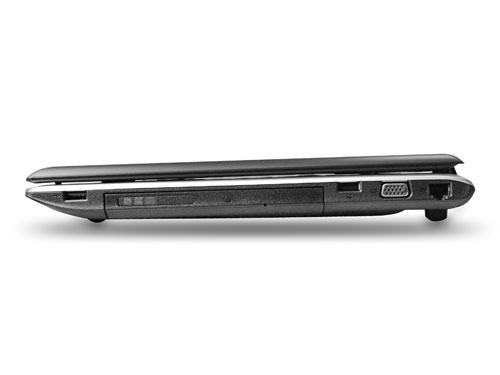

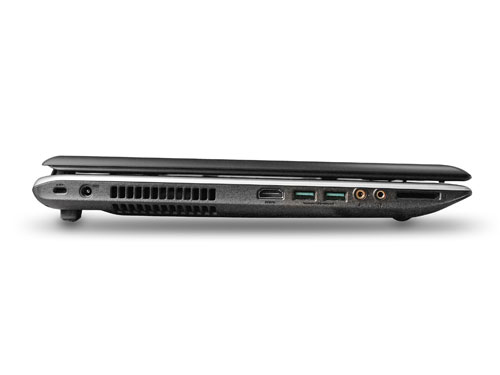

MS-1756 barebook Intel HM76 Express
43.9 cm (17.3") 1920 x 1080 pixels
Model MS-1756Part no. 937-175621-006EAN 816909100556
57 specifications
- Display43.9 cm (17.3")
- Resolution1920 x 1080 pixels
- Weight2.7 kg
- Motherboard chipsetIntel HM76 Express
- Maximum internal memory16 GB
- Card reader integratedYes
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1920 x 1080 pixels
- Weight
- 2.7 kg
- Motherboard chipset
- Intel HM76 Express
- Maximum internal memory
- 16 GB
- Card reader integrated
- Yes
- Brand
- MSI
- Category
- Barebook
- Model
- MS-1756
- Part numbers
- 937-175621-006, 937-175621-002
- EAN / UPC
- 816909100556, 816909098105
- Also known as
- MSI MS-1756 barebook Intel HM76 Express 43.9 cm (17.3") 1920 x 1080 pixels
Specifications
57 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM76 Express |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
Hard drive
| Specification | Value |
|---|---|
| Internal drive bays | 1 |
| Number of HDDs supported | 1 |
| Supported HDD interfaces | Serial ATA |
| Supported HDD sizes | 2.5" |
Optical drive
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
Video
| Specification | Value |
|---|---|
| Graphics card | Geforce GTX 660M |
| Graphics card family | NVIDIA |
| Maximum graphics card memory | 2000 MB |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 3 MP |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Aspect ratio | 16:9 |
| Glossy display | No |
| LED backlight | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC888S |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 4 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Modem (RJ-11) ports | 0 |
| TV-out | No |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 |
Keyboard
| Specification | Value |
|---|---|
| Full-size keyboard | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 269.2 mm |
| Height | 39.1 mm |
| Weight | 2.7 kg |
| Width | 418.1 mm |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
| AC adapter output voltage | 19 V |
| Battery type | Li-Ion 6-Cell |
| Power requirements | 100 - 240V AC, 50/60 Hz |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Input device
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
