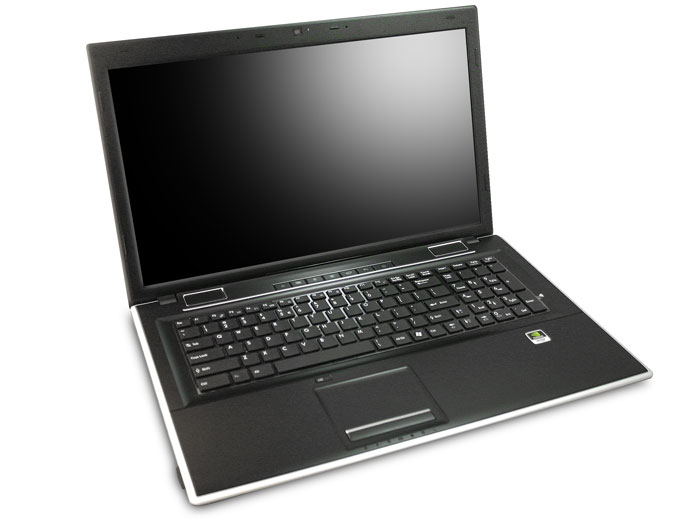

MS-1755 barebook Intel HM76 Express
43.9 cm (17.3") 1600 x 900 pixels
Model MS-1755Part no. 937-175523-016EAN 8169091028958
56 specifications
- Display43.9 cm (17.3")
- Resolution1600 x 900 pixels
- Weight2.7 kg
- Motherboard chipsetIntel HM76 Express
- Maximum internal memory8 GB
- Card reader integratedYes
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 1600 x 900 pixels
- Weight
- 2.7 kg
- Motherboard chipset
- Intel HM76 Express
- Maximum internal memory
- 8 GB
- Card reader integrated
- Yes
- Brand
- MSI
- Category
- Barebook
- Model
- MS-1755
- Part numbers
- 937-175523-016, 937-175523-010, 937-175523-013, 937-175523-015
- EAN / UPC
- 8169091028958, 816909098471, 816909102093, 8169091020938 +3 more
- Also known as
- MSI MS-1755 barebook Intel HM76 Express 43.9 cm (17.3") 1600 x 900 pixels
Specifications
56 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM76 Express |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
| Memory slots | 2x SO-DIMM |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD, xD |
Hard drive
| Specification | Value |
|---|---|
| Internal drive bays | 1 |
| Number of HDDs supported | 1 |
| Supported HDD interfaces | Serial ATA |
| Supported HDD sizes | 2.5" |
Optical drive
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
Video
| Specification | Value |
|---|---|
| Graphics card | GeForce GTX 640M |
| Graphics card family | NVIDIA |
| Maximum graphics card memory | 2000 MB |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1600 x 900 pixels |
| Aspect ratio | 16:9 |
| Glossy display | No |
| LED backlight | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC888S |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 4 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Modem (RJ-11) ports | 0 |
| TV-out | No |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 |
Keyboard
| Specification | Value |
|---|---|
| Full-size keyboard | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 269.2 mm |
| Height | 39.1 mm |
| Weight | 2.7 kg |
| Width | 418.1 mm |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 90 W |
| Battery type | Li-Ion 6-Cell |
| Power requirements | 100 - 240V AC, 50/60 Hz |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Input device
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
