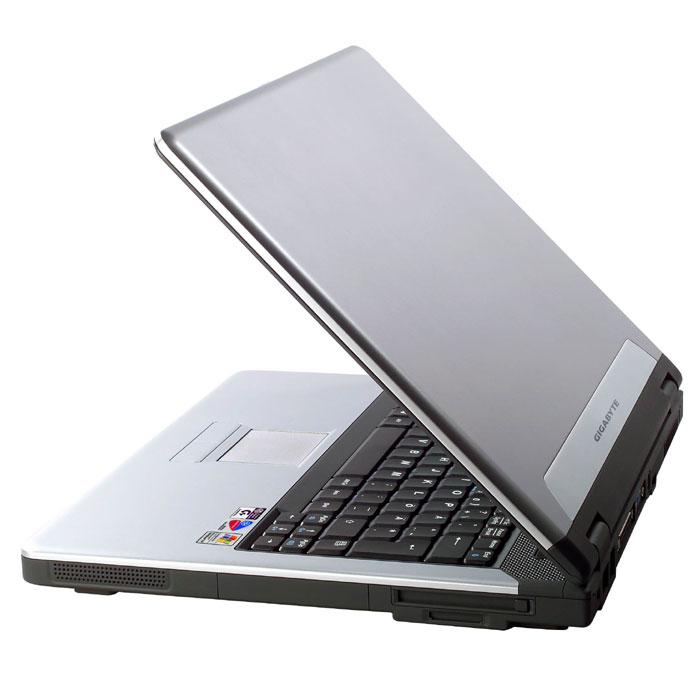

N521U Barebook
Model N521U BarebookPart no. N521U
46 specifications
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- Weight2.81 kg
- Motherboard chipsetIntel® 915GM Express
- Maximum internal memory2 GB
- Compatible memory cardsMMC, MS Pro, SD
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Weight
- 2.81 kg
- Motherboard chipset
- Intel® 915GM Express
- Maximum internal memory
- 2 GB
- Compatible memory cards
- MMC, MS Pro, SD
- Brand
- GIGABYTE
- Category
- Barebook
- Model
- N521U Barebook
- Part number
- N521U
- Also known as
- GIGABYTE N521U barebook Intel® 915GM Express 38.1 cm (15") 1024 x 768 pixels
Specifications
46 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 915GM Express |
| L2 cache | 2 MB |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Memory slots | 2x SO-DIMM |
| BIOS flash ROM | 512K |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MMC, MS Pro, SD |
Hard drive
| Specification | Value |
|---|---|
| Drive bays size | 6.35 cm (2.5") |
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display | TFT |
Audio
| Specification | Value |
|---|---|
| Audio system | 16-bit Stereo AC'97 2.2 |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Internal modem | Yes |
| Networking speed | 10/100 Mbps Base-TX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Port replicator | No |
| CardBus PCMCIA slot type | Type II |
| CardBus PCMCIA slots quantity | 1 |
| DC-in jack | Yes |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Infrared data port | No |
| Microphone in | Yes |
| Modem (RJ-11) ports | 1 |
| Parallel ports quantity | 0 |
| S/PDIF out port | No |
| Serial ports quantity | 0 |
| SmartCard slot | No |
| TV-in port | No |
| TV-out | S-Video |
| VGA (D-Sub) ports quantity | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 276 mm |
| Weight | 2.81 kg |
| Width | 333.6 mm |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Certificates
| Specification | Value |
|---|---|
| Safety | CUL/CB, TUV, CCC |
| Electromagnetic emissions | FCC, BSMI, CE |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter output voltage | 19 V |
| Power management | ACPI 1.0b, ACPI 2.0 |
| Power requirements | 90-264V AC, 47-63Hz |
Input device
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Technical details
| Specification | Value |
|---|---|
| Networking features | Realtek Ethernet LAN |
