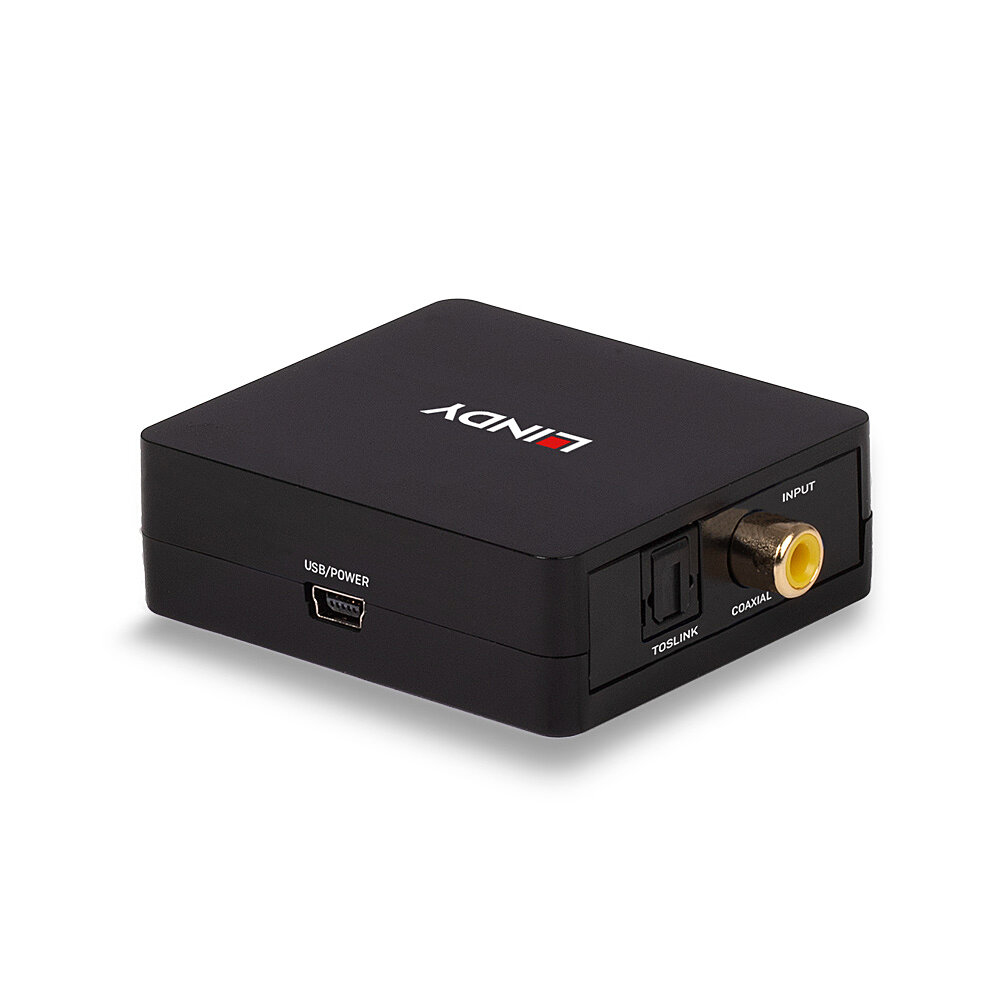

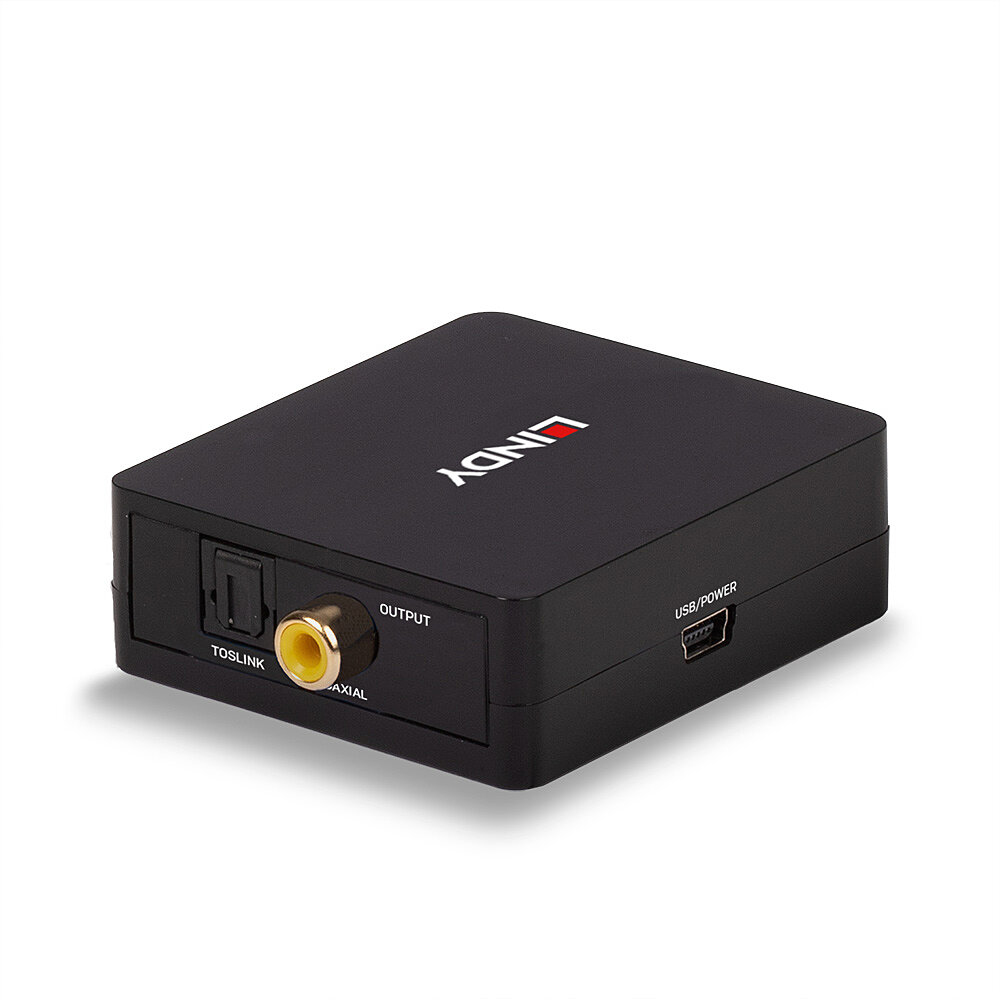

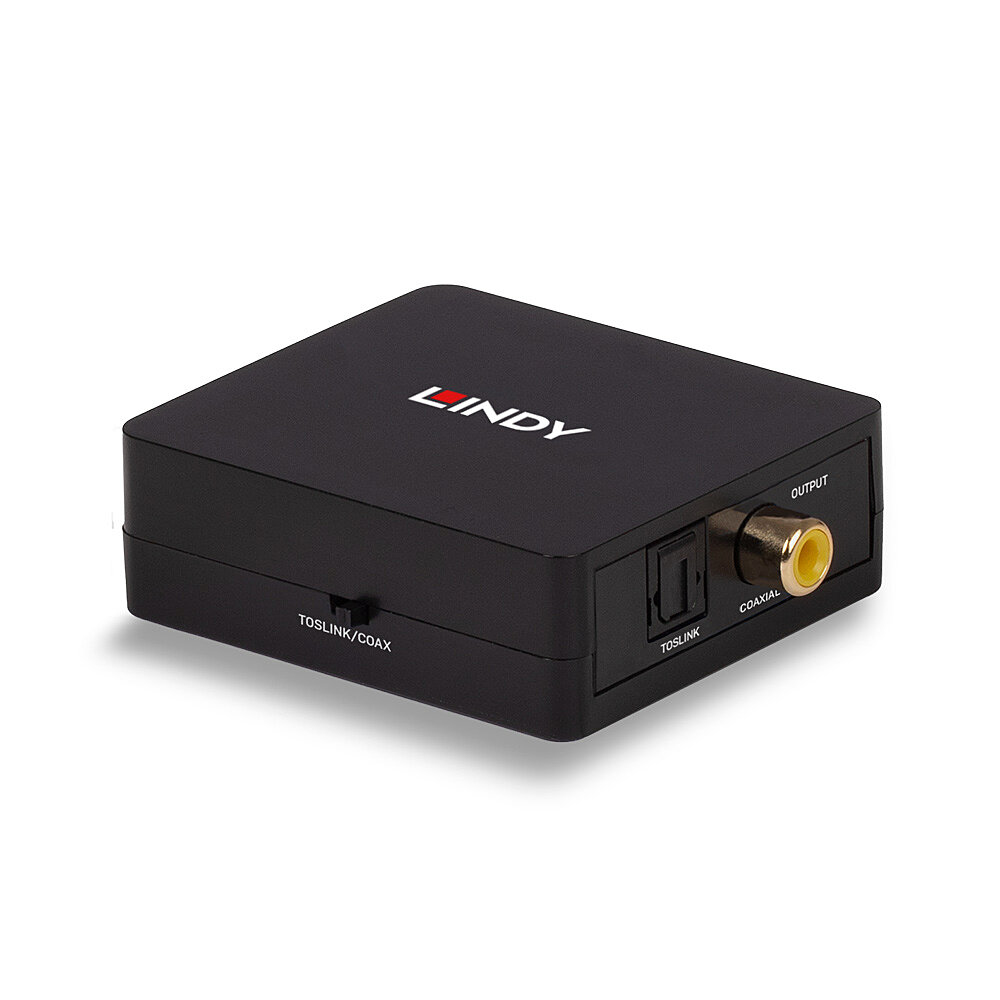

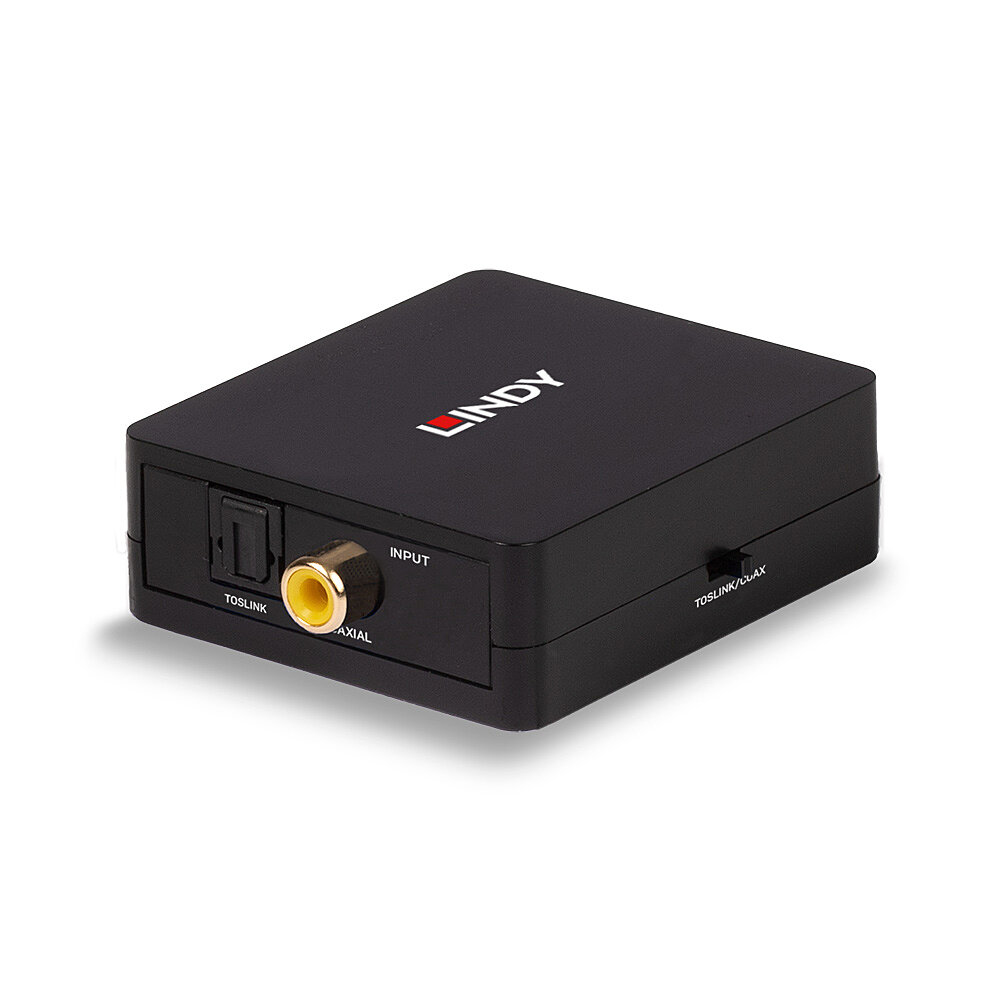

2-way Digital SPDIF (Coaxial Toslink) Audio Converter
Model 70457EAN 4002888704571
29 specifications
- Weight40 g
- ColourBlack
- Digital audio coaxial in1
- ChipsetMIC-74HC04
- Operating voltage5 V
- Width60.5 mm
Overview
- Weight
- 40 g
- Colour
- Black
- Digital audio coaxial in
- 1
- Chipset
- MIC-74HC04
- Operating voltage
- 5 V
- Width
- 60.5 mm
- Brand
- Lindy
- Category
- Audio Converter
- Model
- 70457
- Part number
- 70457
- EAN / UPC
- 4002888704571, 4002888754576
- Also known as
- Lindy 2-way Digital SPDIF (Coaxial Toslink) Audio Converter
Specifications
29 specifications in 7 groups
Inputs
| Specification | Value |
|---|---|
| Digital audio coaxial in | 1 |
| Digital audio optical in | 1 |
| Sample frequencies | 192kHz |
Outputs
| Specification | Value |
|---|---|
| Digital audio coaxial out | 1 |
| Digital audio optical out | 1 |
Technical details
| Specification | Value |
|---|---|
| Chipset | MIC-74HC04 |
| Input impedance | 75 Ω |
| Output impedance | 75 Ω |
| Bit rate | 24 bit |
| Audio recording formats | LPCM |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Housing material | Plastic |
| Product colour | Black |
| Signal-to-Noise Ratio (SNR) | 142 dB |
| Sustainability compliance | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60.5 mm |
| Depth | 54 mm |
| Height | 20.5 mm |
| Weight | 40 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Quantity | 1 |
| Package width | 133 mm |
| Package depth | 105 mm |
| Package height | 24 mm |
| Package weight | 80 g |
