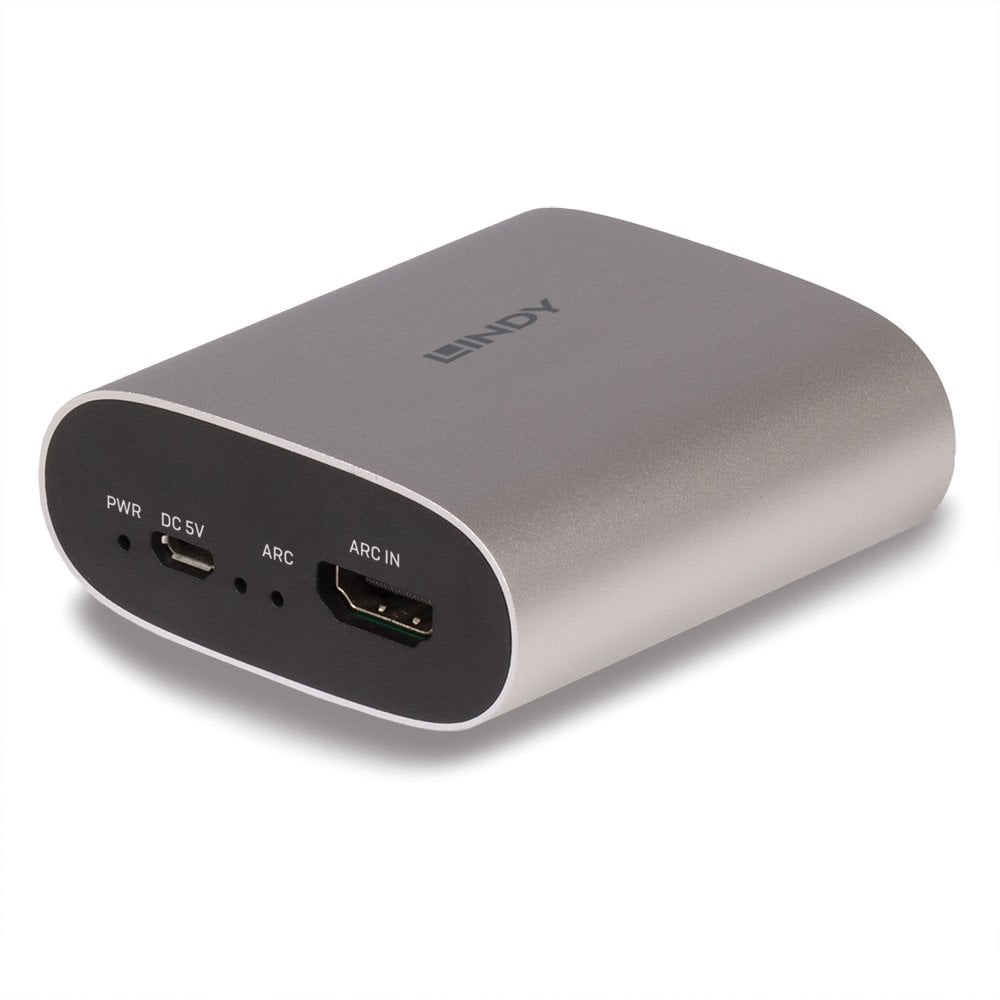

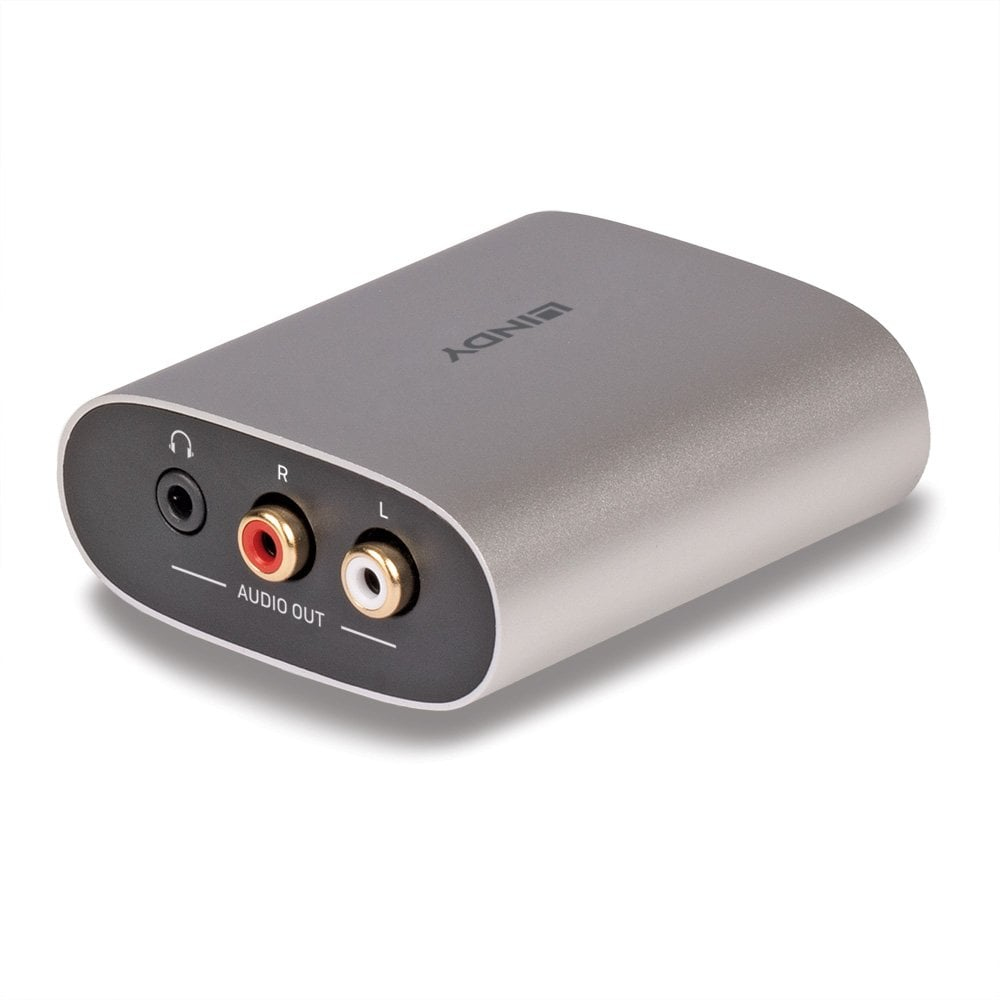

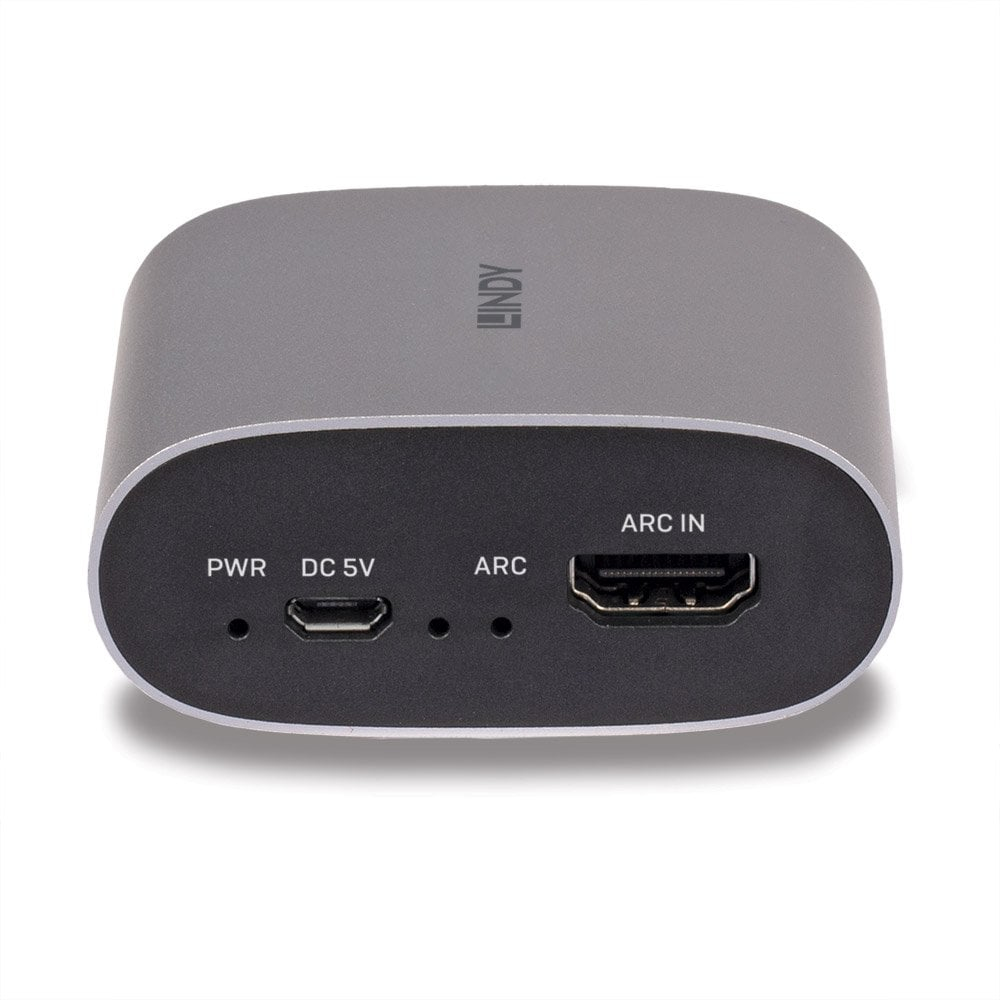

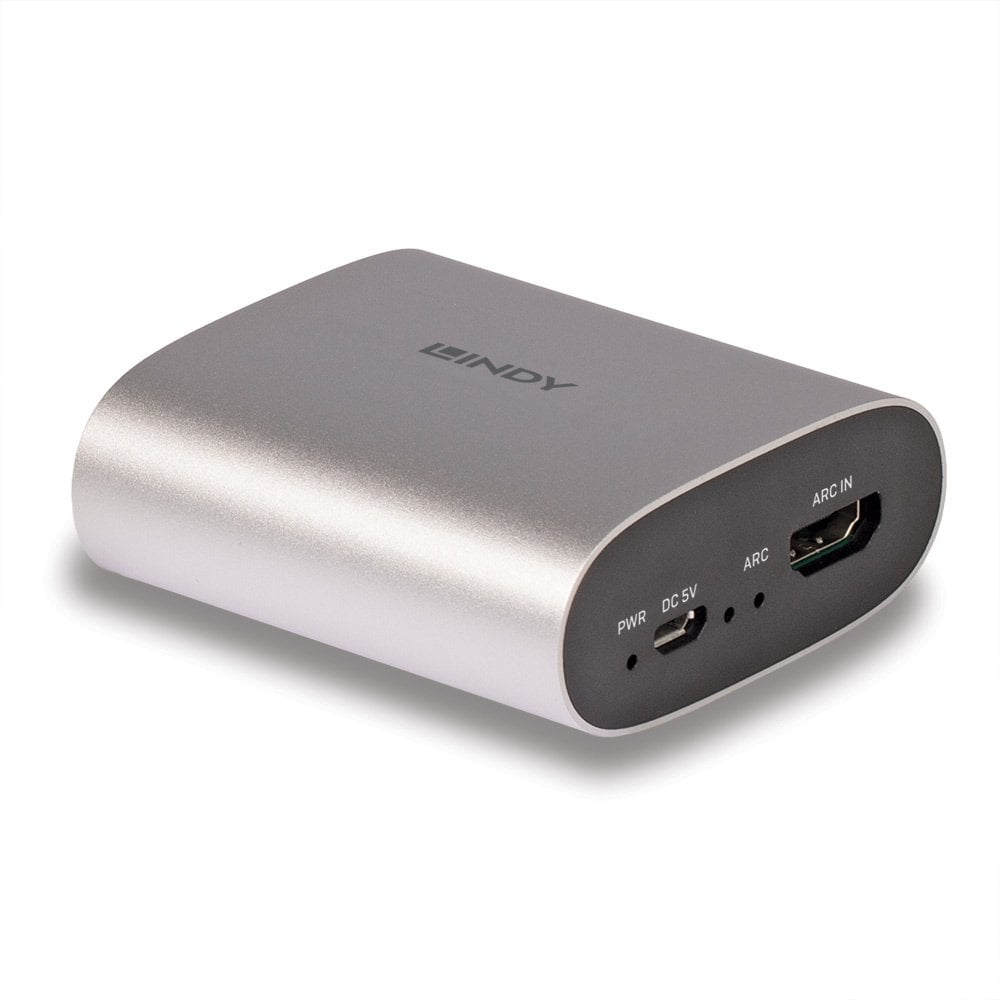

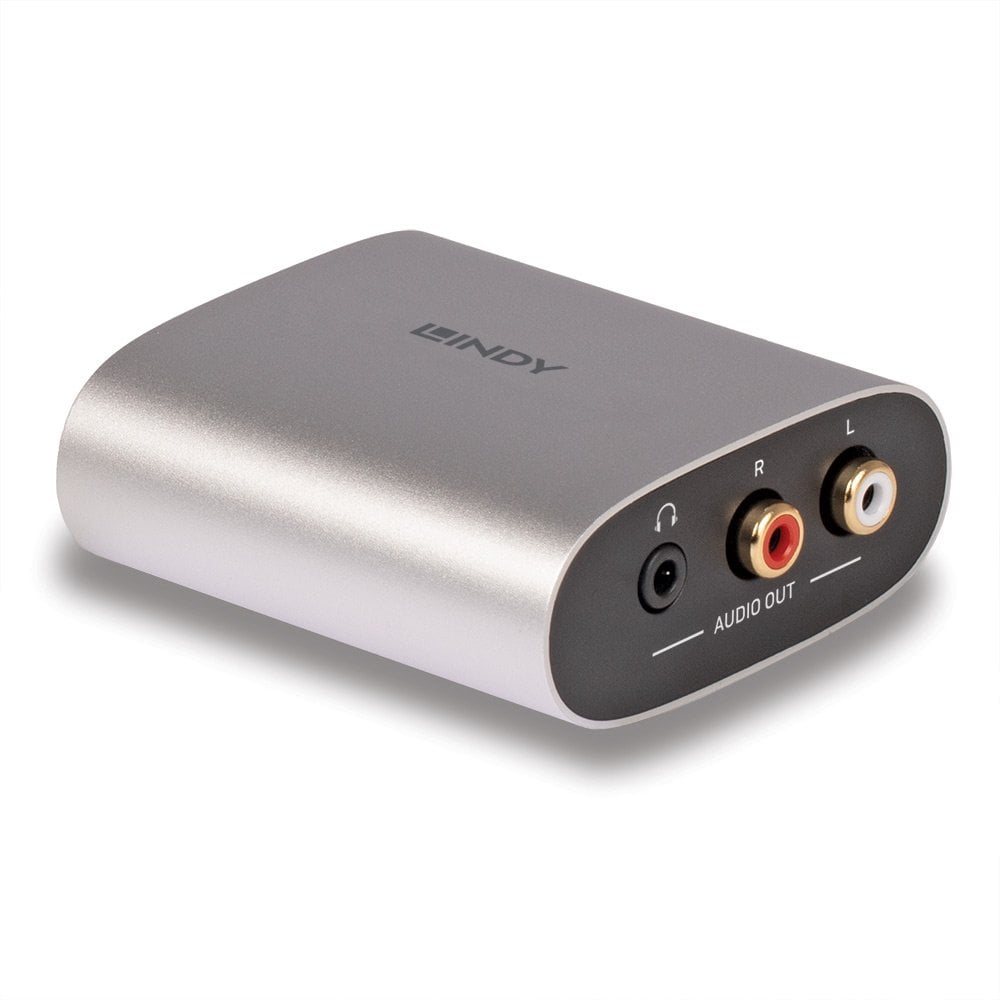

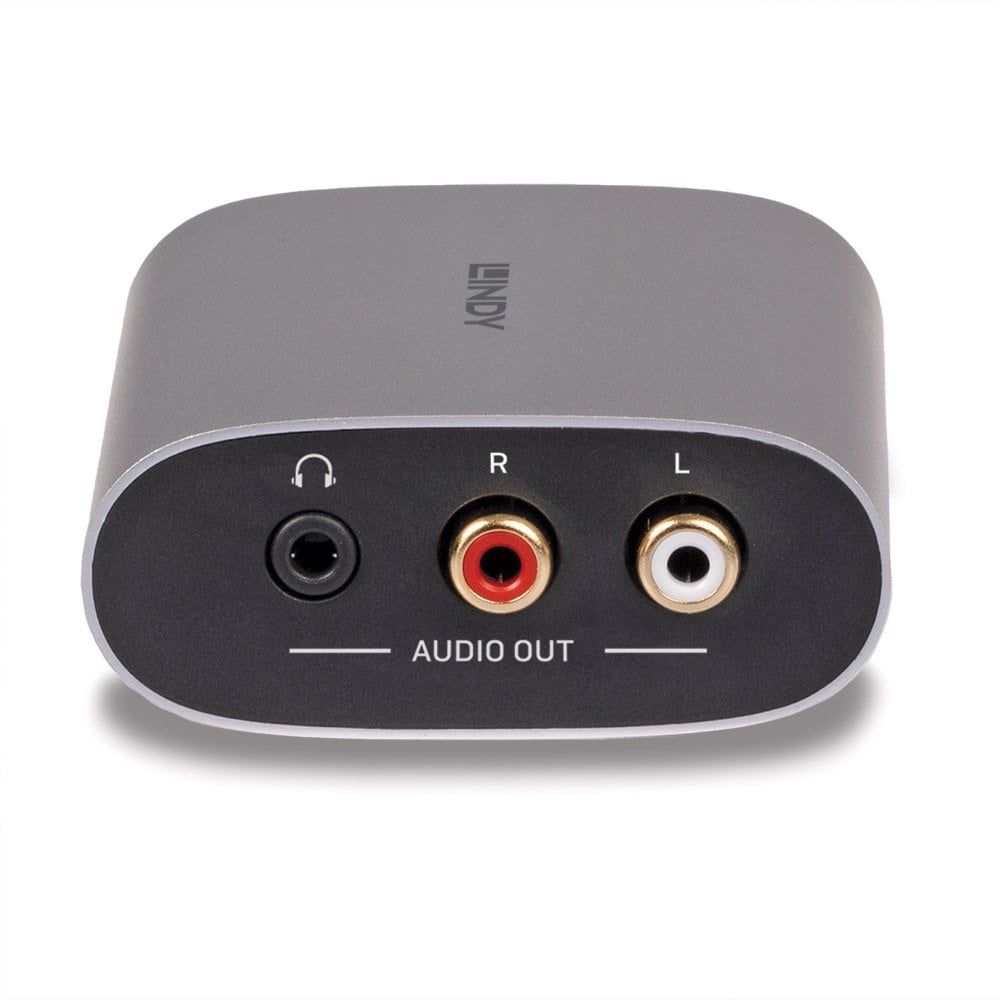

HDMI ARC Audio Extractor
Model 38363EAN 4002888383639
34 specifications
- Weight81 g
- ColourSilver
- USB connector typeMicro-USB
- Audio (L/R) out1
- Frequency range20 - 20000 Hz
- Input voltage5 V
Overview
- Weight
- 81 g
- Colour
- Silver
- USB connector type
- Micro-USB
- Audio (L/R) out
- 1
- Frequency range
- 20 - 20000 Hz
- Input voltage
- 5 V
- Brand
- Lindy
- Category
- Audio Converter
- Model
- 38363
- Part number
- 38363
- EAN / UPC
- 4002888383639
- Also known as
- Lindy HDMI ARC Audio Extractor
Specifications
34 specifications in 7 groups
Inputs
| Specification | Value |
|---|---|
| USB connector type | Micro-USB |
| HDMI in | 1 |
Outputs
| Specification | Value |
|---|---|
| Audio (L/R) out | 1 |
| Headphone out | Yes |
Technical details
| Specification | Value |
|---|---|
| Frequency range | 20 - 20000 Hz |
| CEC pass-through | Yes |
| Chipset | SPHE8107S |
| HDMI version | 1.4 |
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Housing material | Plastic |
| Product colour | Silver |
| Signal-to-Noise Ratio (SNR) | 101 dB |
| Certification | California Proposition 65 |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption | 500 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 65 mm |
| Height | 27 mm |
| Weight | 81 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual | Yes |
| Quantity | 1 |
| Package width | 146 mm |
| Package depth | 105 mm |
| Package height | 65 mm |
| Package weight | 174 g |
| Package type | Box |
