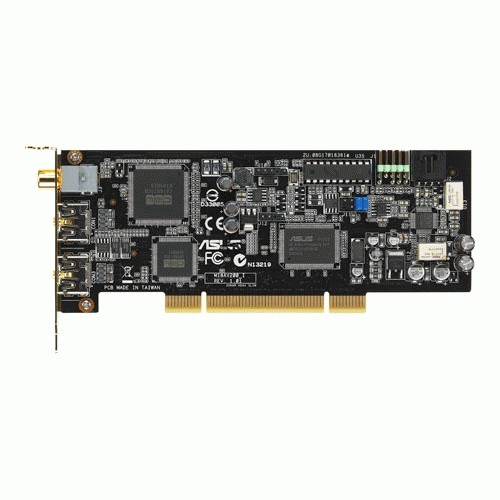

XONAR HDAV 1.3 SLIM
Model XONAR HDAV 1.3 SLIMPart no. 90-YAA0D0-0UAN0BZEAN 4054317893585
13 specifications
- InternalYes
- Host interfacePCI
- Cables includedHDMI, HDMI-DVI, S/PDIF
- Bundled softwareArcSoft Total Media Player
- Width64.3 mm
Overview
- Internal
- Yes
- Host interface
- PCI
- Cables included
- HDMI, HDMI-DVI, S/PDIF
- Bundled software
- ArcSoft Total Media Player
- Width
- 64.3 mm
- Brand
- ASUS
- Category
- Audio Card
- Model
- XONAR HDAV 1.3 SLIM
- Part number
- 90-YAA0D0-0UAN0BZ
- EAN / UPC
- 4054317893585, 4719543041925, 5711045709166
- Also known as
- ASUS XONAR HDAV 1.3 SLIM Internal 7.1 channels PCI
Specifications
13 specifications in 5 groups
Audio
| Specification | Value |
|---|---|
| Internal | Yes |
| Audio output channels | 7.1 channels |
| Audio quality | 24 bit |
| Line-out Signal-to-Noise Ratio (SNR) | 145 dB |
| Audio A/D Converter (ADC) | 24-bit/192kHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI |
| S/PDIF out port | Yes |
| CD/AUX audio in | Yes |
Features
| Specification | Value |
|---|---|
| Dolby technologies | Dolby Digital Live, Dolby Headphone, Dolby Pro-Logic IIx, Dolby Virtual Speaker |
| Cables included | HDMI, HDMI-DVI, S/PDIF |
Software
| Specification | Value |
|---|---|
| Bundled software | ArcSoft Total Media Player |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 64.3 mm |
| Height | 161.3 mm |
