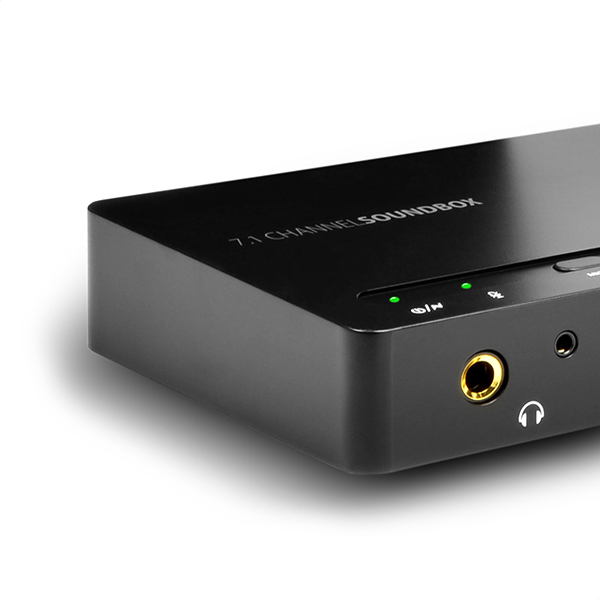

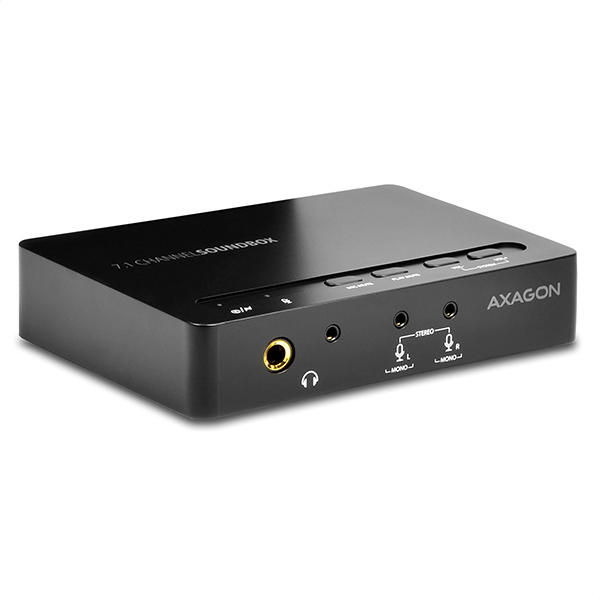

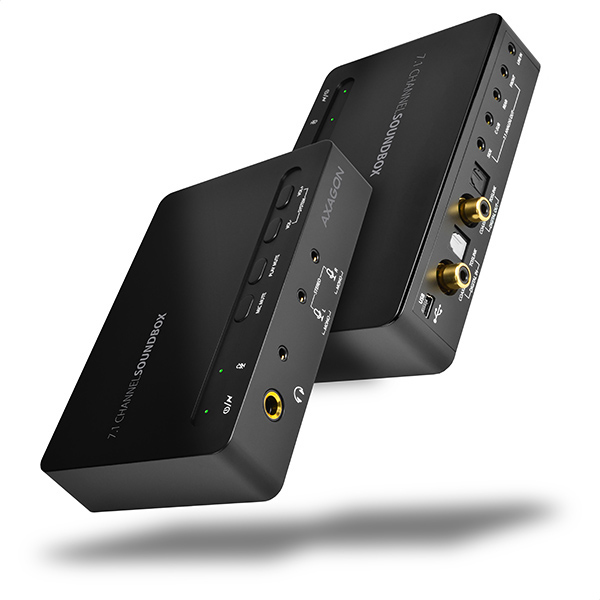

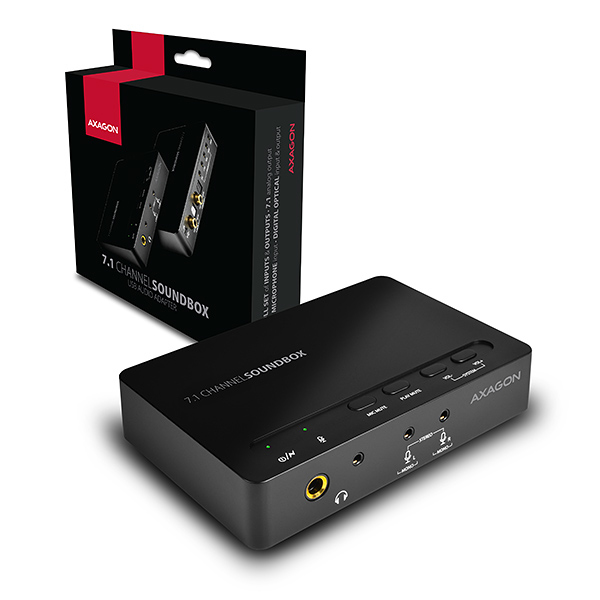

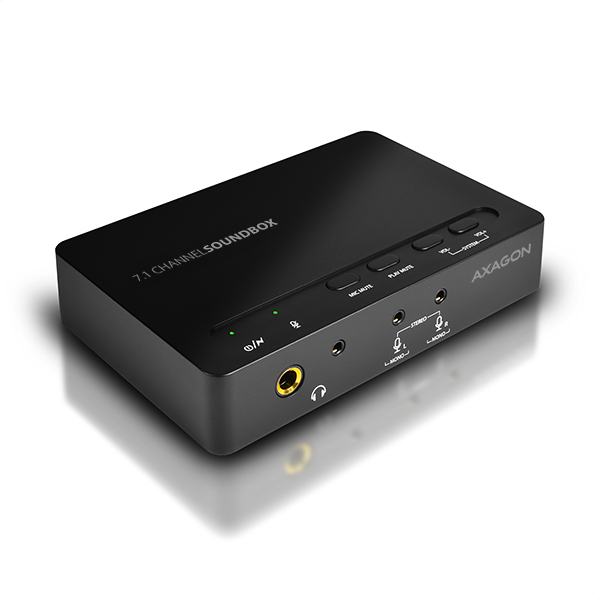

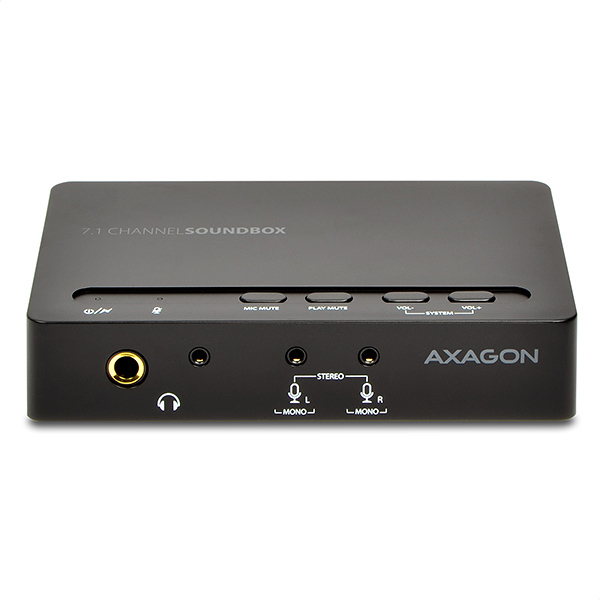

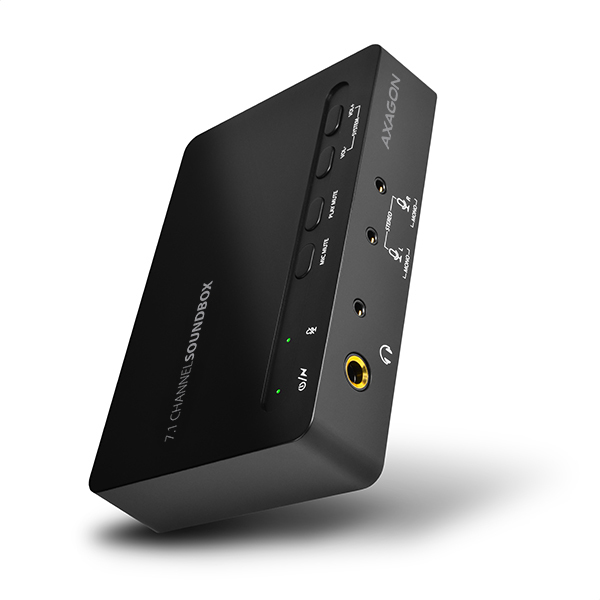

ADA-71 audio card 7.1 channels USB
Model ADA-71EAN 8595247903037
31 specifications
- Weight158 g
- ColourBlack
- InternalNo
- Host interfaceUSB
- Dolby technologiesDolby Digital
- USB requiredYes
Overview
- Weight
- 158 g
- Colour
- Black
- Internal
- No
- Host interface
- USB
- Dolby technologies
- Dolby Digital
- USB required
- Yes
- Brand
- Axagon
- Category
- Audio Card
- Model
- ADA-71
- Part number
- ADA-71
- EAN / UPC
- 8595247903037
- Also known as
- Axagon ADA-71 audio card 7.1 channels USB
Specifications
31 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Internal | No |
| Audio output channels | 7.1 channels |
| Audio quality | 16 bit |
| Line-out Signal-to-Noise Ratio (SNR) | 96 dB |
| Line-in Signal-to-Noise Ratio (SNR) | 88 dB |
| Audio A/D Converter (ADC) | 16-bit/48kHz |
| Digital-to-Analog Conversion (DAC) | 16-bit/48kHz |
| Line-in Total Harmonic Distortion (THD) | 0.008% |
| Line-out Total Harmonic Distortion (THD) | 0.0056% |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB |
| Line-in | Yes |

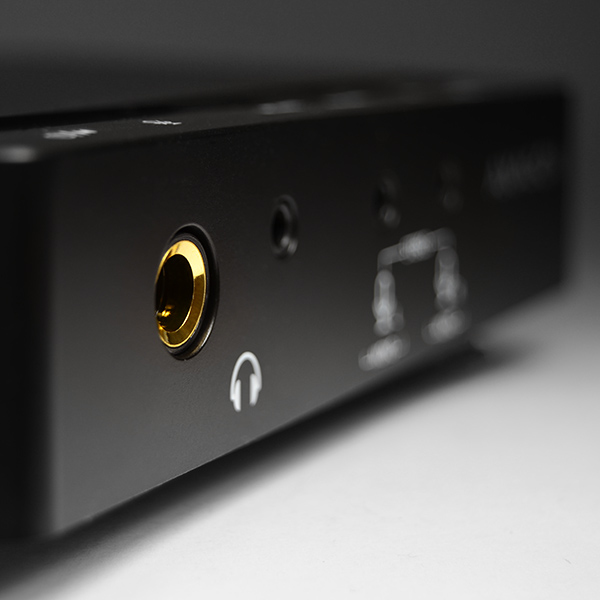

| Headphone connectivity | 3.5 mm/6.35 mm |
| Headphone outputs | 2 |
| S/PDIF in port | Yes |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Plug and Play | Yes |
Features
| Specification | Value |
|---|---|
| Dolby technologies | Dolby Digital |
| Cable length | 1 m |
| Chipset | C-Media CM6206 |
| LED indicators | Yes |
| Product colour | Black |
| Cables included | USB |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
System requirements
| Specification | Value |
|---|---|
| USB required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 158 g |
| Depth | 92.5 mm |
| Width | 142 mm |
| Height | 28.5 mm |
Other features
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
