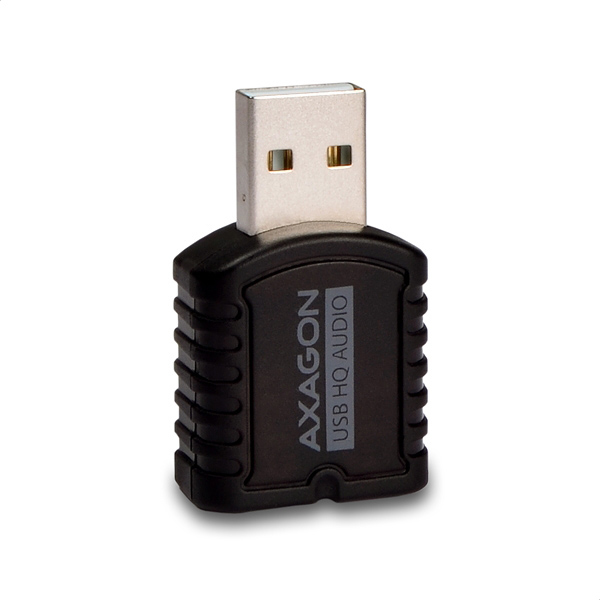

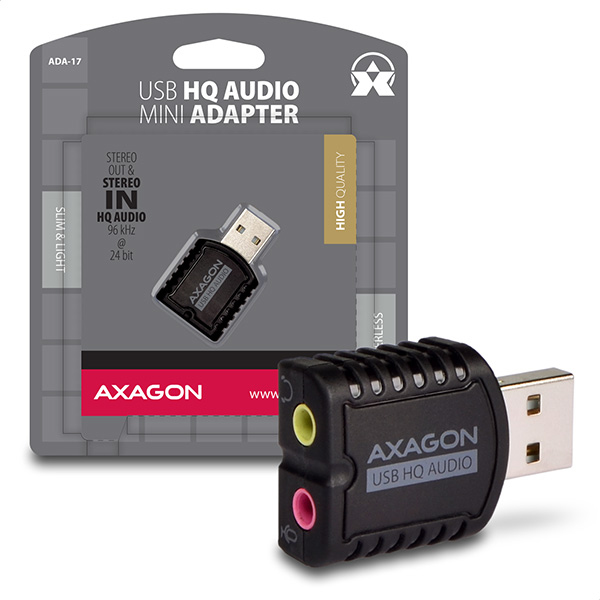

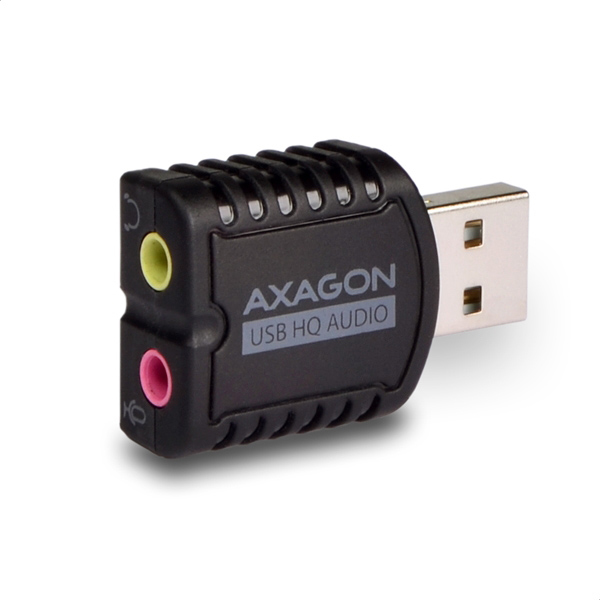

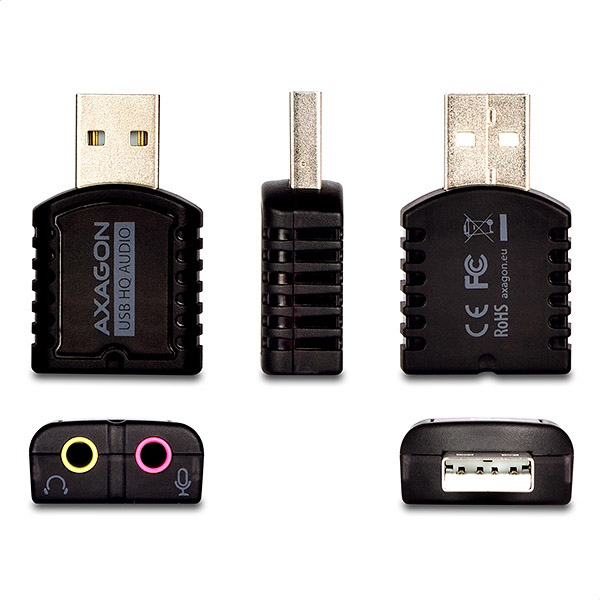

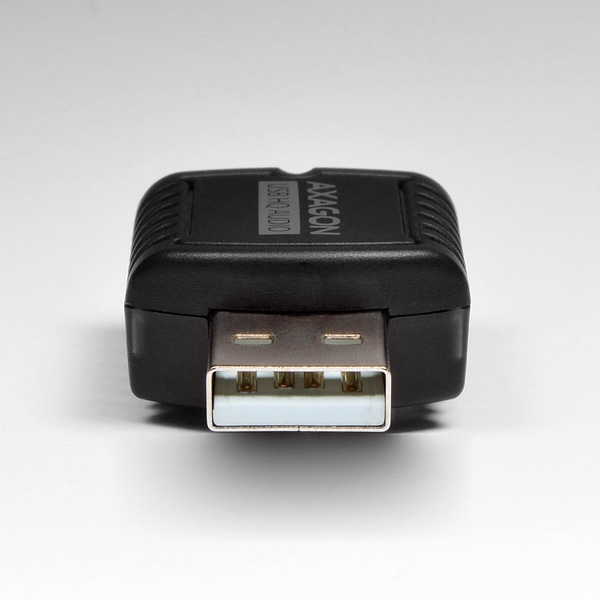

ADA-17 audio card 2.0 channels USB
Model ADA-17EAN 8595247903518
35 specifications
- Weight8 g
- ColourBlack
- InternalNo
- Host interfaceUSB
- ChipsetC-Media CM6533
- Mac compatibilityYes
Overview
- Weight
- 8 g
- Colour
- Black
- Internal
- No
- Host interface
- USB
- Chipset
- C-Media CM6533
- Mac compatibility
- Yes
- Brand
- Axagon
- Category
- Audio Card
- Model
- ADA-17
- Part number
- ADA-17
- EAN / UPC
- 8595247903518
- Also known as
- Axagon ADA-17 audio card 2.0 channels USB
Specifications
35 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Internal | No |
| Audio output channels | 2.0 channels |
| Audio quality | 24 bit |
| Line-out Signal-to-Noise Ratio (SNR) | 93 dB |
| Line-in Signal-to-Noise Ratio (SNR) | 90 dB |
| Audio A/D Converter (ADC) | 24-bit/48kHz |
| Digital-to-Analog Conversion (DAC) | 24-bit/96kHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB |

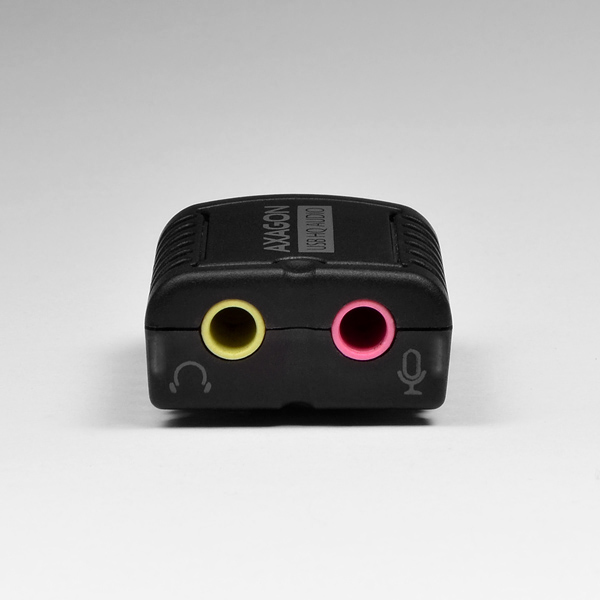

| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Plug and Play | Yes |
| Wireless connection | No |
Features
| Specification | Value |
|---|---|
| Chipset | C-Media CM6533 |
| LED indicators | Yes |
| Product colour | Black |
| USB powered | Yes |
| Certification | CE, FCC, RoHS |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
System requirements
| Specification | Value |
|---|---|
| USB required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8 g |
| Depth | 24 mm |
| Width | 39 mm |
| Height | 12 mm |
| Package width | 71 mm |
| Package depth | 121 mm |
| Package height | 20 mm |
| Package weight | 27 g |
Other features
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 3 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
