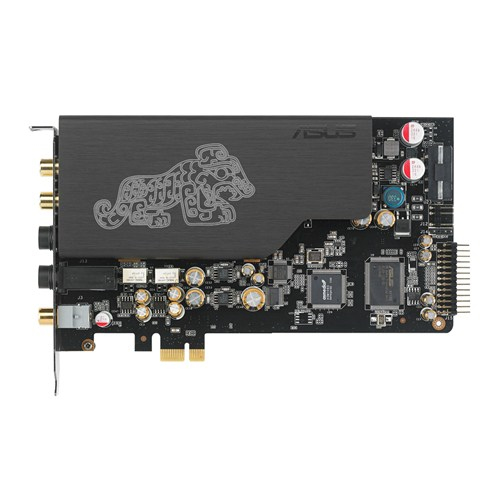

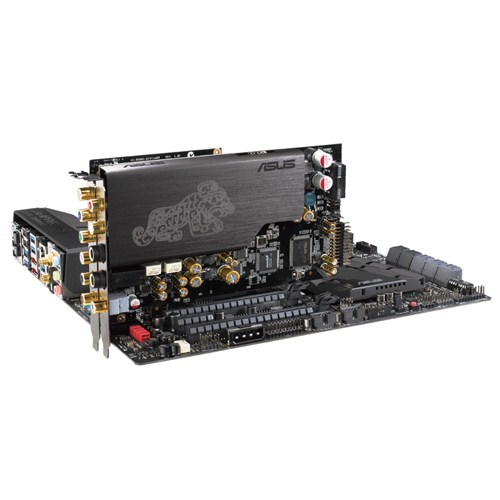

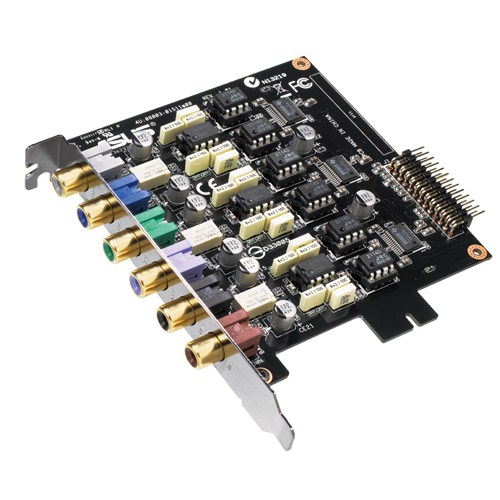

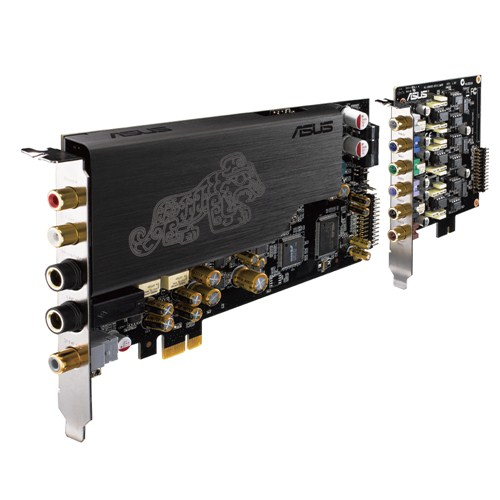

Xonar Essence STX II 7.1
Model Xonar Essence STX II 7.1Part no. 90YA00NN-M0UA00EAN 5054629802038
19 specifications
- InternalYes
- Host interfacePCI-E
- Cables includedAudio (3.5mm)
- Depth168 mm
Overview
- Internal
- Yes
- Host interface
- PCI-E
- Cables included
- Audio (3.5mm)
- Depth
- 168 mm
- Brand
- ASUS
- Category
- Audio Card
- Model
- Xonar Essence STX II 7.1
- Part number
- 90YA00NN-M0UA00
- EAN / UPC
- 5054629802038, 886227682645, 4058154178850, 4716659682646 +2 more
- Also known as
- ASUS Xonar Essence STX II 7.1 Internal 7.1 channels PCI-E
Specifications
19 specifications in 5 groups
Audio
| Specification | Value |
|---|---|
| Internal | Yes |
| Audio output channels | 7.1 channels |
| Audio quality | 24 bit |
| Line-out Signal-to-Noise Ratio (SNR) | 124 dB |
| Line-in Signal-to-Noise Ratio (SNR) | 118 dB |
| Audio A/D Converter (ADC) | 24-bit/192kHz |
| Digital-to-Analog Conversion (DAC) | 24-bit/192kHz |
| Frequency range | 10 - 90000 Hz |
| Line-out Total Harmonic Distortion (THD) | 0.0003% |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI-E |
| Line-in | Yes |
| Line-out | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Dolby technologies | Dolby Digital Live, Dolby Headphone, Dolby Pro-Logic IIx, Dolby Virtual Speaker |
| Cables included | Audio (3.5mm) |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 168 mm |
| Width | 107 mm |
