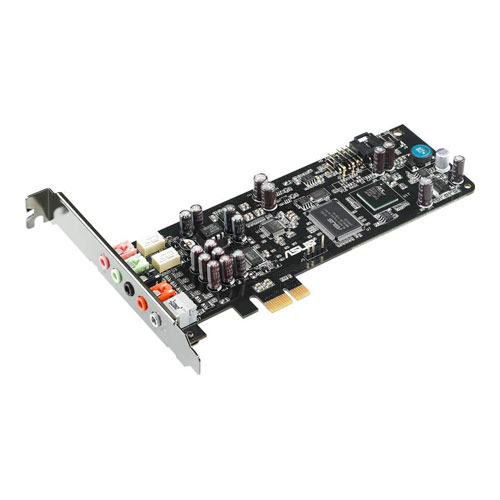

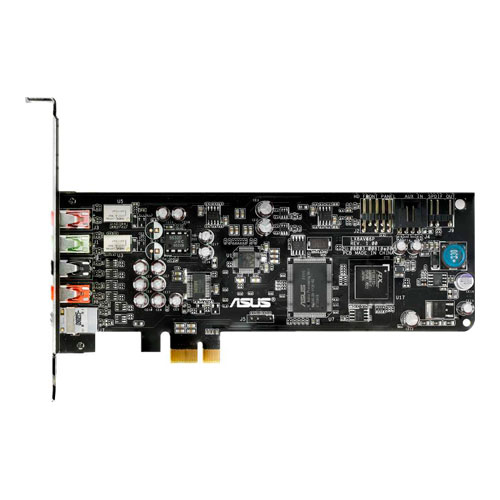

Xonar DSX
Model Xonar DSXPart no. XONAR_DSX(ASM)EAN 5054629726327
22 specifications
- InternalYes
- Host interfacePCI-E
- ChipsetAsus AV66
- Depth64.4 mm
Overview
- Internal
- Yes
- Host interface
- PCI-E
- Chipset
- Asus AV66
- Depth
- 64.4 mm
- Brand
- ASUS
- Category
- Audio Card
- Model
- Xonar DSX
- Part numbers
- XONAR_DSX(ASM), 90-YAA0P0-0UAN0BZ, 90-YAA0P1-0UAN0BZ
- EAN / UPC
- 5054629726327, 042111270491, 115970737372, 163120476961 +17 more
- Also known as
- ASUS Xonar DSX Internal 7.1 channels PCI-E
Specifications
22 specifications in 6 groups
Audio
| Specification | Value |
|---|---|
| Internal | Yes |
| Audio output channels | 7.1 channels |
| Audio quality | 24 bit |
| Line-out Signal-to-Noise Ratio (SNR) | 107 dB |
| Line-in Signal-to-Noise Ratio (SNR) | 100 dB |
| Audio A/D Converter (ADC) | 24-bit/192kHz |
| Digital-to-Analog Conversion (DAC) | 24-bit/192kHz |
| Audio system direct 3D sound | Yes |
| Frequency range | 10 - 48000 Hz |
| Line-in Total Harmonic Distortion (THD) | 0.0017% |
| Line-out Total Harmonic Distortion (THD) | 0.0017% |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI-E |
| Headphone outputs | 4 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
Features
| Specification | Value |
|---|---|
| Dolby technologies | Dolby Digital DTS, Dolby Digital DTS Connect |
| Chipset | Asus AV66 |
| Cables included | S/PDIF |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 64.4 mm |
| Width | 167.6 mm |
Other features
| Specification | Value |
|---|---|
| Quick start guide | Yes |
