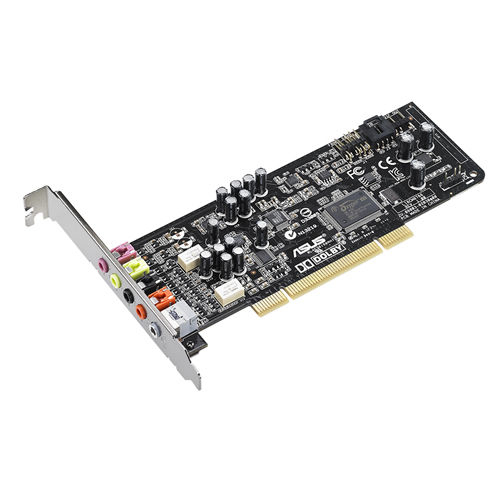

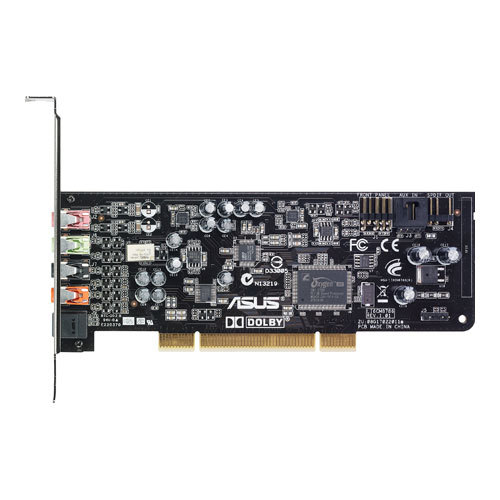

Xonar DG SI
Model Xonar DG SIPart no. 90YA00KN-M0UC00EAN 4716659344292
24 specifications
- InternalYes
- Host interfacePCI
- Dolby technologiesDolby Headphone
Overview
- Internal
- Yes
- Host interface
- PCI
- Dolby technologies
- Dolby Headphone
- Brand
- ASUS
- Category
- Audio Card
- Model
- Xonar DG SI
- Part numbers
- 90YA00KN-M0UC00, 90-YAA0F0-0UBN0BZ, 90-YAA0K0-0UAN0BZ
- EAN / UPC
- 4716659344292, 4719543041604, 5054629991671, 012300364508 +15 more
- Also known as
- ASUS Xonar DG SI Internal 5.1 channels PCI
Specifications
24 specifications in 5 groups
Audio
| Specification | Value |
|---|---|
| Internal | Yes |
| Audio output channels | 5.1 channels |
| Audio quality | 24 bit |
| Line-out Signal-to-Noise Ratio (SNR) | 105 dB |
| Line-in Signal-to-Noise Ratio (SNR) | 103 dB |
| Audio A/D Converter (ADC) | 24-bit/192kHz |
| Digital-to-Analog Conversion (DAC) | 24-bit/192kHz |
| Audio system direct 3D sound | Yes |
| Frequency range | 10 - 48000 Hz |
| Line-in Total Harmonic Distortion (THD) | 0.0022% |
| Line-out Total Harmonic Distortion (THD) | 0.0025% |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI |
| Line-out | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| CD/AUX audio in | Yes |
| Digital audio optical out | 1 |
| Microphone in | Yes |
| Subwoofer out | Yes |
Features
| Specification | Value |
|---|---|
| Dolby technologies | Dolby Headphone |
| Chipset | C-Media CMI8786 |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Other features
| Specification | Value |
|---|---|
| Full-Scale voltage | 1 V |
| Minimum system requirements | PCI v2.2+ |
