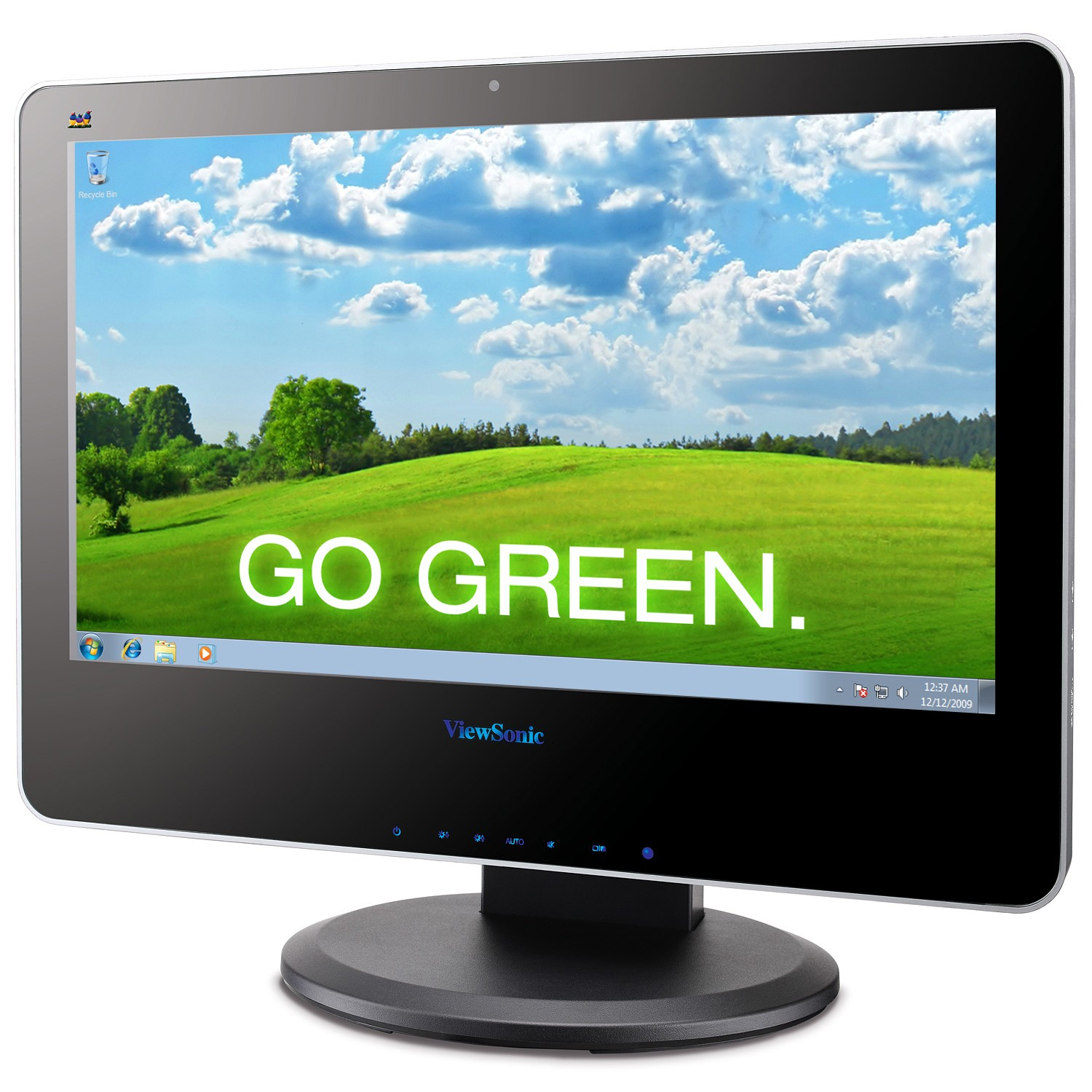

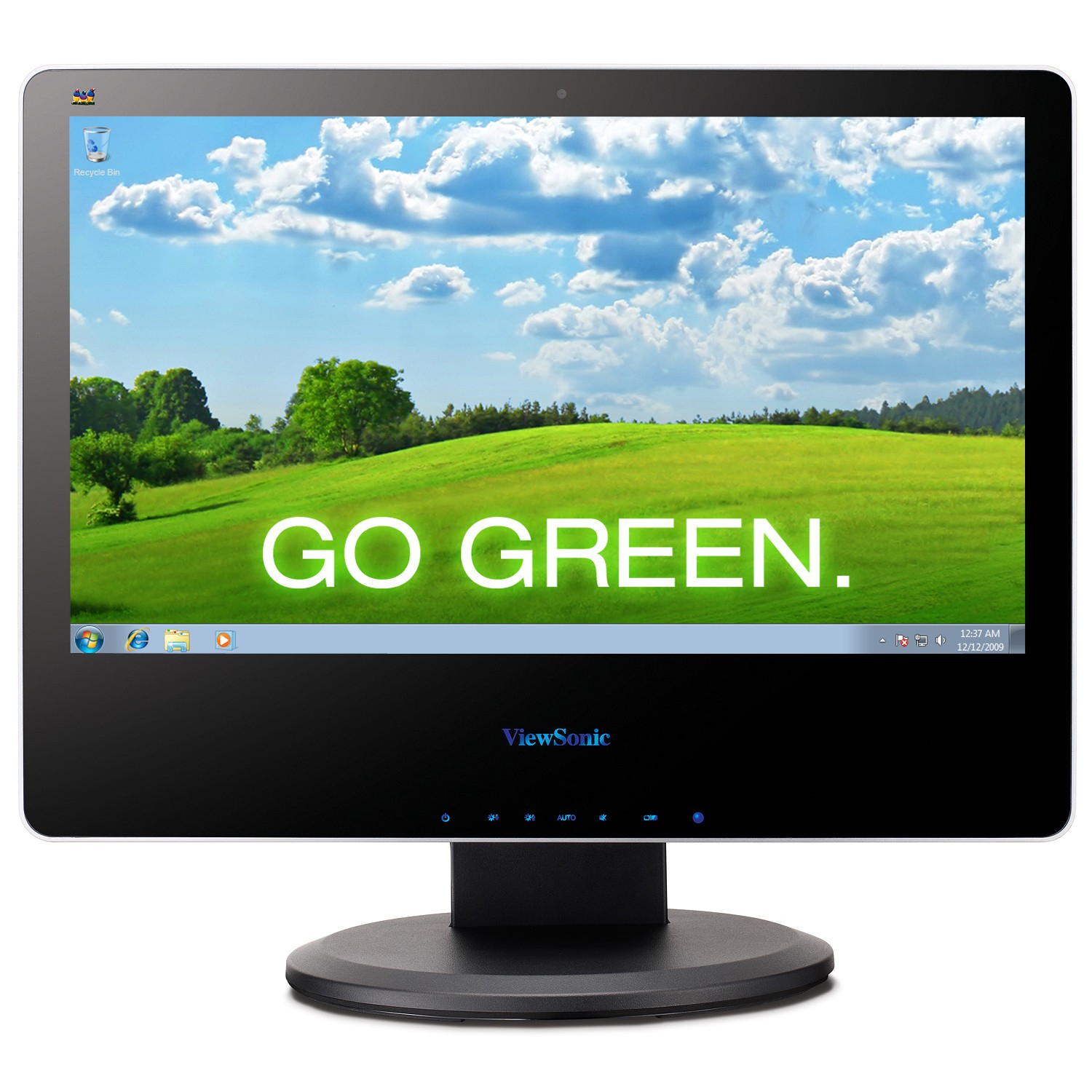

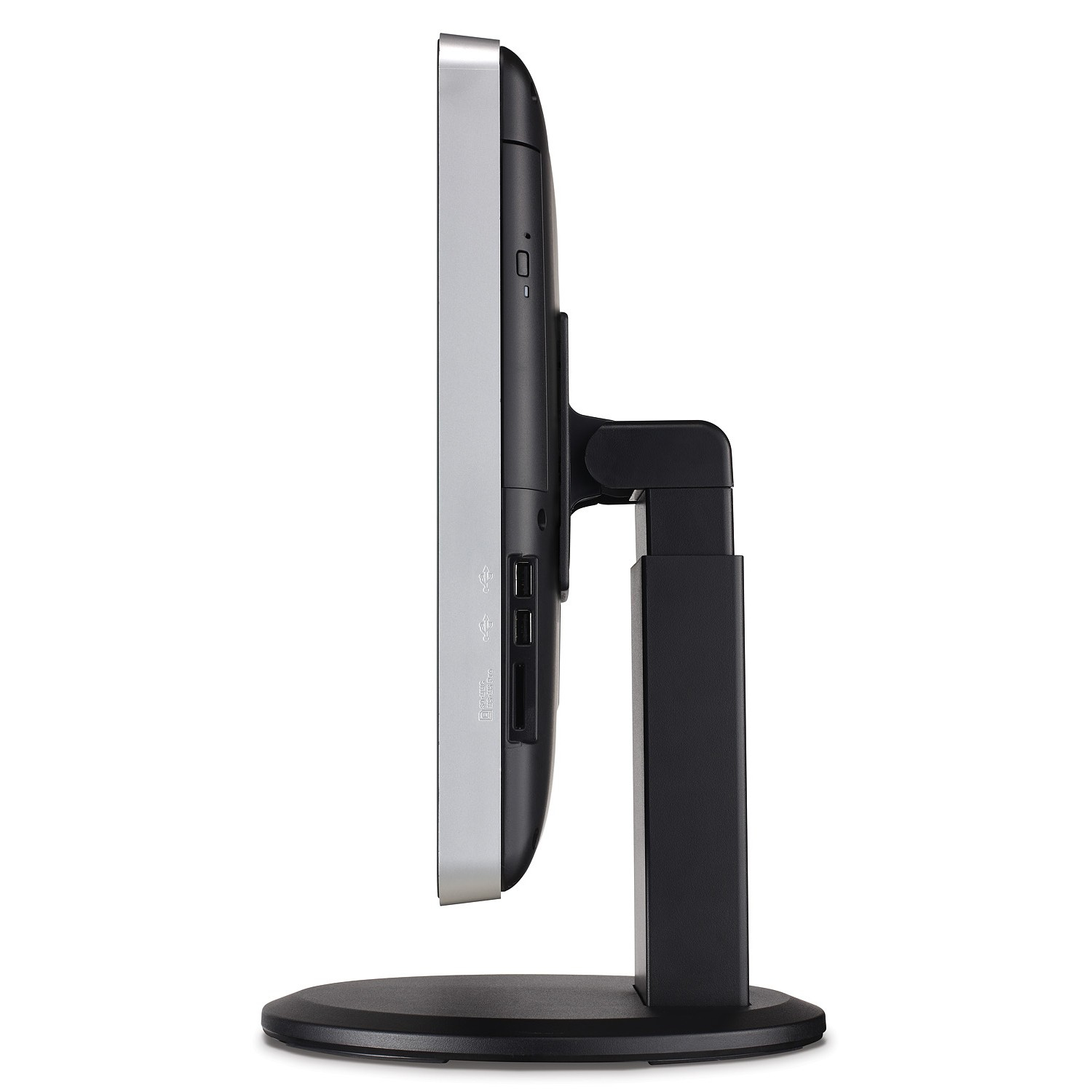

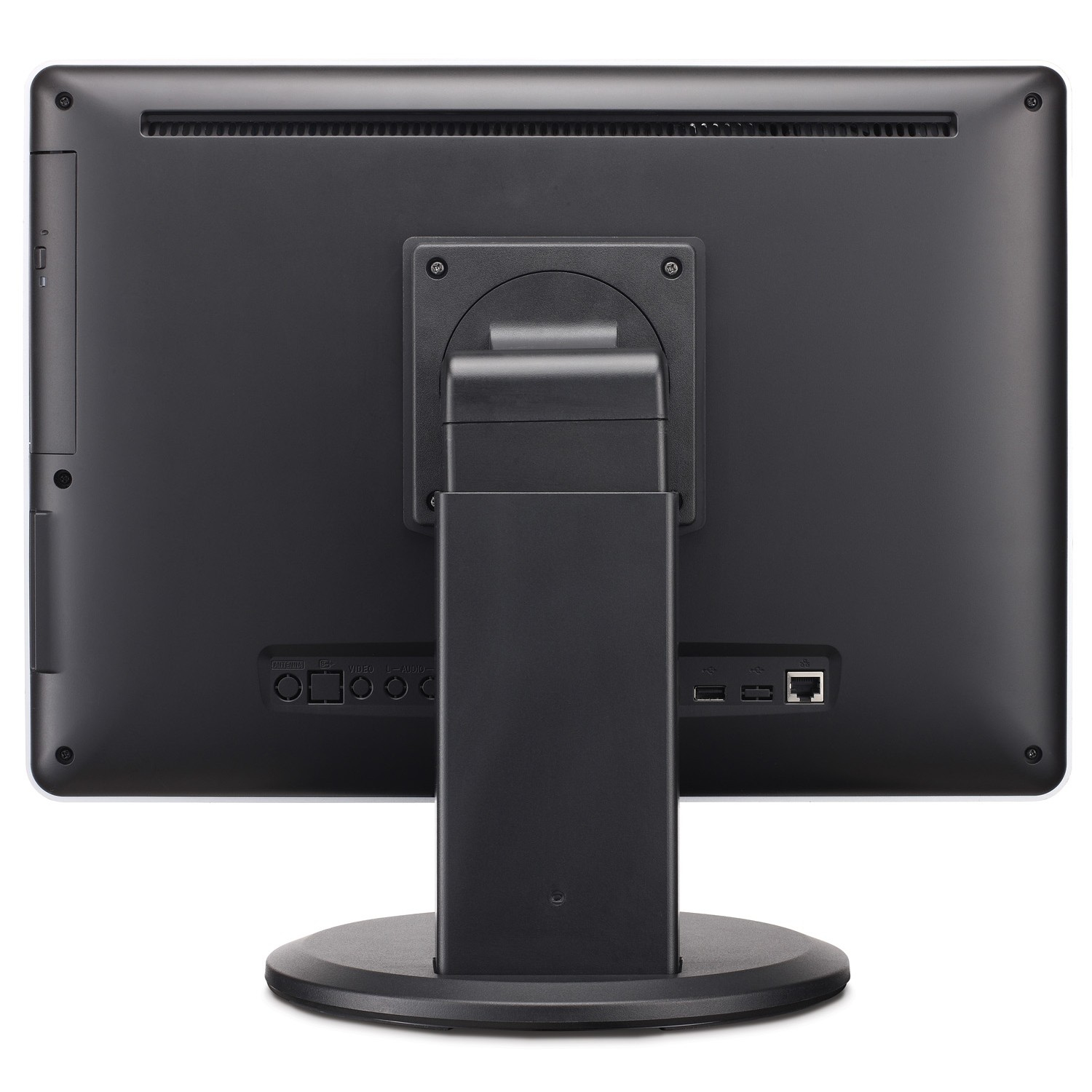

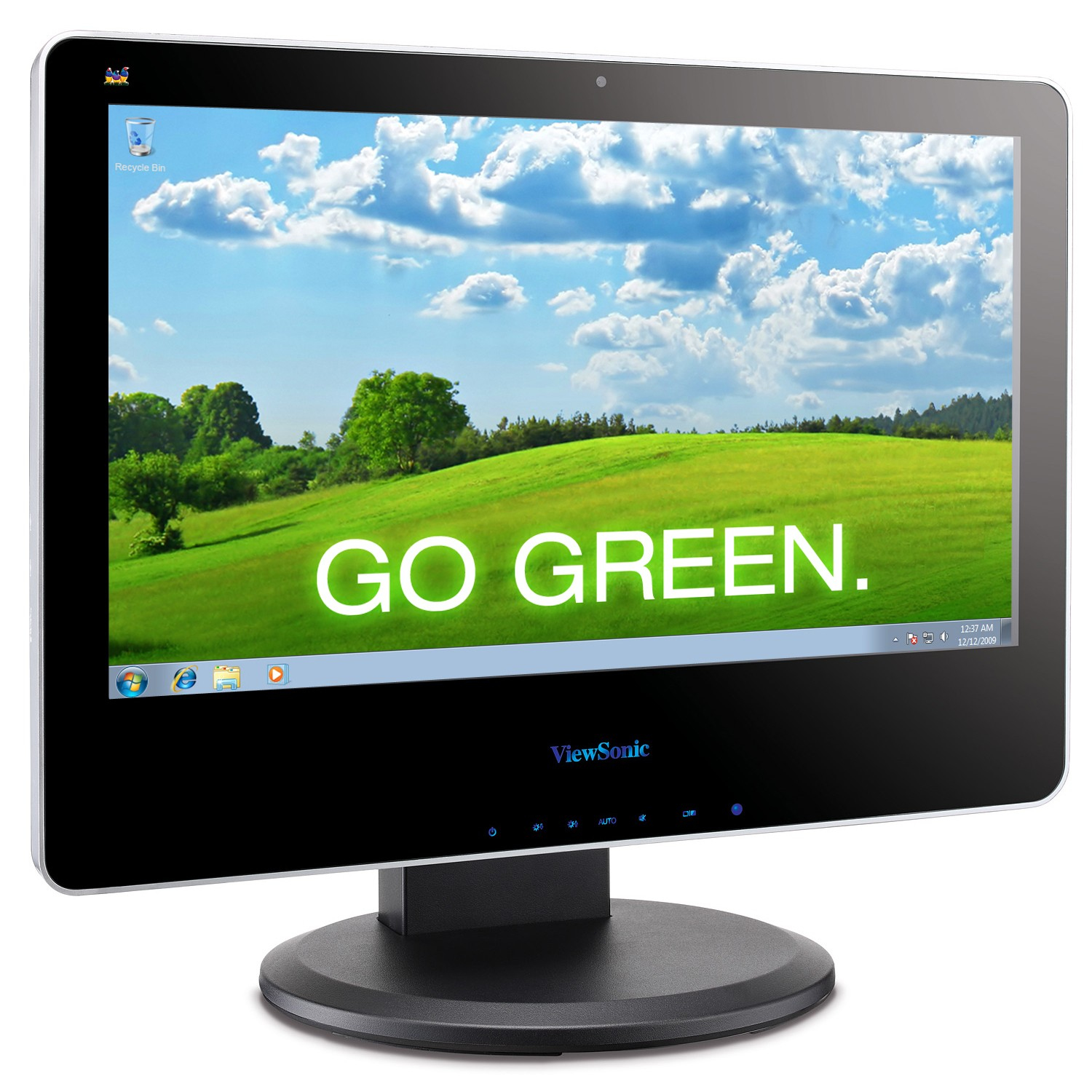

VPC191 Intel Atom® D525

47 cm (18.5") 1366 x 768 pixels 2 GB DDR2-SDRAM 250 GB HDD Windows 7 Professional Wi-Fi 4 (802.11n) Black

Model VPC191Part no. VPC191B-7PUS-M1EAN 766907538311

140 specifications

Display47 cm (18.5")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage250 GB
SpeedWi-Fi 4 (802.11n)

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 250 GB
Speed: Wi-Fi 4 (802.11n)

Brand: Viewsonic
Category: All-in-One PCs/Workstations
Model: VPC191
Part number: VPC191B-7PUS-M1
EAN / UPC: 766907538311
Also known as: Viewsonic VPC191 Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels 2 GB DDR2-SDRAM 250 GB HDD Windows 7 Professional Wi-Fi 4 (802.11n) Black

Specifications

140 specifications in 20 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	Not supported
Full HD	No
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	250 cd/m²
Viewing angle, horizontal	170°
Viewing angle, vertical	160°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	250 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD size	2.5"
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	3 W

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

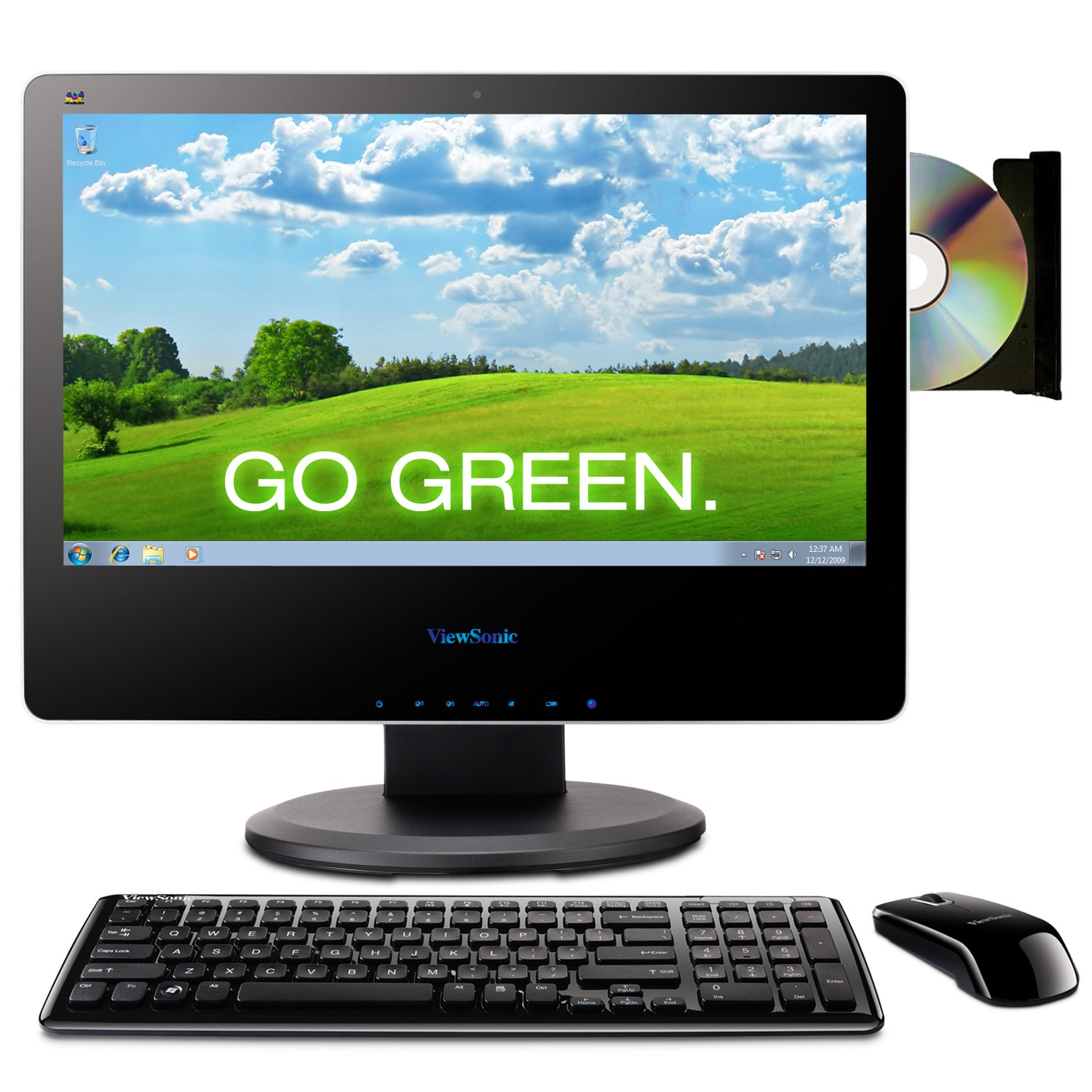

Optical drive

Specification	Value
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

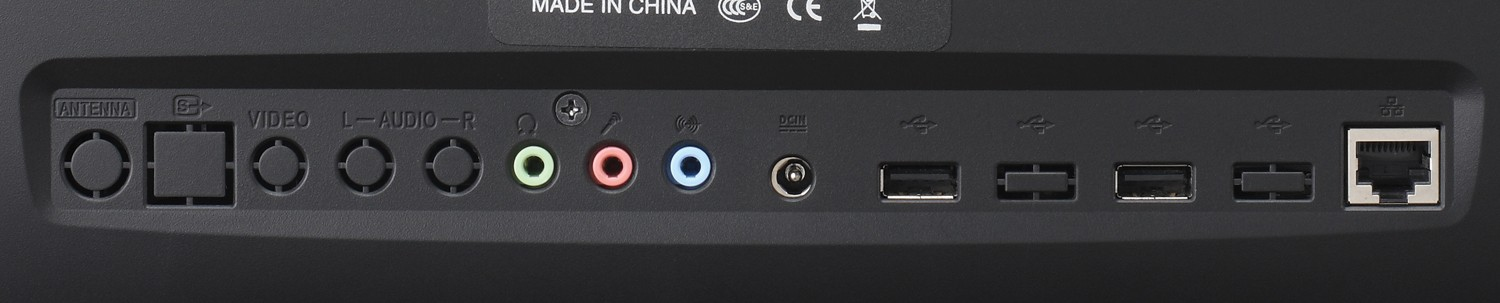

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
S/PDIF out port	Yes

Design

Specification	Value
Product colour	Black
Wall mountable	Yes

Performance

Specification	Value
Motherboard chipset	Intel® NM10 Express

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V

Weight & dimensions

Specification	Value
Width (with stand)	466 mm
Depth (with stand)	40 mm
Height (with stand)	333 mm
Weight (with stand)	7.6 kg
Package weight	10.6 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 80%

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	FCC

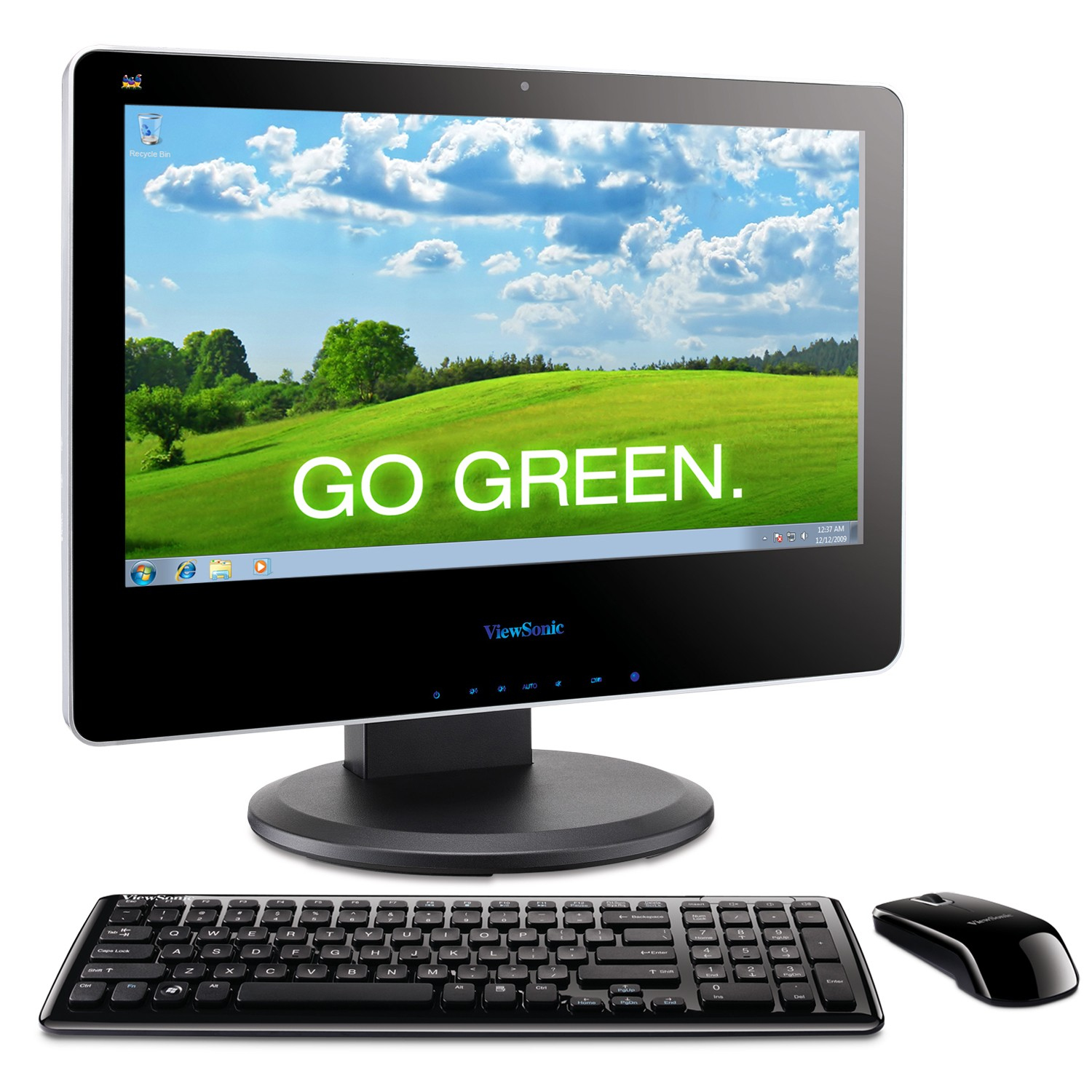

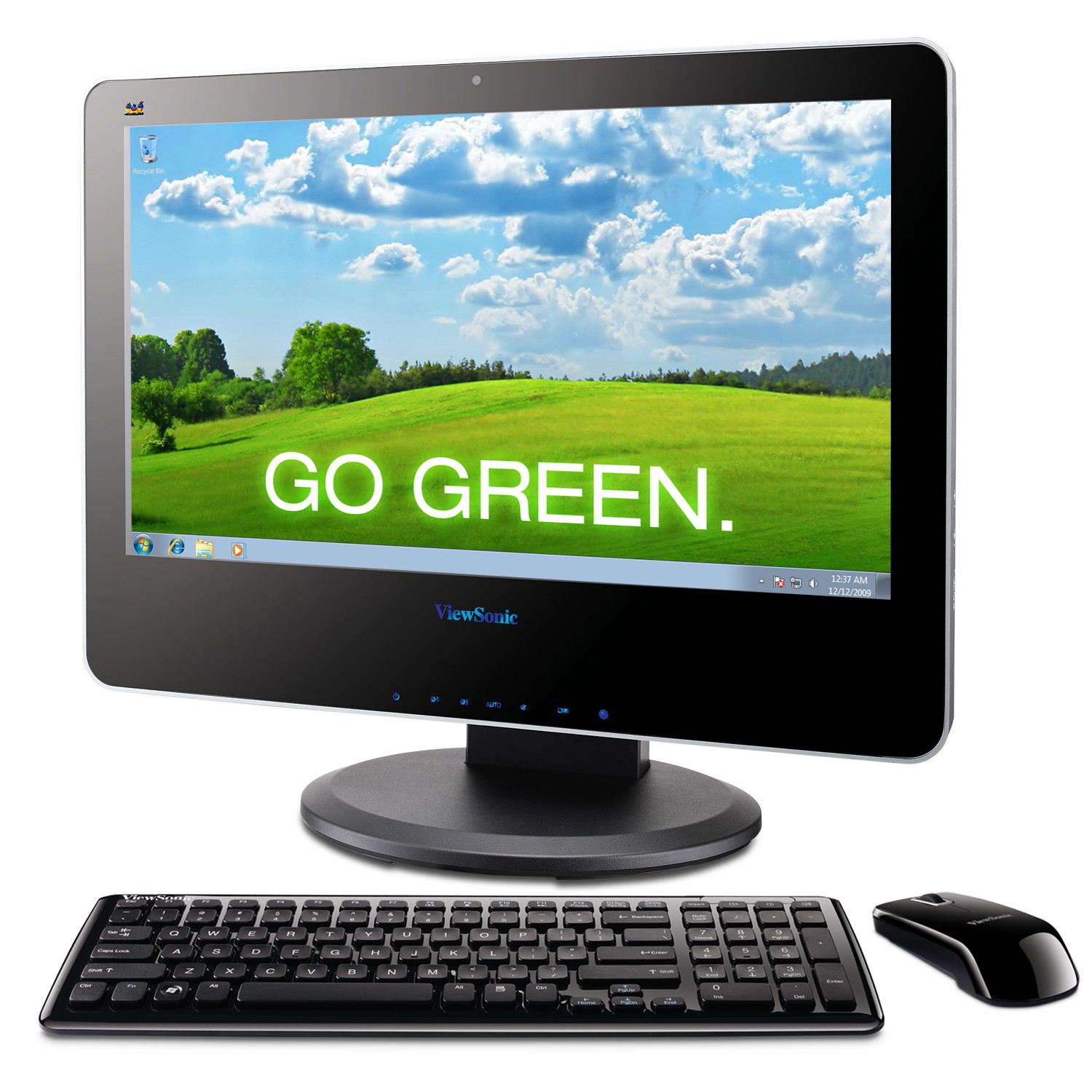

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Numeric keypad	Yes
Cables included	AC
Drivers included	Yes
Quick start guide	Yes
Mounting brackets included	Yes

Other features

Specification	Value
Package dimensions (WxDxH)	530 x 220 x 600 mm
Chassis type	All-in-One
Chipset	Intel NM10
Dimensions (WxDxH)	466 x 40 x 333 mm
Ethernet interface type	Gigabit Ethernet
Form factor	PC
HDMI	Yes
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
Operating temperature (T-T)	32 - 104 °F
Speakers	2
Storage drive average seek time	5 ms
Storage drive interface	Serial ATA
Wireless technology	Wi-Fi
