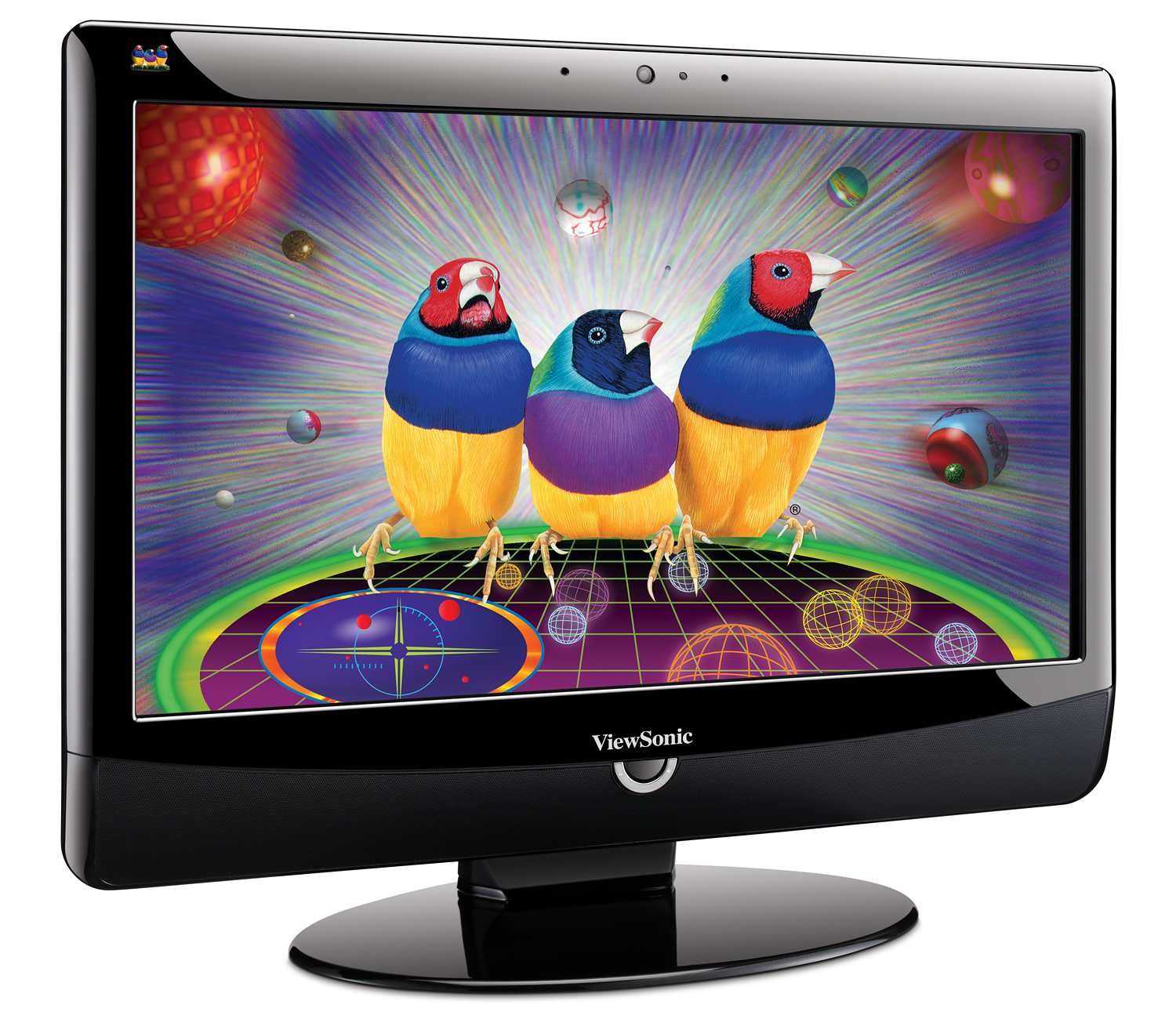

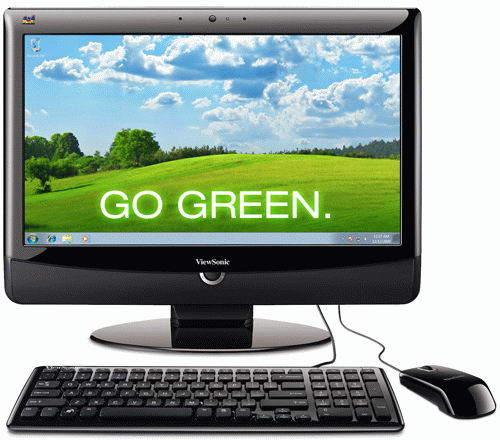

Viewsonic VPC190 Intel Atom® D510

47 cm (18.5") 1366 x 768 pixels 2 GB DDR2-SDRAM 160 GB Intel® GMA 900 Black

Model VPC190Part no. VPC190B_7HEU_0EAN 766907427516

113 specifications

Overview

Brand: Viewsonic
Category: All-in-One PCs/Workstations
Model: VPC190
Part numbers: VPC190B_7HEU_0, VPC190B_7HUS_01
EAN / UPC: 766907427516, 7669074275160
Also known as: Viewsonic VPC190 Intel Atom® D510 47 cm (18.5") 1366 x 768 pixels 2 GB DDR2-SDRAM 160 GB Intel® GMA 900 Black

113 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBLA
Processor codename	Pineview
Processor front side bus	667 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Discrete graphics card model	Intel® GMA 900
On-board graphics card	Yes

Specification	Value
Built-in microphone	Yes
Audio system	HD

Specification	Value
Built-in camera	Yes

Specification	Value
Product colour	Black

Specification	Value
Motherboard chipset	Intel® NM10 Express

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display	LCD
Display included	Yes
Megapixel (approx.)	1.3 MP
Modem (RJ-11) ports	0
Networking features	Gigabit Ethernet, WLAN
Number of processors installed	1
Parallel ports quantity	0
SmartCard slot	No
Speakers	2x 3W
