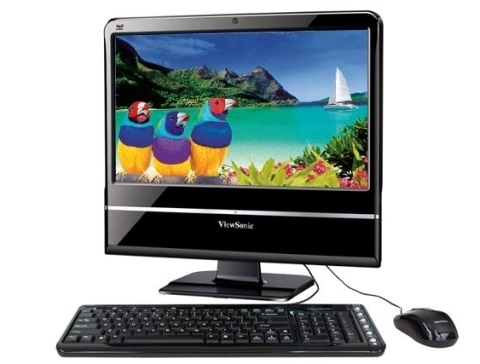

Viewsonic VPC100 All-in-One

Model VPC100 All-in-OnePart no. VPC100EAN 766907383515

105 specifications

Display47 cm (18.5")
Resolution1366 x 768 pixels
ProcessorIntel Pentium Mobile
Memory1 GB
Storage160 GB
GraphicsIntel® GMA 950

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Processor: Intel Pentium Mobile
Memory: 1 GB
Storage: 160 GB
Graphics: Intel® GMA 950

Brand: Viewsonic
Category: All-in-One PCs/Workstations
Model: VPC100 All-in-One
Part number: VPC100
EAN / UPC: 766907383515, 766907349627, 766907359114, 766907383614 +1 more
Also known as: Viewsonic VPC100 All-in-One Intel Pentium Mobile N270 47 cm (18.5") 1366 x 768 pixels 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Black

Specifications

105 specifications in 18 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
HD type	Not supported
Native aspect ratio	16:9
Display brightness	300 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	N270
Processor cores	1
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor socket	Socket F (1207)
Thermal Design Power (TDP)	2.5 W
Bus type	FSB
CPU multiplier (bus/core ratio)	12
FSB Parity	No
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
Processor code	SLB73
Processor codename	Diamondville
Processor front side bus	533 MHz
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom N200 Series
Stepping	C0
Tjunction	90 °C
Conflict-Free processor	No
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, SD, XD

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 950
On-board graphics card	Yes

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
PS/2 ports quantity	2
Serial ports quantity	0

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Motherboard chipset	Intel® 945GSE Express

Software

Specification	Value
Bundled software	SRS Sound Premium, WinRAR, Webcam AP, Antivirus software, DVD burning

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	36331
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3
Thermal Monitoring Technologies	Yes

Power

Specification	Value
Power consumption (typical)	60 W

Weight & dimensions

Specification	Value
Width (with stand)	450 mm
Depth (with stand)	35 mm
Height (with stand)	360 mm
Weight (with stand)	5.32 kg

Operational conditions

Specification	Value
Storage temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	1800 - 3048 m

Certificates

Specification	Value
Certification	CCC, CB, C-tick, CE, RoHS, UL/cUL, FCC, BSMI, NCC, NTC, TRA, WPC

Packaging content

Specification	Value
Mouse included	Yes

Other features

Specification	Value
Chassis type	All-in-One
Display included	Yes
Networking features	802.11b/g
Parallel ports quantity	0
Power requirements	AC 100–240V
Power supply	65 W
Power supply type	19V DC
Speakers	2
