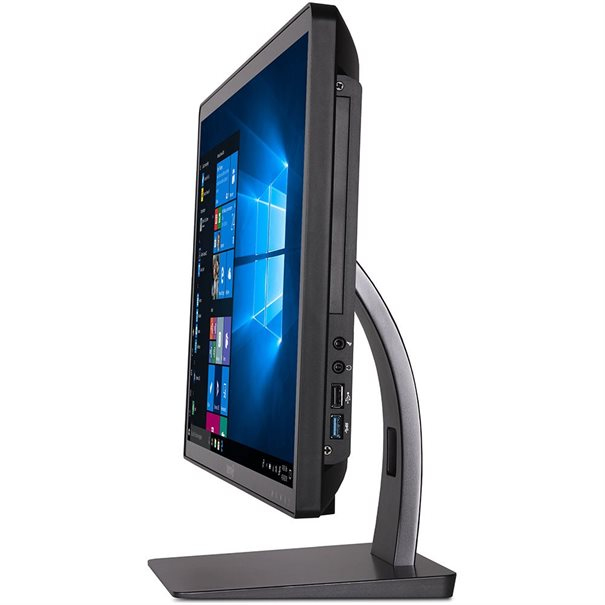

TERRA 2207 Intel® Core™ i5 i5-9400
TERRA

2207 Intel® Core™ i5 i5-9400

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 240 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black

Model 2207Part no. 1009704EAN 4039407053490

142 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage240 GB
  • GraphicsNot available
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
240 GB
Graphics
Not available
Brand
TERRA
Model
2207
Part number
1009704
EAN / UPC
4039407053490
Also known as
TERRA 2207 Intel® Core™ i5 i5-9400 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 240 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black

Specifications

142 specifications in 19 groups

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Display brightness250 cd/m²
Panel typeLCD
Response time5 ms
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation9th gen Intel® Core™ i5
Processor modeli5-9400
Processor cores6
Processor threads6
Processor boost frequency4.1 GHz
Processor frequency2.9 GHz
Processor cache9 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Bus typeDMI3
Maximum number of PCI Express lanes16
PCI Express configurations1x8+2x4, 1x16, 2x8
PCI Express slots version3.0
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
Tjunction100 °C
Conflict-Free processorYes
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Memory bandwidth supported by processor (max)41.6 GB/s
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory clock speed2666 MHz
Memory layout (slots x size)1 x 8 GB
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity240 GB
Storage mediaSSD
Number of storage drives installed1
Total SSDs capacity250 GB
Number of SSDs installed1
SSD capacity250 GB
SSD interfaceSATA III
SSD form factorM.2
RAID supportNo
Optical drive typeDVD±RW

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0X3E98/x92
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power6 W
Built-in microphoneYes

Camera

Built-in cameraYes
Total megapixels0.9 MP
Camera resolution1280 x 720 pixels

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Headphone outputs1
Microphone inYes
Audio outputYes
DC-in jackYes

Design

Product colourBlack
Panel mounting interface100 x 100 mm
VESA mountingYes

Performance

Product typeAll-in-One PC
Trusted Platform Module (TPM)Yes

Software

Operating system installedWindows 10 Pro
Trial softwareMicrosoft Office 365

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID134898
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C

Power

AC adapter power120 W
AC adapter frequency50/60 Hz
AC adapter input voltage100/240 V

Pen

Pen includedNo

Weight & dimensions

Width (with stand)501 mm
Depth (with stand)194 mm
Height (with stand)370 mm
Weight (with stand)6.5 kg
Depth (without stand)52 mm

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 75%

Sustainability

Sustainability certificatesENERGY STAR

Other features

3DNo
Detachable displayNo
