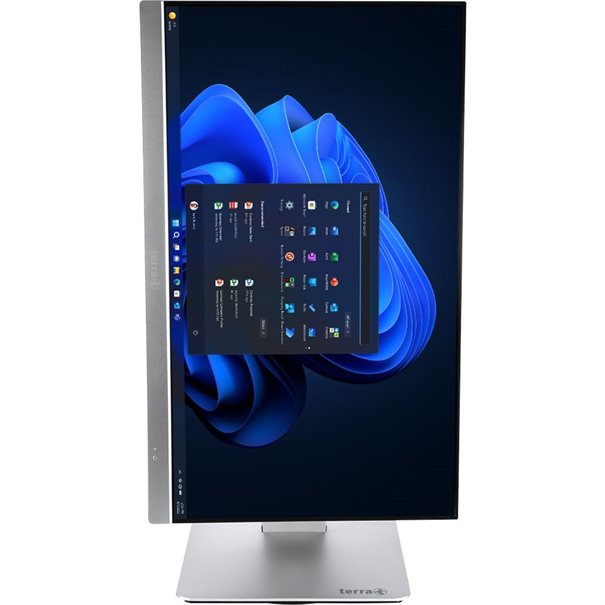

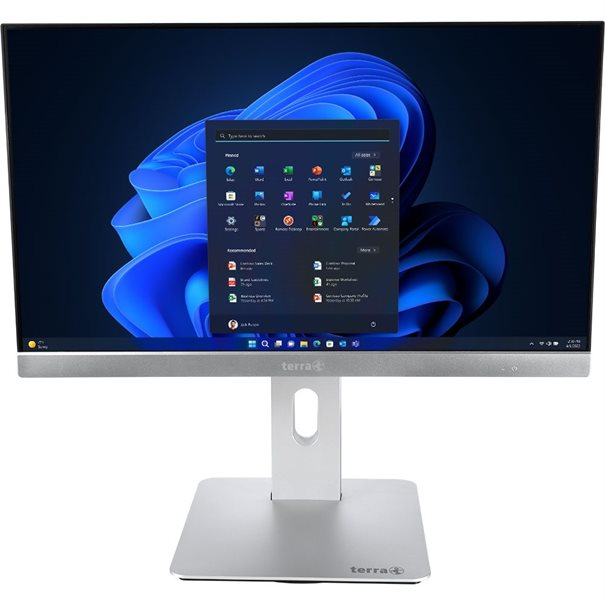

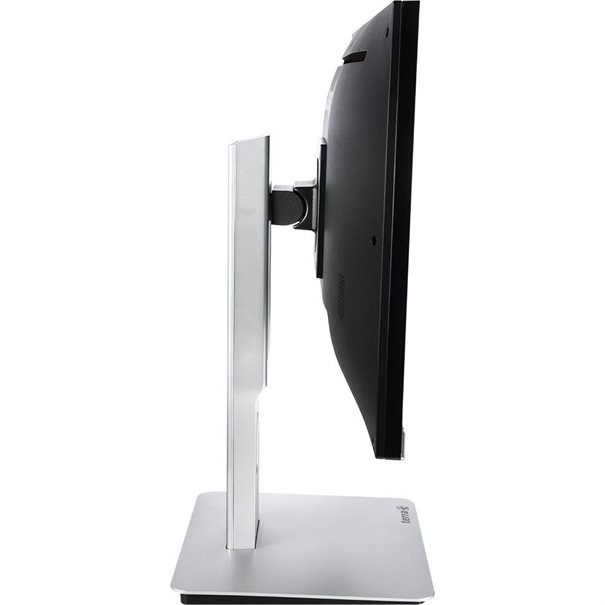

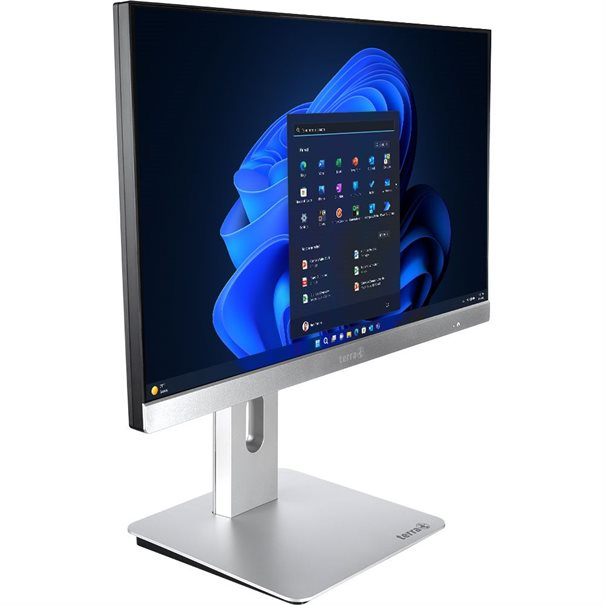

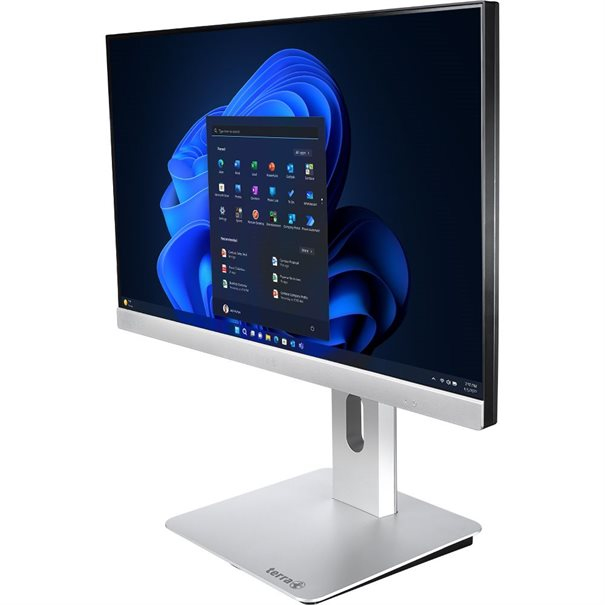

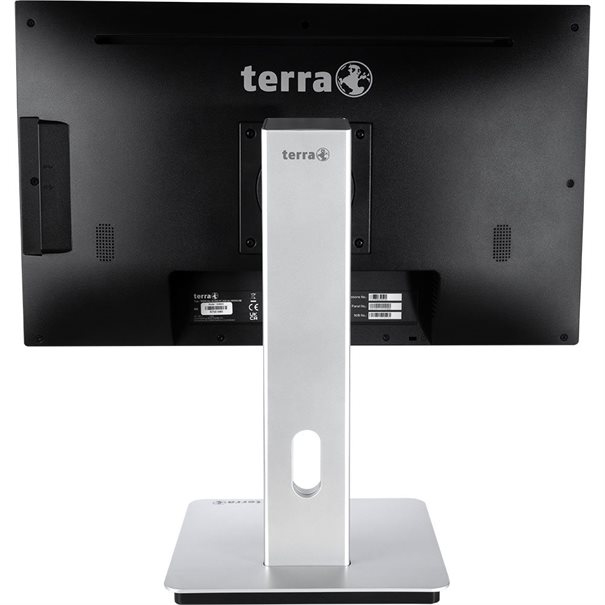

1009946 All-in-One PC/workstation Intel® Core™ i5 i5-12500
60.5 cm (23.8") 1920 x 1080 pixels 8 GB DDR4-SDRAM 1 TB SSD Windows 11 Pro Wi-Fi 6 (802.11ax) B
Model 1009946EAN 4039407077526
85 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- TERRA
- Category
- All-in-One PCs/Workstations
- Model
- 1009946
- Part number
- 1009946
- EAN / UPC
- 4039407077526
- Also known as
- TERRA 1009946 All-in-One PC/workstation Intel® Core™ i5 i5-12500 60.5 cm (23.8") 1920 x 1080 pixels 8 GB DDR4-SDRAM 1 TB SSD Windows 11 Pro Wi-Fi 6 (802.11ax) B
Specifications
85 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Display brightness | 250 cd/m² |
| Panel type | LCD |
| Anti-glare screen | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 20° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12500 |
| Processor cores | 6 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel H610 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 540 mm |
| Depth (with stand) | 50 mm |
| Height (with stand) | 518 mm |
| Weight (with stand) | 8 kg |
| Height (without stand) | 418 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Certificates
| Specification | Value |
|---|---|
| Certification | SMBios (DMI), EnergyStar (Valid only for US), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC The product meets the criteria of RAL UZ 78 (Blauer Angel) |
Similar products
All all-in-one pcs/workstations
Dell
Inspiron 7790 Intel® Core™ i5 i5-10210U
Model 7790
- Display
- 68.6 cm (27")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
Dell
Inspiron 3480 Intel® Core™ i5 i5-8265U
Model 3480
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
HP

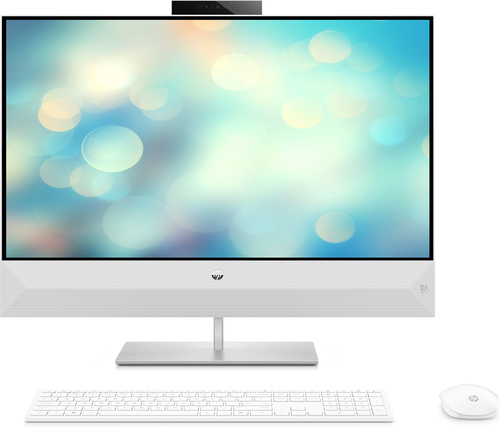

Pavilion 24-xa0016na Intel® Core™ i7 i7-8700T
Model 24-xa0016na
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
Lenovo
V540 Intel® Core™ i5 i5-8265U
Model V540
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
HP

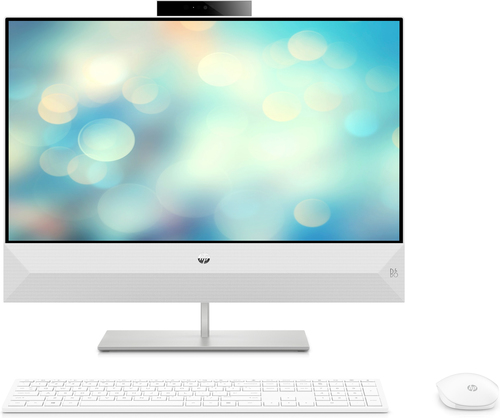

24 -f0039na Intel® Core™ i5 i5-8250U
