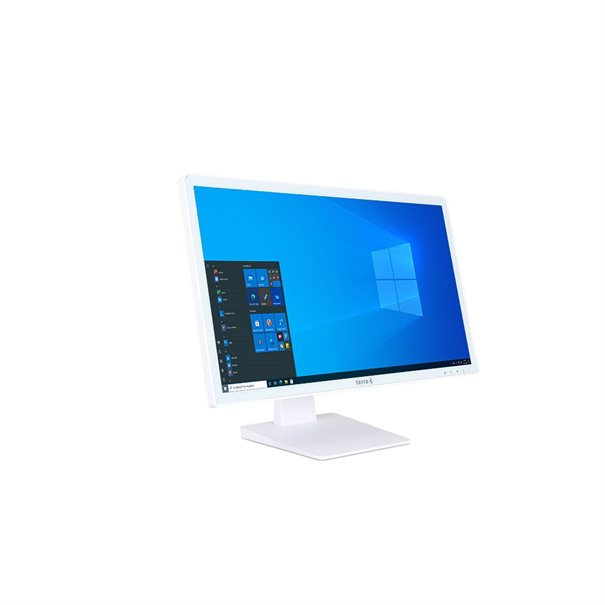

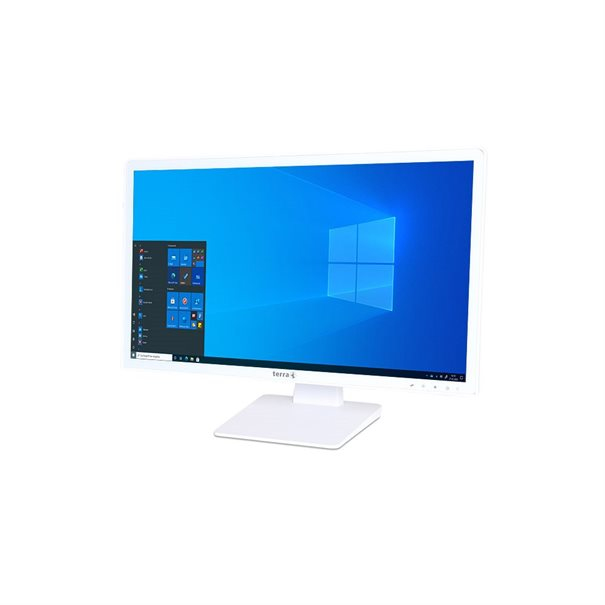

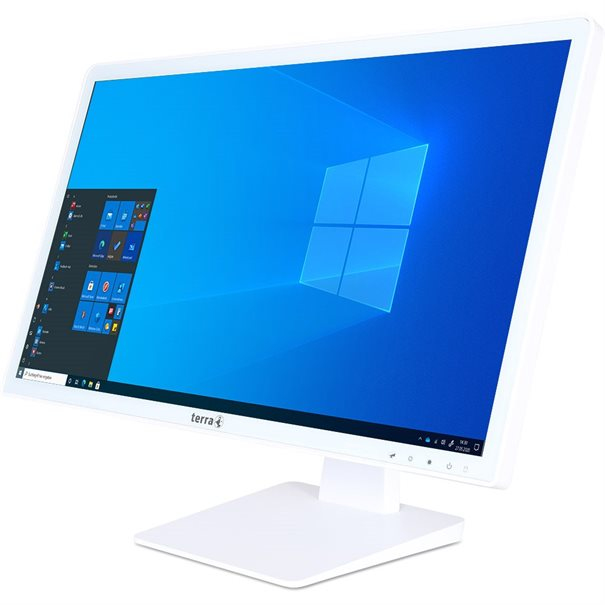

TERRA 1009881 All-in-One PC/workstation Intel® Core™ i5 i5-12400T
TERRA

1009881 All-in-One PC/workstation Intel® Core™ i5 i5-12400T

54.6 cm (21.5") 1920 x 1080 pixels 8 GB DDR4-SDRAM 500 GB SSD Windows 10 Pro Wi-Fi 6 (802.11ax

Model 1009881EAN 4039407074808

89 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage500 GB
  • GraphicsNot available
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
500 GB
Graphics
Not available
Brand
TERRA
Model
1009881
Part number
1009881
EAN / UPC
4039407074808
Also known as
TERRA 1009881 All-in-One PC/workstation Intel® Core™ i5 i5-12400T 54.6 cm (21.5") 1920 x 1080 pixels 8 GB DDR4-SDRAM 500 GB SSD Windows 10 Pro Wi-Fi 6 (802.11ax

Specifications

89 specifications in 17 groups

Display

SpecificationValue
Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
Display brightness250 cd/m²
Panel typeLCD
Tilt angle range0 - 140°

Processor

SpecificationValue
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation12th gen Intel® Core™ i5
Processor modeli5-12400T
Processor cores6
Processor boost frequency4.2 GHz
Processor frequency1.8 GHz
Processor cache18 MB
Processor cache typeSmart Cache
Bus typeDMI4

Memory

SpecificationValue
Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory64 GB
Memory slots2
Memory clock speed3200 MHz

Storage

SpecificationValue
Total storage capacity500 GB
Storage mediaSSD
Total SSDs capacity500 GB
Number of SSDs installed1
SSD capacity500 GB
NVMeYes
SSD interfacePCI Express
SSD form factorM.2
Optical drive typeDVD±RW

Graphics

SpecificationValue
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics cardYes
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel UHD Graphics 730

Audio

SpecificationValue
Built-in speaker(s)Yes
Number of speakers2
RMS rated power2 W

Camera

SpecificationValue
Built-in cameraYes
Total megapixels0.9 MP
Camera HD typeHD
Camera resolution1280 x 720 pixels

Network

SpecificationValue
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6 AX200
Ethernet LANYes
Ethernet LAN data rates100,1000 Mbit/s
BluetoothYes
Bluetooth version5.2

Ports & interfaces

SpecificationValue
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB4 Gen 3x2 ports quantity0
HDMI ports quantity1
Microphone inYes

Design

SpecificationValue
Product colourWhite
Panel mounting interface100 x 100 mm
VESA mountingYes

Performance

SpecificationValue
Product typeAll-in-One PC
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Software

SpecificationValue
Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

SpecificationValue
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes

Power

SpecificationValue
AC adapter power120 W
AC adapter frequency100 - 240 Hz
AC adapter input voltage50 - 60 V

Weight & dimensions

SpecificationValue
Width (with stand)506 mm
Depth (with stand)47 mm
Height (with stand)376 mm
Weight (with stand)6.5 kg
Depth (without stand)194 mm

Operational conditions

SpecificationValue
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 75%

Certificates

SpecificationValue
CertificationISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
