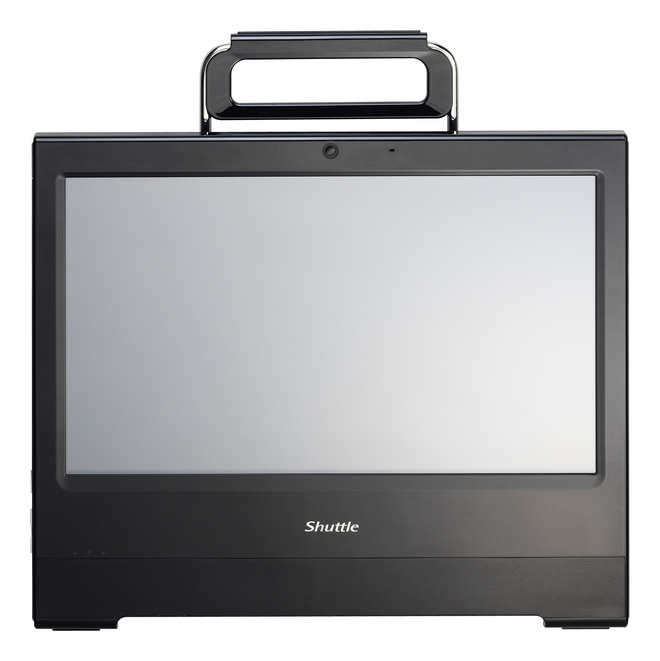

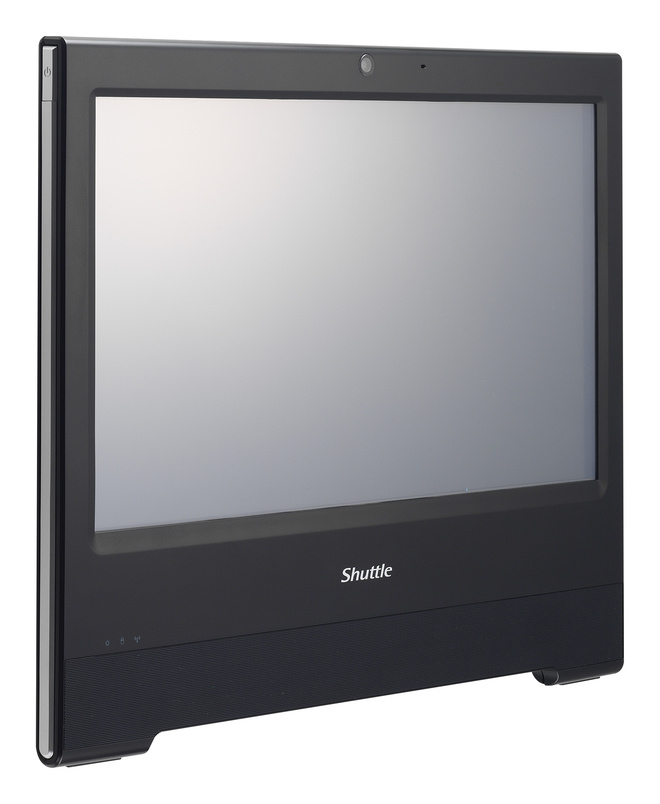

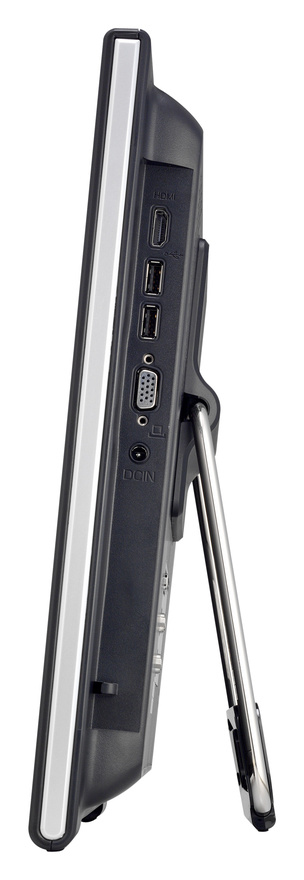

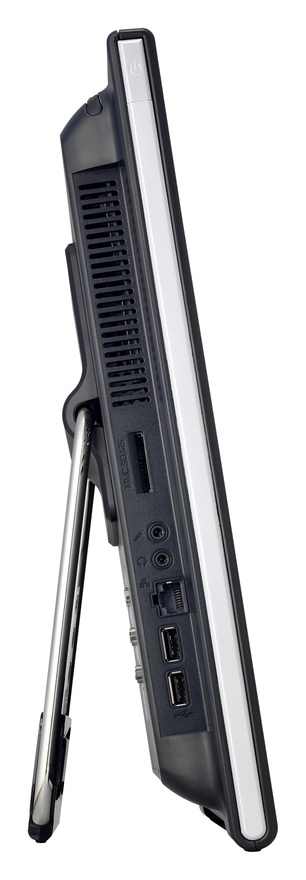

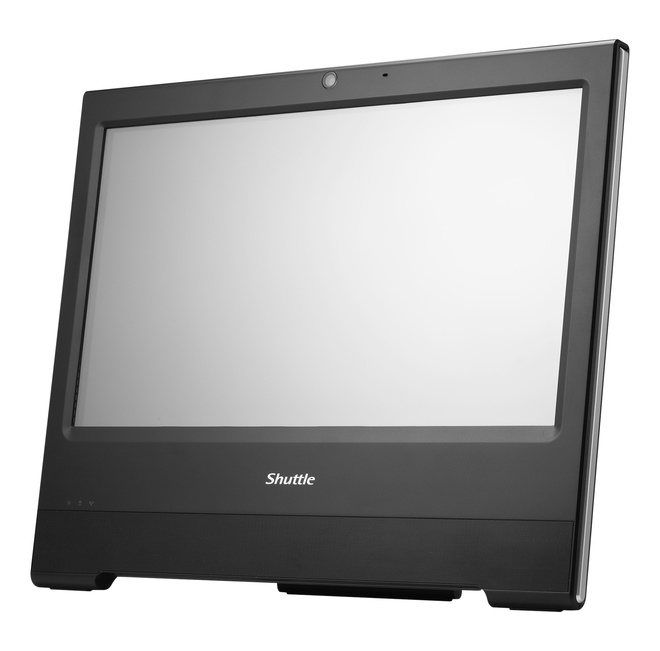

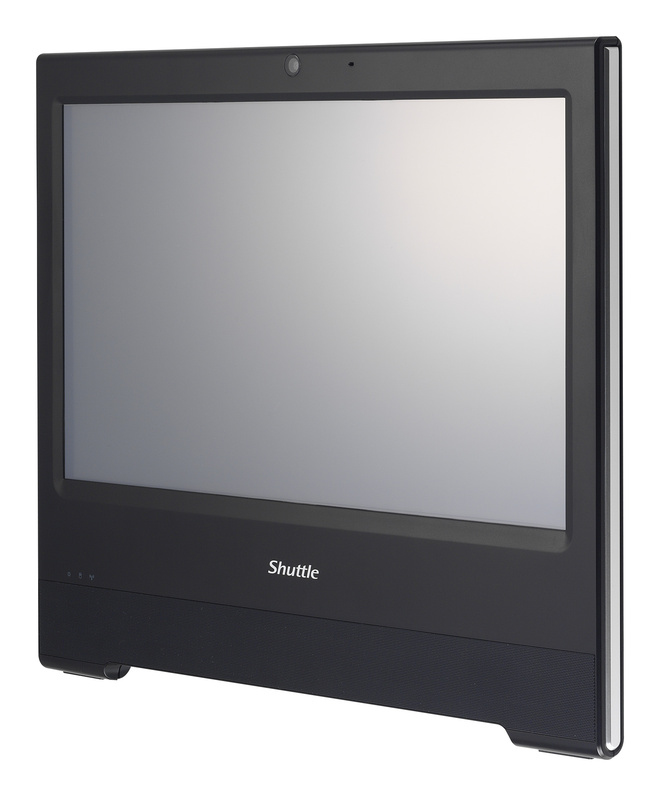

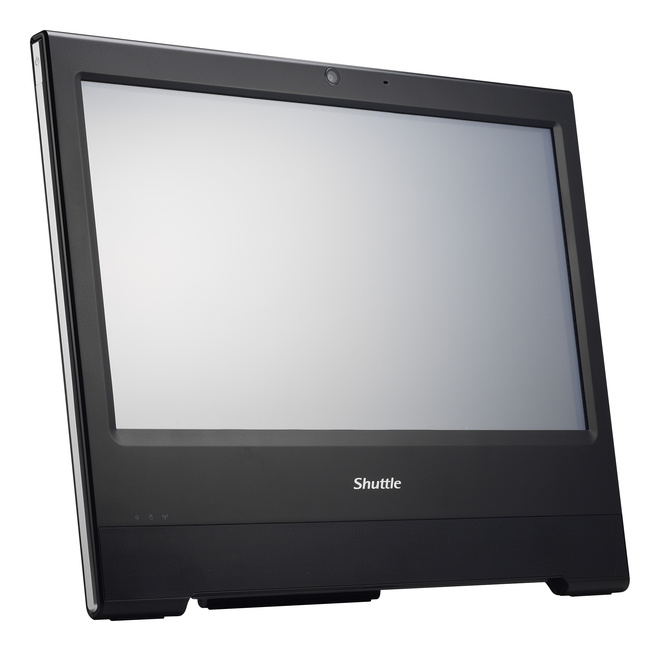

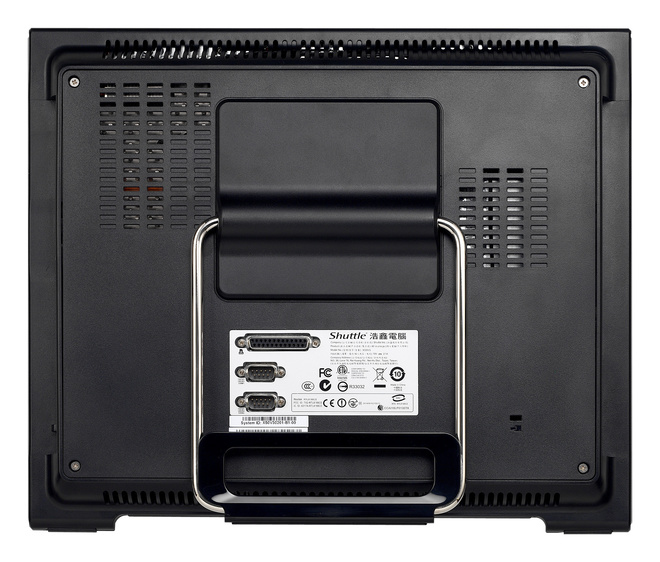

X50V3 Intel Atom® D2700
39.6 cm (15.6") 1366 x 768 pixels Touchscreen Black
Model X50V3Part no. X50V3 (Black)EAN 811686003878
82 specifications
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel Atom®
- ColourBlack
- Processor manufacturerIntel
- Memory slots typeSO-DIMM
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel Atom®
- Colour
- Black
- Processor manufacturer
- Intel
- Memory slots type
- SO-DIMM
- Brand
- Shuttle
- Category
- All-in-One PCs/Workstations
- Model
- X50V3
- Part numbers
- X50V3 (Black), PAB-X50V311
- EAN / UPC
- 811686003878, 8116860038786, 811686003885
- Also known as
- Shuttle X50V3 Intel Atom® D2700 39.6 cm (15.6") 1366 x 768 pixels Touchscreen Black
Specifications
82 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D2700 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.13 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| L2 cache | 1 MB |
| Processor socket | BGA 559 |
| System bus rate | 2.5 GT/s |
| Thermal Design Power (TDP) | 10 W |
| Bus type | DMI |
| Maximum number of PCI Express lanes | 4 |
| Processor code | SR0D9 |
| Processor codename | Cedarview |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Stepping | B2 |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| Memory channels supported by processor | Single |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Supported memory clock speeds | 800,1066,1333,1600 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MS PRO, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 640 MHz |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel ME Firmware Version | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 59683 |
| Processor package size | 22 X 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | EMI: CE, FCC, BSMI, C-Tick, CCC RoHS, Eup Lot6 |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Chassis type | All-in-One |
| Compatible operating systems | Windows 7 32-bit |
| Dimensions (WxDxH) | 391 x 42 x 327 mm |
| Graphics card | GMA 3650 |
| Megapixel (approx.) | 2 MP |
| Networking features | Gigabit Ethernet, WLAN |
| Number of processors installed | 1 |
| Power supply | 40 W |
| Power supply type | AC/DC |
| Safety | CB, BSMI, ETL |
| Storage drive interface | Serial ATA |
