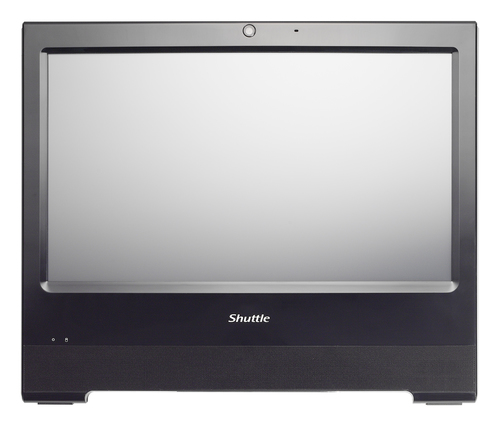

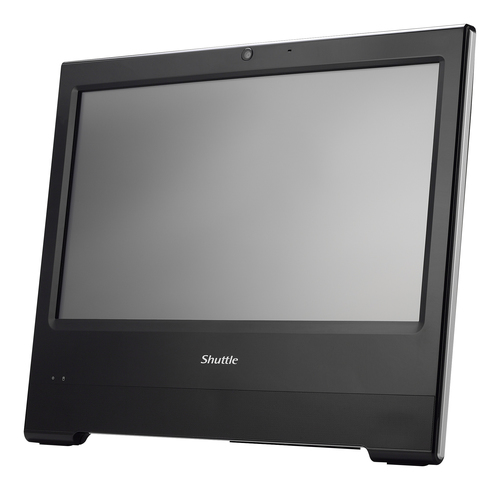

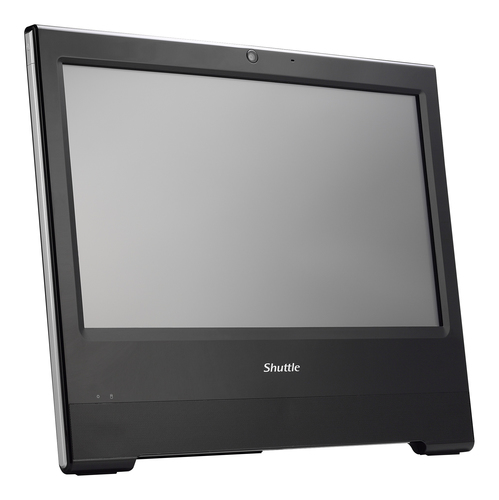

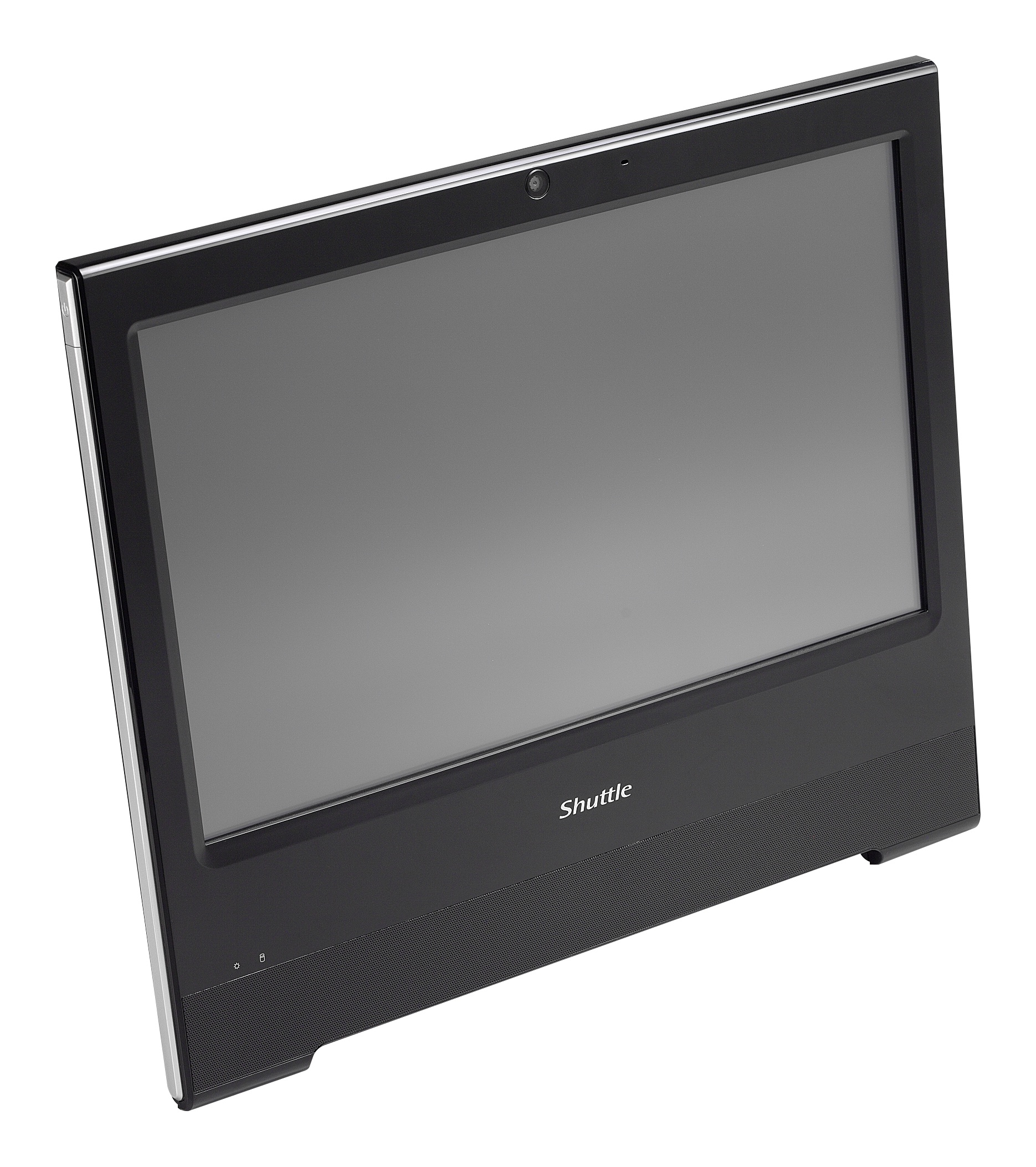

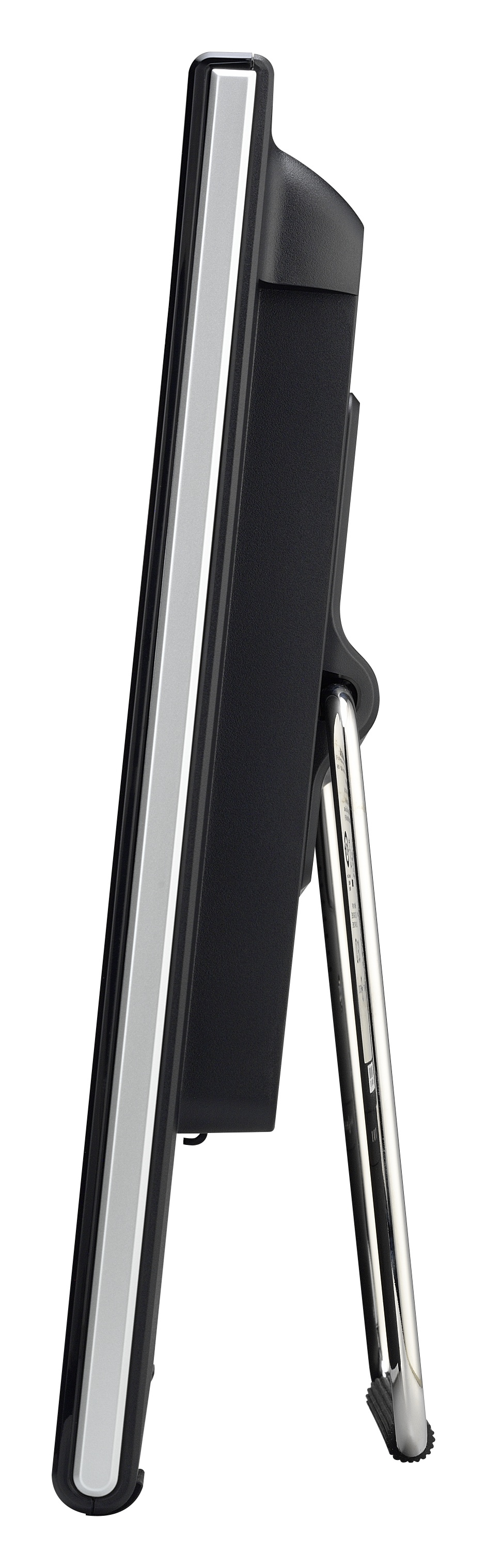

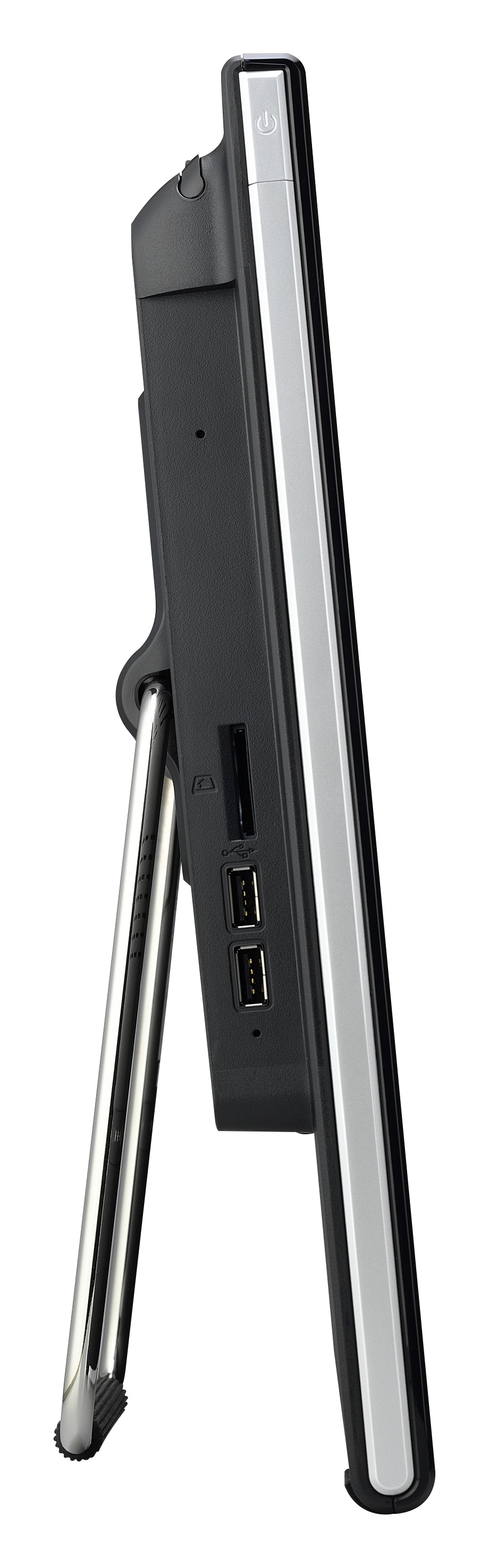

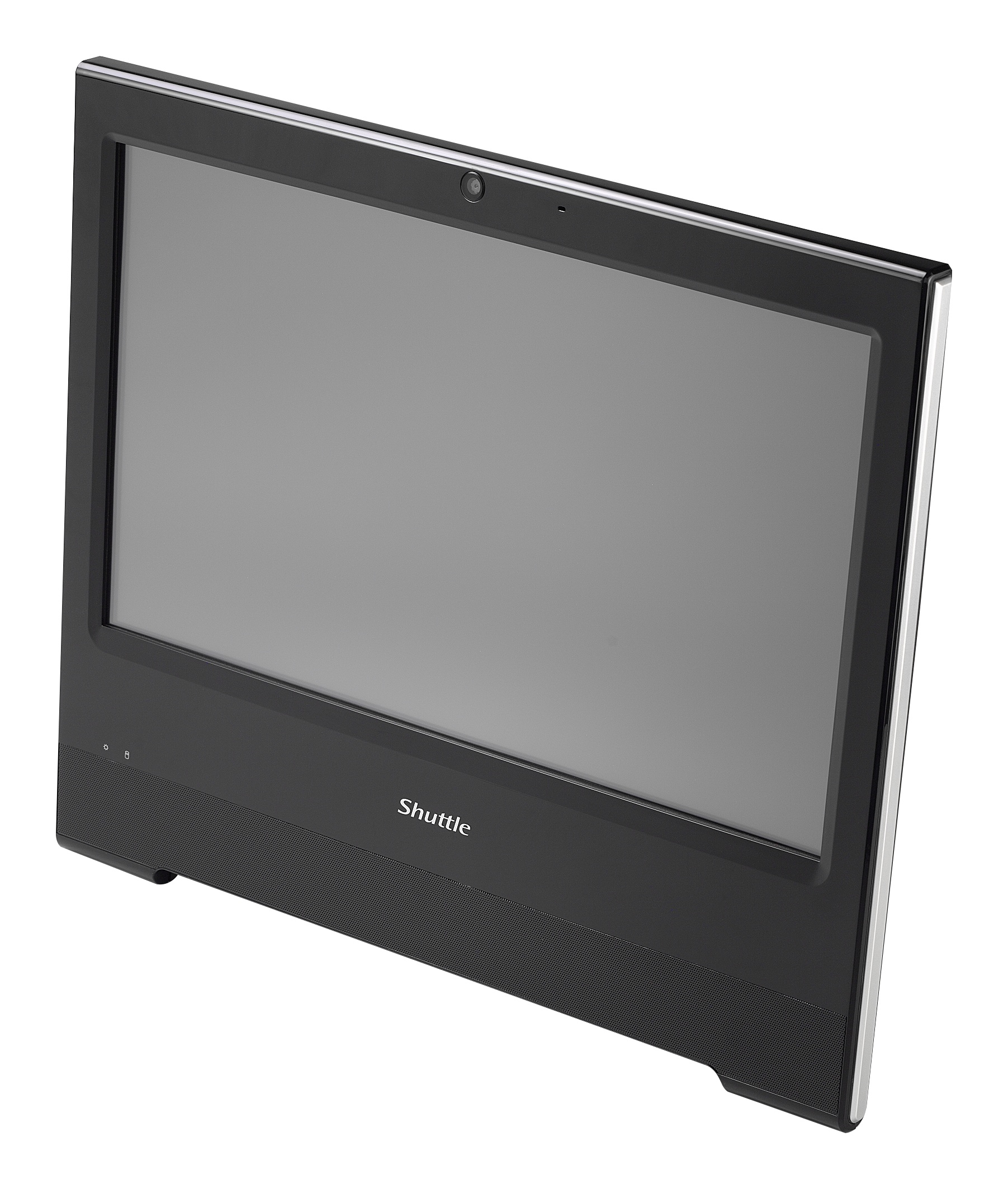

XPC X5060TA Intel® Celeron® 3865U
39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR4-SDRAM 500 GB HDD Windows 10 Home Wi-Fi 4 (802.11
Model X5060TAPart no. PAT-X0506TA2EAN 4046047103232
154 specifications
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Shuttle
- Category
- All-in-One PCs/Workstations
- Model
- X5060TA
- Part number
- PAT-X0506TA2
- EAN / UPC
- 4046047103232
- Also known as
- Shuttle XPC X5060TA Intel® Celeron® 3865U 39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR4-SDRAM 500 GB HDD Windows 10 Home Wi-Fi 4 (802.11
Specifications
154 specifications in 21 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| HD type | HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
| Screen shape | Flat |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 3865U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 10 W |
| Bus type | OPI |
| Maximum number of PCI Express lanes | 10 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 2.0 |
| Processor codename | Kaby Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Tjunction | 100 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory form factor | DIMM/SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 610 |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x5906 |
| On-board graphics card OpenGL version | 4.4 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio chip | Realtek ALC269 |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 2 MP |
| Camera resolution | 1600 x 1200 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Wall mountable | Yes |
| Country of origin | China |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 96507 |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 391 mm |
| Depth (with stand) | 42 mm |
| Height (with stand) | 327 mm |
| Weight (with stand) | 3.6 kg |
| Package weight | 4.8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, BSMI, CB, BSMI, ETL |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
| Drivers included | Yes |
| Power cord included | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| AC adapter output current | 3.42 A |
| Autonomy mode | No |
| Detachable display | No |
