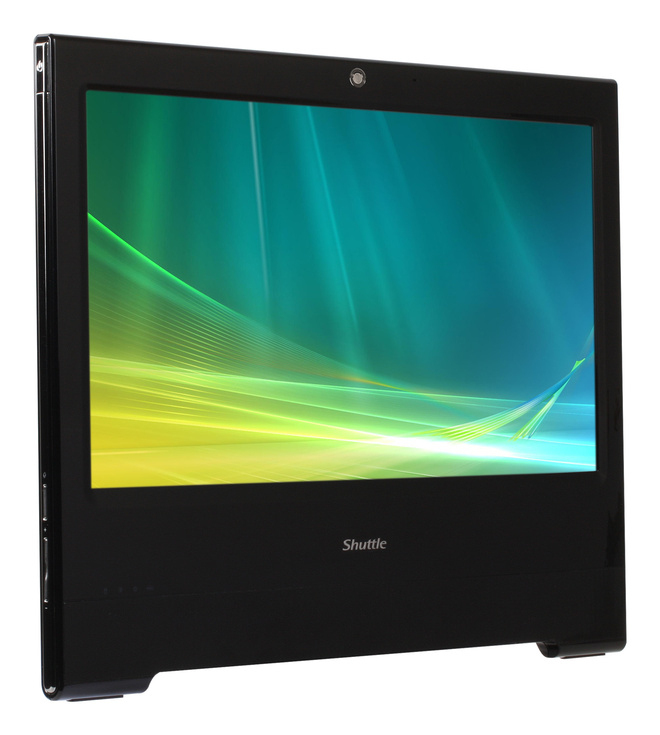

Shuttle X500VA Black

Model X500VA BlackPart no. X500VA-BLACK

104 specifications

Overview

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: X500VA Black
Part number: X500VA-BLACK
Also known as: Shuttle X500VA Black Intel Atom® 330 39.6 cm (15.6") 1366 x 768 pixels 2 GB DDR2-SDRAM 160 GB Intel® GMA 950 Linux

104 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	330
Processor cores	2
Processor threads	4
Processor frequency	1.6 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 437
Thermal Design Power (TDP)	8 W
Bus type	FSB
CPU multiplier (bus/core ratio)	12
FSB Parity	No
Number of Processing Die Transistors	94 M
Processing Die size	52 mm²
Processor code	SLG9Y
Processor core voltage (AC)	1.25 - 1.40 V
Processor front side bus	533 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Stepping	C0
Tcase	85.2 °C
Tjunction	100 °C
Conflict-Free processor	No
ECC supported by processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Specification	Value
Discrete graphics card model	Intel® GMA 950
On-board graphics card	Yes

Specification	Value
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes

Specification	Value
Motherboard chipset	Intel® 945GC Express

Specification	Value
Operating system installed	Linux

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	35641
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Certification	UL TÜV, CB, BSMI CE, FCC, BSMI, C-tick

Specification	Value
Audio output channels	5.1 channels
Chassis type	All-in-One
Display	LCD
Display included	Yes
Graphics card RAMDAC	533 MHz
Line-in	Yes
Line-out	Yes
Maximum graphics card memory	224 MB
Networking features	Realtek 8111C Gigabit Ethernet
PCI Express x1 slots	1
Parallel ports quantity	0
Power requirements	100~240V AC, 1.5A, 50~60Hz
Wireless technology	802.11 b/g/n
