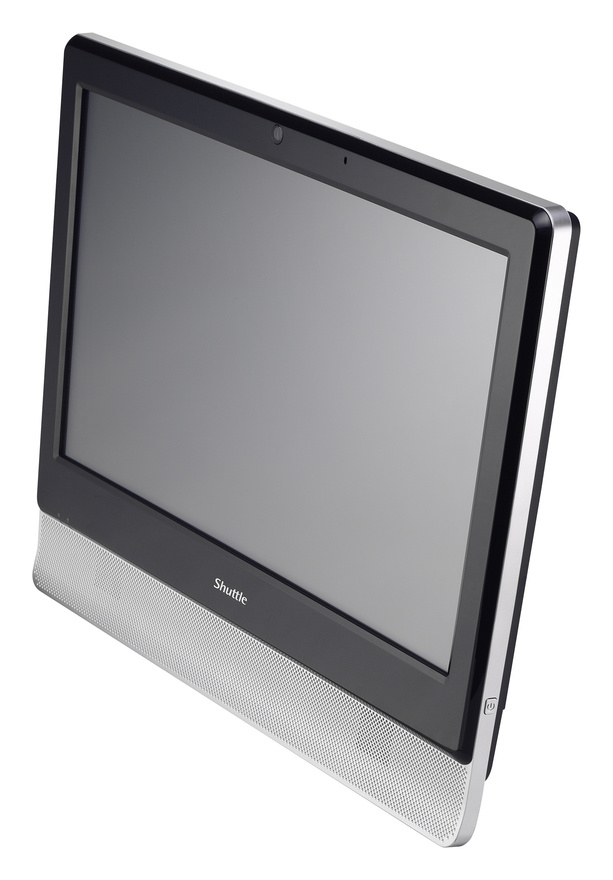

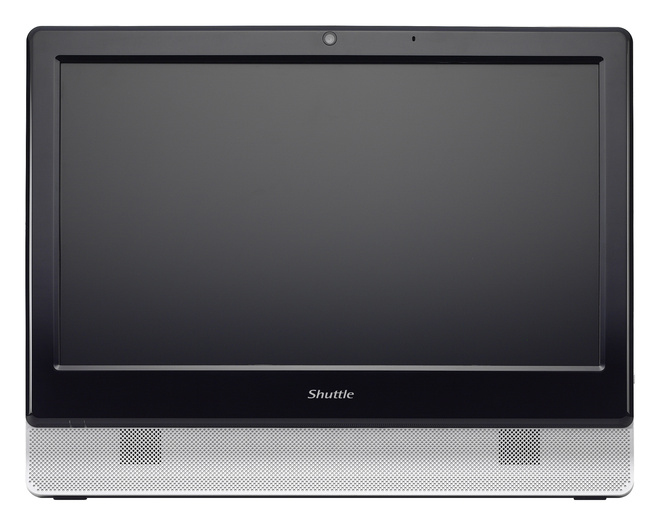

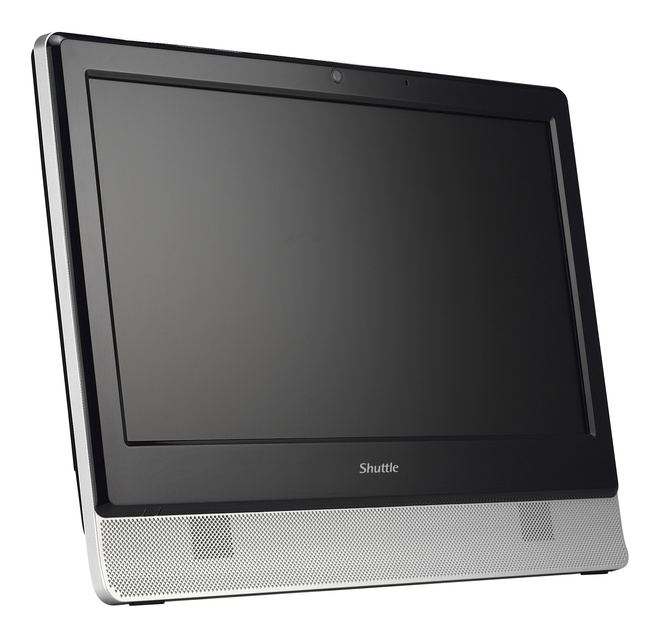

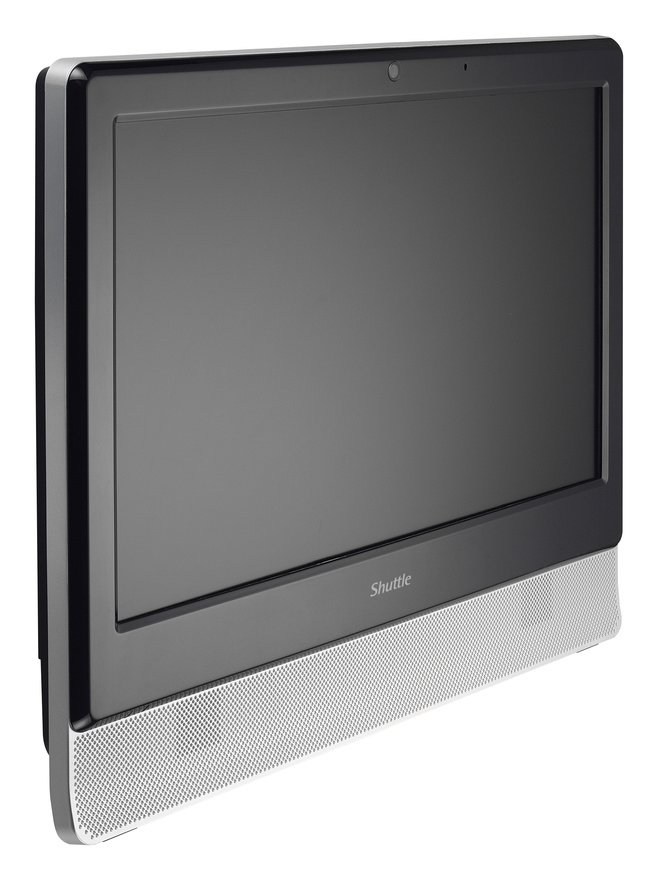

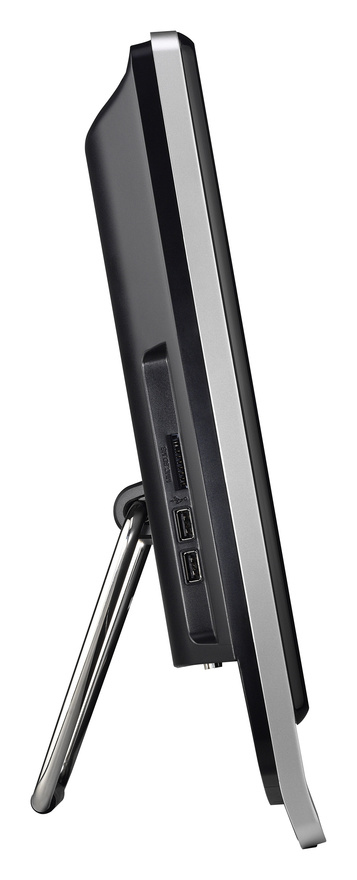

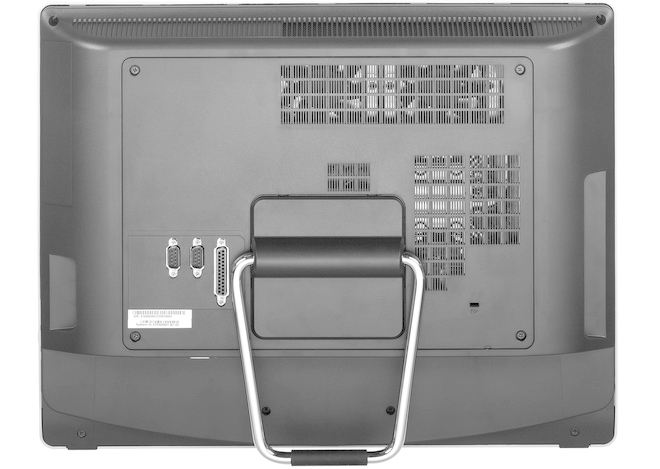

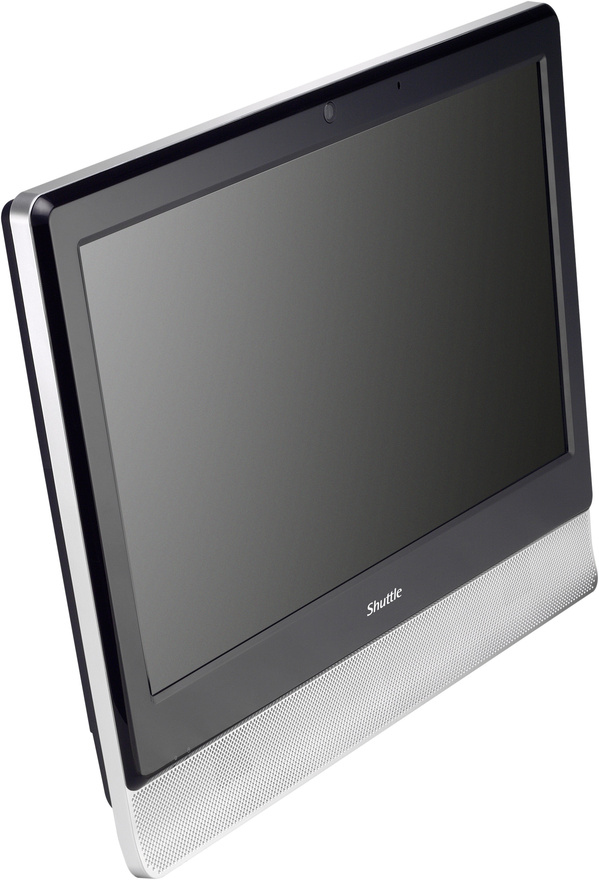

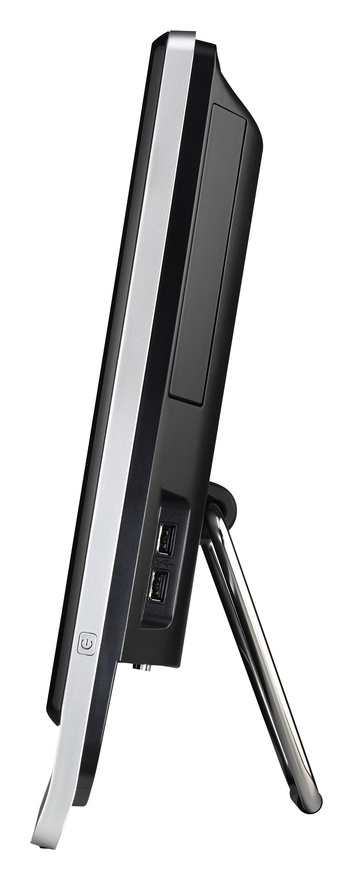

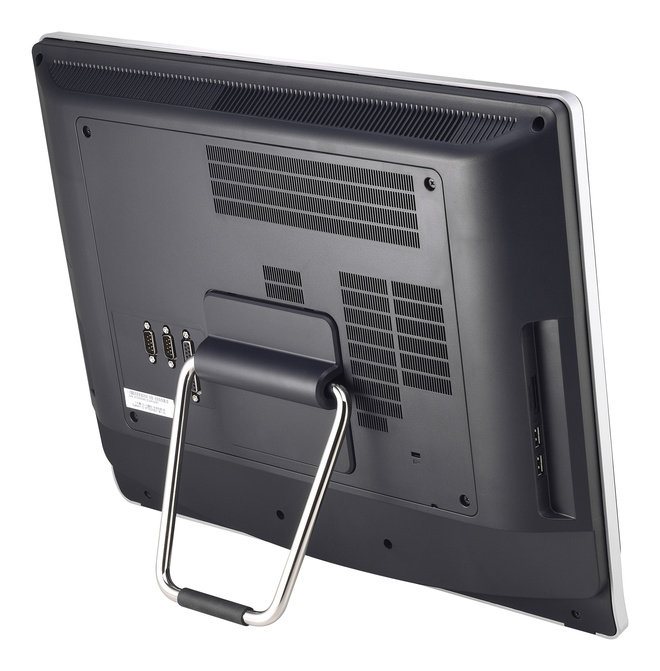

Shuttle X 7000XA

Model X 7000XAPart no. X 7000 XAEAN 4046047102594

141 specifications

Display47 cm (18.5")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: X 7000XA
Part number: X 7000 XA
EAN / UPC: 4046047102594
Also known as: Shuttle XPC X 7000XA Intel® Core™ i3 i3-3220 47 cm (18.5") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Black

Specifications

141 specifications in 19 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	Not supported
Full HD	No
LED backlight	Yes
Touch technology	Single-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-3220
Processor cores	2
Processor threads	4
Processor frequency	3.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	55 W
Bus type	DMI
CPU multiplier (bus/core ratio)	33
FSB Parity	No
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-3200 Desktop Series
Tcase	65.3 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD interface	SATA
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card ID	0x152

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP
Camera resolution	1600 x 1200 pixels

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Serial ports quantity	1

Design

Specification	Value
Product colour	Black
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H61 Express

Software

Specification	Value
Operating system installed	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65693
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V

Weight & dimensions

Specification	Value
Width (with stand)	468 mm
Depth (with stand)	57 mm
Height (with stand)	364 mm

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	10 - 90 °C

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, FCC, BSMI, C-Tick, CCC, CB, BSMI, ETL, Eup Lot6

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
AC adapter included	Yes
Cables included	AC
Drivers included	Yes
Power cord included	Yes
Quick start guide	Yes

Other features

Specification	Value
AC adapter output current	6.32 A
Storage drive interface	Serial ATA
TV tuner integrated	No
