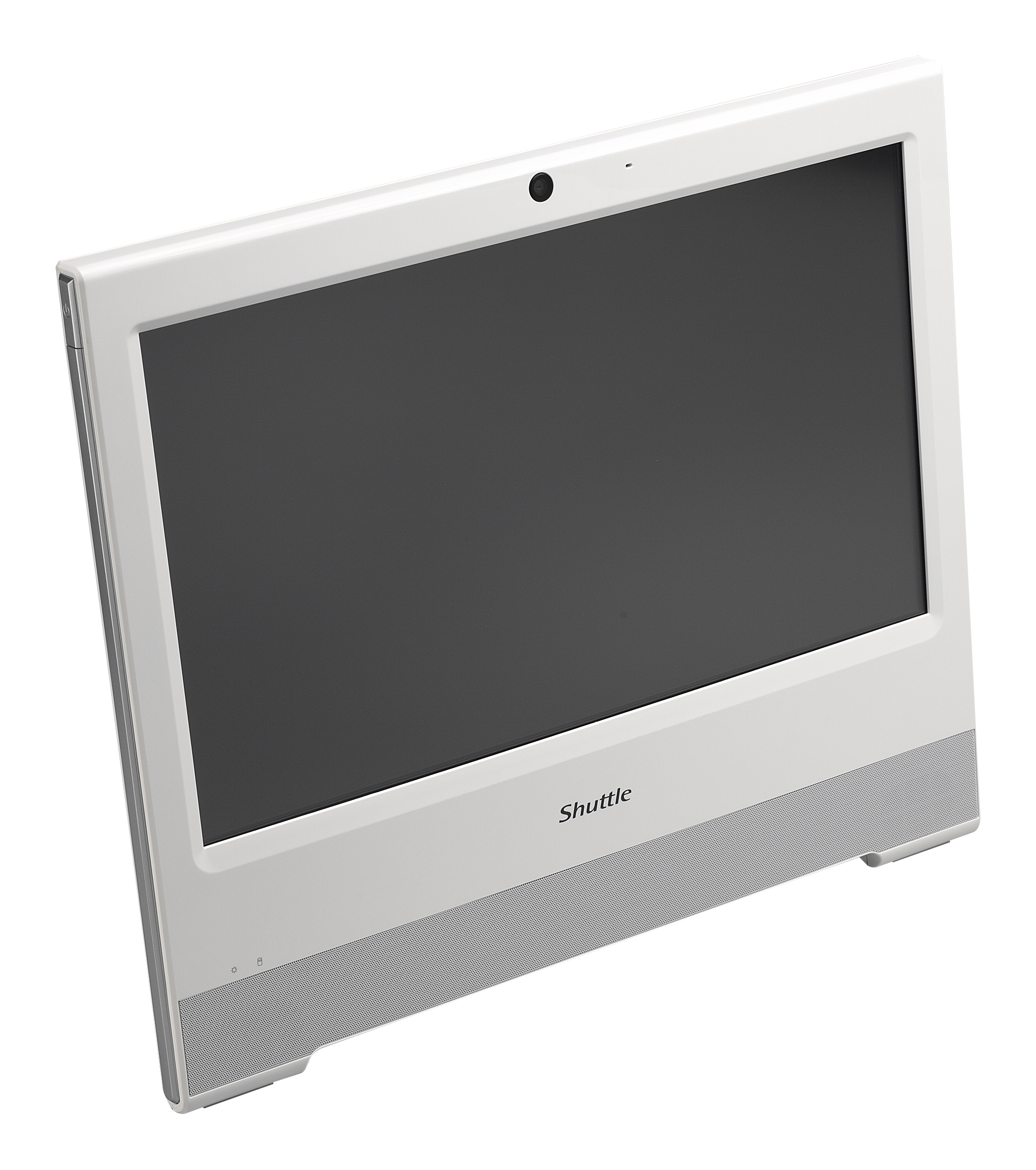

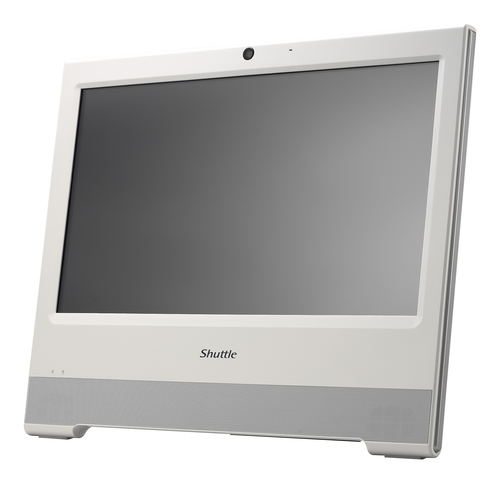

Shuttle X 5040VA

Model X 5040VAPart no. X 5040VA (WHITE)EAN 4046047102969

162 specifications

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory4 GB
Storage60 GB
TypeAll-in-One PC

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 4 GB
Storage: 60 GB
Type: All-in-One PC

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: X 5040VA
Part numbers: X 5040VA (WHITE), X 5040VA (BLACK)
EAN / UPC: 4046047102969, 4046047102976
Also known as: Shuttle XPC X 5040VA Intel® Celeron® 2957U 39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 60 GB SSD Ubuntu Linux White

Specifications

162 specifications in 20 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	Not supported
Full HD	No
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	2957U
Processor cores	2
Processor threads	2
Processor frequency	1.4 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
System bus rate	5 GT/s
Thermal Design Power (TDP)	15 W
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	10
PCI Express configurations	4x1, 1x4
PCI Express slots version	2.0
Processor code	SR1DV
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 2000 Series for Mobile
Stepping	D0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	60 GB
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD interface	SATA
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
Total number of SATA connectors	2
Number of SATA III connectors	2

Design

Specification	Value
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
BIOS password	Yes

Software

Specification	Value
Operating system installed	Ubuntu Linux

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	78942
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	Yes

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V

Weight & dimensions

Specification	Value
Width (with stand)	391 mm
Depth (with stand)	42 mm
Height (with stand)	327 mm

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 90%

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	FCC, BSMI, C-Tick, CB, BSMI, ETL, CCC

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
AC adapter included	Yes
Cables included	SATA
Drivers included	Yes
Power cord included	Yes
Quick start guide	Yes

Other features

Specification	Value
AC adapter output current	1.6 A
Autonomy mode	No
Detachable display	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Storage drive interface	Serial ATA
