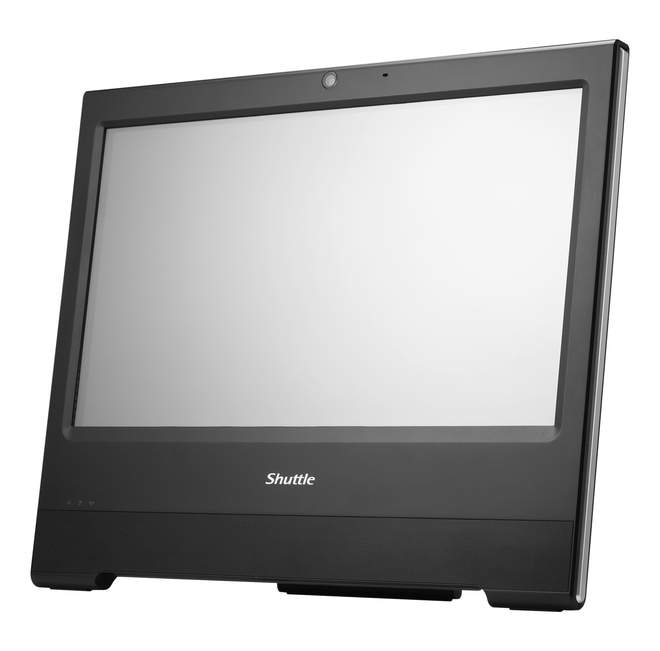

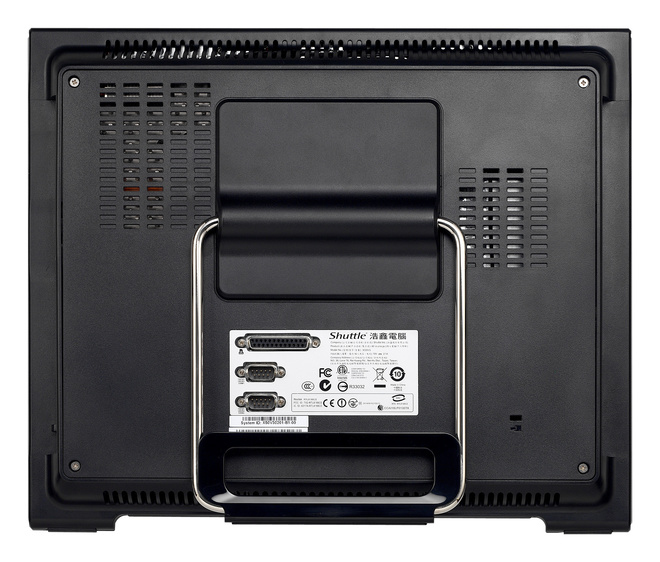

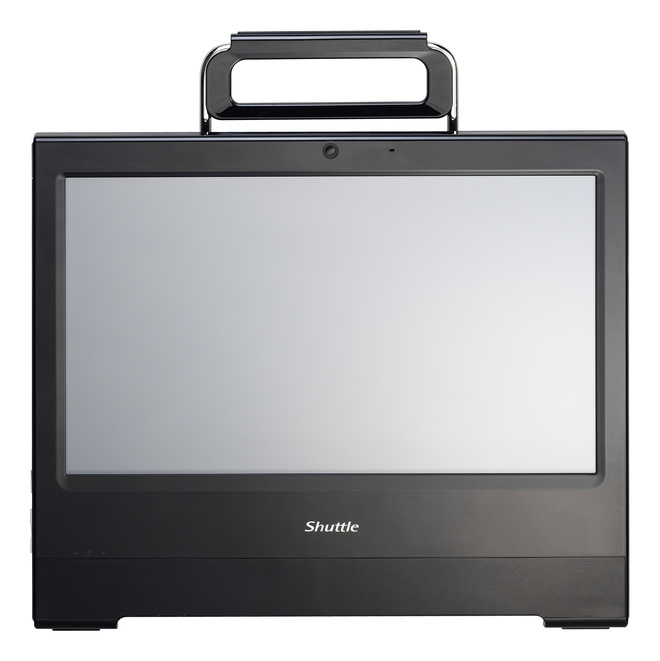

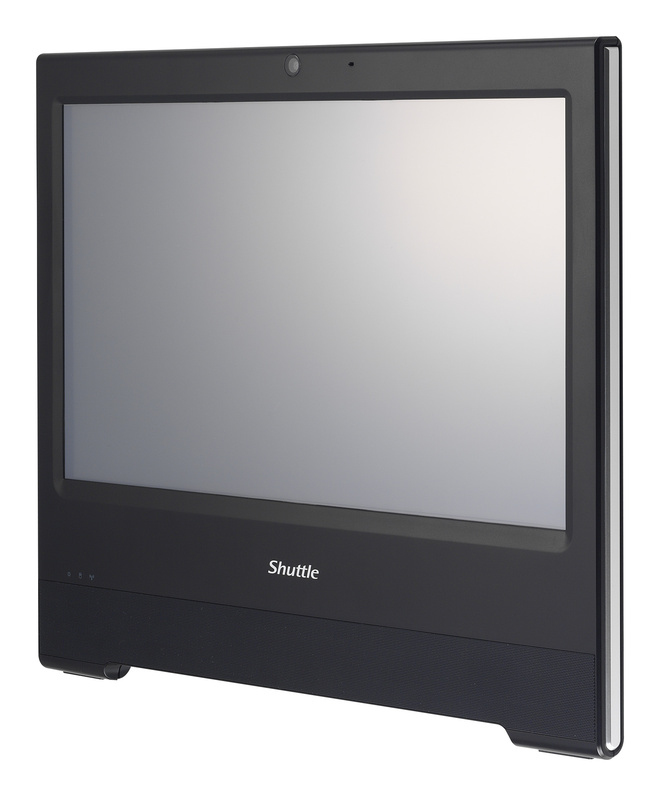

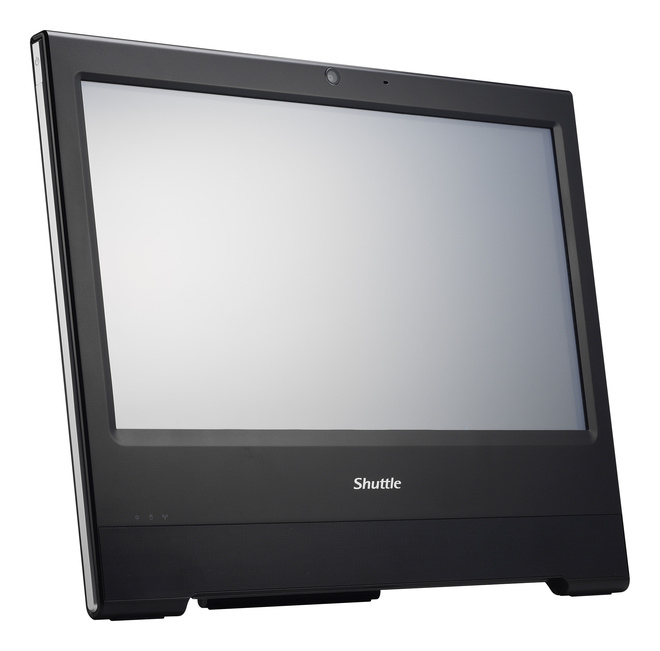

X 5030TA

Model X 5030TAPart no. X 5030TA (Black)

144 specifications

Overview

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: X 5030TA
Part number: X 5030TA (Black)
Also known as: Shuttle X 5030TA Intel Atom® D2700 39.6 cm (15.6") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black

144 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor cores	2
Processor threads	4
Processor frequency	2.13 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	4
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Atom D2700 Series
Stepping	B2
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	320 GB
HDD size	2.5"
HDD interface	SATA
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	640 MHz

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Total number of SATA connectors	2

Specification	Value
Product colour	Black
Cable lock slot	Yes

Specification	Value
Motherboard chipset	Intel® NM10 Express

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	32-bit

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel ME Firmware Version	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	59683
Processor package size	22 X 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 90%

Specification	Value
Compliance certificates	RoHS
Certification	CE, FCC, BSMI, C-Tick, CCC

Specification	Value
Graphics card family	Intel
AC adapter output current	2.1 A
Compatible operating systems	Windows 7 32-bit
Ethernet interface type	Gigabit Ethernet
Floppy drive installed	No
HDMI	Yes
Headphone connectivity	3.5 mm
Mac compatibility	No
Microphone connectivity	3.5 mm
Networking features	Gigabit Ethernet, WLAN
Number of processors installed	1
Power supply type	AC/DC
Safety	CB, BSMI, ETL
Storage drive interface	Serial ATA
USB connector type	USB Type-A
